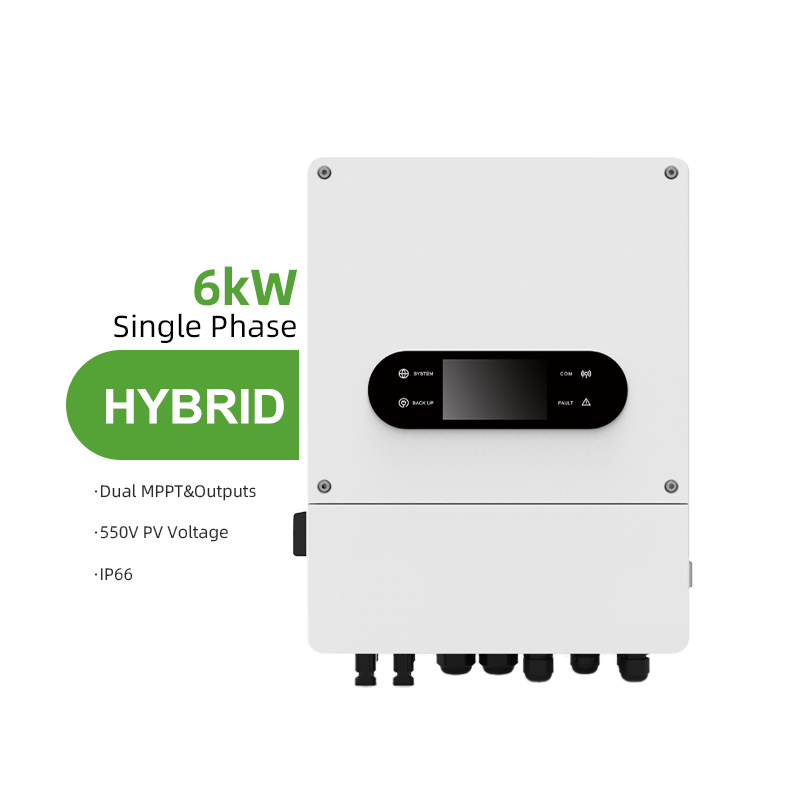

Waterproof IP66 6kW Hybrid Off-Grid Solar Inverter AEP-6KP1-D5, Dual Independent MPPT 500VDC PV Input For Villa & Household Emergency Solar Power

Outdoor Heavy-Duty Dual MPPT Hybrid Solar Inverter Full IEC Certification, 125A Rapid Battery Charge, Workable -40℃ to 60℃ Extreme Climate, Dual Grid & Generator Backup Power, 5-Year Direct Factory OEM Warranty

MINVON AEP-6KP1-D5 6kW IP66 Waterproof Hybrid Solar InverterThe MINVON AEP-6KP1-D5 is a heavy-duty 6kW IP66 all-in-one hybrid solar inverter, custom-engineered for luxury residential villas, small commercial shops and off-grid energy storage projects...

MODEL	AEP-6KP1-D5
Battery Input
Max. Discharging Current	135A
Charging Strategy for Lithium Battery	Self-adaptive Battery Management System
Battery Voltage	48VDC
Max. Charging Current	125A
Battery Type	Lithium/ Lead-acid
Number of Battery Inputs	1
AC Input / Output
Rated AC Input/Output Active Power	6000W
Max. AC Input/Output Apparent Power	6600VA
Peak Power (Off-grid)	>200%,15sec
Rated AC Input/Output Current	27.3/26.1A
Max. AC Input/Output Current	30/28.7A
Max. Continuous AC Bypass (Grid to Load)	40A
PV Input
Max. DC Input Power	12000W
Operating Voltage Range	150~450V
Number of MPPT Trackers	1+1
Max. DC Input Voltage	500V
Start-up Voltage	125V
Max. Input Current	20/20A
Efficiency
Max. Efficiency	97.6%
MPPT Tracking Efficiency	＞99%
Physical
Protection Degree	IP66
Dimension (WHD)	338480205mm
Net Weight (kgs)	13kg
Communication Interface	GPRS / WiFi / Bluetooth / 4G / LAN (optional)
Cooling Type	ntelligent Forced Air Cooling
Operating Environment
Humidity	0% to 100% (Non-condensing)
Altitude	≤4000m (derating above 2000m)
Operating Temperature	-40℃~+60℃(derating above 45°C)

1. Luxury Villa Solar Energy Storage System

Tailored for high-end private villas. Store surplus solar energy in batteries to power daily life at night, and deliver instant uninterrupted backup power once the municipal grid suffers blackouts.

2. Solar Power Projects for Small Commercial Shops & Offices

Ideal for retail stores, cafes and small processing workshops. Greatly slash regular grid electricity bills while providing steady power for office devices, indoor lighting and air conditioning units.

3. Off-Grid Power for Remote Rural & Mountainous Regions

Perfect for countryside villages, agricultural farms and tourist lodges with no reliable public grid access. Build a self-sufficient power ecosystem by matching solar panels with storage batteries.

4. Emergency Dual-Backup Power for Homes & Commercial Premises

Compatible with diesel generators to form a dual backup power system. Prevent property losses caused by sudden outages for business machinery, inventory equipment and vital household appliances.

5. Global Wholesale & OEM Private Label Cooperation

Complete certified export solution for solar distributors and importers across Pakistan, Turkey, the Middle East and Southeast Asia. Full brand customization is supported, with compliant certifications to guarantee smooth customs clearance without detention risks.

1. Heavy-Duty Outdoor Safety & Extreme Climate Adaptability

✅ IP66 fully waterproof and dustproof housing, supports direct outdoor mounting — no extra protective cabinet required to cut installation costs

✅ Intelligent forced air cooling system ensures reliable stable operation under extreme temperatures ranging from -40℃ to 60℃

✅ Comprehensive multi-layer safety protection: overcharge, over-discharge, overvoltage, overload and short-circuit prevention to safeguard batteries and loads

✅ Fully certified with IEC 62109 & IEC 61727 standards, hassle-free for global customs clearance and local grid registration

2. Ultra-High Efficiency Power Conversion Performance

✅ Dual independent MPPT solar trackers with tracking efficiency up to 99%, supporting max 500VDC PV open-circuit input voltage

✅ Peak conversion efficiency reaches 97.6%, drastically cutting energy waste and maximizing daily solar harvest

✅ Max 125A bidirectional fast charge & discharge current, universally compatible with all 40–60V LiFePO4 lithium and lead-acid battery banks

✅ 6000W continuous rated output / 6600VA apparent power, delivers 20% surge capacity to easily start heavy inductive loads such as pumps and air conditioners

3. All-in-One Multi-Energy Hybrid Integration

✅ Four-channel energy input system: Solar PV + Municipal Grid + Diesel Generator + Energy Storage Battery

✅ Auto seamless mode switching between grid-tied backup and full off-grid operation when blackouts occur

✅ Smart load priority management, automatically allocate power to vital household and commercial equipment first

✅ Built-in AC bypass circuit, which directly supplies loads via grid power with zero conversion loss

4. Flexible OEM Customization & Reliable Global After-Sales Service

✅ Complete private label OEM service: erase original factory logo and print your exclusive brand trademark

✅ Optional WiFi / Bluetooth / 4G communication modules for real-time system monitoring via mobile APP anytime anywhere

✅ Industry-leading 5-year worldwide factory warranty, full range of spare parts provided to support regional distributors’ local maintenance

✅ Low flexible trial order MOQ, consistent factory inventory and short fast production lead times

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-1

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-2

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-3

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-4

MINVON AEP-6KP1-D5 6kW IP66 Waterproof Hybrid Solar Inverter

The MINVON AEP-6KP1-D5 is a heavy-duty 6kW IP66 all-in-one hybrid solar inverter, custom-engineered for luxury residential villas, small commercial shops and off-grid energy storage projects worldwide.

Equipped with dual independent MPPT charge trackers and high-efficiency power conversion modules, this integrated unit unifies solar PV panels, lithium/lead-acid storage batteries, municipal grid and diesel generator into one complete power system, delivering consistent, uninterrupted power around the clock.

Powerful Charging for Large Battery Banks

Boasting a maximum 125A bidirectional charge & discharge current, it works flawlessly with 40–60V large-capacity LiFePO4 lithium batteries, easily supporting heavy daily household and commercial power loads.

Rugged IP66 Outdoor Construction for Extreme Environments

Featuring intelligent forced air cooling and a full IP66 waterproof & dustproof enclosure, this inverter maintains steady operation in sweltering, dusty harsh outdoor conditions. No additional protective cabinet is required to cut extra installation costs.

Global Certified & Smooth Customs Clearance

Every unit has obtained full IEC TTC safety certifications, fully meeting COC and PSI customs inspection standards for Pakistan, the Middle East, Southeast Asia and other mainstream markets. Eliminate risks of cargo detention or customs fines entirely.

Flexible OEM Service & Reliable After-Sales Support

We offer full OEM private label customization for your brand, with flexible low-MOQ trial orders available. A global 5-year factory warranty is provided, alongside complete spare parts supply for long-term maintenance.

Wide Application Scenarios

Perfect for grid-tied emergency backup power, fully off-grid remote power supply, commercial energy storage stations and standalone villa solar power systems.

It supports multi-mode remote monitoring via WiFi, Bluetooth and 4G mobile APPs. Users can view real-time PV generation data, battery SOC status and load power consumption at any time from anywhere.
