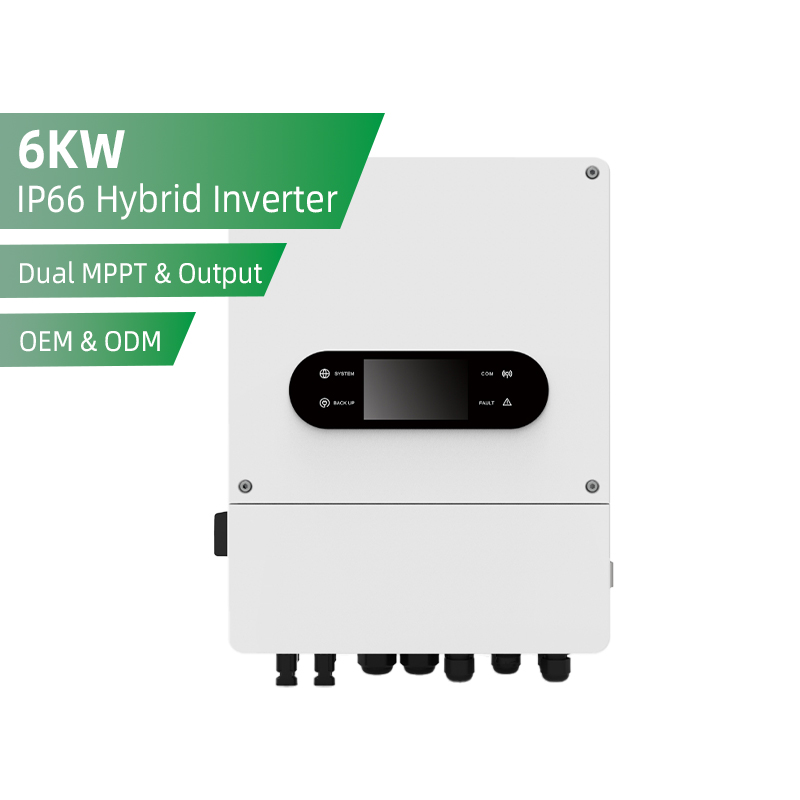

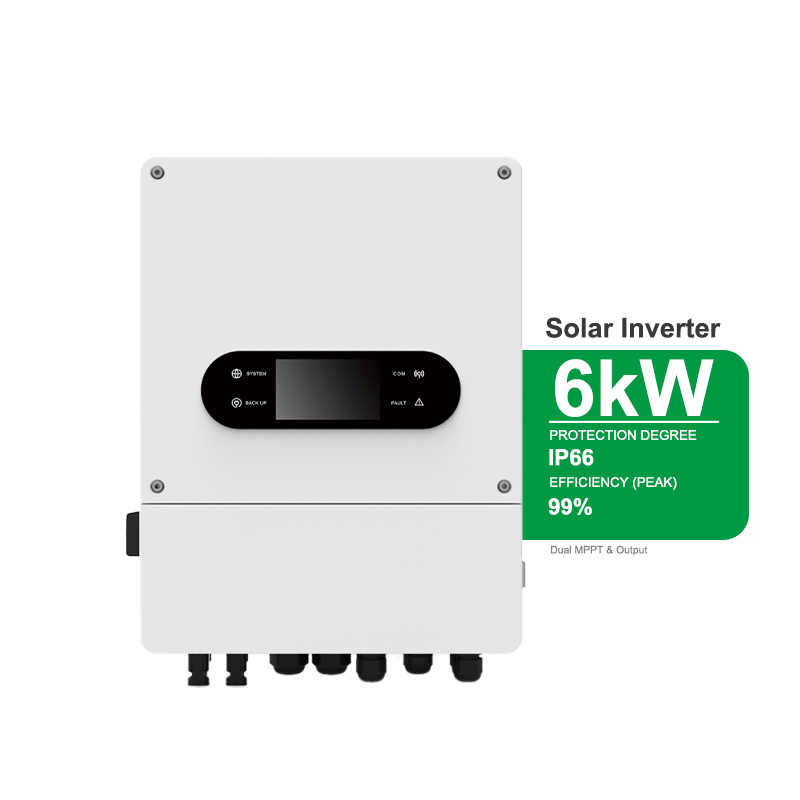

6000VA Dual MPPT Hybrid Inverter | IP66 Outdoor Grade, On/Off-Grid & Grid Bypass for Home Solar Storage
|
MODEL |
AEP-6KP1-D5 |
|
Battery Input |
|
|
Max. Discharging Current
|
135A
|
|
Charging Strategy for Lithium Battery
|
Self-adaptive Battery Management System
|
|
Battery Voltage |
48VDC |
|
Max. Charging Current |
125A
|
|
Battery Type |
Lithium/ Lead-acid |
|
Number of Battery Inputs
|
1 |
|
AC Input / Output
|
|
|
Rated AC Input/Output Active Power
|
6000W |
|
Max. AC Input/Output Apparent Power
|
6600VA
|
|
Peak Power (Off-grid)
|
>200%,15sec
|
|
Rated AC Input/Output Current
|
27.3/26.1A
|
|
Max. AC Input/Output Current
|
30/28.7A |
|
Max. Continuous AC Bypass (Grid to Load) |
40A
|
|
PV Input
|
|
|
Max. DC Input Power
|
12000W |
|
Operating Voltage Range
|
150~450V
|
|
Number of MPPT Trackers |
1+1 |
|
Max. DC Input Voltage
|
500V |
|
Start-up Voltage
|
125V
|
|
Max. Input Current
|
20/20A
|
|
Efficiency
|
|
|
Max. Efficiency |
97.6% |
|
MPPT Tracking Efficiency |
＞99%
|
|
Physical |
|
|
Protection Degree |
IP66 |
|
Dimension (W*H*D) |
338*480*205mm
|
|
Net Weight (kgs) |
13kg
|
|
Communication Interface |
GPRS / WiFi / Bluetooth / 4G / LAN (optional)
|
|
Cooling Type
|
ntelligent Forced Air Cooling
|
|
Operating Environment |
|
|
Humidity |
0% to 100% (Non-condensing)
|
|
Altitude |
≤4000m (derating above 2000m)
|
|
Operating Temperature |
-40℃~+60℃(derating above 45°C)
|
1. Dual MPPT & High PV Compatibility: Max PV voltage up to 500VDC, 202A max PV input current for larger solar array access.
2. Strong Battery Charge Capacity: 125A charge/discharge current, adaptive BMS management for LiFePO4 & lead-acid batteries.
3. IP66 Outdoor Protection: Dustproof & waterproof, intelligent air cooling for stable operation under harsh outdoor environments.

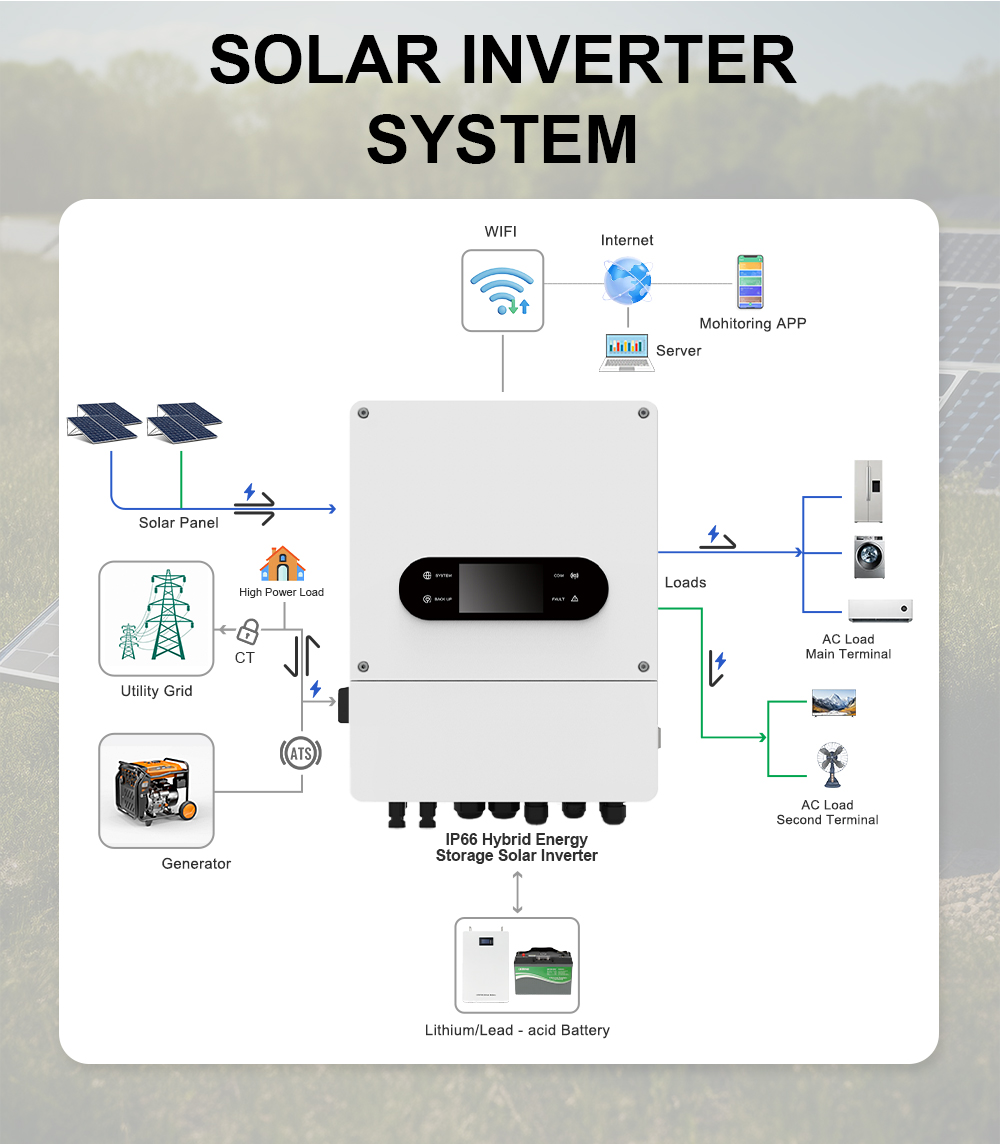

4. Multi-functional Grid Design: Grid bypass + dual AC output, realize grid peak shaving and uninterrupted power supply during blackout.
5. Flexible Remote Control: Optional WiFi/Bluetooth/GPRS for real-time mobile APP monitoring anytime anywhere.
Ideal for:
Building long-term independent photovoltaic systems
Emergency power backup during grid outages
Reducing reliance on grid electricity and lowering energy costs
Core Value Proposition
The AEP-6KP1-D5 offers a balance of performance, flexibility, and affordability.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
AEP-6KP1-D5 is a 6kW all-in-one hybrid solar inverter built for residential PV storage. Equipped with dual MPPT trackers supporting max 500VDC PV input, 125A large charge/discharge current for 40~60V lithium/lead-acid batteries. IP66 outdoor waterproof design, dual AC outputs + grid bypass function, optional WiFi/GPRS remote monitoring. Supports off-grid, grid-tied & peak shaving applications, max efficiency up to 97.6%, ideal for household rooftop solar and emergency backup power. CE/ISO/EMC/RoHS certified.
