MODEL |
AEP-6KP1-D5 |
|
Battery Input |
|
|
Max. Discharging Current
|
135A
|
|
Charging Strategy for Lithium Battery
|
Self-adaptive Battery Management System
|
|
Battery Voltage |
48VDC |
|
Max. Charging Current |
125A
|
|
Battery Type |
Lithium/ Lead-acid |
|
Number of Battery Inputs
|
1 |
|
AC Input / Output
|
|
|
Rated AC Input/Output Active Power
|
6000W |
|
Max. AC Input/Output Apparent Power
|
6600VA
|
|
Peak Power (Off-grid)
|
>200%,15sec
|
|
Rated AC Input/Output Current
|
27.3/26.1A
|
|
Max. AC Input/Output Current
|
30/28.7A |
|
Max. Continuous AC Bypass (Grid to Load) |
40A
|
|
PV Input
|
|
|
Max. DC Input Power
|
12000W |
|
Operating Voltage Range
|
150~450V
|
|
Number of MPPT Trackers |
1+1 |
|
Max. DC Input Voltage
|
500V |
|
Start-up Voltage
|
125V
|
|
Max. Input Current
|
20/20A
|
|
Efficiency
|
|
|
Max. Efficiency |
97.6% |
|
MPPT Tracking Efficiency |
＞99%
|
|
Physical |
|
|
Protection Degree |
IP66 |
|
Dimension (W*H*D) |
338*480*205mm
|
|
Net Weight (kgs) |
13kg
|
|
Communication Interface |
GPRS / WiFi / Bluetooth / 4G / LAN (optional)
|
|
Cooling Type
|
ntelligent Forced Air Cooling
|
|
Operating Environment |
|
|
Humidity |
0% to 100% (Non-condensing)
|
|
Altitude |
≤4000m (derating above 2000m)
|
|
Operating Temperature |
-40℃~+60℃(derating above 45°C)
|
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

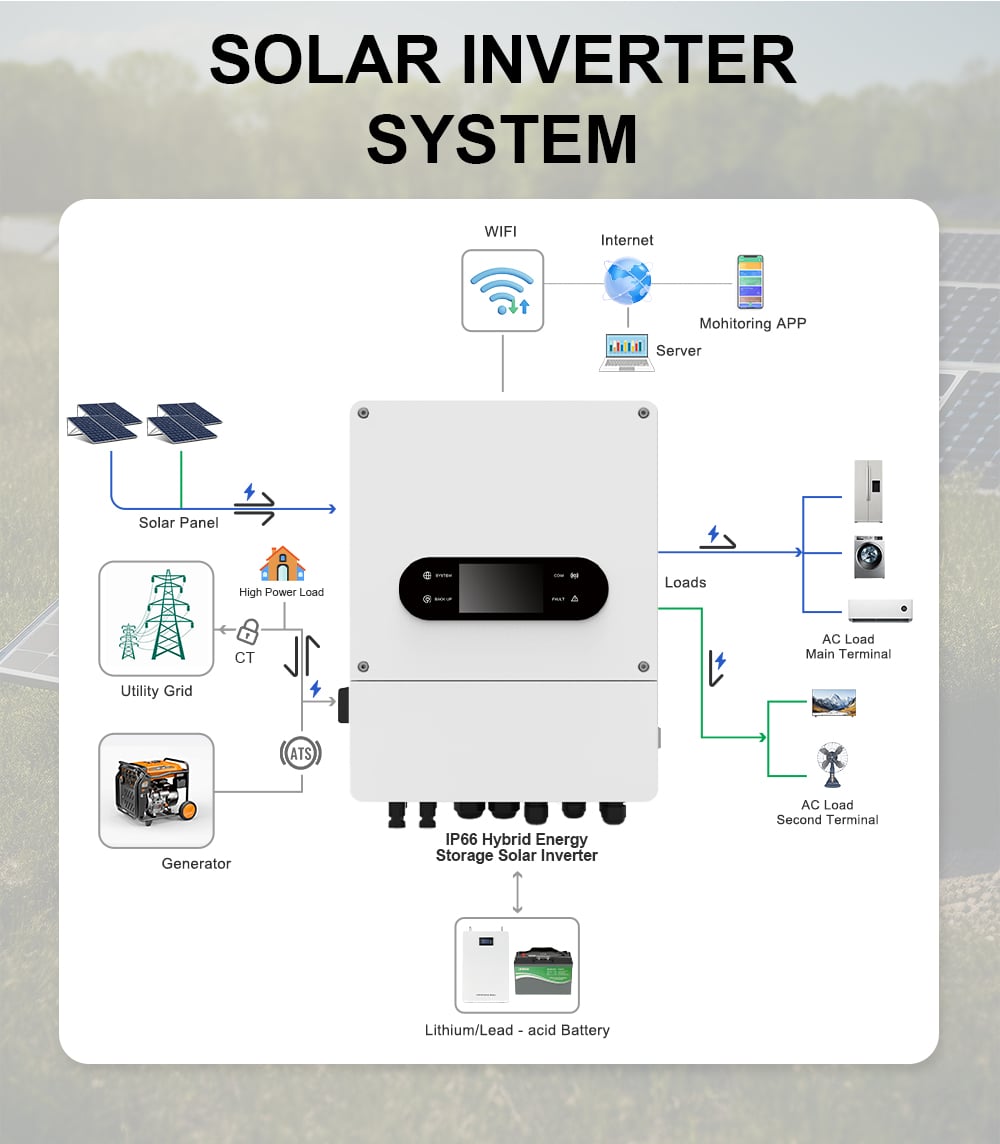

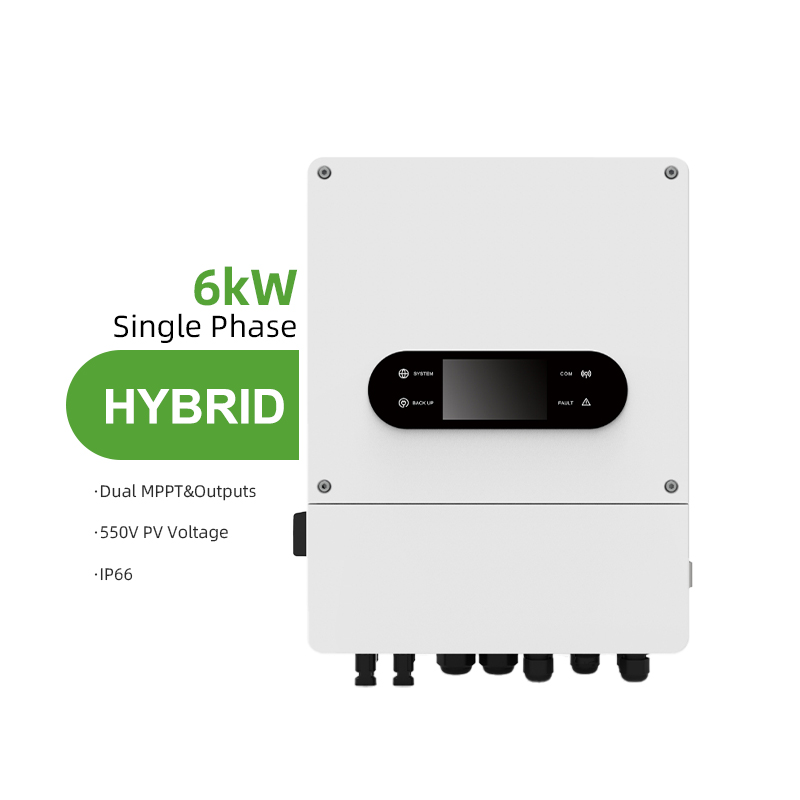

MINVON AEP-6KP1-D5 is a 6kW high-power IP66 hybrid solar inverter designed for residential villas, small commercial stores and off-grid energy storage projects. Built with dual independent MPPT trackers and high-efficiency power modules, this all-in-one hybrid unit seamlessly integrates solar PV, lithium/lead-acid battery, utility grid and diesel generator to provide stable uninterrupted power supply.
