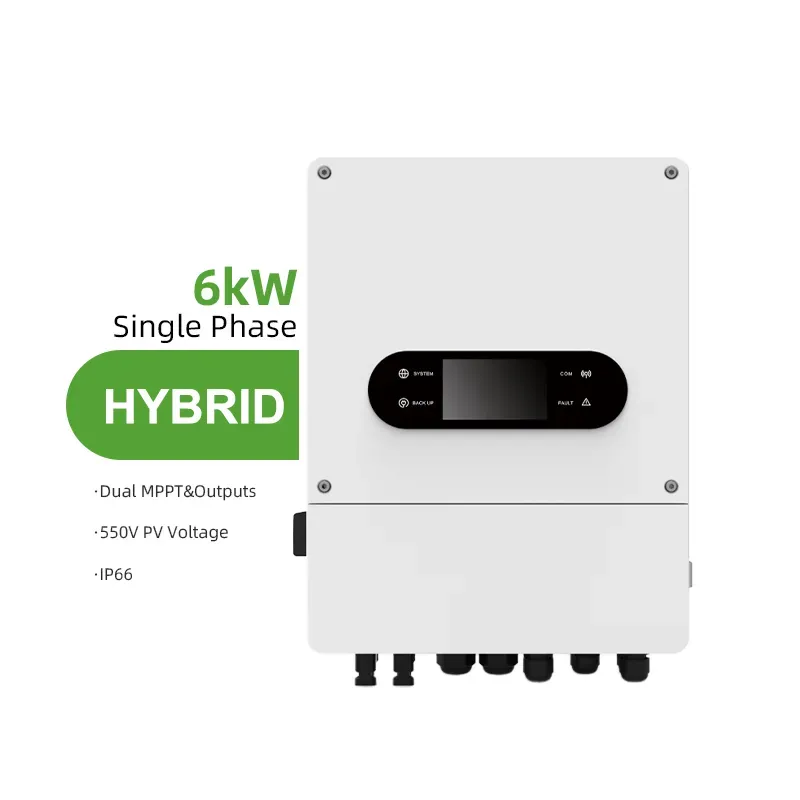

6kW 48V Hybrid Off Grid Solar Inverter IP66 Waterproof Dual MPPT Pure Sine Wave 230V Single Phase Residential Backup

IP66 Outdoor Protection, Dual MPPT Trackers, 125A Max Battery Charging, Grid and Generator Dual Backup, 48V, 230V Pure Sine Wave

MINVON AEP-6KP1-D5 6kW IP66 Hybrid Solar Inverter Heavy-duty outdoor hybrid inverter with dual MPPT. Supports solar, battery, grid and diesel generator for 24/7 power. Works with 40–60V LiFePO4 batteries for villa & small commercial loads. ...

MODEL

AEP-6KP1-D5

Battery Input

Max. Discharging Current
135A
Charging Strategy for Lithium Battery
Self-adaptive Battery Management System

Battery Voltage

48VDC

Max. Charging Current

125A

Battery Type

Lithium/ Lead-acid

Number of Battery Inputs

1

AC Input / Output

Rated AC Input/Output Active Power

6000W

Max. AC Input/Output Apparent Power
6600VA
Peak Power (Off-grid)
>200%,15sec
Rated AC Input/Output Current
27.3/26.1A
Max. AC Input/Output Current

30/28.7A

Max. Continuous AC Bypass (Grid to Load)

40A
PV Input

Max. DC Input Power

12000W

Operating Voltage Range
150~450V

Number of MPPT Trackers

1+1

Max. DC Input Voltage

500V

Start-up Voltage
125V
Max. Input Current
20/20A
Efficiency

Max. Efficiency

97.6%

MPPT Tracking Efficiency

>99%

Physical

Protection Degree

IP66

Dimension (W*H*D)

338*480*205mm

Net Weight (kgs)

13kg

Communication Interface

GPRS / WiFi / Bluetooth / 4G / LAN (optional)
Cooling Type
ntelligent Forced Air Cooling

Operating Environment

Humidity

0% to 100% (Non-condensing)

Altitude

≤4000m (derating above 2000m)

Operating Temperature

-40℃~+60℃(derating above 45°C)

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-0

  1. Luxury Villa Solar Storage Tailored for high-end private villas. Store excess solar energy for night use and provide seamless automatic backup power during grid outages, ensuring uninterrupted home power comfort.
  2. Small Business & Office Solar Solution Perfect for shops, cafes and workshops. Greatly reduce monthly electricity bills while supplying stable power for lighting, air conditioners and office equipment.
  3. Off-Grid Power for Remote Areas Ideal for farms, rural houses and mountain lodges. Build a fully self-sufficient solar power system to solve unstable or no-grid power issues.
  4. Dual Emergency Backup Power Supports diesel generator linkage to form a double backup power system. Prevent equipment downtime and economic losses caused by sudden blackouts for home and commercial use.
  5. Global Wholesale & OEM Service Fully certified for Middle East, Southeast Asia, Pakistan, Turkey and more. Smooth customs clearance, low-risk import, customizable private labeling and reliable bulk supply for solar distributors.

1. All-Weather Outdoor Durability & Safety

✅ IP66 waterproof & dustproof, direct outdoor installation, save cabinet cost

✅ Works stably at -40℃~60℃, perfect for extreme climates

✅ Full multi-protection against short circuit, overload and overheating

✅ IEC certified, global grid approval & hassle-free customs

2. High Power & Ultra-High Efficiency

✅ 99% MPPT efficiency + 97.6% peak conversion, maximize solar savings

✅ 125A fast charge/discharge, compatible with all 40–60V batteries

✅ 6kW stable output + 20% surge power, easily start heavy loads

3. 4-in-1 Hybrid Smart Energy System

✅ Supports Solar / Grid / Diesel Generator / Battery four power inputs

✅ Auto on/off-grid seamless switch for blackout emergency backup

✅ Smart load priority + AC bypass design, zero power loss

4. OEM Support & Trustworthy Global Service

✅ Full private label customization available

✅ WiFi/Bluetooth/4G remote APP real-time monitoring

✅ 5-year global warranty & sufficient spare parts

✅ Low MOQ, fast delivery & stable supply

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-1

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-2

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-3

6000w hybrid solar inverter 48v 125a ip66 grid tie off grid with dual mppt for home storage-4

MINVON AEP-6KP1-D5 6kW IP66 Hybrid Solar Inverter Heavy-duty outdoor hybrid inverter with dual MPPT. Supports solar, battery, grid and diesel generator for 24/7 power. Works with 40–60V LiFePO4 batteries for villa & small commercial loads. IP66 waterproof/dustproof, no extra cabinet needed. IEC certified, meets COC & PSI requirements. Low MOQ OEM, 5-year global warranty. Remote monitoring via WiFi/Bluetooth/4G APP.
