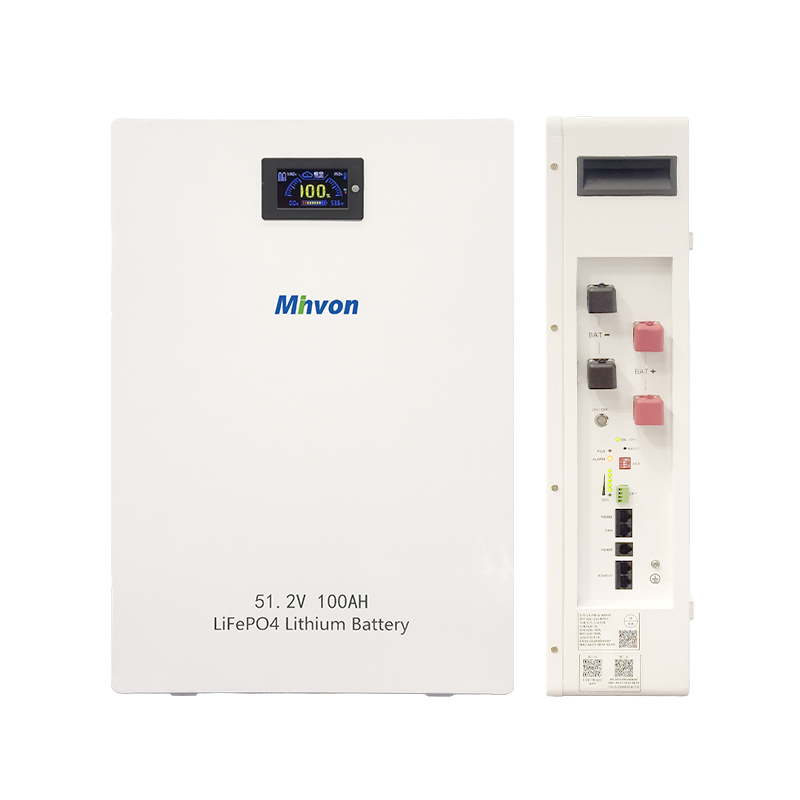

Premium 5.12kWh 51.2V Wall-Mounted LiFePO4 Battery | Slim Wall-Hung Layout, Advanced Built-In BMS, Expandable Parallel Function, Reliable Energy Storage for Household & RV Off-Grid Solar Projects
| Model |
51.2V
-100AH
|
|
Nominal Voltage
|
51.2V
|
| Nominal Capacity | 100AH |
| Nominal Energy | 5.12KWH |
| Operating Voltage Range | 42.4V~57.6V |
| MAX. Charge Current | 50A |
| MAX. Discharge Current | 100A |
| Cell Configuration | 16S1P |
| Pack Over-Voltage Protection (V) | 57.6 |
| Pack Over-Voltage Release (V) | 54.4 |
| Pack Under-Voltage Protection (V) | 42.2 |
| Pack Under-Voltage Release (V) | 48 |
| Cell Over-Voltage Protection (V) | 3.6 |
| Cell Over-Voltage Release (V) | 3.4 |
| Cell Under-Voltage Protection (V) | 2.65 |
| Cell Under-Voltage Release (V) | 2.8 |
|
Ingress Protection
|
IP20
|
| Parallel Connection | Up to 16 units |
| Communication Port | CAN,RS485 |
| Operating Temperature (Charge) | 0~50℃ |
| Operating Temperature (Discharge) | -10~55℃ |
| Storage Temperature | -20~+45℃（≤1month）0~+35℃(≤1year) |
| Humidity | 0~95%(no condensation) |
| Sea Level(m) | ≤1500 |
|
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
|
≥5000 times |

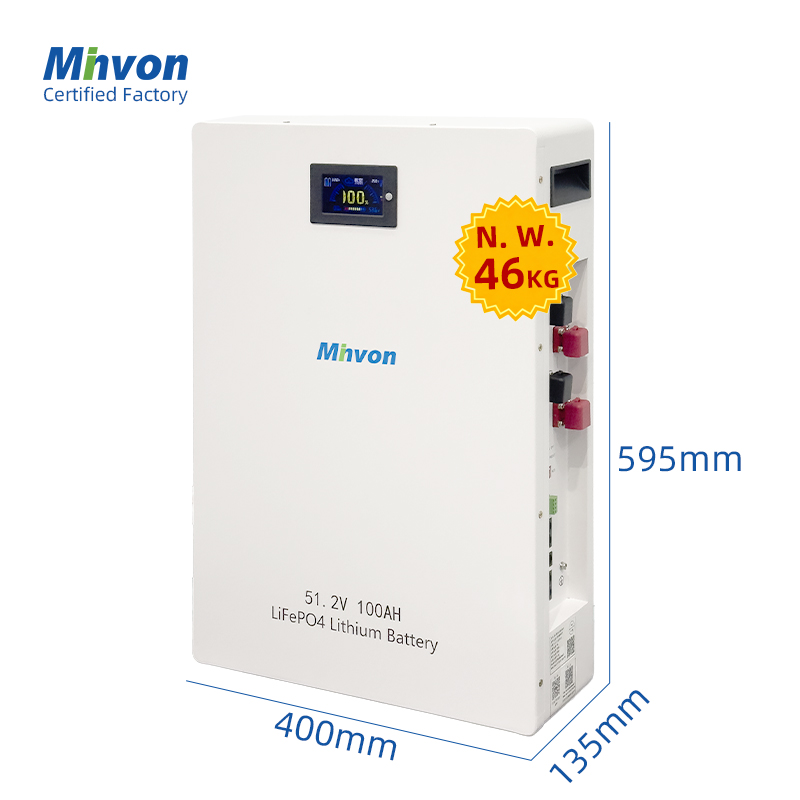

| Products Size(mm) |
640X420X160
|
| Package Size(mm) | 700X480X220 |
| NW (±3kg) | 44KG |
| GW (±3kg) | 54KG |
1. Compact 5.12kWh Mini Energy Storage Battery
51.2V 100Ah rated capacity, fully compatible with CKMINE SOL IA-S4/D1/D2/D3 48V inverters. Great for small homes, RVs and cabins with low daily power usage.
2. Slim Wall-Hung Design to Save Floor Space
Vertical ultra-thin body for wall mounting; no large floor cabinet needed, easy to install even in narrow indoor spaces.
3. Grade A Automotive LiFePO4, Long Service Life
Premium LiFePO4 cells deliver over 6,000 deep cycles, 10+ years service time, low self-discharge and safe operation without thermal runaway hazards.
4. Smart Built-In BMS All-Round Safety Protection Multi-protection
against overcharge, overdischarge, short circuit, overheat and low temp. Active cell balance prolongs battery life and protects your solar inverter.
5. Parallel Expandable & Widely Compatible
Connect multiple batteries in parallel to boost total storage capacity; works well with all 48V hybrid/off-grid inverters supporting lithium and lead-acid batteries.
1. Off-Grid Solar Storage for Rural Homes & Mountain Cabins
Store solar energy to run lights, TVs, mini fridges and daily small appliances for remote houses without grid electricity.
2. Self-Sufficient Power for RV, Camper & Outdoor Camping
Space-saving wall-mounted body easily installs on RV walls, providing independent power for outdoor trips and camping.
3. Energy Storage for Village Small Shops & Mini Workshops
Ideal low-capacity solar battery to cover daily power usage of rural retail stores and small processing workshops.
4. Blackout Emergency Backup for Houses with Unstable Grid
Reserve solar power to keep home appliances running during sudden power cuts and unstable mains supply.
5. Expandable Parallel Battery Bank for Small Solar Projects
Wire several batteries in parallel to boost total capacity, fully compatible with 3.5kW/5kW SOL IA-S4 off-grid inverters.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
Our 5.12kWh wall-hung LiFePO4 battery (51.2V 100Ah) is a space-saving storage option for small home solar setups. Fully compatible with all our 48V off-grid & hybrid inverters, it stores solar power to run daily low-wattage home devices.
Featuring a slim wall-mounted body, it avoids occupying floor space unlike big floor-standing batteries and can be mounted on walls quickly with no extra ground brackets. Built with Grade A LiFePO4 cells and smart internal BMS, it offers over 6,000 stable deep cycles for long service life.
You can connect several batteries in parallel to enlarge total storage capacity as your power demand rises. Full multi-protection functions shield the unit from abnormal voltage, current and temperature risks. Perfect for rural homes, remote cabins, RVs, camping portable power and mini off-grid solar systems.
