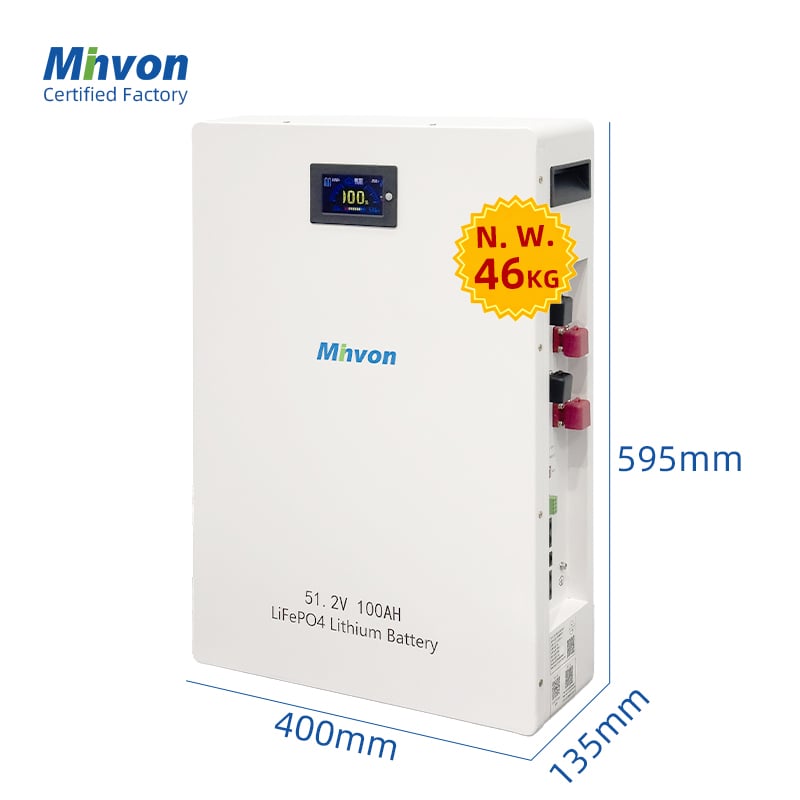

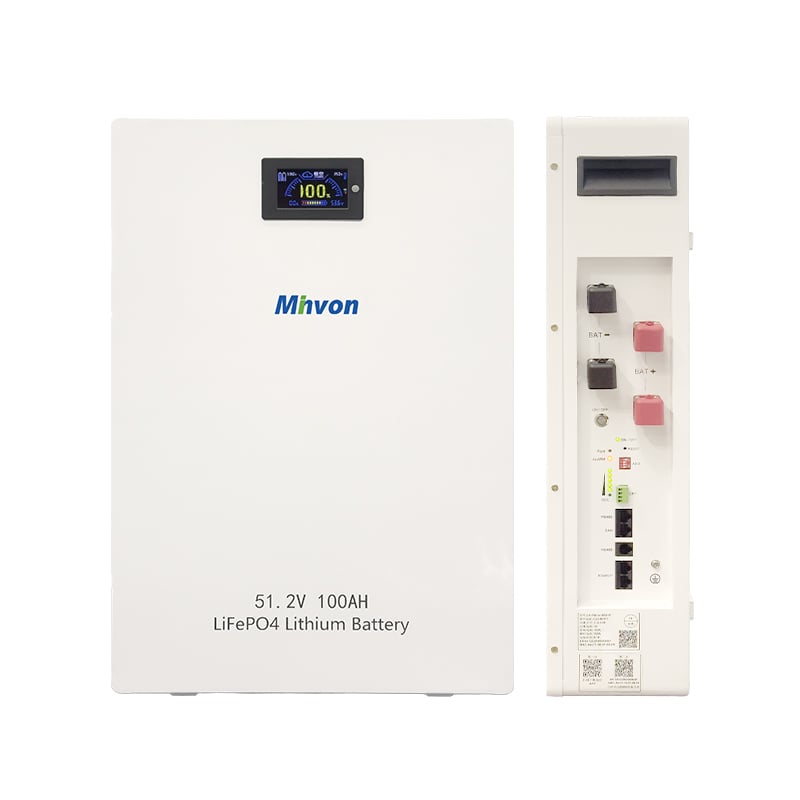

5.12kWh 51.2V Wall-Mounted LiFePO4 Battery | Compact Wall-Hung Design, Built-In Smart BMS, Parallel Expandable, Ideal For Small Home & RV Off-Grid Solar System
| Model |
51.2V
-100AH
|
|
Nominal Voltage
|
51.2V
|
| Nominal Capacity | 100AH |
| Nominal Energy | 5.12KWH |
| Operating Voltage Range | 42.4V~57.6V |
| MAX. Charge Current | 50A |
| MAX. Discharge Current | 100A |
| Cell Configuration | 16S1P |
| Pack Over-Voltage Protection (V) | 57.6 |
| Pack Over-Voltage Release (V) | 54.4 |
| Pack Under-Voltage Protection (V) | 42.2 |
| Pack Under-Voltage Release (V) | 48 |
| Cell Over-Voltage Protection (V) | 3.6 |
| Cell Over-Voltage Release (V) | 3.4 |
| Cell Under-Voltage Protection (V) | 2.65 |
| Cell Under-Voltage Release (V) | 2.8 |
|
Ingress Protection
|
IP20
|
| Parallel Connection | Up to 16 units |
| Communication Port | CAN,RS485 |
| Operating Temperature (Charge) | 0~50℃ |
| Operating Temperature (Discharge) | -10~55℃ |
| Storage Temperature | -20~+45℃（≤1month）0~+35℃(≤1year) |
| Humidity | 0~95%(no condensation) |
| Sea Level(m) | ≤1500 |
|
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
|
≥5000 times |
| Products Size(mm) |
640X420X160
|
| Package Size(mm) | 700X480X220 |
| NW (±3kg) | 44KG |
| GW (±3kg) | 54KG |
Small Rural Home & Mountain Cabin Off-Grid Solar Storage
Store solar power to supply lighting, TV, small refrigerators and daily low-power appliances for tiny remote houses
RV, Camper & Outdoor Camping Mobile Energy Supply
Compact wall-mounted size fits RV wall space, provides self-sufficient power for outdoor travel
Mini Off-Grid Workshop & Village Small Retail Shops
Meet low daily power consumption for small rural stores and tiny processing workshops
Emergency Backup Power For Urban Houses With Unstable Grid
Store solar power for short-time power outage emergency supply
Parallel Expansion Small Solar Projects
Connect multiple batteries in parallel to expand capacity, match 3.5kW/5kW SOL IA-S4 off-grid
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
