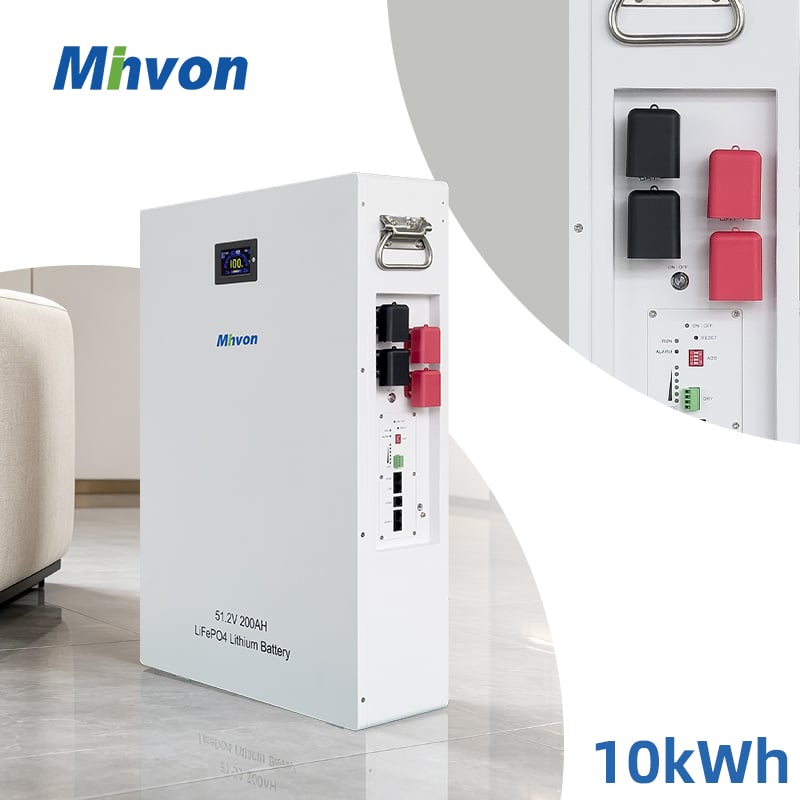

10kWh 51.2V 200Ah Wall-Mounted LiFePO4 Battery | Deep Cycle, Built-in BMS, Compatible With All 48V Hybrid Solar Inverters
| Model |
51.2V
-200AH
|
|
Nominal Voltage
|
51.2V
|
| Nominal Capacity | 200AH |
| Nominal Energy | 10.24KWH |
| Operating Voltage Range | 42.4V~57.6V |
| MAX. Charge Current | 100A |
| MAX. Discharge Current | 150A |
| Cell Configuration | 16S1P |
| Pack Over-Voltage Protection (V) | 57.6 |
| Pack Over-Voltage Release (V) | 54.4 |
| Pack Under-Voltage Protection (V) | 42.2 |
| Pack Under-Voltage Release (V) | 48 |
| Cell Over-Voltage Protection (V) | 3.6 |
| Cell Over-Voltage Release (V) | 3.4 |
| Cell Under-Voltage Protection (V) | 2.65 |
| Cell Under-Voltage Release (V) | 2.8 |
|
Ingress Protection
|
IP20
|
| Parallel Connection | Up to 16 units |
| Communication Port | CAN,RS485 |
| Operating Temperature (Charge) | 0~50℃ |
| Operating Temperature (Discharge) | -10~55℃ |
| Storage Temperature | -20~+45℃（≤1month）0~+35℃(≤1year) |
| Humidity | 0~95%(no condensation) |
| Sea Level(m) | ≤1500 |
|
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
|
≥4000 times |
| Products Size(mm) |
690X520X248
|
| Package Size(mm) | 780X670X440 |
| NW (±3kg) | 89KG |
| GW (±3kg) | 104KG |
10kWh Large Capacity, 51.2V Standard Voltage
51.2V 200Ah rated capacity, total 10kWh energy storage, perfectly match all our SOL IA-D1/D2/D3/S4 series 48V hybrid/off-grid solar inverters.
Wall Mount Space-Saving Design
Vertical wall-mounted structure, lightweight & compact, easy indoor installation, no extra rack space required for home villa use.
Grade A LiFePO4 Cells & Long Service Life
Lithium iron phosphate battery cells, over 6000 deep cycle times, service life up to 10 years, low self-discharge rate.
Smart Built-in BMS Protection System
Integrated BMS for overcharge, overdischarge, overcurrent, short circuit & high/low temperature protection to secure battery & inverter.
Wide Compatibility & Expandable
Support series & parallel connection to expand storage capacity, widely used for home solar storage, off-grid villa, farm backup power.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
Our 51.2V 200Ah 10kWh wall-mounted LiFePO4 battery is specially designed for residential solar energy storage systems. With standard 51.2V voltage, it is fully compatible with all 48V hybrid and off-grid solar inverters.
Adopting Grade A lithium iron phosphate cells, the battery achieves over 6000 cycles with stable performance. Built-in intelligent BMS offers full multi-layer safety protection to avoid damage from abnormal working conditions.
The wall-mounted compact design saves installation space, easy to mount on household walls. It supports parallel expansion for larger energy demand, ideal for home self-consumption, power outage backup, remote off-grid houses and farm solar systems.
