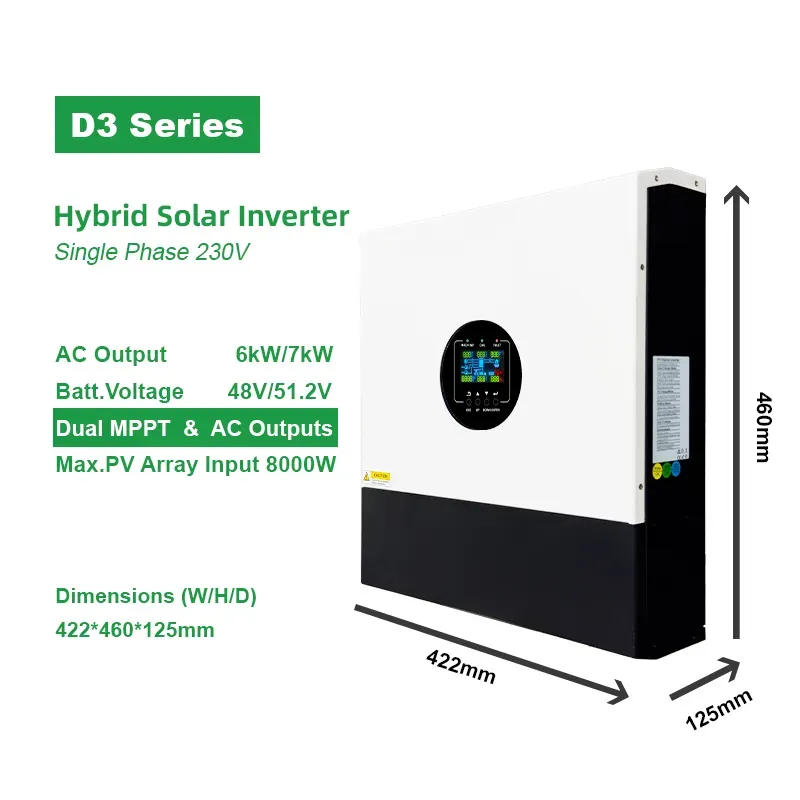

SOL IA6000-D3 / SOL IA7000-D3 Single Phase Hybrid Pure Sine Wave Inverter Built-In Solar Charger Energy Saving Standby Mode Dual MPPT Grid-Tied Off-Grid Home Energy Storage Inverter

6kW & 7kW Multi-Functional Hybrid Solar Inverter with Dual Independent MPPT Trackers, Grid Peak Shaving Function, Dual Smart Load Output, Parallel Connection Up To 9 Units and Low-Power Standby Mode for Medium Residential Solar Energy Storage Systems

MODEL	SOL IA6000-D3	SOL IA7000-D3
Max. Recommended PV Power(for module STC)	8000W	8000W
Max. DC Voltage	500V	500V
Start Voltage	80V	80V
MPPT Voltage Range	60V-450V	60V-450V
No. of MPP Trackers	2	2
No. of PV Strings per MPP Tracker	2	2
Max. Input Current per MPP Tracker	22A	22A
Output Data (AC)
AC Nominal Power	6000W	7000W
Max. AC Apparent Power	6000VA	7000VA
Nominal AC Voltage	230V	230V
AC Grid Frequency	50/60Hz	50/60Hz
Efficiency(Line Mode)	95.5%	95.5%
Output Current	26.1A	30.4A
Battery Data (DC)
Nominal DC Voltage	48V	48V
Max Charging And Discharging Current	80A	80A
Efficiency (Peak)	96.5%	96.5%
Type of Battery	Lithium/Lead-acid	Lithium/Lead-acid
Backup Power (AC)
AC nominal Output Power	6000W	7000W
Nominal AC Output Voltage	230V	230V
Nominal AC Output Frequency	50/60Hz	50/60Hz
Switch Time	10ms typical, RCD 20ms Max@ Single<30ms@ Parallel	10ms typical, RCD 20ms Max@ Single<30ms@ Parallel
General Data
Dimensions (W/H/D)	422460125mm	422460125mm
Weight	13.5kg	13.8kg
Humidity	5%~95% non-considering	5%~95% non-considering
Altitude	<2000m	<2000m
Protection degree	IP20	IP20
Communication	4G/WIFI(optional)	4G/WIFI(optional)

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-0

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-1

Expandable Parallel Connection

Allows up to 9 inverters to operate in parallel, achieving a maximum combined capacity of 63kW to satisfy growing high-power household energy storage demands.

Built-In Solar Controller & Energy-Saving Standby Mode

Integrated solar charging module eliminates extra accessories; low-power standby design effectively reduces idle energy consumption when there is no load.

Max PV Input Voltage 500VDC

Wide MPPT operating window of 60–450VDC adapts to long-string solar panels, lowering wiring loss and improving overall power generation efficiency.

Dual Independent MPPT Trackers

Two separate PV input branches suit solar panels mounted on different roof orientations to fully capture solar radiation energy.

Grid-Tied Peak Shaving Capability

Realizes peak load shifting and surplus solar self-consumption, drastically cutting users’ monthly high-peak electricity bills.

Dual AC Smart Load Output

Two independent AC output ports classify vital loads and regular household appliances, ensuring uninterrupted power supply for core equipment during grid outages.

Stable Pure Sine Wave Output

Clean 230V pure sine wave power with fast transfer time, safely running all sensitive electronics and inductive household devices without voltage damage.

Multiple Optional Communication Modules

4G and WIFI modules are available for real-time remote monitoring and parameter adjustment via mobile phone APP anytime and anywhere.

7000w hybrid solar inverter 48v with mppt charger grid tie off grid support-2

Application Scenarios

Large villa rooftop grid-connected energy storage to reduce peak electricity costs and maximize solar self-consumption
Household emergency backup power supply for regions suffering frequent grid blackouts
Off-grid independent solar power system for remote countryside estates and mountain holiday villas
Small commercial peak-shaving energy storage for shops, workshops and service stations
Medium-capacity solar storage system for farm irrigation and livestock breeding equipment

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-2

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-3

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-4

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-5

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-6

MINVON SOL IA-D3 hybrid inverter series includes 6kW and 7kW 48V single-phase models, integrating dual MPPT solar charger, grid-connected peak shaving and off-grid backup power into one compact unit. Supporting maximum 500VDC PV input voltage, it comes with energy-saving standby mode to cut idle power loss. Dual AC smart load outputs separate critical household loads from ordinary appliances to guarantee essential power supply during blackouts. Up to 9 inverters can be paralleled to reach a combined total capacity of 63kW, perfectly matching large villas and medium residential rooftop photovoltaic storage projects. Compatible with both lithium iron phosphate and lead-acid batteries, optional 4G/WIFI communication enables remote mobile APP monitoring.

SOL IA-D3 series hybrid inverter integrates dual MPPT solar charging, grid peak shaving and intelligent dual load management in one compact body. Featuring parallel expandable design, low-power standby mode and wide PV voltage compatibility, it is a cost-effective all-in-one energy storage solution for medium-to-large residential photovoltaic projects.
