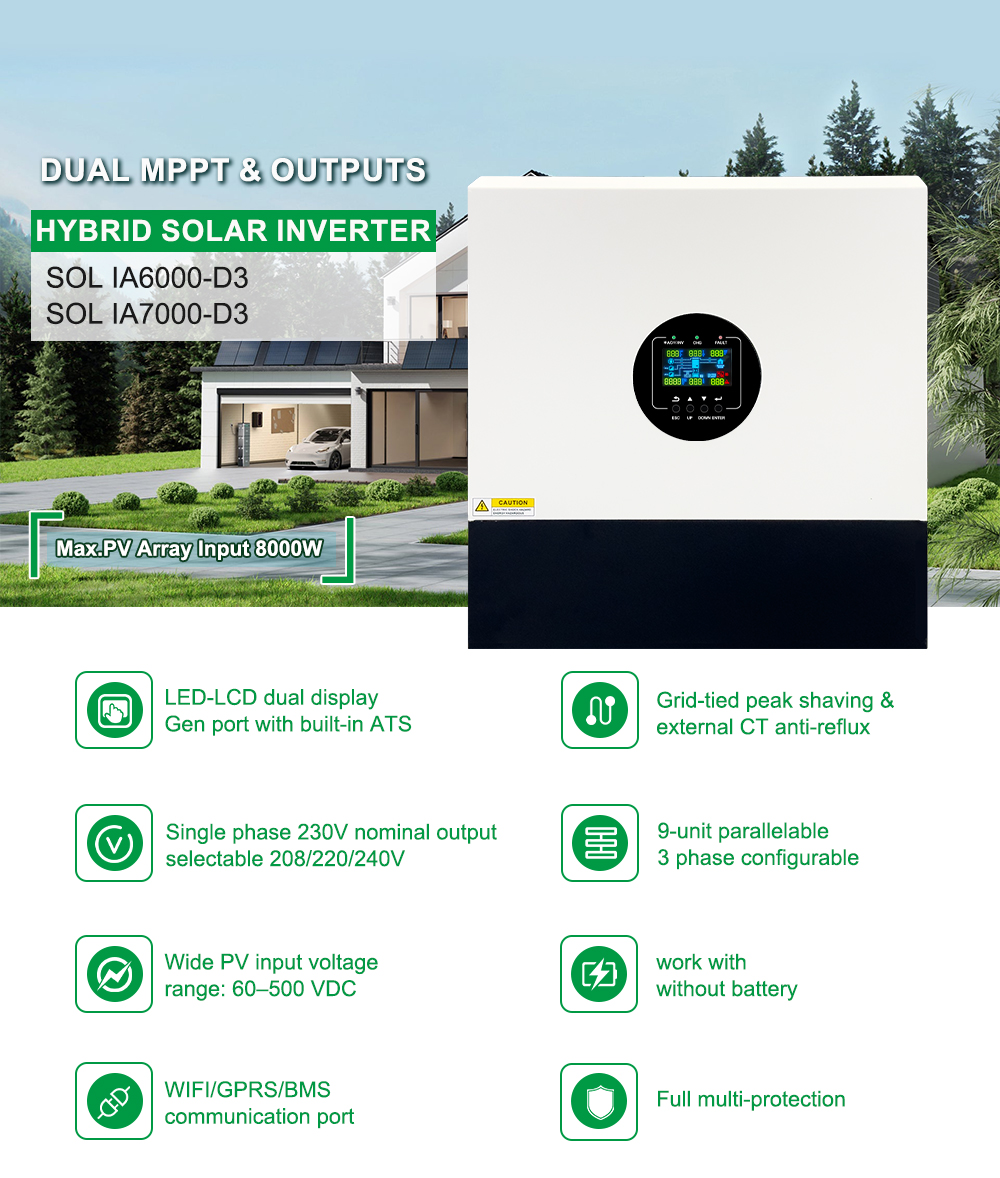

【Up to 9 Units Parallel for 63kW Expansion】Dual MPPT Trackers | 10ms Ultra-Fast Switching | Compatible with Lithium & Lead-Acid Batteries

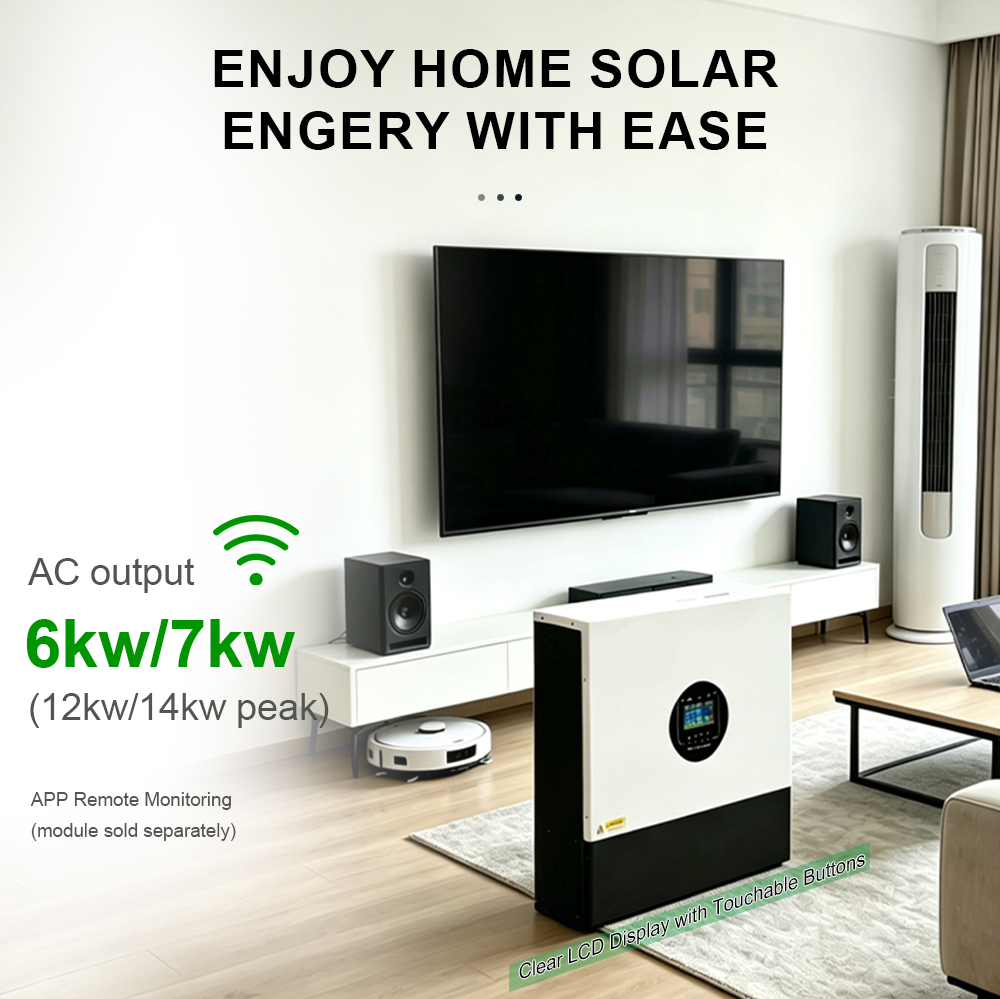

With a rated output power of 6kW/7KW, it provides reliable power for all household appliances in daily use, commercial equipment, and during power outages.
| MODEL |
SOL IA6000-D3
|
SOL IA7000-D3
|
|
Max. Recommended PV Power(for module STC)
|
8000W
|
8000W
|
| Max. DC Voltage |
500V
|
500V |
| Start Voltage | 80V | 80V |
|
MPPT Voltage Range
|
60V-450V | 60V-450V |
| No. of MPP Trackers | 2 | 2 |
| No. of PV Strings per MPP Tracker | 2 | 2 |
| Max. Input Current per MPP Tracker | 22A | 22A |
|
Output Data (AC)
|
||
|
AC Nominal Power
|
6000W
|
7000W |
|
Max. AC Apparent Power
|
6000VA | 7000VA |
| Nominal AC Voltage |
230V
|
230V |
| AC Grid Frequency | 50/60Hz | 50/60Hz |
| Efficiency(Line Mode) | 95.5% | 95.5% |
| Output Current | 26.1A | 30.4A |
|
Battery Data (DC)
|
||
| Nominal DC Voltage |
48V
|
48V |
| Max Charging And Discharging Current | 80A | 80A |
| Efficiency (Peak) | 96.5% | 96.5% |
| Type of Battery | Lithium/Lead-acid | Lithium/Lead-acid |
| Backup Power (AC) | ||
|
AC nominal Output Power
|
6000W | 7000W |
| Nominal AC Output Voltage |
230V
|
230V |
| Nominal AC Output Frequency | 50/60Hz | 50/60Hz |
| Switch Time | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel |
| General Data | ||
|

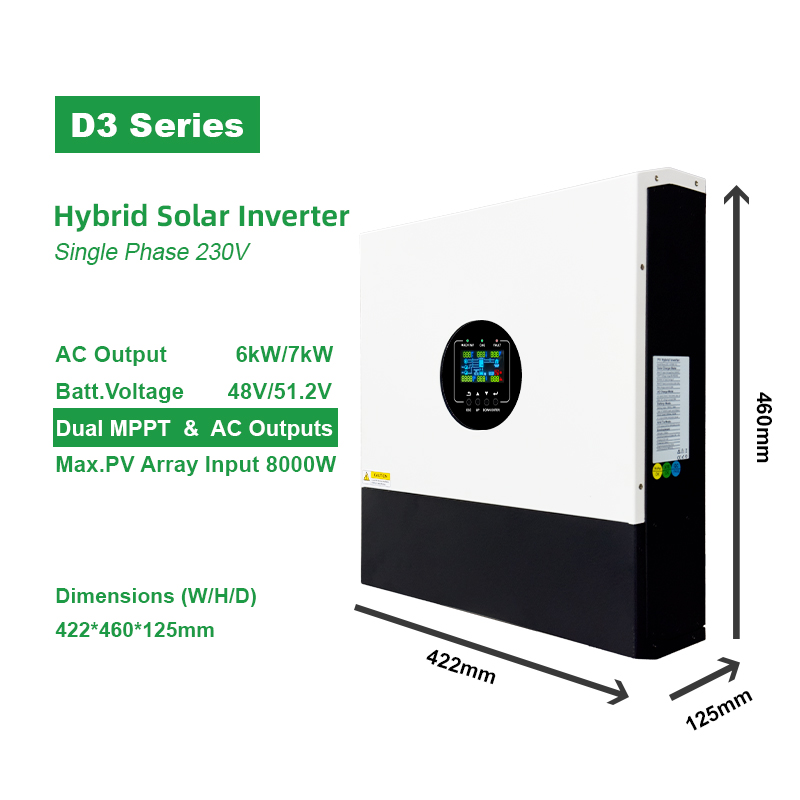

Dimensions (W/H/D)
|
422*460*125mm
|
422*460*125mm |
| Weight |
13.5kg
|
13.8kg |
| Humidity | 5%~95% non-considering | 5%~95% non-considering |
| Altitude | <2000m | <2000m |
| Protection degree | IP20 | IP20 |
| Communication | 4G/WIFI(optional) | 4G/WIFI(optional) |

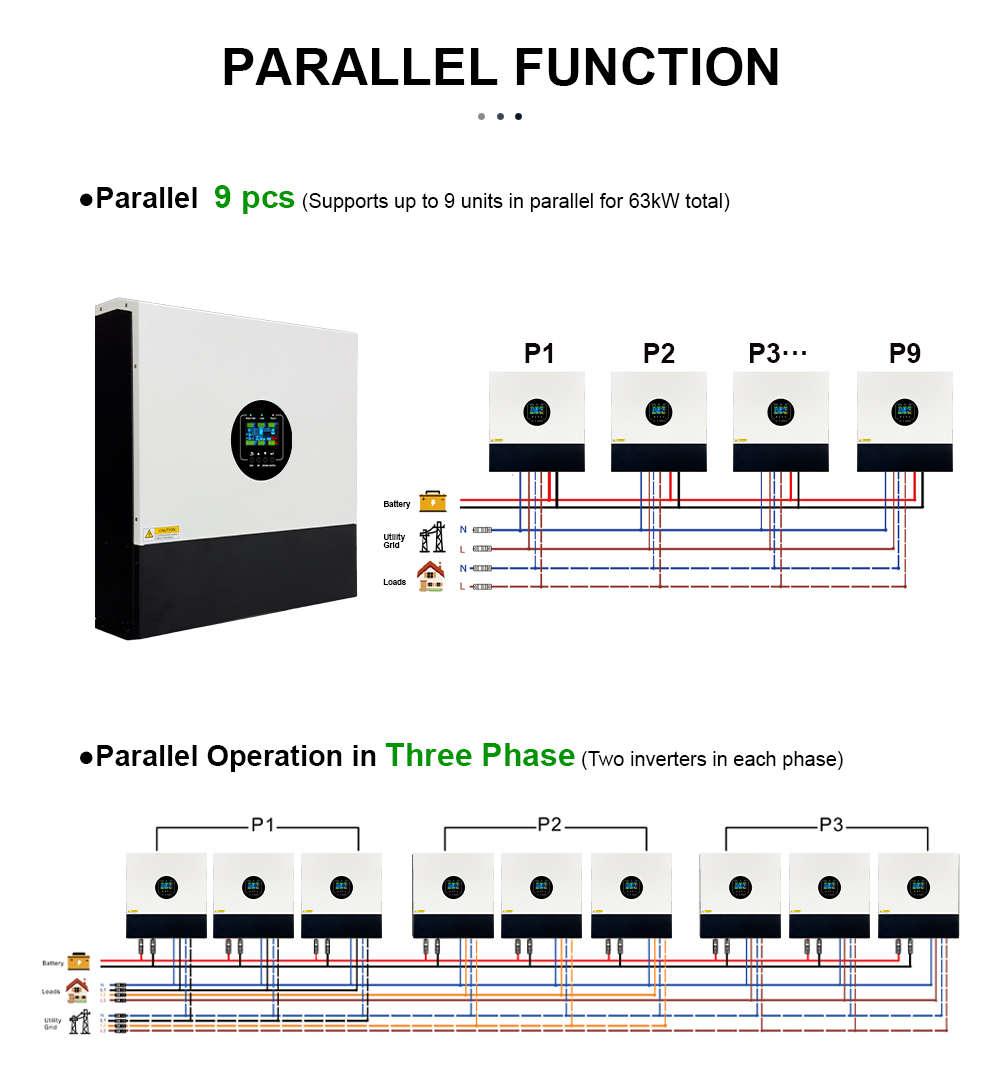

1.Supports parallel operation of up to 9 units for capacity expansion up to 63kW
2.Built-in solar controller and standby power-saving mode.
3.Maximum PV input voltage up to 500VDC

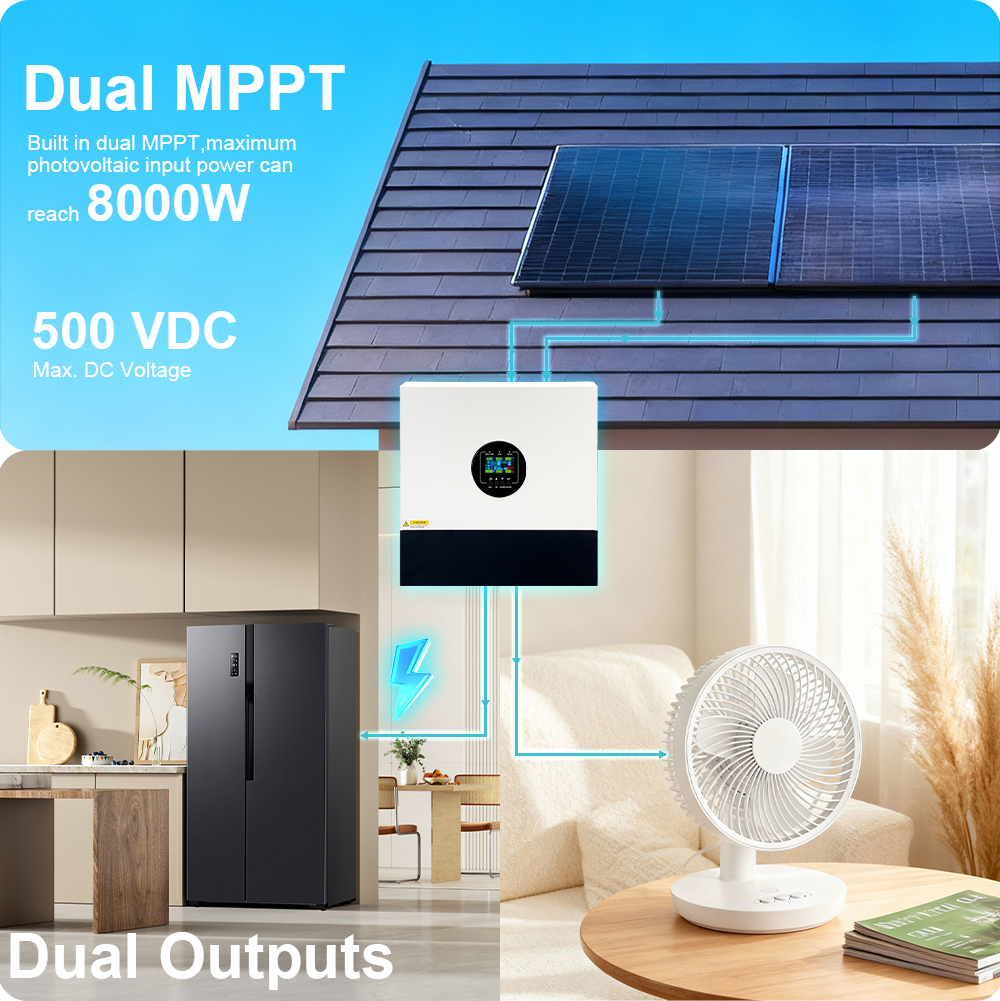

4.Dual MPP trackers
5.Featuring grid-tied function for peak shaving
6.Dual outputs for smart load management.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
Tired of power outages disrupting your home? Want to slash your electricity bills with solar energy? The MINVON SOL IA-D3 Hybrid Solar Inverter is your all-in-one solution for energy independence.
🌞 Power Your Home Day & Night - Convert solar energy into usable power during the day, store excess energy in batteries for use at night or during blackouts - Dual MPPT trackers maximize solar harvest even in partial shading conditions, getting the most out of your panels
⚡ Reliable Backup When You Need It - 10ms ultra-fast switch time ensures your fridge, lights, and critical appliances stay on without interruption - Compatible with lithium and lead-acid batteries, with up to 63kW expandable capacity to grow with your needs

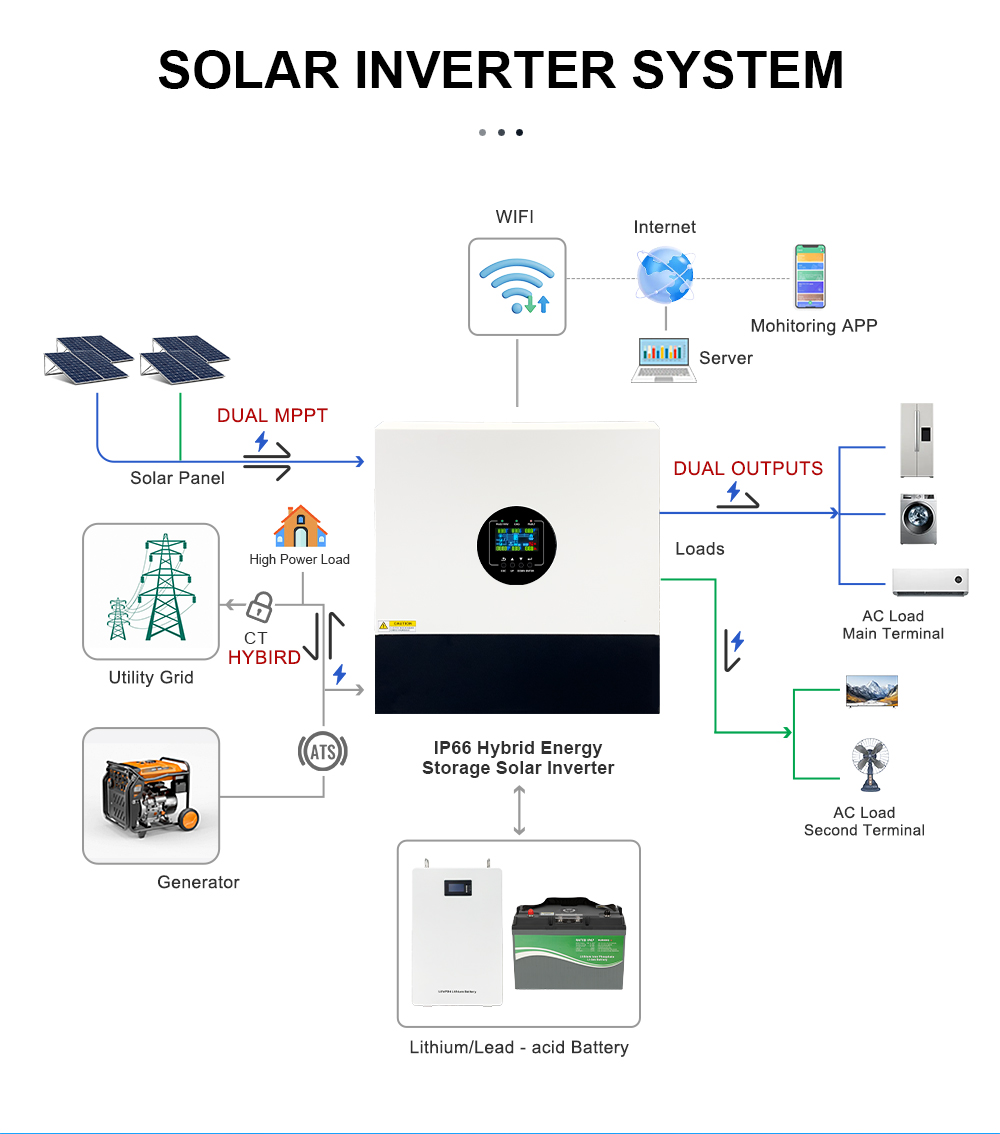

🔋 Smart Energy Management - Supports both grid-tie and off-grid modes, automatically switching between solar, battery, grid, and generator power - Built-in peak shaving function reduces your grid usage during high-cost hours, saving you money on utility bills
📱 Monitor & Control Anywhere - Optional WiFi/4G module lets you track energy production, battery status, and system performance from your phone Whether you're building a new solar system or upgrading your existing setup, the SOL IA-D3 series delivers efficient, reliable, and smart power for your home.
