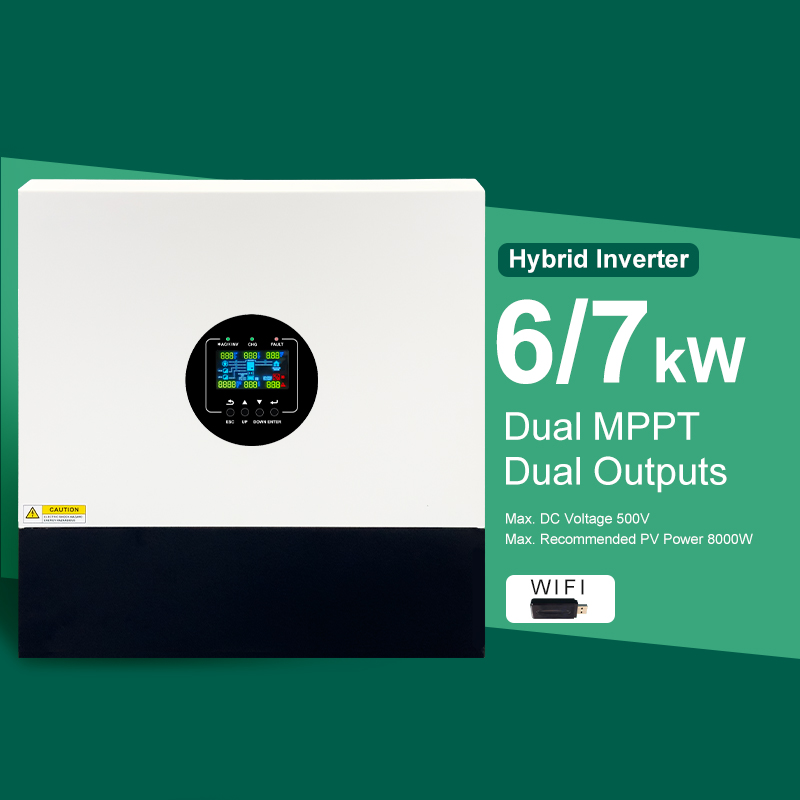

SOL IA-D3 6000W/7000W Dual MPPT Hybrid Solar Inverter for Home Energy Storage, commercial and agricultural usages

6/7kW Dual MPPT Hybrid Solar Inverter | Parallel Expandable to 63kW, Grid-Tie & Off-Grid Dual Mode for Household PV System

SOL IA-D3 series hybrid inverter available in 6kW &7kW, dual MPPT with max 500VDC PV input, supports up to 9 units parallel to 63kW total capacity. Grid-tied peak shaving + off-grid backup dual functions, dual AC load outputs, compatible with 48V lithium & lead-acid batteries, ideal for residential rooftop PV and villa energy storage.
MODEL
SOL IA6000-D3
SOL IA7000-D3
Max. Recommended PV Power(for module STC)
8000W
8000W
Max. DC Voltage
500V
500V
Start Voltage 80V 80V
MPPT Voltage Range
60V-450V 60V-450V
No. of MPP Trackers 2 2
No. of PV Strings per MPP Tracker 2 2
Max. Input Current per MPP Tracker 22A 22A
Output Data (AC)
AC Nominal Power
6000W
7000W
Max. AC Apparent Power
6000VA 7000VA
Nominal AC Voltage
230V
230V
AC Grid Frequency 50/60Hz 50/60Hz
Efficiency(Line Mode) 95.5% 95.5%
Output Current 26.1A 30.4A
Battery Data (DC)
Nominal DC Voltage
48V
48V
Max Charging And Discharging Current 80A 80A
Efficiency (Peak) 96.5% 96.5%
Type of Battery Lithium/Lead-acid Lithium/Lead-acid
Backup Power (AC)
AC nominal Output Power
6000W 7000W
Nominal AC Output Voltage
230V
230V
Nominal AC Output Frequency 50/60Hz 50/60Hz
Switch Time 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel
General Data
Dimensions (W/H/D)
422*460*125mm
422*460*125mm
Weight
13.5kg
13.8kg
Humidity 5%~95% non-considering 5%~95% non-considering
Altitude <2000m <2000m
Protection degree IP20 IP20
Communication 4G/WIFI(optional) 4G/WIFI(optional)

1. Large-Scale System Expandability | Parallel up to 9 inverters to reach 63kW, easily upgrade from small home to large villa/mini-commercial solar plant

2. Higher Solar Harvest with Dual MPPT | Max 500VDC PV voltage allows longer PV string connection, cuts installation wiring cost and improves daily power generation

3. Reduce Monthly Electricity Bills | Built-in grid-tied peak shaving shifts power consumption to off-peak grid rate and exports surplus solar power back to grid

4. Optimized Household Load Management | Dual independent AC output separates critical loads from ordinary appliances to guarantee essential power during grid blackout

5. Energy-Saving Standby Design | Low power standby mode cuts idle power loss and lowers long-term operation consumption

Ideal for:

Building long-term independent photovoltaic systems

Emergency power backup during grid outages

Reducing reliance on grid electricity and lowering energy costs

Core Value Proposition

The SOL IA-D3 offers a balance of performance, flexibility, and affordability, making it an optimal choice for households transitioning to off-grid or hybrid energy solutions.

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-0

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

SOL IA-D3 series hybrid inverter available in 6kW &7kW, dual MPPT with max 500VDC PV input, supports up to 9 units parallel to 63kW total capacity. Grid-tied peak shaving + off-grid backup dual functions, dual AC load outputs, compatible with 48V lithium & lead-acid batteries, ideal for residential rooftop PV and villa energy storage.

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-1

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-2

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-3

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-47kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-5

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-6

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-7

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-8

7kw dual mpp trackers supports parallel operation mppt voltage range 60v 450v nominal ac output voltage 230v for home and commercial usage-9
