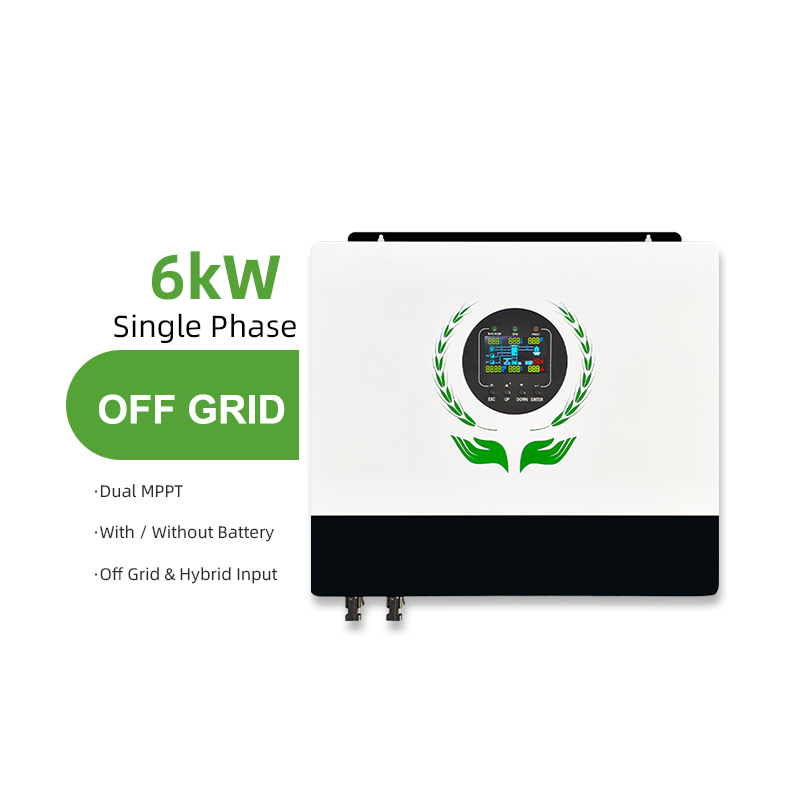

SOL IA6000-D1 6000W Off-Grid Hybrid Solar Inverter 48V Dual MPPT Solar Charge Inverter Parallel Up To 36kW For Off Grid Home Energy Storage

48V 6kW Pure Sine Wave Off Grid Solar Inverter | Dual MPPT, Max 8000W PV Input, Parallel 6 Units, Generator & Mains Backup Support For Remote Home Solar System

MODEL	SOL IA6000-D1
Battery Data
Battery Voltage	48VDC
Floating Charge Voltage	54 VDC
Battery Type	Lithium/ Lead-acid
Inverter Output
Rated Power	6000VAC/6000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	12000VA
Efficiency(Line Mode)	＞95%
Output Current	27A
Waveform	Pure sine wave
Transfer Time	10ms typical，20ms Max
Solar Charger
Maximum PV Array Power	8000W
MPPT Range & Operating Voltage	120VDC ~ 450VDC
Number of Independent MPP Trackers /Strings Per MPP Tracker	1/2
Max. Input Current Per MPPT Tracker	16A
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Solar Charge Current	100A
AC Charger
Charge Current	80A
AC Input Voltage	230V AC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
Physical
Protection Degree	IP20
Dimension (WHD)	460395132mm
Net Weight (kgs)	13.5
Communication Interface	USB / RS232 / RS485 / Dry-contact / WIFI(optional)
Operating Environment
Overload Capacity	110%<load<150%(Alarm and Shutdown after 10s)load≥150%(Alarm and Shutdown after 5s)
Humidity	5% to 95% Relative Humidity (Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-0

1. Power & Parallel Expandability

Rated 6000W continuous / 12000VA surge power, max parallel 6 units to reach total 36kW for large energy demand
48V battery compatible, support both Lithium & Lead-acid batteries, floating charge voltage 54VDC
Stable pure sine wave AC output, 10ms typical transfer time between solar/battery/mains/generator power
Wide AC output voltage 230VAC ±5% 50/60Hz auto-sensing frequency

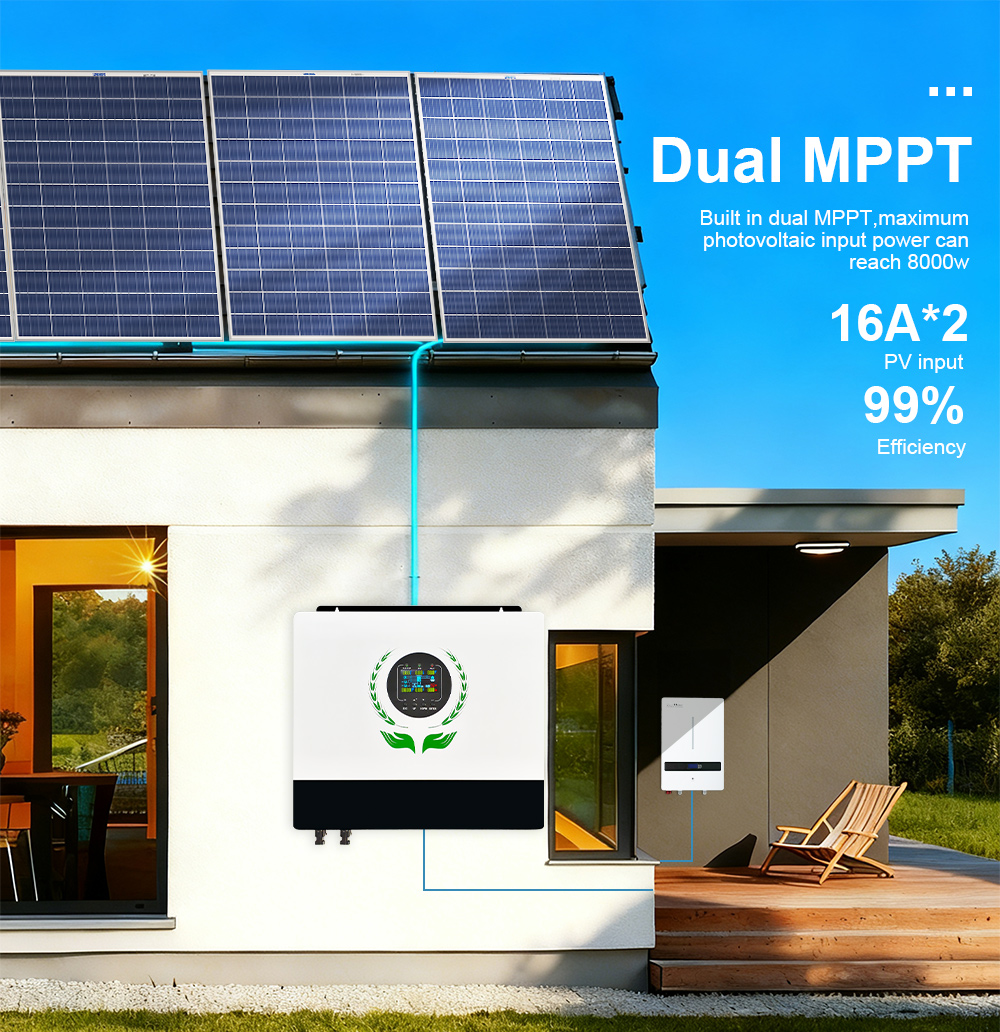

2. Dual MPPT Solar Charging System

Dual independent MPPT trackers, max PV array power up to 8000W, PV voltage range 120~450VDC
Max PV open circuit voltage 500VDC, 100A max solar charging current, high efficiency over 95%
Plug-and-play PV interface, dustproof air intake cover for harsh outdoor working environments
Built-in 80A AC charger to quickly recharge batteries via utility grid or generator

3. Multi-source Backup Input Design

Triple AC input ports: Grid Utility + Diesel Generator + Solar PV, fully automatic power switching
Wide AC input voltage 170-280VAC for home appliances, 90-280VAC for sensitive personal computers
Automatic overload/overheat/short circuit protection, alarm & shutdown protection logic
IP20 indoor protection grade, stable working in -15℃~65℃ temperature range

4. Smart Monitoring & Easy Installation

Multiple communication interfaces: USB / RS232 / RS485 / Dry contact, optional WIFI module for remote mobile monitoring
Compact size 460395132mm, net weight only 13.5kg, easy wall-mounted installation
Auto-sensing 50/60Hz frequency, compatible with all standard household electrical equipment
Complete off-grid system matching: Solar Panels + Battery Bank + Generator + Grid Mains + Household Loads

off grid solar inverter 6kw dual mppt inputs maximum pv input voltage 500vdc dustproof air intake cover plug and play pv interface-1

Off-Grid Remote Residential Homes

Independent power supply for mountain villas, countryside houses, remote cottages without public electricity grid

Farm & Agricultural Ranch Solar System

Stable power supply for agricultural lighting, water pumps, breeding equipment and farm daily appliances

Island & Coastal Independent Energy Storage

Self-sufficient solar power system for islands, fishing boats and coastal remote settlements

Construction Site Temporary Power Station

Portable off-grid power solution for construction machinery, office equipment and site lighting

Mobile Off-Grid Energy Cabin / RV Camper Large Power System

High-power energy storage core for large RV, mobile energy cabins and outdoor camping bases

Emergency Backup Power For Rural Areas

Backup power to avoid blackouts during grid maintenance or power failure

Commercial Small Off-Grid Shops & Workshops

Sustainable solar power for small rural shops, processing workshops and remote service stations

Telecommunication Base Station Standby Power

Stable DC-AC power supply for remote communication equipment and monitoring stations

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon.

Introduction

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-1

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-2

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-3

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-4

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-5

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-6

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-7

MINVON SOL IA-D1 SOL IA6000-D1 is a high-performance all-in-one off-grid hybrid solar inverter specially designed for standalone solar energy storage systems. Integrated dual MPPT solar charge controller, AC mains charger, pure sine wave inverter and automatic power transfer switch in one compact unit, this 6kW 48V solar inverter perfectly balances power output, solar charging efficiency and multi-energy backup capacity.

This off-grid solar inverter supports parallel connection of up to 6 identical units to expand total power up to 36kW, ideal for medium and large off-grid power projects. It adopts dual independent MPPT trackers with maximum 8000W PV input power, compatible with 500VDC solar panel open circuit voltage, delivering over 95% energy conversion efficiency to maximize solar energy utilization.

Different from ordinary single-input solar inverters, SOL IA6000-D1 reserves independent generator AC input and utility grid input ports. When solar power is insufficient or battery power is low, the inverter will automatically switch to charge batteries or supply loads via generator/mains within 20ms max transfer time, eliminating power outage risks. It works seamlessly with 48V lithium iron phosphate batteries and lead-acid batteries, with adjustable floating charging voltage to extend battery service life.

Equipped with dustproof air intake structure, the inverter can operate stably in high humidity and dusty environments. Built-in comprehensive safety protection functions including overload, over-temperature, short-circuit, over-voltage and under-voltage protection, with automatic alarm and shutdown mechanism to protect inverter, battery and household electrical appliances. Optional WIFI communication module allows users to remotely monitor PV generation, battery status, load power and equipment operation data via mobile phones anytime.

Suitable for various off-grid power scenarios without stable public grid, SOL IA6000-D1 is the core equipment for independent home solar storage systems, remote villa power supply, farm & ranch energy system, construction site temporary power, island energy storage and mobile off-grid power stations.
