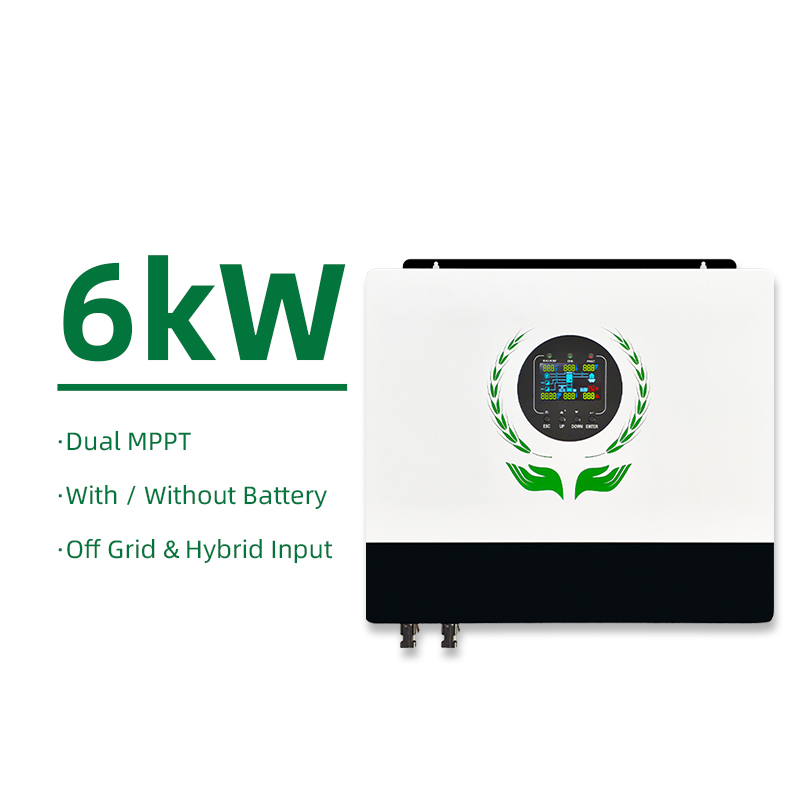

The SOL IA-D1 is a high-performance off-grid solar inverter designed for households seeking energy independence and reduced electricity costs. With a rated output power of 6kW/6kVA, it provides reliable power for all household appliances during daily use and grid outages.
MODEL |
SOL IA6000-D1 |
Battery Data |
|
Battery Voltage |
48VDC |
Floating Charge Voltage |
54 VDC |
Battery Type |
Lithium/ Lead-acid |
Inverter Output |
|
Rated Power |
6000VAC/6000W |
Parallel Capability |
Yes, 6 units maximum |
AC Voltage Regulation (Battery Mode) |
230VAC ± 5% @ 50/60Hz |
Surge Power |
12000VA |
Efficiency(Line Mode) |
＞95% |
Output Current |
27A |
Waveform |
Pure sine wave |
Transfer Time |
10ms typical，20ms Max |
Solar Charger |
|
Maximum PV Array Power |
8000W |
MPPT Range & Operating Voltage |
120VDC ~ 450VDC |
Number of Independent MPP Trackers |
1/2 |
Max. Input Current Per MPPT Tracker |
16A |
Maximum PV Array Open Circuit Voltage |
500VDC |
Maximum Solar Charge Current |
100A |
AC Charger |
|
Charge Current |
80A |
AC Input Voltage |
230V AC |
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; |
Frequency Range |
50Hz/60Hz (Auto sensing) |
Physical |
|
Protection Degree |
IP20 |
Dimension (W*H*D) |
460*395*132mm |
Net Weight (kgs) |
13.5 |
Communication Interface |

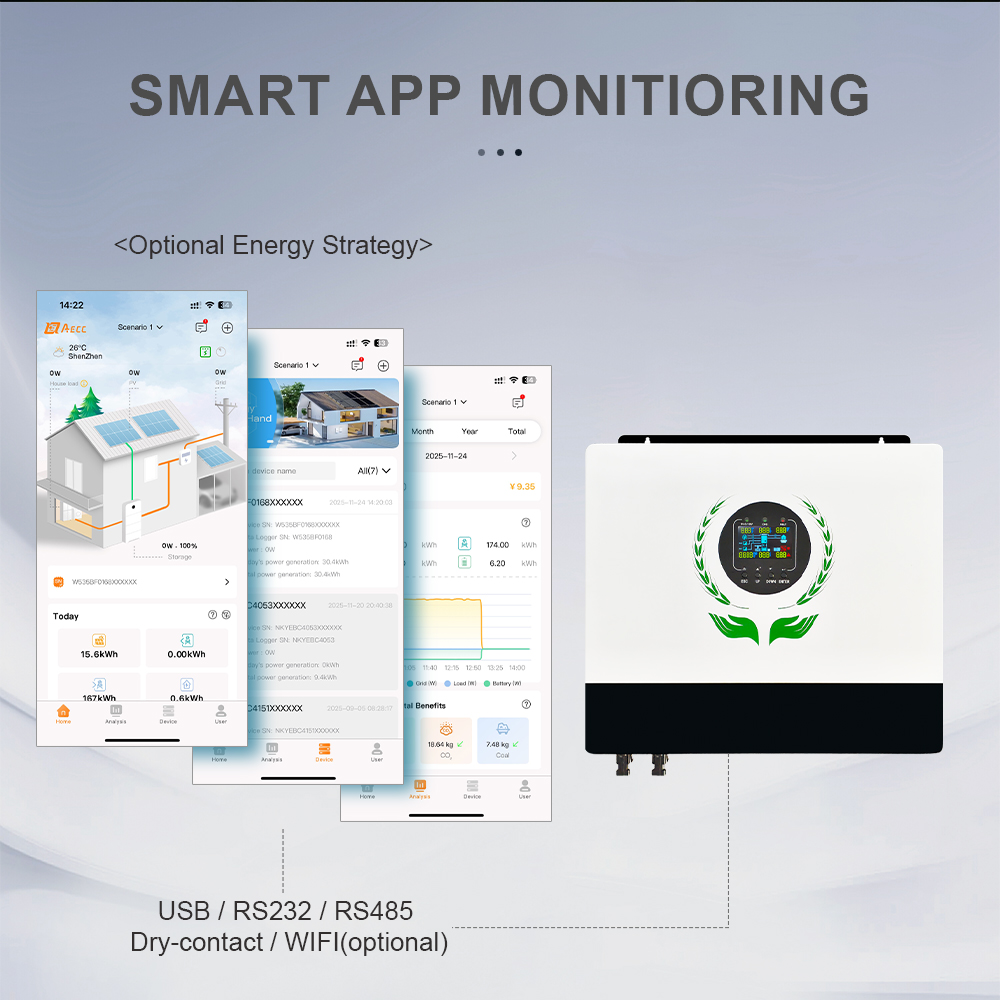

USB / RS232 / RS485 / Dry-contact / WIFI(optional) |
Operating Environment |
|
Overload Capacity |
110%<load<150%(Alarm and Shutdown after 10s)load≥150%(Alarm and Shutdown after 5s) |
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
Altitude |
<2000m |
Operating Temperature |
0°C - 55°C |
Storage Temperature |
-15°C - 60°C |

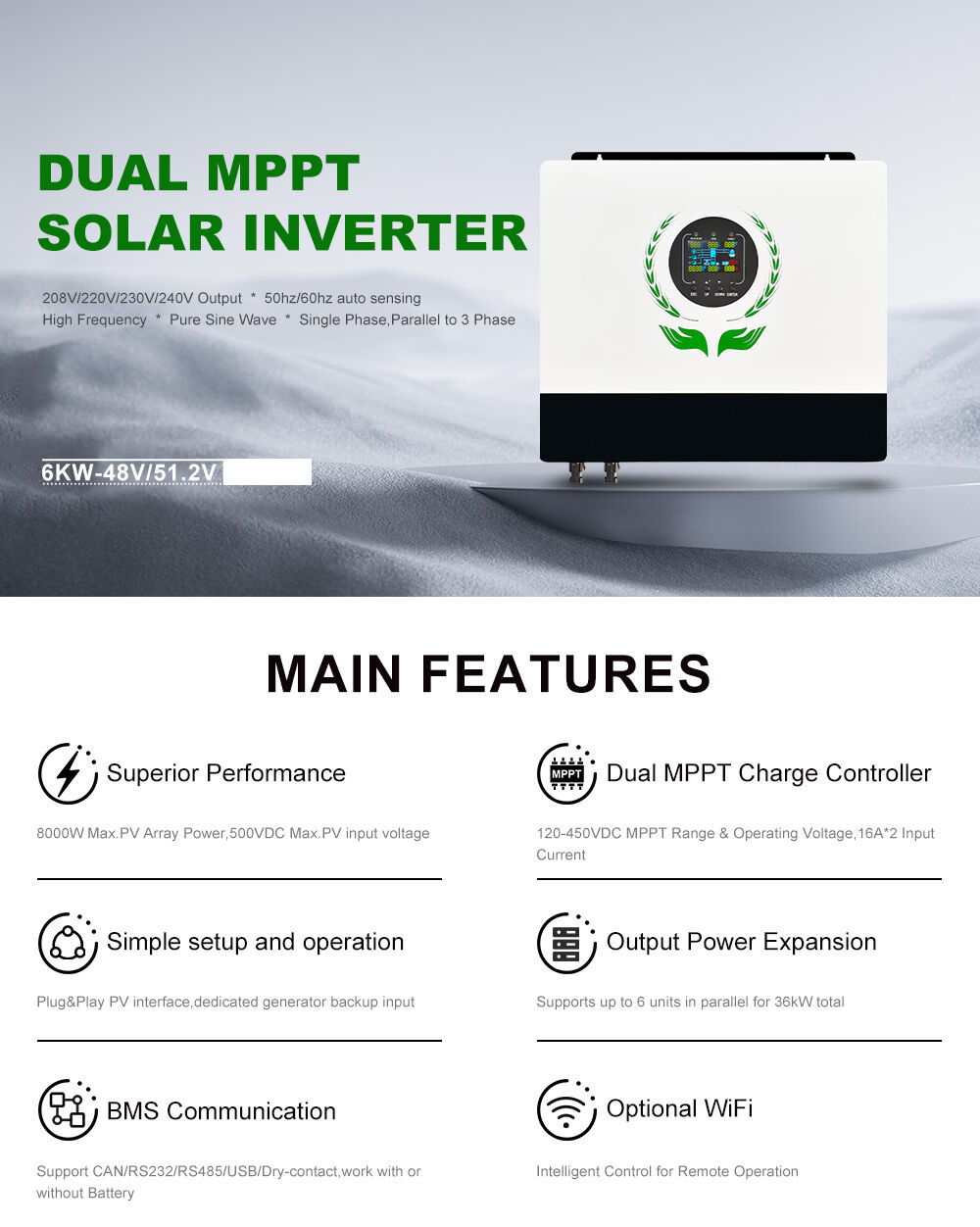

Key Feature
1.Plug-and-play PV interface

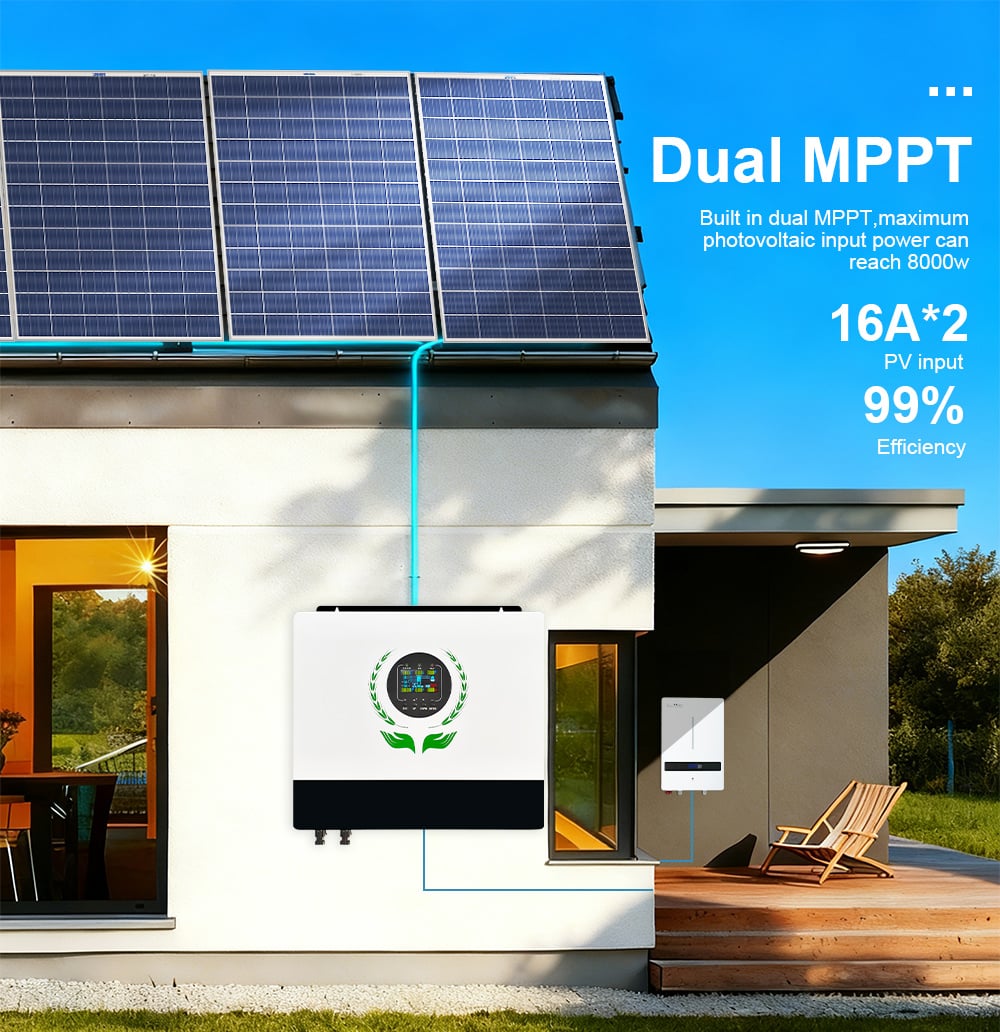

2.Dual MPPT inputs
3.Maximum PV input voltage of 500V
4.Supports up to 6 units in parallel for a total power of 36kW
5.Dedicated generator input interface for backup power
6.Dust-proof air intake cover for enhanced performance in harsh environments
Applications:
Ideal for:
Building long-term independent photovoltaic systems
Emergency power backup during grid outages
Reducing reliance on grid electricity and lowering energy costs
Core Value Proposition
The SOL IA-D1 offers a balance of performance, flexibility, and affordability, making it an optimal choice for households transitioning to off-grid or hybrid energy solutions.
FAQ
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
