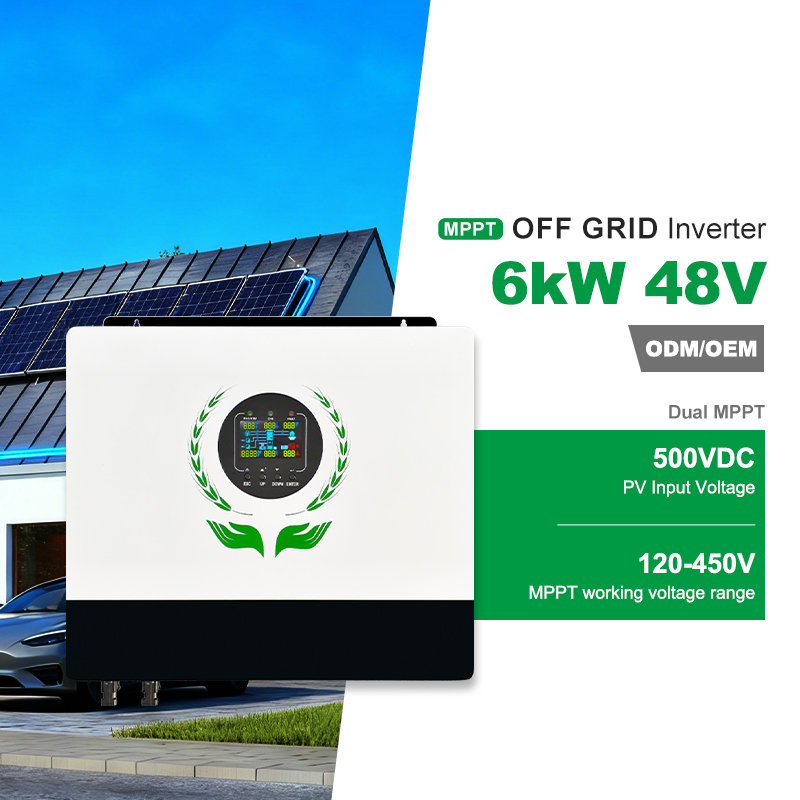

MINVON SOL IA-D1 6000W Off-Grid Hybrid Solar Inverter with Dual MPPT

Max 6 Units Parallel to 36kW | 500VDC PV Input & Generator Port for Remote Home Off-Grid PV System

SOL IA-D1 6000W off-grid pure sine wave inverter with dual MPPT, max 500VDC PV input, support up to 6 units parallel for total 36kW. Built-in generator input port & dustproof design, compatible with 48V lithium/lead-acid batteries, ideal for remote off-grid houses, cabin solar backup power.

MODEL

SOL IA6000-D1

Battery Data

Battery Voltage

48VDC

Floating Charge Voltage

54 VDC

Battery Type

Lithium/ Lead-acid

Inverter Output

Rated Power

6000VAC/6000W

Parallel Capability

Yes, 6 units maximum

AC Voltage Regulation (Battery Mode)

230VAC ± 5% @ 50/60Hz

Surge Power

12000VA

Efficiency(Line Mode)

>95%

Output Current

27A

Waveform

Pure sine wave

Transfer Time

10ms typical,20ms Max

Solar Charger

Maximum PV Array Power

8000W

MPPT Range & Operating Voltage

120VDC ~ 450VDC

Number of Independent MPP Trackers
/Strings Per MPP Tracker

1/2

Max. Input Current Per MPPT Tracker

16A

Maximum PV Array Open Circuit Voltage

500VDC

Maximum Solar Charge Current

100A

AC Charger

Charge Current

80A

AC Input Voltage

230V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)

Frequency Range

50Hz/60Hz (Auto sensing)

Physical

Protection Degree

IP20

Dimension (W*H*D)

460*395*132mm

Net Weight (kgs)

13.5

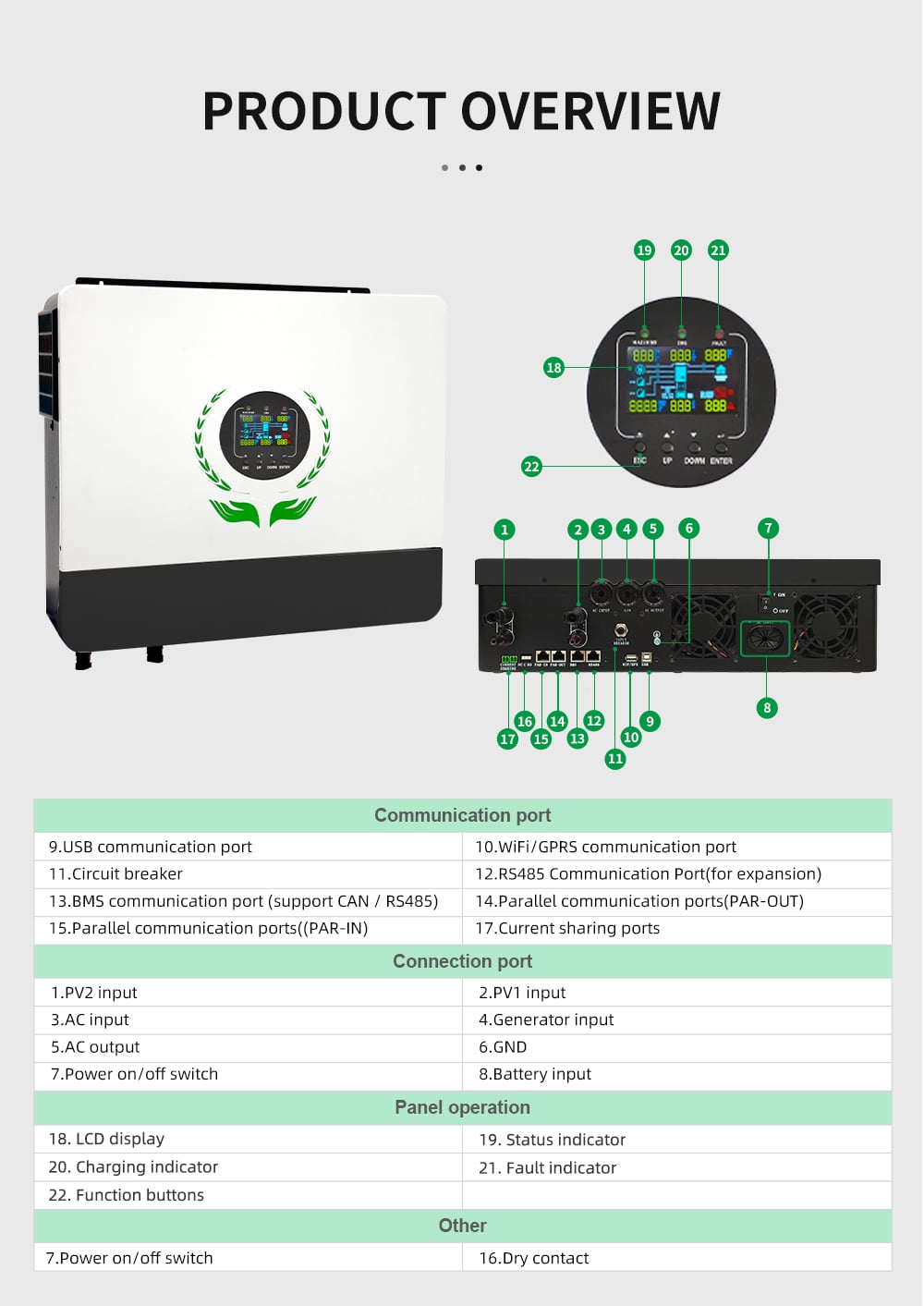

Communication Interface

USB / RS232 / RS485 / Dry-contact / WIFI(optional)

Operating Environment

Overload Capacity

110%<load<150%(Alarm and Shutdown after 10s)load≥150%(Alarm and Shutdown after 5s)

Humidity

5% to 95% Relative Humidity (Non-condensing)

Altitude

<2000m

Operating Temperature

0°C - 55°C

Storage Temperature

-15°C - 60°C

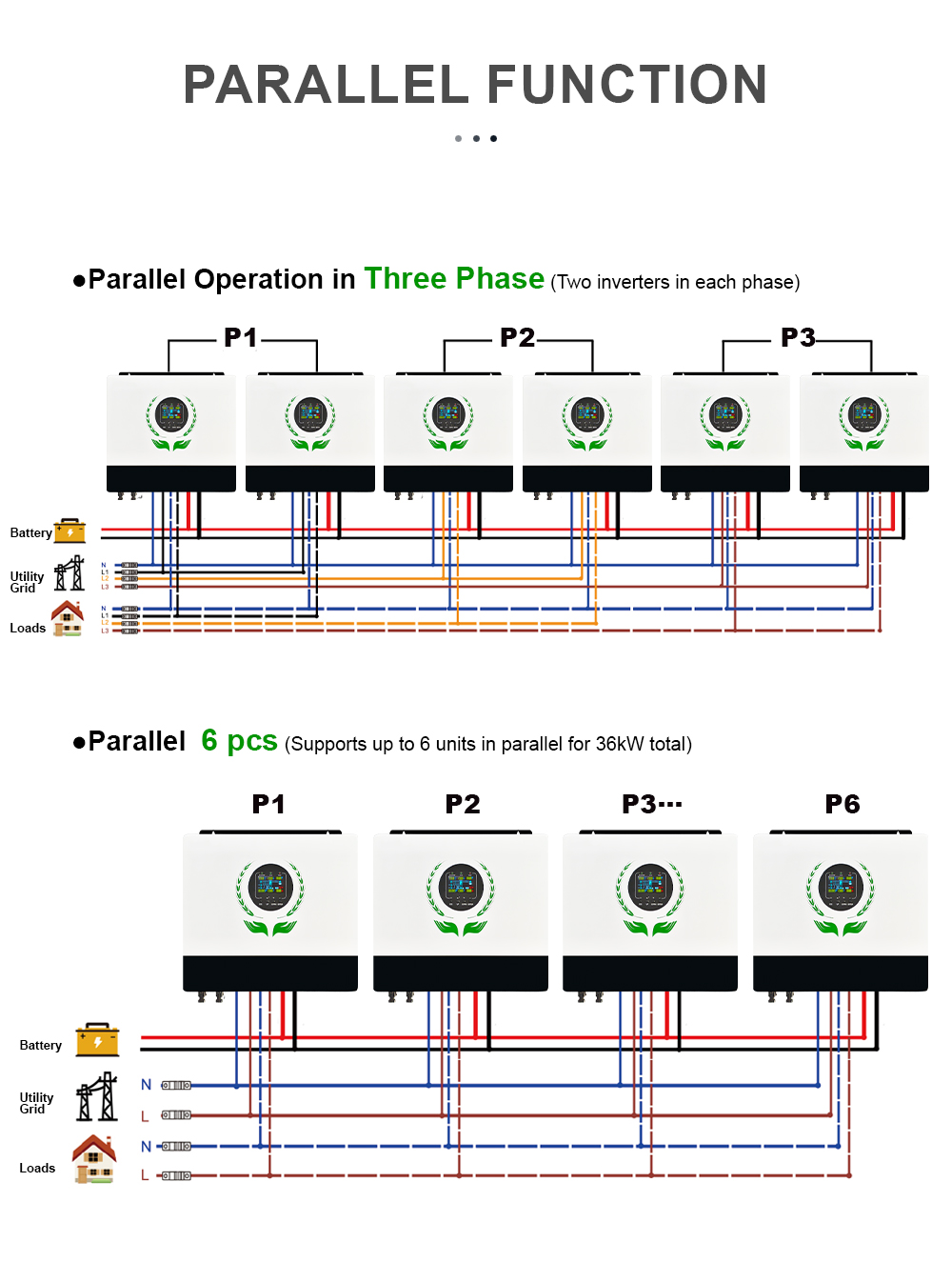

1. Expandable Large Off-Grid System | Max 6 inverters parallel to reach 36kW total power, easily upgrade small home system to large villa solar setup

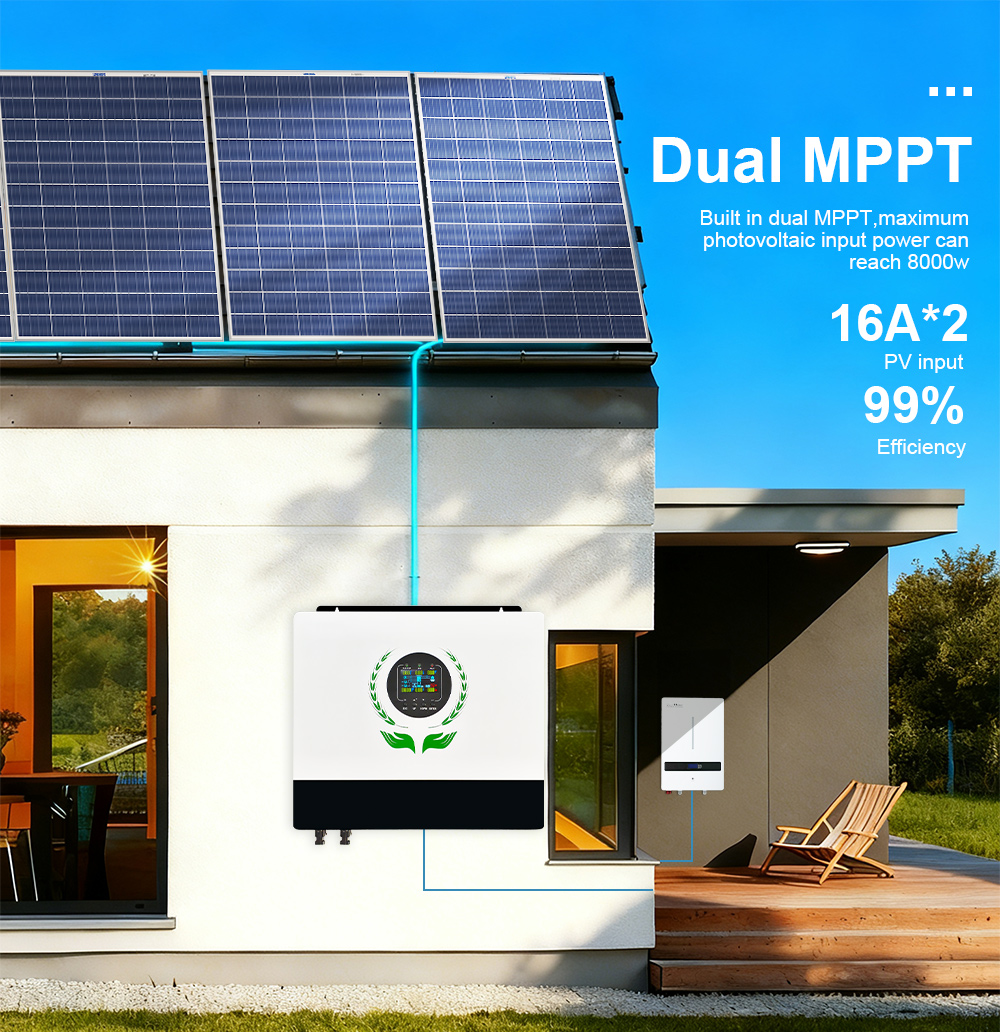

2. Dual MPPT & High PV Compatibility | Up to 500VDC PV voltage allows longer solar panel strings, cut wiring cost and boost daily solar generation

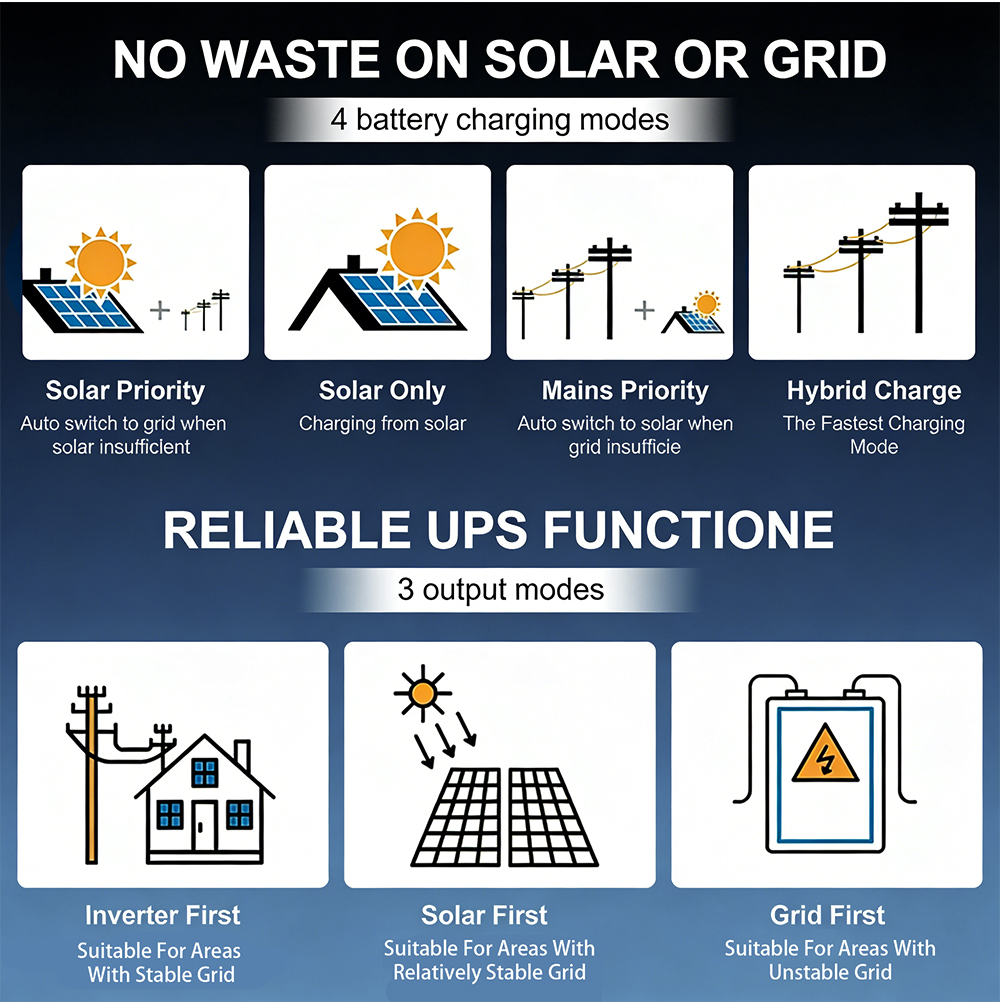

3. Dual Backup Power Option | Dedicated generator AC input works alongside solar & battery to avoid blackout on rainy low-sun days

4. Harsh Weather Adaptability | Dustproof air intake cover prevents dust clogging, keeps steady operation in dusty rural/outdoor environments

5. Plug & Play Easy Installation | Standard plug-and-play PV terminal saves wiring time for DIY off-grid solar installation

Ideal for:

Building long-term independent photovoltaic systems

Emergency power backup during grid outages

Reducing reliance on grid electricity and lowering energy costs

Core Value Proposition

The SOL IA-D1 offers a balance of performance, flexibility, and affordability, making it an optimal choice for households transitioning to off-grid or hybrid energy solutions.

off grid solar inverter 6kw dual mppt inputs maximum pv input voltage 500vdc dustproof air intake cover plug and play pv interface-2

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, replace spare parts /board.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

SOL IA-D1 6000W off-grid pure sine wave inverter with dual MPPT, max 500VDC PV input, support up to 6 units parallel for total 36kW. Built-in generator input port & dustproof design, compatible with 48V lithium/lead-acid batteries, ideal for remote off-grid houses, cabin solar backup power.

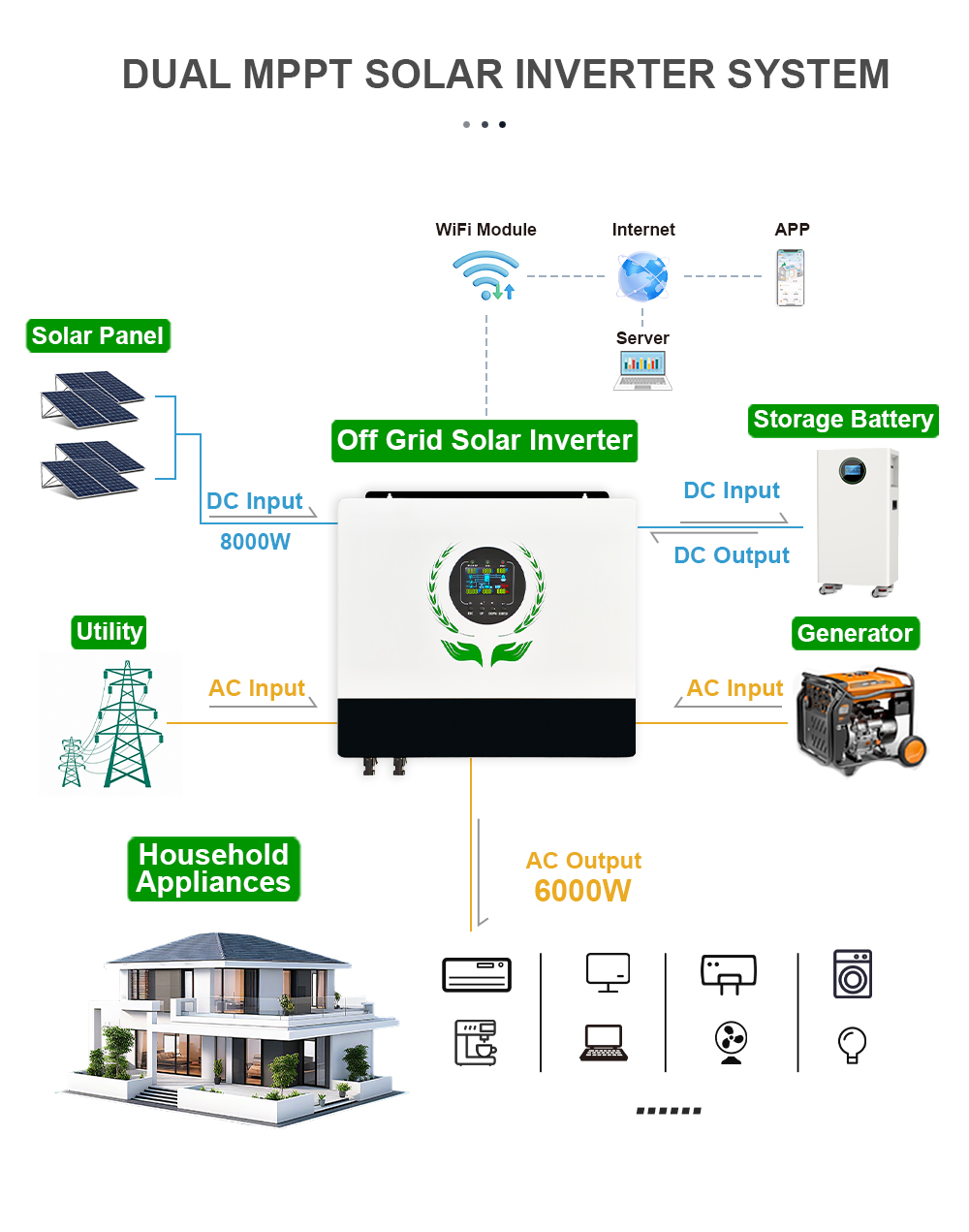

off grid solar inverter 6kw mppt range  operating voltage 120vdc  450vdc plug and play pv interface pure sine wave supports up to 6 units in parallel-1

off grid solar inverter 6kw mppt range  operating voltage 120vdc  450vdc plug and play pv interface pure sine wave supports up to 6 units in parallel-2

off grid solar inverter 6kw mppt range  operating voltage 120vdc  450vdc plug and play pv interface pure sine wave supports up to 6 units in parallel-3

off grid solar inverter 6kw mppt range  operating voltage 120vdc  450vdc plug and play pv interface pure sine wave supports up to 6 units in parallel-4

off grid solar inverter 6kw mppt range  operating voltage 120vdc  450vdc plug and play pv interface pure sine wave supports up to 6 units in parallel-5

off grid solar inverter 6kw mppt range  operating voltage 120vdc  450vdc plug and play pv interface pure sine wave supports up to 6 units in parallel-6

off grid solar inverter 6kw mppt range  operating voltage 120vdc  450vdc plug and play pv interface pure sine wave supports up to 6 units in parallel-7

off grid solar inverter 6kw mppt range  operating voltage 120vdc  450vdc plug and play pv interface pure sine wave supports up to 6 units in parallel-8
