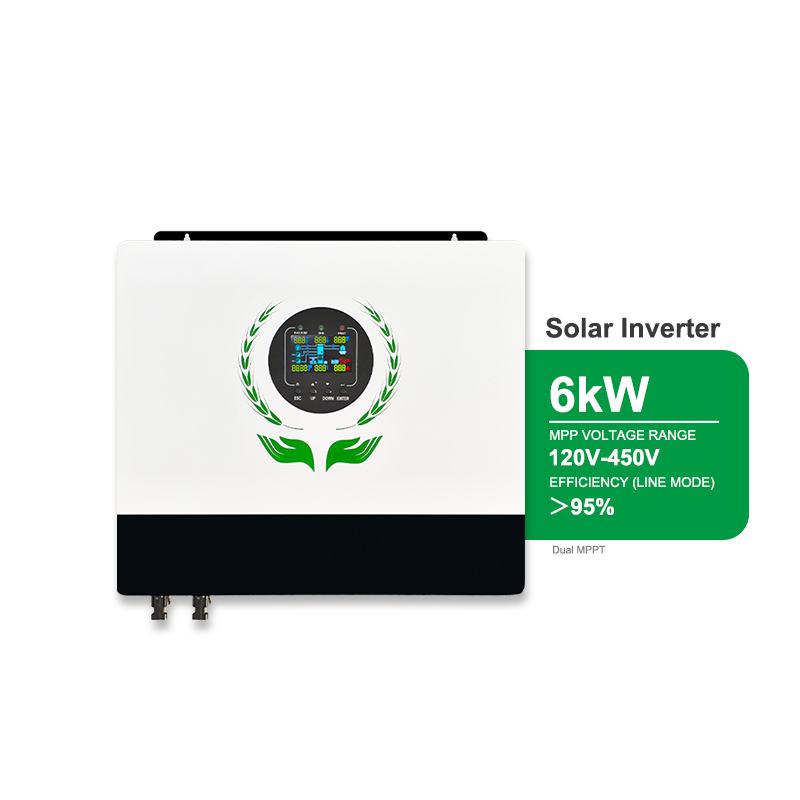

MODEL |
SOL IA6000-D1 |
|
Battery Data |
|
|
Battery Voltage |
48VDC |
|
Floating Charge Voltage |
54 VDC |
|
Battery Type |
Lithium/ Lead-acid |
|
Inverter Output |
|
|
Rated Power |
6000VAC/6000W |
|
Parallel Capability |
Yes, 6 units maximum |
|
AC Voltage Regulation (Battery Mode) |
230VAC ± 5% @ 50/60Hz |
|
Surge Power |
12000VA |
|
Efficiency(Line Mode) |
>95% |
|
Output Current |
27A |
|
Waveform |
Pure sine wave |
|
Transfer Time |
10ms typical,20ms Max |
|
Solar Charger |
|
|
Maximum PV Array Power |
8000W |
|
MPPT Range & Operating Voltage |
120VDC ~ 450VDC |
|
Number of Independent MPP Trackers |
1/2 |
|
Max. Input Current Per MPPT Tracker |
16A |
|
Maximum PV Array Open Circuit Voltage |
500VDC |
|
Maximum Solar Charge Current |
100A |
|
AC Charger |
|
|
Charge Current |
80A |
|
AC Input Voltage |
230V AC |
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; |
|
Frequency Range |
50Hz/60Hz (Auto sensing) |
|
Physical |
|
|
Protection Degree |
IP20 |
|
Dimension (W*H*D) |
460*395*132mm |
|
Net Weight (kgs) |
13.5 |
|
Communication Interface |
USB / RS232 / RS485 / Dry-contact / WIFI(optional) |
|
Operating Environment |
|
|
Overload Capacity |
110%<load<150%(Alarm and Shutdown after 10s)load≥150%(Alarm and Shutdown after 5s) |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
Altitude |
<2000m |
|
Operating Temperature |
0°C - 55°C |
|
Storage Temperature |
-15°C - 60°C |

1. Equipped with dual independent MPPT solar charge controllers and two separate PV channels, achieving a maximum charging efficiency of 99.9%
2. Adopts pure sine wave output to safeguard sensitive electronic devices, which can steadily drive air conditioners, water pumps, washing machines and various household appliances
3. Features a wide PV input voltage range, compatible with all mainstream 720W high-power monocrystalline and polycrystalline solar panels available on the market
4. Supports 48V lead-acid batteries and 51.2V LiFePO4 lithium batteries, and automatically matches corresponding battery charging curves
5. Comes with a multifunctional LCD display; you can check real-time operating data including PV input, battery status and load power with one click
6. Built-in comprehensive multi-layer safety protection: the machine will shut down automatically under conditions of overvoltage, undervoltage, overload, short circuit and overheating
7. Adopts solar priority power supply logic to maximize solar energy utilization and drastically reduce electricity costs
8. Integrated all-in-one cabinet design with optimized heat dissipation air ducts, ensuring stable low-temperature operation even under long-term full-load working status
9. Works in pure off-grid mode with no grid connection needed, realizing self-sufficient power supply for remote areas without public power grid

1. Whole-house off-grid solar power system for single-family rural homes
2. Household emergency backup power for regions with unstable grid supply
3. Matching core inverter for full solar energy storage systems of self-built rural houses in Africa
4. Standalone power supply for street shops, convenience stores and small offices
5. Stable power supply for farm irrigation pumps and livestock breeding equipment
6. Off-grid solar power stations for remote homestays and camping sites
7. Independent energy systems for mountainous areas and islands without municipal power grids
8. Core inverter for complete residential solar kits, compatible with stackable lithium batteries
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon.
