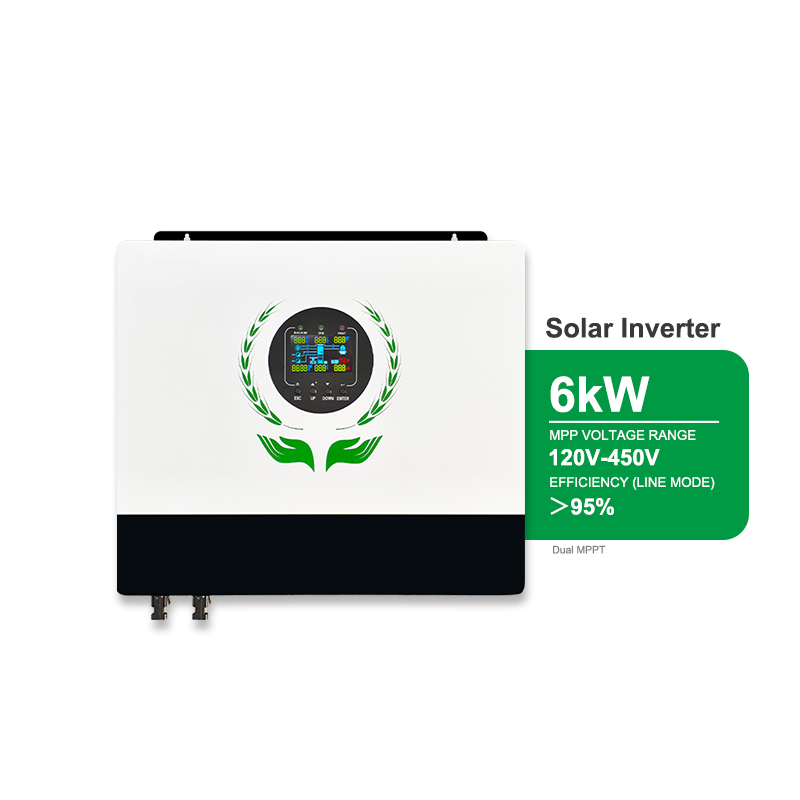

MINVON SOL IA6000-D1 6000VA Off-Grid Solar Inverter Parallel Up To 6 Units For Home Solar System

48V 6KW Hybrid Solar Inverter, Dual MPPT 8kW PV Input, Support 6 Units Parallel (36kW Total), Work with Lithium & Lead-Acid Batteries, Built-in AC Charger & Generator Backup Port

MINVON SOL IA-D1 series 6KW off-grid hybrid solar inverter is an all-in-one home solar power solution for areas without grid power. Equipped with dual independent MPPT solar trackers supporting max 8000W PV input, this pure sine wave inverter works p...

MODEL	SOL IA6000-D1
Battery Data
Battery Voltage	48VDC
Floating Charge Voltage	54 VDC
Battery Type	Lithium/ Lead-acid
Inverter Output
Rated Power	6000VAC/6000W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	12000VA
Efficiency(Line Mode)	＞95%
Output Current	27A
Waveform	Pure sine wave
Transfer Time	10ms typical，20ms Max
Solar Charger
Maximum PV Array Power	8000W
MPPT Range & Operating Voltage	120VDC ~ 450VDC
Number of Independent MPP Trackers /Strings Per MPP Tracker	1/2
Max. Input Current Per MPPT Tracker	16A
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Solar Charge Current	100A
AC Charger
Charge Current	80A
AC Input Voltage	230V AC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
Physical
Protection Degree	IP20
Dimension (WHD)	460395132mm
Net Weight (kgs)	13.5
Communication Interface	USB / RS232 / RS485 / Dry-contact / WIFI(optional)
Operating Environment
Overload Capacity	110%<load<150%(Alarm and Shutdown after 10s)load≥150%(Alarm and Shutdown after 5s)
Humidity	5% to 95% Relative Humidity (Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-0

1. 6 Units Parallel Supported

Support up to 6 inverters to run in parallel, delivering a maximum total power of 36kW. Flexible expandable design meets growing large power demand for home and commercial solar systems.

2. Dual MPPT Solar Trackers, Max PV Input 8000W

Equipped with two independent MPPT charge controllers, featuring a wide 120–450VDC PV voltage range. It achieves fast solar harvesting and makes full use of solar panel power.

3. 48V Hybrid Design, Compatible With Two Battery Types

Perfectly matched with 48V LiFePO4 lithium batteries and lead-acid batteries, with a standard 54VDC floating charge voltage for stable battery maintenance.

4. 6000W/6000VA Pure Sine Wave AC Output

Generates stable 230V alternating current with pure sine wave, safely powering all sensitive household electronics without damage or interference.

5. Multiple Backup Power Input Ports

Built-in 80A AC charger, plus an exclusive generator backup interface. Never worry about blackouts when solar power is insufficient.

6. Reliable Performance For Harsh Working Environments

Comes with a dustproof air intake cover and IP20 protection grade. Steady operation within a wide temperature range of 0℃ to 55℃.

7. Optional Smart WiFi Remote Monitoring

Add a WiFi module to remotely view real-time PV generation, battery level and load consumption data anytime via mobile phone APP.

8. High Conversion Efficiency Over 95%

Ultra-low energy loss during power conversion, maximizing the utilization rate of your solar energy and cutting electricity costs effectively.

off grid solar inverter 6kw dual mppt inputs maximum pv input voltage 500vdc dustproof air intake cover plug and play pv interface-1

Residential Home Applications

Ideal power solution for households with no access to municipal grid electricity

Off-grid rural residential homes without public utility power supply
Private standalone villas and countryside vacation cabins
Secluded mountain lodges and coastal beach bungalows
Powers all daily household devices: air conditioners, refrigerators, water pumps, indoor lighting and more

Commercial & Engineering Applications

Perfect energy system for small businesses, agricultural use and construction projects

Solar power supply for small farms, supporting livestock breeding and irrigation water pumps
Off-grid power systems for remote monitoring devices and outdoor street lighting
Small retail stores and workshops located in areas suffering frequent power outages
Temporary power stations for mobile construction job sites
Bulk wholesale & large commercial projects via parallel expansion (up to 36kW total output by connecting 6 inverters)

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon.

Introduction

minvon sol ia6000 d1 6000va off grid solar inverter parallel up to 6 units for home solar system-0

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-2

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-3

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-4

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-5

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-6

sol ia d1 6kw standalone solar inverter with generator input ip20 wifi optional-7

It supports parallel connection of up to 6 inverters to reach total 36kW power output, meeting large household and small commercial power demand. Built-in 80A AC charger and dedicated generator input interface offer reliable backup power when solar energy is insufficient.

Dustproof air intake design adapts harsh outdoor environments, IP20 protection, wide operating temperature range from 0℃ to 55℃. Optional WiFi module enables remote monitoring via mobile APP, easy to install with plug-and-play PV terminal.

Ideal for off-grid villas, rural houses, remote cabins, farm power supply and small commercial solar systems. CE, ISO, EMC, RoHS certified, stable performance with over 95% high conversion efficiency.
