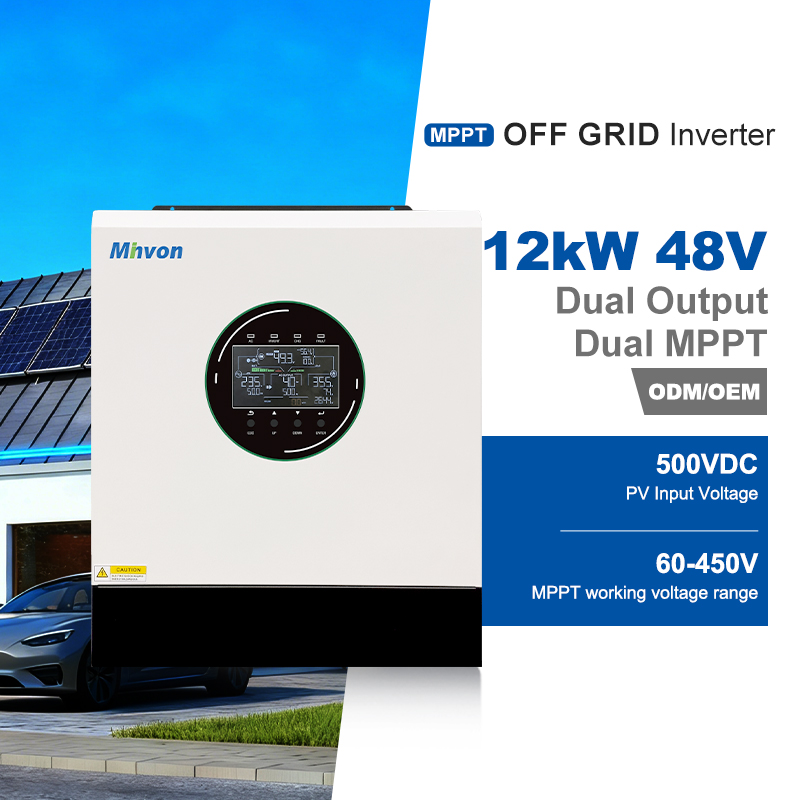

High Efficiency Off-Grid Solar Inverter SOL IA-S5 24V/48V, Space-Saving Compact Design, Dual AC Output & WIFI Optional For Remote Home & Farm Solar Storage
| Category | Parameter | SOL IA5000-S5 | SOL IA6000-S5 | SOL IA12000-S5 |
|---|---|---|---|---|
| Battery Data | Battery Voltage | 24VDC | 48VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC | 54VDC | |
| Battery Type | Lithium/Lead-acid | Lithium/Lead-acid | Lithium/Lead-acid | |
| Inverter Output | Rated Power | 5000VAC/5000W | 6000VAC/6000W | 12000VAC/15000W |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz | 230VAC ± 5% @ 50/60Hz | 230VAC ± 5% @ 50/60Hz | |
| Surge Power | 12000VA | 12000VA | 12000VA | |
| Efficiency(Line Mode) | >99.5%@6kVA | >99.5%@6kVA | >99.5%@6kVA | |
| Output Current | 27A | 27A | 22.5A+22.5A | |
| Waveform | Pure sine wave | Pure sine wave | Pure sine wave | |
| Transfer Time | 10 (normal mode) / 10 (UPS mode) | 10 (normal mode) / 10 (UPS mode) | 10 (normal mode) / 10 (UPS mode) | |
| Number of MPPT | 1 | 1 | 2 | |
| Solar Charger | Max. PV Array Power | 9000W | 9000W | 9000W |
| MPPT Range & Operating Voltage | 60VDC ~ 450VDC | 60VDC ~ 450VDC | 60VDC ~ 450VDC | |
| Max. Efficiency (Battery Mode) | 94% | 94% | 94% | |
| Max PV Input Current | 27A | 27A | 27A | |
| Max. PV Array Open Circuit Voltage | 500VDC | 500VDC | 500VDC | |
| Max. Solar Charge Current | 160A | 160A | 160A | |
| AC Charger | Max. PV Charge Current | 160A (Default:120A) | 160A (Default:120A) | 160A (Default:100A) |
| AC Input Voltage | 230V AC | 230V AC | 230V AC | |
| Selectable Voltage Range | 90~280±3V (normal mode); 170~280±3V (UPS mode) | 90~280±3V (normal mode); 170~280±3V (UPS mode) | 90~280±3V (normal mode); 170~280±3V (UPS mode) | |
| Frequency Range | 50Hz/60Hz (Auto sensing) | 50Hz/60Hz (Auto sensing) | 50Hz/60Hz (Auto sensing) | |
| Physical | Protection Degree | IP21 | IP21 | IP21 |
| Dimension (WHD) | 410336110mm | 410336110mm | 410336110mm | |
| Net Weight (kgs) | 8.4 | 8.4 | 8.4 | |
| Communication Interface | RS232 / RS485 / CAN / WIFI(optional) | RS232 / RS485 / CAN / WIFI(optional) | RS232 / RS485 / CAN / WIFI(optional) | |
| Operating Environment | Overload Capacity | 110%<load<150%/Alarm after 10s; load>150%/Alarm Shutdown after 5s | 110%<load<150%/Alarm after 10s; load>150%/Alarm Shutdown after 5s | 110%<load<150%/Alarm after 10s; load>150%/Alarm Shutdown after 5s |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | 5% to 95% Relative Humidity (Non-condensing) | 5% to 95% Relative Humidity (Non-condensing) | |
| Altitude | <2000m | <2000m | <2000m | |
| Operating Temperature | -10℃ ~ 60℃ | -10℃ ~ 60℃ | -10℃ ~ 60℃ | |
| Storage Temperature | -15℃ ~ 60℃ | -15℃ ~ 60℃ | -15℃ ~ 60℃ |
Ultra High PV Conversion Efficiency Up To 99.5%
Built-in high-efficiency MPPT solar charge controller, max PV open circuit voltage up to 500VDC, fully utilizes solar energy to maximize power generation.
Flexible Operation With Or Without Battery
Special battery-free working mode, solar panels can directly drive loads on sunny days, effectively reducing customer system investment cost.
Compact Space-Saving Structural Layout
Rational internal layout design achieves smaller cabinet size under the same power rating, saving indoor installation space for families.
Large LCD Screen & Easy Operation
Big visual display with user-friendly interactive interface, all system parameters can be set and checked conveniently on the screen.
Dual Independent AC Output Terminals
Two groups of AC output ports to support more household electrical appliances at the same time, meeting multi-load power demand.
Wide Compatibility & Optional WIFI Monitor
24V/48V two battery voltage options, compatible with LiFePO4 & lead-acid batteries; optional WIFI module for mobile remote real-time data monitoring.
Comprehensive Full-Range Safety Protection
Multi-protection against overvoltage, undervoltage, overload, short circuit and overheating, stable operation under -10℃~60℃ wide temperature range.
1. Remote Off-Grid Rural Villas & Countryside Homes
Suitable for houses without stable public grid, supply lighting, air conditioners, refrigerators and all daily household appliances.
2. Agricultural Farms & Ranches Energy Storage
Stable power supply for farm water pumps, breeding equipment, farm lighting and small agricultural processing machinery.
3. Mountain Cabins, Island & Remote Independent Energy Stations
Self-sufficient solar power system for isolated settlements without municipal grid access.
4. Household Emergency Backup Power Supply
Work with generator & utility grid as backup power when blackouts or grid maintenance happen.
5. Small Rural Shops & Off-Grid Workshops
Meet daily power consumption of village retail stores and small processing workshops to cut expensive generator fuel costs.
6. Medium-Scale Parallel Off-Grid Solar Projects
Multiple units parallel expand total power capacity to support large villa and farm high-power load demand.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
MINVON SOL IA-S5 series all-in-one off-grid solar inverters cover 5kW, 6kW and 12kW power options, available in 24V and 48V battery versions to match lithium iron phosphate and lead-acid batteries.
Equipped with high-performance MPPT solar charger, it reaches up to 99.5% PV conversion efficiency and supports a maximum 500VDC PV open-circuit voltage to capture more solar power. This model supports operation with or without batteries, greatly lowering the initial investment cost of off-grid solar systems.
Adopting space-saving compact internal layout, it is fitted with a large intuitive LCD screen for easy parameter setup, plus dual independent AC output terminals to supply more household loads. Optional WIFI communication module enables real-time remote monitoring via mobile APP.
Complete multi-layer safety protection and wide working temperature range ensure stable performance in harsh rural, high-temperature and dusty environments. It is the ideal core power equipment for off-grid villas, countryside houses, farms and remote independent energy stations.
