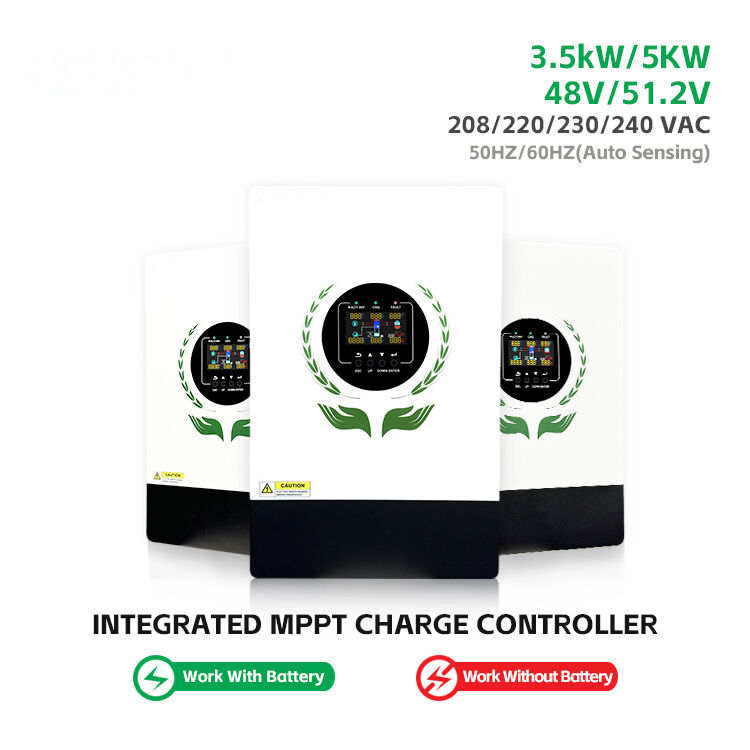

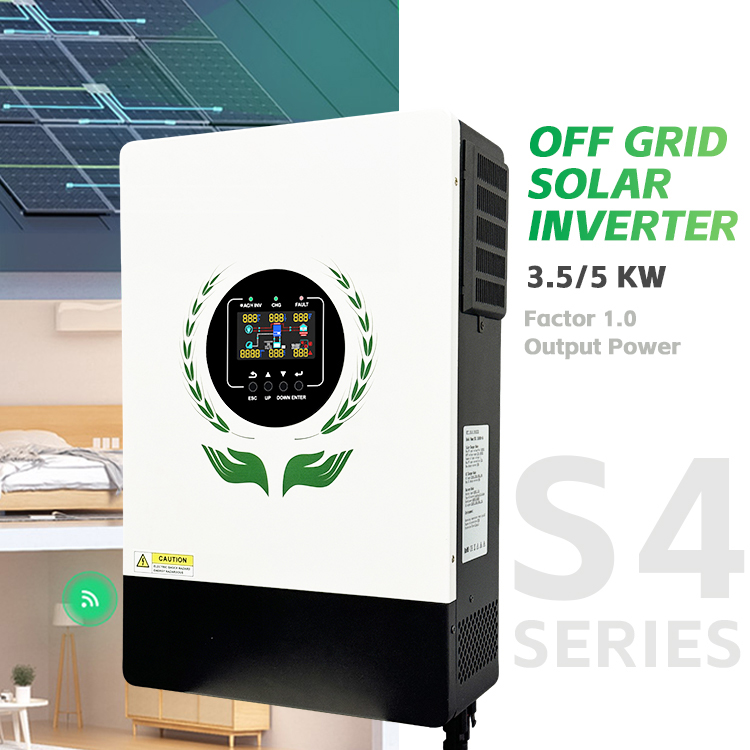

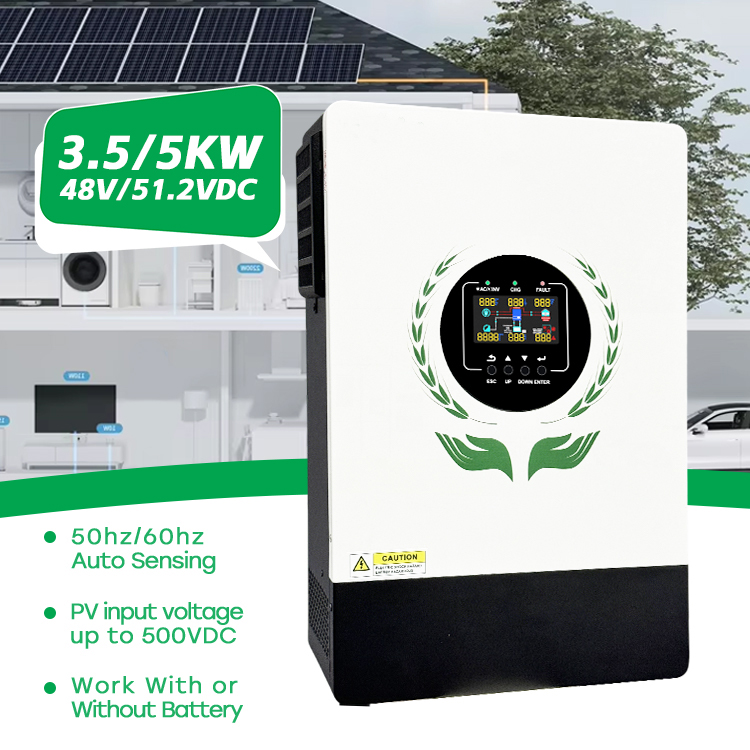

Hybrid Solar Inverter SOL IA-S4

The SOL IA-S4 is an advanced high-performance off-grid solar inverter launched by Minvon, exclusively designed for households pursuing energy independence and lower electricity bills. Available in 3.5kW and 5kW models, it delivers reliable power to a...

MODEL

SOL IA3500-S4

SOL IA5000-S4

Battery Data

Battery Voltage

48VDC

Battery Type

Lithium/Lead-acid

Inverter Output

Rated Power

3500VA/ 3500W

5000VA/ 5000W

AC Voltage Regulation (Batt.Mode)

230VAC ± 5% & 50/60Hz

Surge Power

7000VAC

10000VAC

Efficiency(Line Mode)

>93%

Output Current

15.2A

Transfer Time

10ms typical, 20ms Max

Wave Form

Pure Sine Wave

Solar Charger

Maximum PV Array Power

4500W

6000W

MPPT Range & Operating Voltage

120~450 VDC

120~450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

500 VDC

Max. input current per MPP tracker

22A

Maximum solar charge current

80A

100A

AC Charger

Maximum Charge Current

60A

80A

AC Input Voltage

230V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)

Frequency Range

50Hz/60Hz (Auto Sensing)

Physical

Dimension (W*H*D)

280*125*435MM

Net Weight (kgs)

9.2KG

9.8KG

Protection degree

IP20

Operating Environment

Humidity

5% to 95% Relative Humidity (Non-condensing)

Altitude

<2000m

Operating Temperature

-10℃ to 50℃

Storage Temperature

-15℃ to 60℃

Ideal for:

Building long-term independent photovoltaic systems

Emergency power backup during grid outages

Reducing reliance on grid electricity and lowering energy costs

PV input voltage up to 500VDC

Integrated MPPT charge controller

Work with or with out battery

Customizable Power Priority Settings

Hybrid Power Supply Mode

Smart Time-of-Use Scheduling

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

The SOL IA-S4 is an advanced high-performance off-grid solar inverter launched by Minvon, exclusively designed for households pursuing energy independence and lower electricity bills. Available in 3.5kW and 5kW models, it delivers reliable power to all household appliances for daily use and during grid outages. The SOL IA-S4 strikes a perfect balance among performance, flexibility and cost-effectiveness, making it an ideal choice for households switching to off-grid or hybrid energy solutions.
