MINVON SOL IA-S2 All In One Off Grid Solar Inverter Wide 60-450VDC MPPT Range Dual Output Pure Sine Wave Inverter For Home Backup Solar Kit

SOL IA-S2 Series 4/6KW Off-Grid Pure Sine Wave Solar Inverter, featuring maximum 500VDC high PV input voltage and dual AC outputs with wide-voltage MPPT, perfectly matched for complete household solar energy storage systems.

MINVON SOL IA-S2 Series offers two household off-grid inverter models: 4KW and 6KW. This all-in-one unit integrates an MPPT solar charge controller and a pure sine wave inverter module. It supports a maximum PV input voltage of 500VDC with an ultra-w...

MODEL

SOL IA4000-S2

SOL IA6000-S2

Battery Data

Battery Voltage

24 VDC

48 VDC

Battery Type

Lithium/ Lead-acid

Inverter Output

Rated Power

4000W

6000W

AC Voltage Regulation (Batt.Mode)

Surge Power

8000VAC

12000VAC

Efficiency(Line Mode)

>93%

Output Current

17.4A

26.1A

Transfer Time

10ms typical, 20ms Max

Wave Form

Pure Sine Wave

Solar Charger

Maximum PV Array Power

5000W

6000W

MPPT Range & Operating Voltage

60~450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum PV Input Current

27A

Maximum Solar Charge Current

120A

AC Charger

Maximum Charge Current

100A

AC Input Voltage

230V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)

Frequency Range

50Hz/60Hz (Auto Sensing)

Physical

Dimension (W*H*D)

435*300*115MM

Net Weight (kgs)

10

11

Communication Interface

USB / RS232 / RS485 / WIFI / Dry-contact

Operating Environment

Overload Capacity

105%<load<130%(Alarm and Shutdown after 10s)
load≥130%(Alarm and Shutdown after 5s)

Humidity

5% to 95% Relative Humidity (Non-condensing)

Altitude

<2000m

Operating Temperature

-10℃ to 50℃

sol ia s2 series 4000 6000w off grid inverter 43 touch display for home solar  backup power-0

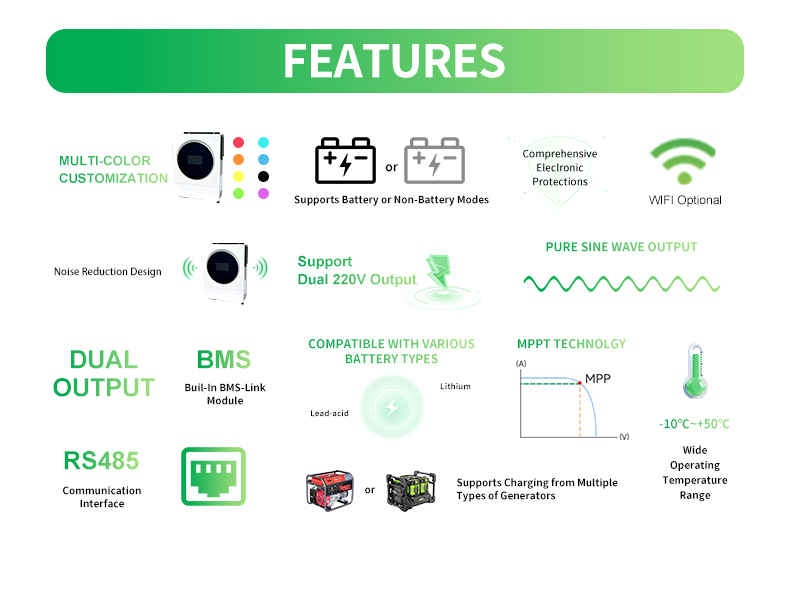

1. Two power options available: SOL IA-S2 4KW & 6KW off-grid pure sine wave solar inverter

2. Max PV input voltage up to 500VDC, ultra-wide MPPT working range of 60–450VDC

3. Support 50Hz/60Hz dual frequency auto-adaptation, fits global household power standards

4. Dual independent AC output ports to realize separate control of different home loads

5. Built-in high-efficiency MPPT solar charger with high solar energy conversion rate

6. Compatible with 24V & 48V lead-acid batteries and LiFePO4 lithium storage batteries

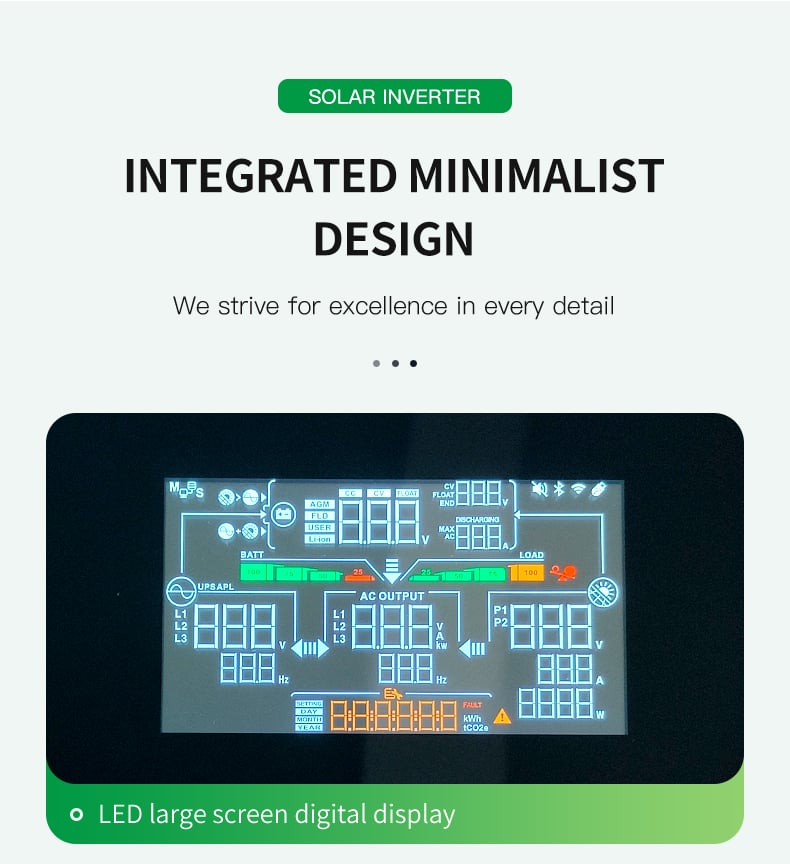

7. Circular HD LCD display with simple operation buttons for easy parameter setup

8. Compact integrated structure, easy installation and space-saving for household use

9. Stable pure sine wave output, safely drives air conditioners, water pumps and all daily home appliances

10. Independent off-grid operation, no municipal grid required for self-sufficient power supply


48v programmable supply priority dual load outputs-0

1. Off-grid rural households with unreliable or no municipal grid power

2. Private villas, mountain cabins, holiday cottages and remote vacation residences

3. Reliable emergency backup power for regions suffering frequent grid blackouts

4. Small workshops, storage warehouses and roadside convenience retail shops

5. Outdoor campsites, mobile tiny homes and off-grid leisure living quarters

6. Full self-sustaining residential solar energy storage system packages

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

48v programmable supply priority dual load outputs-2

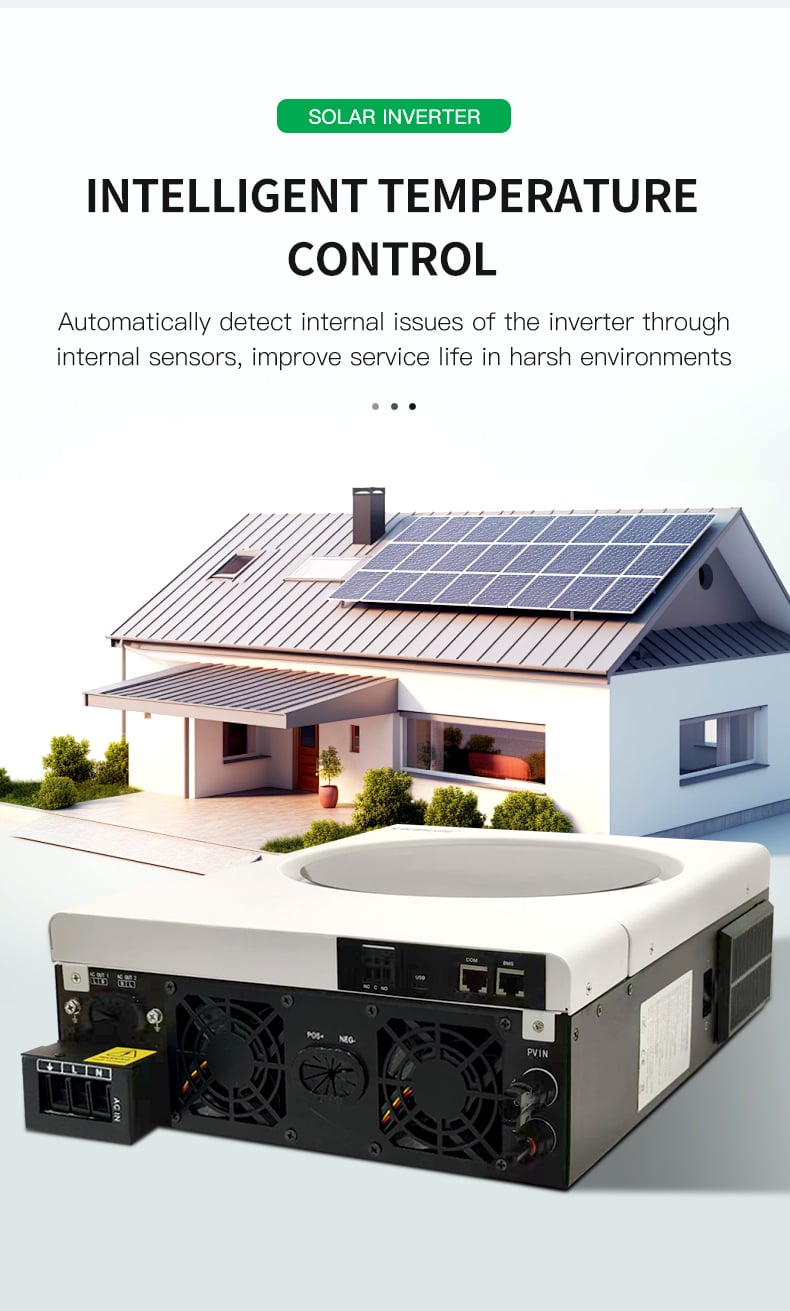

48v programmable supply priority dual load outputs-3

48v programmable supply priority dual load outputs-4

48v programmable supply priority dual load outputs-5

48v programmable supply priority dual load outputs-6

48v programmable supply priority dual load outputs-7

48v programmable supply priority dual load outputs-8

48v programmable supply priority dual load outputs-9

MINVON SOL IA-S2 Series offers two household off-grid inverter models: 4KW and 6KW. This all-in-one unit integrates an MPPT solar charge controller and a pure sine wave inverter module. It supports a maximum PV input voltage of 500VDC with an ultra-wide 60–450VDC MPPT operating range, and auto-adapts to both 50Hz and 60Hz global power frequencies.
Equipped with two independent AC output ports, the inverter enables zone-based control of household loads. It is compatible with both 24V & 48V lead-acid batteries and LiFePO4 lithium energy storage batteries. Fitted with a circular high-definition LCD screen and simple control buttons, it allows intuitive and hassle-free parameter configuration.

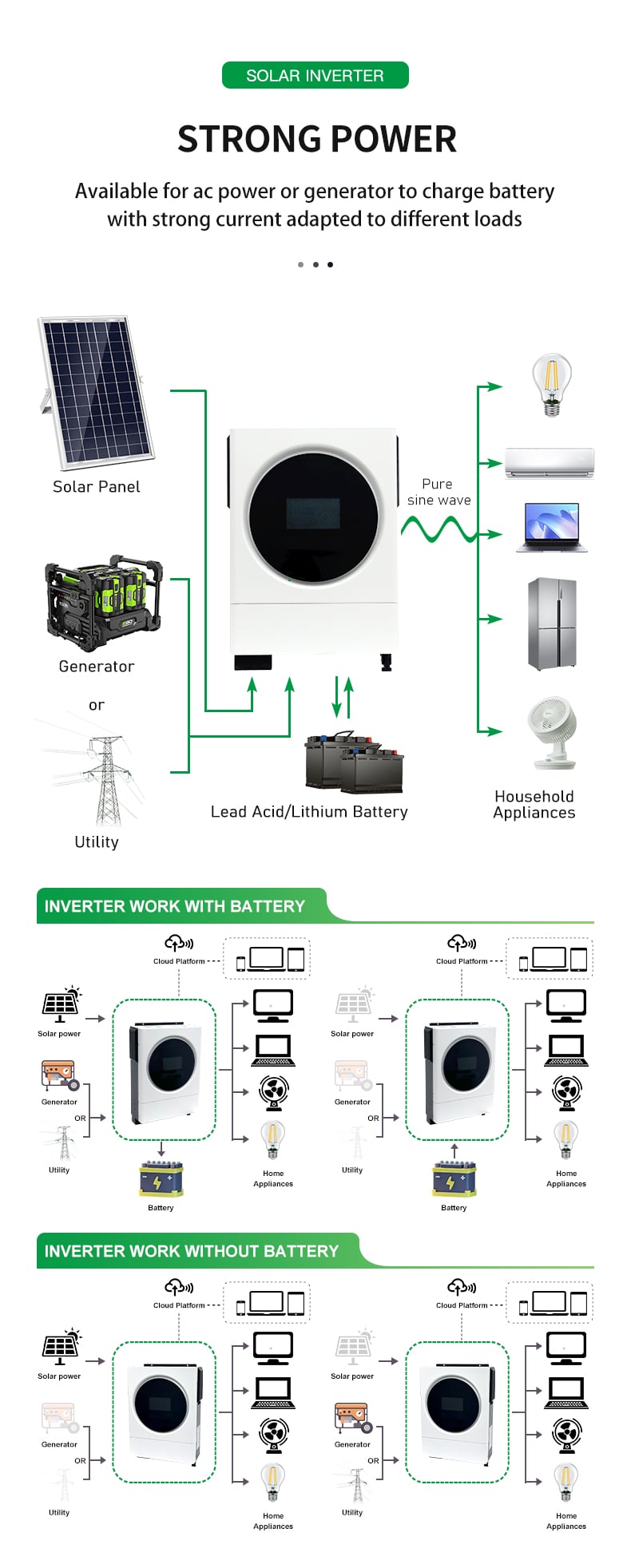

Boasting a compact integrated structure, the unit is ideal for rural self-built homes, holiday cabins and emergency power backup during grid outages. Paired with solar panels, it forms a fully independent power supply system that reliably runs all types of household loads including air conditioners, water pumps, lighting and general home appliances.
