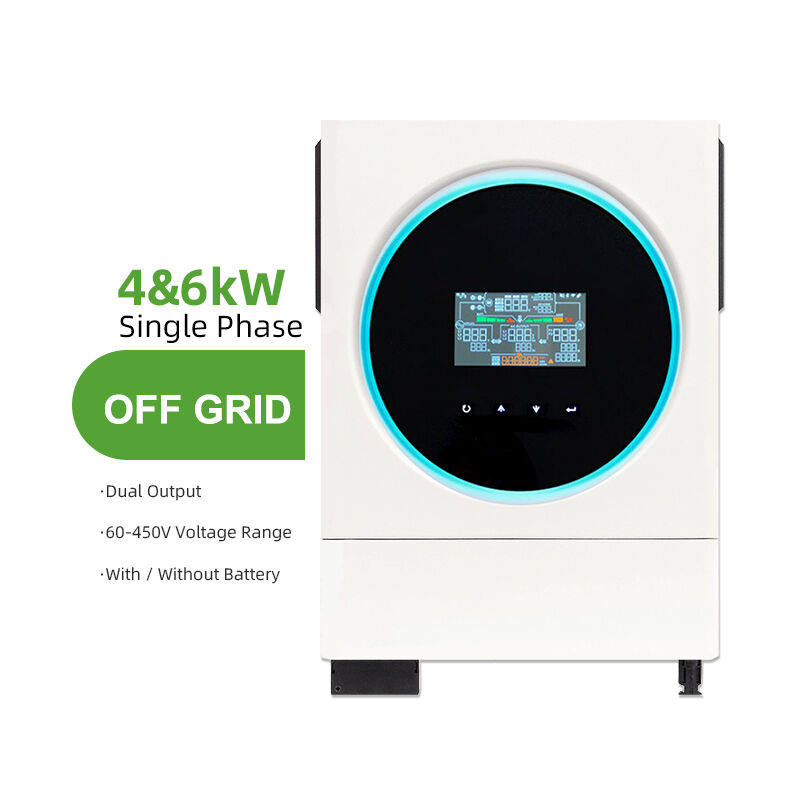

SOL IA-S2 Series 4000-6000W Off-Grid Inverter, 4.3" Touch Display, for Home Solar & Backup Power

Wide PV Input + WiFi Remote Monitoring, Ideal for Off-Grid & Backup Power Systems

Tired of unreliable power in your off-grid home? Want a backup system that actually works during blackouts? Meet the CKMINE SOL IA-S2 Off-Grid Solar Inverter, your all-in-one solution for clean, stable power anywhere. ☀️ Power Your Off-Grid Life - Co...

MODEL

SOL IA4000-S2

SOL IA6000-S2

Battery Data

Battery Voltage

24 VDC

48 VDC

Battery Type

Lithium/ Lead-acid

Inverter Output

Rated Power

4000W

6000W

AC Voltage Regulation (Batt.Mode)

Surge Power

8000VAC

12000VAC

Efficiency(Line Mode)

>93%

Output Current

17.4A

26.1A

Transfer Time

10ms typical, 20ms Max

Wave Form

Pure Sine Wave

Solar Charger

Maximum PV Array Power

5000W

6000W

MPPT Range & Operating Voltage

60~450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum PV Input Current

27A

Maximum Solar Charge Current

120A

AC Charger

Maximum Charge Current

100A

AC Input Voltage

230V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)

Frequency Range

50Hz/60Hz (Auto Sensing)

Physical

Dimension (W*H*D)

435*300*115MM

Net Weight (kgs)

10

11

Communication Interface

USB / RS232 / RS485 / WIFI / Dry-contact

Operating Environment

Overload Capacity

105%<load<130%(Alarm and Shutdown after 10s)
load≥130%(Alarm and Shutdown after 5s)

Humidity

5% to 95% Relative Humidity (Non-condensing)

Altitude

<2000m

Operating Temperature

-10℃ to 50℃

sol ia s2 series 4000 6000w off grid inverter 43 touch display for home solar  backup power-0

The MINVON SOL IA-S2 series is a high-performance off-grid solar inverter engineered for residential and small commercial solar systems, with 4000W and 6000W rated power options.

✅ Core Technical Advantages:

  • Pure sine wave 230VAC output, with surge power up to twice the rated power, supporting all household appliances and sensitive electronics
  • Built-in high-efficiency MPPT solar charger (5000W/6000W) with a wide PV input range (60-450VDC) and max open circuit voltage up to 500VDC, maximizing solar energy harvesting
  • Programmable supply priority (PV/Battery/Grid) allows you to customize the power source order based on your needs, optimizing self-consumption
  • Dual output design enables smart load management, letting you prioritize critical loads and avoid overloading the system
  • Large 4.3" color touch display with customizable RGB LED status ring, for intuitive monitoring and operation
  • Compatible with both lead-acid and lithium batteries, with a reserved communication port for seamless BMS integration
  • Multiple communication interfaces (WiFi/RS485/USB) support remote monitoring, APP control and system upgrades


48v programmable supply priority dual load outputs-0

1. Off-Grid Residential & Remote Cabins

  • Customizable Home Power: Set your preferred power supply priority to maximize self-consumption and reduce reliance on the grid, even in remote locations.
  • User-Friendly Monitoring: The large touch display makes it easy to monitor and adjust your system without technical expertise.
  • Smart Load Management: Dual outputs let you keep essential devices running during cloudy days or outages.

2. Agricultural & Farm Applications

  • Farm Equipment & Irrigation: Power water pumps, lighting, and tools with customizable power priority, ensuring critical farm operations never stop.
  • Remote Barn & Workshop Power: The compact design fits easily in farm buildings, with wide voltage compatibility for various solar panel setups.

3. Backup Power & Smart Home Systems

  • Whole-Home Backup: Keep lights, appliances, and smart devices running during grid outages, with seamless 10ms transfer time.
  • Smart Home Integration: WiFi connectivity allows you to monitor and control your system from your phone, even when you're away from home.

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

48v programmable supply priority dual load outputs-2

48v programmable supply priority dual load outputs-3

48v programmable supply priority dual load outputs-4

48v programmable supply priority dual load outputs-5

48v programmable supply priority dual load outputs-6

48v programmable supply priority dual load outputs-7

48v programmable supply priority dual load outputs-8

48v programmable supply priority dual load outputs-9

Tired of unreliable power in your off-grid home? Want a backup system that actually works during blackouts? Meet the CKMINE SOL IA-S2 Off-Grid Solar Inverter, your all-in-one solution for clean, stable power anywhere.

☀️ Power Your Off-Grid Life - Combine it with solar panels and batteries to build a fully standalone power system for your remote home, cabin or farm. - The built-in MPPT charger maximizes solar energy harvesting, so you can power lights, appliances and tools even on cloudy days.

🔋 Smart Power, Your Way - Choose how your system prioritizes power: solar first, battery backup or grid backup, depending on what works best for you. - The dual output design lets you keep critical loads running even when power is limited, so you never lose power to essential devices.

📱 Control At Your Fingertips - The large 4.3" touch display makes it easy to check your system status, adjust settings and monitor performance. - With WiFi connectivity, you can even control and monitor your system remotely via an app, no matter where you are.

🛡️ Built to Last & Keep You Safe - Pure sine wave output is safe for sensitive electronics like TVs, computers and medical devices.

Comprehensive protection features automatically shut down the system in case of overheating, overloading or short circuits. Whether you're building an off-grid home, setting up a backup power system or just want more control over your energy, the SOL IA-S2 series gives you the reliability, intelligence and flexibility you need.
