Top Pick for Home Off-Grid Power: 4/6kW Pure Sine Wave Inverter, Dual Smart Load Management, Wide Voltage MPPT
|
MODEL |
SOL IA4000-S2 |
SOL IA6000-S2 |
|
Battery Data |
||
|
Battery Voltage |
24 VDC |
48 VDC |
|
Battery Type |
Lithium/ Lead-acid |
|
|
Inverter Output |
||
|
Rated Power |
4000W |
6000W |
|
AC Voltage Regulation (Batt.Mode) |
||
|
Surge Power |
8000VAC |
12000VAC |
|
Efficiency(Line Mode) |
>93% |
|
|
Output Current |
17.4A |
26.1A |
|
Transfer Time |
10ms typical, 20ms Max |
|
|
Wave Form |
Pure Sine Wave |
|
|
Solar Charger |
||
|
Maximum PV Array Power |
5000W |
6000W |
|
MPPT Range & Operating Voltage |
60~450 VDC |
|
|
Maximum PV Array Open Circuit Voltage |
500 VDC |
|
|
Maximum PV Input Current |
27A |
|
|
Maximum Solar Charge Current |
120A |
|
|
AC Charger |
||
|
Maximum Charge Current |
100A |
|
|
AC Input Voltage |
230V AC |
|
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; |
|
|
Frequency Range |
50Hz/60Hz (Auto Sensing) |
|
|
Physical |
||
|
Dimension (W*H*D) |
435*300*115MM |
|
|
Net Weight (kgs） |
10 |
11 |
|
Communication Interface |
USB / RS232 / RS485 / WIFI / Dry-contact |
|
|
Operating Environment |
||
|
Overload Capacity |
105%<load<130%(Alarm and Shutdown after 10s) |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
|
Altitude |
<2000m |
|
|
Operating Temperature |
-10℃ to 50℃ |
|
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

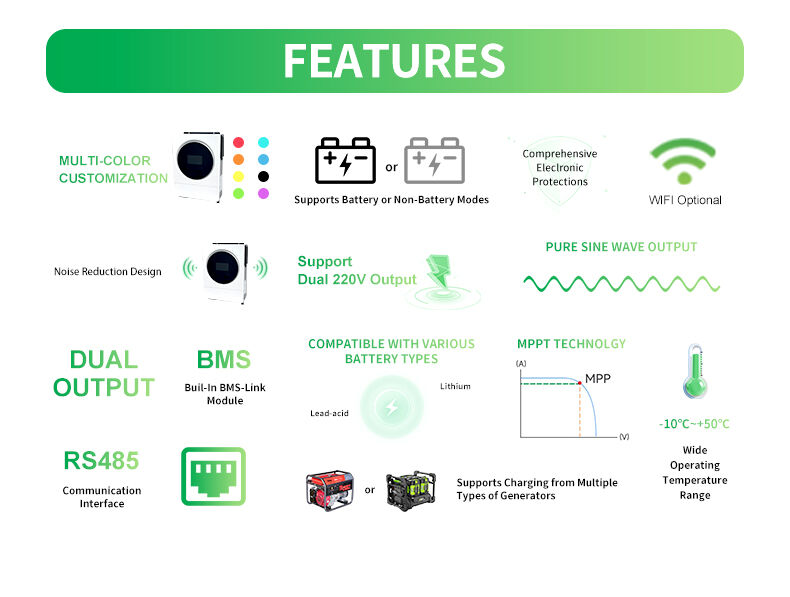

Want full control over your home energy system, with a sleek, user-friendly interface? Meet the CKMINE SOL IA-S2 Series Off-Grid Solar Inverter, built for customization and ease of use.
🎛️ Your Energy, Your Way - Set your own power supply priority: solar first, battery backup, or grid power—whatever works best for your lifestyle and budget. - The 4.3" color touch display makes setup and monitoring simple, with real-time data on your solar harvest, battery status, and power usage.
⚡ Smart Power for Your Home - Dual outputs let you prioritize power to essential loads like lights, refrigerators, and medical equipment during outages. - The wide MPPT voltage range means you can use a variety of solar panel configurations, even with partial shading, to maximize energy harvest.
🔋 Future-Ready & Compatible - The reserved BMS port lets you easily integrate advanced lithium batteries, so you can upgrade your system as technology evolves. - With support for both lithium and lead-acid batteries, you can choose the storage solution that fits your needs and budget.
✨ Built to Look & Perform Great - The customizable RGB LED ring adds a modern touch to your utility room, while also providing quick visual alerts for system status. - Pure sine wave output protects your sensitive electronics, ensuring they run safely and reliably. Whether you're building an off-grid home, setting up a remote cabin, or just want a reliable backup system, the SOL IA-S2 gives you the control, features, and style to power your life your way.
