MINVON SOL IA-S2 All In One Off Grid Solar Inverter 4kW 6kW 230V Single Phase Pure Sine Wave Hybrid Solar Charger, 60-450V Wide PV Input

24h Stable Household Solar Power Solution | MINVON SOL IA-S2 Hybrid Inverter With Touch Screen & Dual AC Output For Off-Grid & Emergency Blackout Use

The MINVON SOL IA-S2 series is an all-in-one off-grid hybrid solar inverter integrated with MPPT solar charger, AC charger and pure sine wave inverter, covering 4kW and 6kW power models for 230V single-phase household power supply.It adopts an ultra-...

MODEL

SOL IA4000-S2

SOL IA6000-S2

Battery Data

Battery Voltage

24 VDC

48 VDC

Battery Type

Lithium/ Lead-acid

Inverter Output

Rated Power

4000W

6000W

AC Voltage Regulation (Batt.Mode)

Surge Power

8000VAC

12000VAC

Efficiency(Line Mode)

>93%

Output Current

17.4A

26.1A

Transfer Time

10ms typical, 20ms Max

Wave Form

Pure Sine Wave

Solar Charger

Maximum PV Array Power

5000W

6000W

MPPT Range & Operating Voltage

60~450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum PV Input Current

27A

Maximum Solar Charge Current

120A

AC Charger

Maximum Charge Current

100A

AC Input Voltage

230V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)

Frequency Range

50Hz/60Hz (Auto Sensing)

Physical

Dimension (W*H*D)

435*300*115MM

Net Weight (kgs)

10

11

Communication Interface

USB / RS232 / RS485 / WIFI / Dry-contact

Operating Environment

Overload Capacity

105%<load<130%(Alarm and Shutdown after 10s)
load≥130%(Alarm and Shutdown after 5s)

Humidity

5% to 95% Relative Humidity (Non-condensing)

Altitude

<2000m

Operating Temperature

-10℃ to 50℃

minvon sol ia s2 all in one off grid solar inverter 4kw 6kw 230v single phase pure sine wave hybrid solar charger 60 450v wide pv input-0

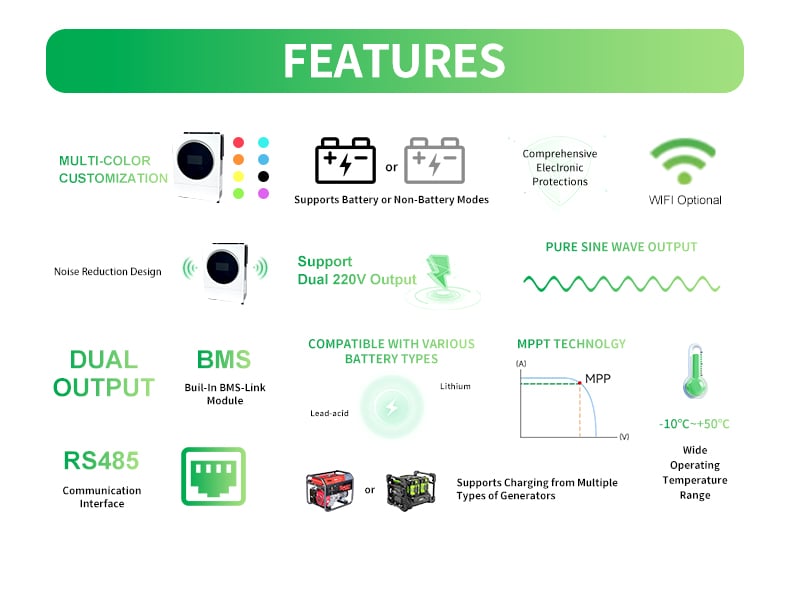

1. All-in-one hybrid design: Inverter + MPPT Solar Charger + AC Charger

2. Ultra-wide PV input range 60V-450VDC, match more solar panel arrays

3. 4kW & 6kW two power options for different household power demands

4. Large 4.3” color touch screen + customizable RGB indicator light ring

5. Dual AC output ports, run multiple home appliances simultaneously

6. Programmable power priority: Solar / Battery / Grid flexible switching

7. Pure sine wave AC output, safe & damage-free for sensitive electronics

8. Fast 10ms transfer time, zero interruption during power failure

9. Reserved BMS communication port, perfectly compatible with lithium batteries

10. Built-in WIFI module support, monitor power system via mobile APP remotely

11. Dual input sources: Utility grid + diesel generator for backup power


48v programmable supply priority dual load outputs-0

  • 24/7 uninterrupted solar energy supply for off-grid rural private houses
  • Reliable all-house emergency backup power to tackle unexpected blackouts
  • Self-sufficient standalone power system for remote secluded mountain villas & grid-free estates
  • Custom solar power setup for small farms to operate irrigation pumps and agricultural equipment
  • Complete off-grid energy storage system for campsites, vacation cabins & mobile homestays
  • Durable temporary solar power station for remote construction sites without municipal grid access

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

minvon sol ia s2 all in one off grid solar inverter 4kw 6kw 230v single phase pure sine wave hybrid solar charger 60 450v wide pv input-1

48v programmable supply priority dual load outputs-3

48v programmable supply priority dual load outputs-4

48v programmable supply priority dual load outputs-5

48v programmable supply priority dual load outputs-6

48v programmable supply priority dual load outputs-7

48v programmable supply priority dual load outputs-8

48v programmable supply priority dual load outputs-9

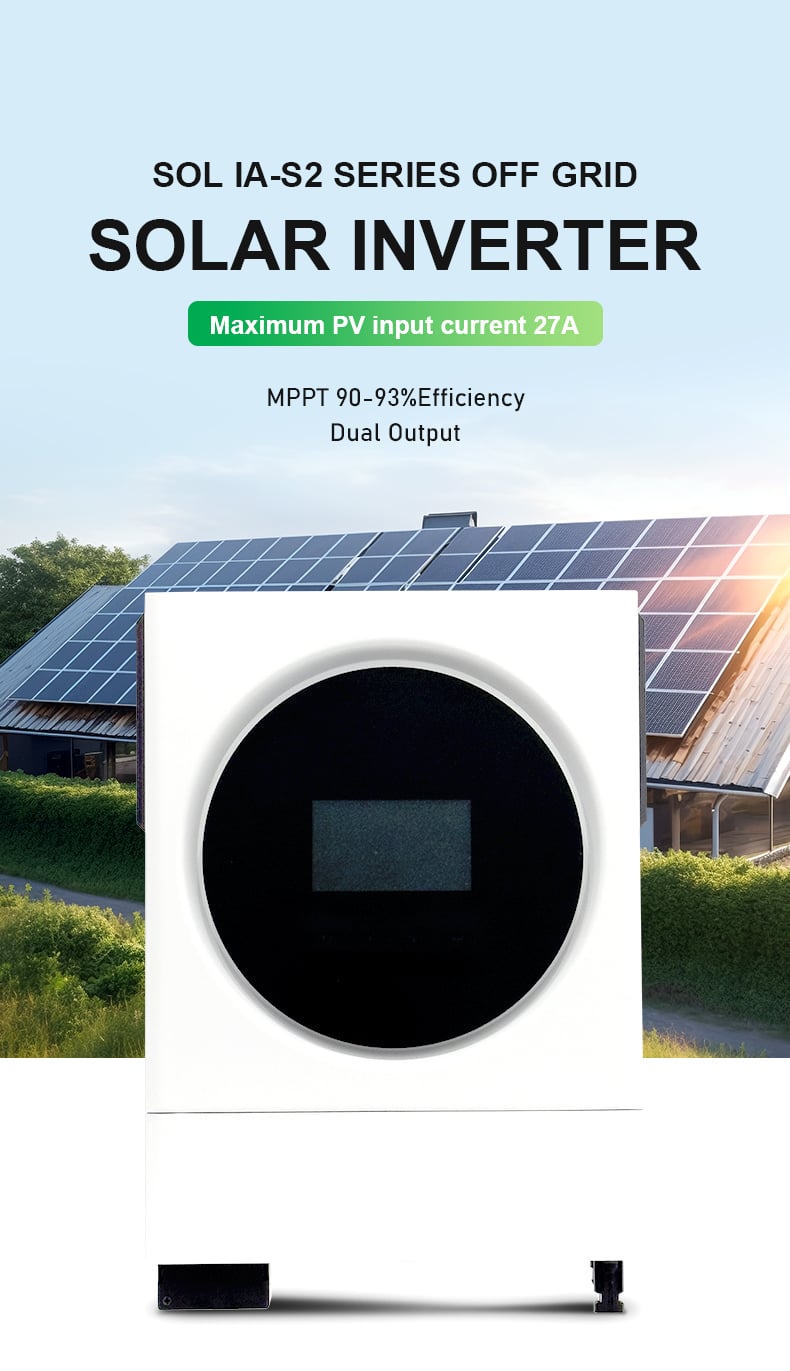

The MINVON SOL IA-S2 series is an all-in-one off-grid hybrid solar inverter integrated with MPPT solar charger, AC charger and pure sine wave inverter, covering 4kW and 6kW power models for 230V single-phase household power supply.

It adopts an ultra-wide 60-450VDC PV input voltage range, compatible with most mainstream solar panel combinations on the market. Equipped with a 4.3-inch colorful touch display and customizable RGB status light ring, users can check running data and adjust working parameters intuitively.

This solar inverter supports programmable power supply priority (solar / battery / mains grid), dual AC outputs for multi household loads, and reserved BMS communication port for lithium battery connection. Built-in multi-protection circuit, fast 10ms power transfer time and compatibility with utility grid & diesel generator, it delivers reliable round-the-clock power for off-grid houses and blackout emergency backup.

Compact body, easy installation and optional WIFI remote monitoring make it the perfect all-round energy core for family independent power systems.
