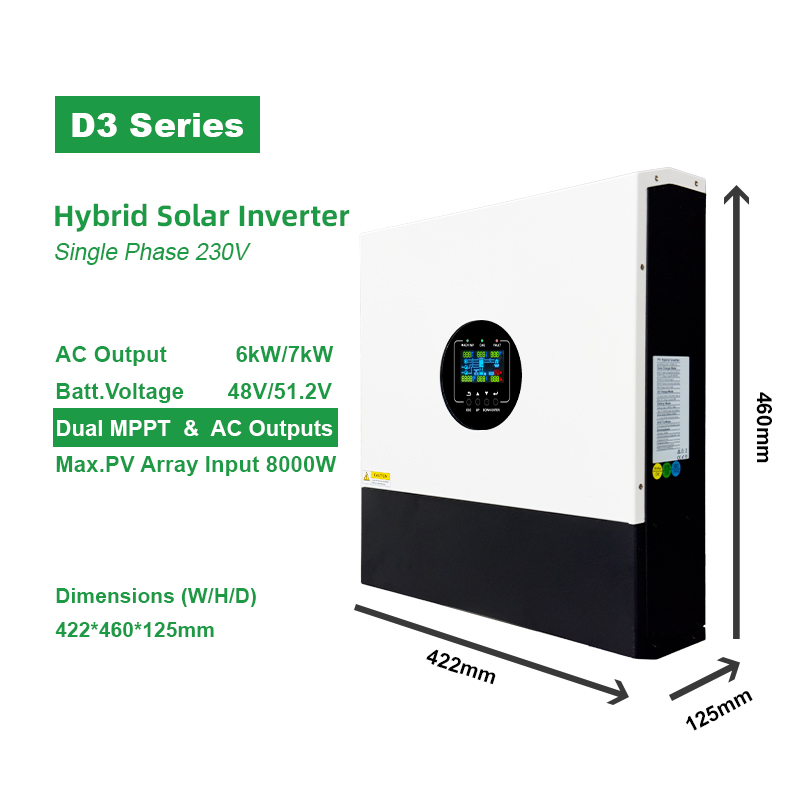

MINVON SOL IA-D3 Series Hybrid Solar Inverter 6kW/7kW 48V Dual MPPT Grid-Tied Off-Grid Solar Inverter, Parallel Up To 9 Units Max 63kW Peak Shaving Dual AC Output For Home Energy Storage

48V All-In-One Hybrid Solar Inverter | Dual MPPT, Grid-Tied Peak Shaving, Dual AC Load Output, Max 9 Parallel Units For Home On/Off Grid Solar Energy System

MINVON SOL IA-D3 Series is a high-performance all-in-one hybrid solar inverter integrating grid-tied, off-grid, MPPT solar charge controller and automatic transfer switch, available in 6kW (SOL IA6000-D3) and 7kW (SOL IA7000-D3) two power models, per...

MODEL	SOL IA6000-D3	SOL IA7000-D3
Max. Recommended PV Power(for module STC)	8000W	8000W
Max. DC Voltage	500V	500V
Start Voltage	80V	80V
MPPT Voltage Range	60V-450V	60V-450V
No. of MPP Trackers	2	2
No. of PV Strings per MPP Tracker	2	2
Max. Input Current per MPP Tracker	22A	22A
Output Data (AC)
AC Nominal Power	6000W	7000W
Max. AC Apparent Power	6000VA	7000VA
Nominal AC Voltage	230V	230V
AC Grid Frequency	50/60Hz	50/60Hz
Efficiency(Line Mode)	95.5%	95.5%
Output Current	26.1A	30.4A
Battery Data (DC)
Nominal DC Voltage	48V	48V
Max Charging And Discharging Current	80A	80A
Efficiency (Peak)	96.5%	96.5%
Type of Battery	Lithium/Lead-acid	Lithium/Lead-acid
Backup Power (AC)
AC nominal Output Power	6000W	7000W
Nominal AC Output Voltage	230V	230V
Nominal AC Output Frequency	50/60Hz	50/60Hz
Switch Time	10ms typical, RCD 20ms Max@ Single<30ms@ Parallel	10ms typical, RCD 20ms Max@ Single<30ms@ Parallel
General Data
Dimensions (W/H/D)	422460125mm	422460125mm
Weight	13.5kg	13.8kg
Humidity	5%~95% non-considering	5%~95% non-considering
Altitude	<2000m	<2000m
Protection degree	IP20	IP20
Communication	4G/WIFI(optional)	4G/WIFI(optional)

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-0

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-1

1. Ultra-Large Parallel Expansion Capacity

Two models: SOL IA6000-D3 (6kW/6kVA) & SOL IA7000-D3 (7kW/7kVA), 48V battery compatible for Lithium & Lead-acid batteries
Support up to 9 units parallel connection, maximum total power expand to 63kW for large residential & commercial energy storage
Max charging & discharging current up to 80A, peak efficiency reach 96.5% for high energy utilization

2. Dual MPPT High-Efficiency Solar Charging

Dual independent MPPT trackers, max PV input voltage up to 500VDC, MPPT voltage range 60V~450V
Max recommended PV power 8000W, 2 PV strings per tracker, max input current 22A per MPPT
Built-in solar controller with standby power-saving mode, over 95.6% line mode efficiency to reduce power loss

3. Hybrid 3-in-1 Grid/Off-Grid Function

Built-in grid-tied peak shaving function: Cut utility power bills by self-consumption solar power
Multi-source AC input: Utility Grid + Generator, automatic power switching within 10ms typical transfer time
Dual AC output design: Separate smart critical load & general load management, prioritize power to essential home appliances

4. Multi-Source Backup & Stable Output

Nominal 230V AC 50/60Hz output, pure sine wave stable power for all household equipment
Comprehensive protection: Overload, overvoltage, short circuit, overheat, auto alarm & shutdown
Wide working environment: 5%~95% non-condensing humidity, -15℃~60℃ operating temperature, IP20 indoor protection

5. Smart Remote Monitoring & Easy Installation

Optional 4G/WIFI communication module, mobile APP remote monitoring PV generation, battery status & load data
Compact size 422460125mm, lightweight 13.5kg for wall-mounted installation
Complete hybrid system matching: Solar Panels + Battery Bank + Grid Mains + Generator + Household Loads

7000w hybrid solar inverter 48v with mppt charger grid tie off grid support-2

Residential Hybrid Home Solar System

Grid-connected peak shaving + power outage backup for villas, suburban houses, urban residential buildings, cut monthly electricity bills

Off-Grid Remote Rural & Mountain Villas

Independent solar power supply for remote houses without stable public grid, matched with generator as emergency backup

Farm & Agricultural Ranch Energy Storage

Stable power supply for water pumps, breeding equipment, agricultural lighting and farm daily appliances

Small Commercial Shops & Workshops

Peak shaving to reduce commercial electricity cost, backup power to avoid production interruption during grid blackout

Island & Remote Independent Energy Station

Self-sufficient solar storage system for islands, fishing villages and coastal remote settlements

Emergency Backup Power For Household & Office

Automatic power switching during grid maintenance or power failure, protect critical equipment

Large Energy Storage Projects

9 units parallel expansion up to 63kW, support medium & large commercial solar storage systems

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-2

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-3

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-4

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-5

minvon sol ia d3 6 7kw all in one hybrid inverter for home solar system 955 efficiency ups function-6

This hybrid inverter supports parallel connection of up to 9 identical units, expanding the total power capacity to 63kW, which meets the power demand of large villas, small commercial workshops and farm energy storage projects. Equipped with dual independent MPPT trackers, the maximum PV input voltage reaches 500VDC, compatible with most mainstream solar panels on the market, with a peak conversion efficiency of 96.5%, fully capturing solar energy to reduce electricity consumption from the grid.

Different from ordinary off-grid inverters, SOL IA-D3 series adds professional grid-tied peak shaving function. When solar power is sufficient, the system preferentially uses solar energy to supply household loads, reducing electricity bills; when solar power is insufficient, it automatically switches to grid or generator power to charge batteries and supply loads. The unique dual AC output interface realizes classified management of critical loads and ordinary loads, ensuring uninterrupted power supply for essential equipment such as refrigerators, lighting and monitoring devices.

The inverter works with 48V lithium iron phosphate and lead-acid batteries, with a built-in power-saving standby mode to reduce idle power consumption. It reserves independent generator and grid AC input ports, with a typical switching time of only 10ms to avoid power flicker. Multiple communication options including WIFI/4G enable users to remotely view real-time power generation, battery SOC and equipment operating data via mobile phones anytime and anywhere.

With full electrical safety protection and compact lightweight structure, SOL IA-D3 hybrid inverter is the core energy storage equipment for both grid-connected and off-grid solar systems, widely used in family self-use power generation, remote villa energy storage, farm power supply, small commercial backup power and other scenarios.
