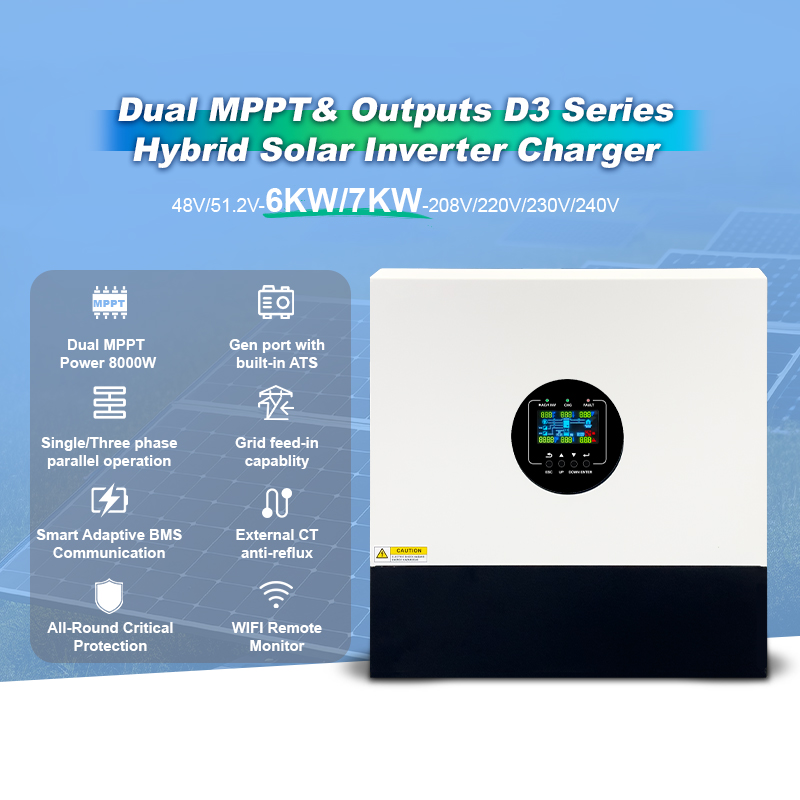

Single Phase 6KW/7KW Hybrid MPPT Solar Inverter | 500V PV Input, 9 Units Parallel Up To 63kW Home Energy Storage Inverter
| MODEL |
SOL IA6000-D3
|
SOL IA7000-D3
|
|
Max. Recommended PV Power(for module STC)
|
8000W
|
8000W
|
| Max. DC Voltage |
500V
|
500V |
| Start Voltage | 80V | 80V |
|
MPPT Voltage Range
|
60V-450V | 60V-450V |
| No. of MPP Trackers | 2 | 2 |
| No. of PV Strings per MPP Tracker | 2 | 2 |
| Max. Input Current per MPP Tracker | 22A | 22A |
|
Output Data (AC)
|
||
|
AC Nominal Power
|
6000W
|
7000W |
|
Max. AC Apparent Power
|
6000VA | 7000VA |
| Nominal AC Voltage |
230V
|
230V |
| AC Grid Frequency | 50/60Hz | 50/60Hz |
| Efficiency(Line Mode) | 95.5% | 95.5% |
| Output Current | 26.1A | 30.4A |
|
Battery Data (DC)
|
||
| Nominal DC Voltage |
48V
|
48V |
| Max Charging And Discharging Current | 80A | 80A |
| Efficiency (Peak) | 96.5% | 96.5% |
| Type of Battery | Lithium/Lead-acid | Lithium/Lead-acid |
| Backup Power (AC) | ||
|
AC nominal Output Power
|
6000W | 7000W |
| Nominal AC Output Voltage |
230V
|
230V |
| Nominal AC Output Frequency | 50/60Hz | 50/60Hz |
| Switch Time | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel |
| General Data | ||
|

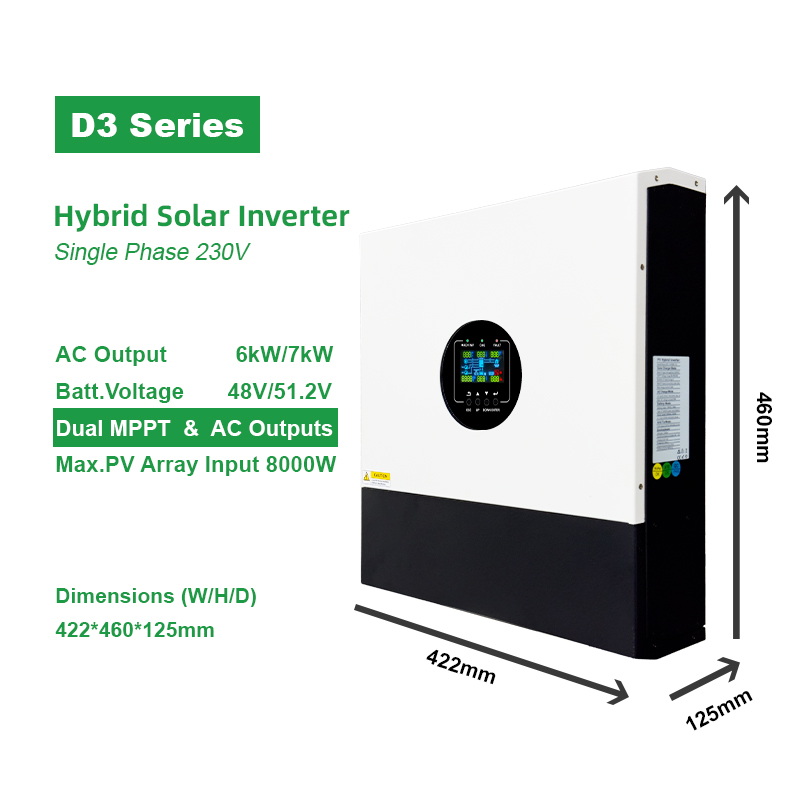

Dimensions (W/H/D)
|
422*460*125mm
|
422*460*125mm |
| Weight |
13.5kg
|
13.8kg |
| Humidity | 5%~95% non-considering | 5%~95% non-considering |
| Altitude | <2000m | <2000m |
| Protection degree | IP20 | IP20 |
| Communication | 4G/WIFI(optional) | 4G/WIFI(optional) |
1. Parallel Capacity Expansion Up To 63kW
Support maximum 9 inverters parallel connection, total system power expandable to 63kW, suitable for large villas and small commercial solar storage projects.
2. Built-in Solar Controller & Standby Energy Saving Mode
Integrated control chip reduces standby power consumption, lower idle power loss to cut long-term electricity waste, more energy-efficient.
3. 500V Max PV Input Voltage + Dual Independent MPPT Trackers
Wide MPPT working range 60–450V DC, two separate PV channels, flexible rooftop panel layout, higher solar energy harvesting efficiency.
4. Grid-Tied Peak Shaving + Off-Grid Emergency Backup Dual Mode
Sell surplus power to grid in grid-tied mode to lower electricity bills; instant backup power during grid outage to protect household appliances.
5. Dual AC Output Circuits For Smart Load Management
Separate power supply for critical loads & non-essential loads, avoid overload and maximize self-consumption of solar power.
6. Dual AC Input: Grid + Generator Automatic Switchover
Compatible with municipal grid and diesel generator at the same time, stable power supply for areas with frequent blackouts.
7. Lightweight Compact Design & Remote Monitoring
Only 13.5kg/13.8kg light weight for easy wall mounting; support WIFI/4G mobile APP real-time data monitoring.
1. Residential Villa Solar Storage System
Perfect match for average family rooftop PV + 48V lithium battery, realize self-sufficient power supply and reduce monthly electricity expense.
2. Off-Grid Rural Houses / Remote Cabins
Work independently without stable municipal grid, optional generator backup for all-day power supply.
3. Emergency Blackout Backup Power
Fast 10ms switchover ensures refrigerators, lighting, water pumps, security cameras keep running during power failure, ideal for Middle East & Africa unstable grid regions.
4. Small Commercial & Multi-Household Parallel Projects
9 units parallel expansion up to 63kW capacity, fit small shops, farmhouses and multi-family residential solar storage systems.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
MINVON SOL IA-D3 series single phase hybrid solar inverter 6000W & 7000W, max 500VDC PV open circuit voltage with dual independent MPPT trackers, supports up to 9 units parallel connection to expand total capacity to 63kW. Equipped with built-in solar controller and standby power-saving mode, dual AC output circuits for household smart load management. Dual working modes: grid-tied peak shaving to cut electricity bills and ultra-fast off-grid blackout emergency backup, compatible with 48V lithium iron phosphate & lead-acid storage batteries. Built-in WiFi & optional 4G communication for mobile APP real-time remote monitoring, perfect compact energy storage inverter for residential villas, rural off-grid houses and small family solar PV systems, CE ISO EMC certified.
