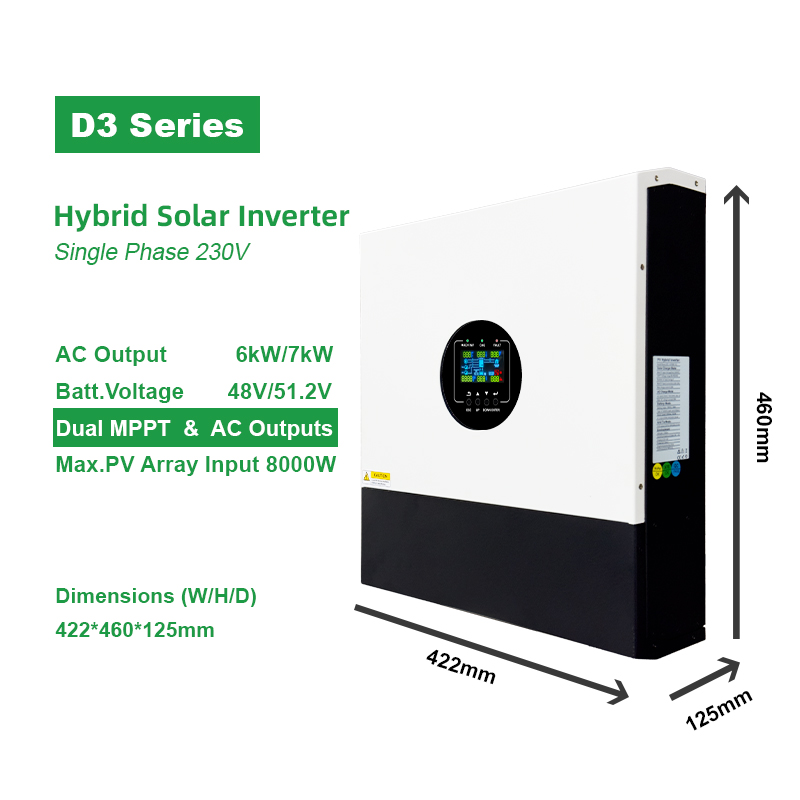

All-In-One Hybrid Storage Inverter SOL IA-D3 Series, Dual AC Output, Lithium & Lead-Acid Battery Compatible For Residential Off-Grid & Grid-Tied Solar System
| MODEL |
SOL IA6000-D3
|
SOL IA7000-D3
|
|
Max. Recommended PV Power(for module STC)
|
8000W
|
8000W
|
| Max. DC Voltage |
500V
|
500V |
| Start Voltage | 80V | 80V |
|
MPPT Voltage Range
|
60V-450V | 60V-450V |
| No. of MPP Trackers | 2 | 2 |
| No. of PV Strings per MPP Tracker | 2 | 2 |
| Max. Input Current per MPP Tracker | 22A | 22A |
|
Output Data (AC)
|
||
|
AC Nominal Power
|
6000W
|
7000W |
|
Max. AC Apparent Power
|
6000VA | 7000VA |
| Nominal AC Voltage |
230V
|
230V |
| AC Grid Frequency | 50/60Hz | 50/60Hz |
| Efficiency(Line Mode) | 95.5% | 95.5% |
| Output Current | 26.1A | 30.4A |
|
Battery Data (DC)
|
||
| Nominal DC Voltage |
48V
|
48V |
| Max Charging And Discharging Current | 80A | 80A |
| Efficiency (Peak) | 96.5% | 96.5% |
| Type of Battery | Lithium/Lead-acid | Lithium/Lead-acid |
| Backup Power (AC) | ||
|
AC nominal Output Power
|
6000W | 7000W |
| Nominal AC Output Voltage |
230V
|
230V |
| Nominal AC Output Frequency | 50/60Hz | 50/60Hz |
| Switch Time | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel |
| General Data | ||
|
Dimensions (W/H/D)
|
422*460*125mm
|
422*460*125mm |
| Weight |
13.5kg
|
13.8kg |
| Humidity | 5%~95% non-considering | 5%~95% non-considering |
| Altitude | <2000m | <2000m |
| Protection degree | IP20 | IP20 |
| Communication | 4G/WIFI(optional) | 4G/WIFI(optional) |
1. Dual Independent MPPT Trackers, Max 500VDC PV Input
Two separate MPPT channels adapt solar panels with different orientations, maximum PV open circuit voltage reaches 500VDC, wide 60~450VDC working range, fully harvest solar power under weak light.
2. Dual Mode Hybrid Design: Grid-Tied Peak Shaving + Off-Grid Backup
Realize self-consumption & peak valley arbitrage when grid connected; work independently as off-grid power supply during blackout, equipped with external CT anti-reverse current function.
3. Parallel Expansion Up To 9 Units For Large Power System
Support CAN bus parallel connection, maximum 9 inverters work together to expand system capacity, suitable for large villa, ranch and small factory high-power solar projects.
4. Dual AC Output & ATS Automatic Fast Transfer
Two groups of AC output ports to separate important loads and ordinary loads; seamless switching among PV, battery, grid and generator within 20ms, UPS-level uninterrupted power supply.
5. Dual Battery Compatibility & Large Current Charging
Perfectly match 48V lithium iron phosphate batteries and lead-acid batteries; high solar charging current accelerates energy storage, support BMS intelligent battery communication linkage.
6. Optional WIFI Mobile APP Remote Monitoring
WIFI module is optional, users can check real-time PV generation, battery SOC, load power and historical data anytime via mobile phone, convenient for remote system management.
7. Full-Range Multi-Layer Safety Protection & Wide Operating Temperature
Built-in overvoltage, undervoltage, overload, short circuit, overheating multi-protection; stable operation under -10℃~60℃, adapt to tropical, temperate and inland harsh climate.
1. Residential Hybrid Home Solar System
Grid-connected peak shaving + power outage backup for villas, suburban houses, urban residential buildings, cut monthly electricity bills
2. Off-Grid Remote Rural & Mountain Villas
Independent solar power supply for remote houses without stable public grid, matched with generator as emergency backup
3. Farm & Agricultural Ranch Energy Storage
Stable power supply for water pumps, breeding equipment, agricultural lighting and farm daily appliances
4. Small Commercial Shops & Workshops
Peak shaving to reduce commercial electricity cost, backup power to avoid production interruption during grid blackout
5. Island & Remote Independent Energy Station
Self-sufficient solar storage system for islands, fishing villages and coastal remote settlements
6. Emergency Backup Power For Household & Office
Automatic power switching during grid maintenance or power failure, protect critical equipment
7. Large Energy Storage Projects
9 units parallel expansion up to 63kW, support medium & large commercial solar storage systems
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
MINVON SOL IA-D3 series all-in-one hybrid solar inverter covers 6kW and 7kW power models with 48V DC battery voltage, perfectly compatible with 48V LiFePO4 lithium batteries and lead-acid batteries.
Equipped with dual independent MPPT solar trackers, it supports a maximum PV open-circuit voltage of 500VDC and wide 60–450VDC operating voltage range, greatly improving solar energy utilization efficiency. This hybrid model integrates grid-tied peak shaving and independent off-grid power supply functions, with external CT anti-reverse current function to avoid excess power backflow to public grid.
It supports up to 9 units parallel expansion via CAN communication, which can greatly increase total system power to meet high-power load demands of large villas and farms. Dual independent AC output terminals separate critical loads and normal loads for priority power supply, built-in ATS automatic transfer switch realizes seamless switching among solar, battery, utility grid and generator within 20ms, no power interruption for household appliances.
Optional WIFI communication module supports mobile APP real-time remote monitoring of power generation, storage and consumption data. Multiple comprehensive electrical protection functions ensure stable operation under -10℃~60℃ wide temperature environment, ideal core equipment for residential and small commercial solar energy storage systems.
