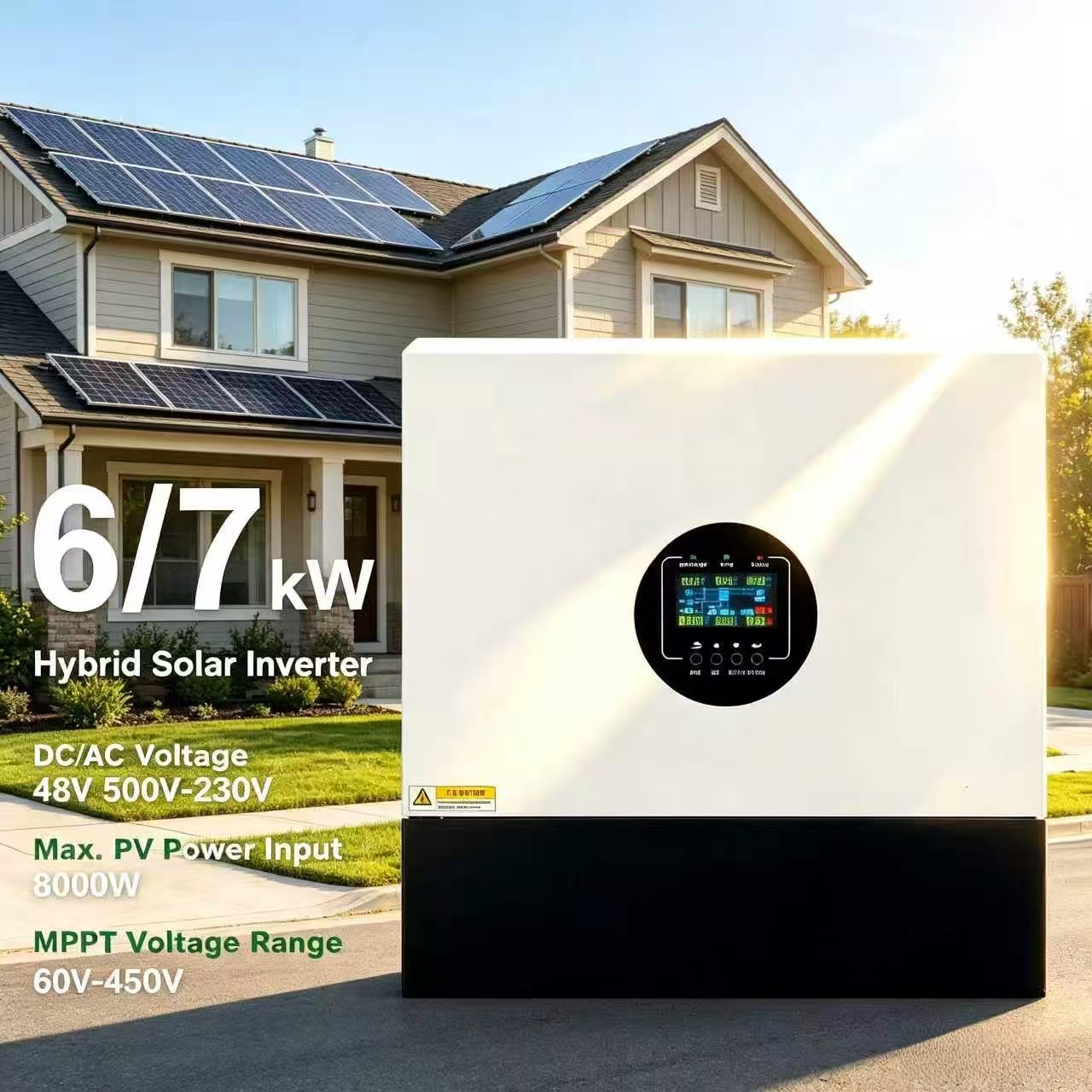

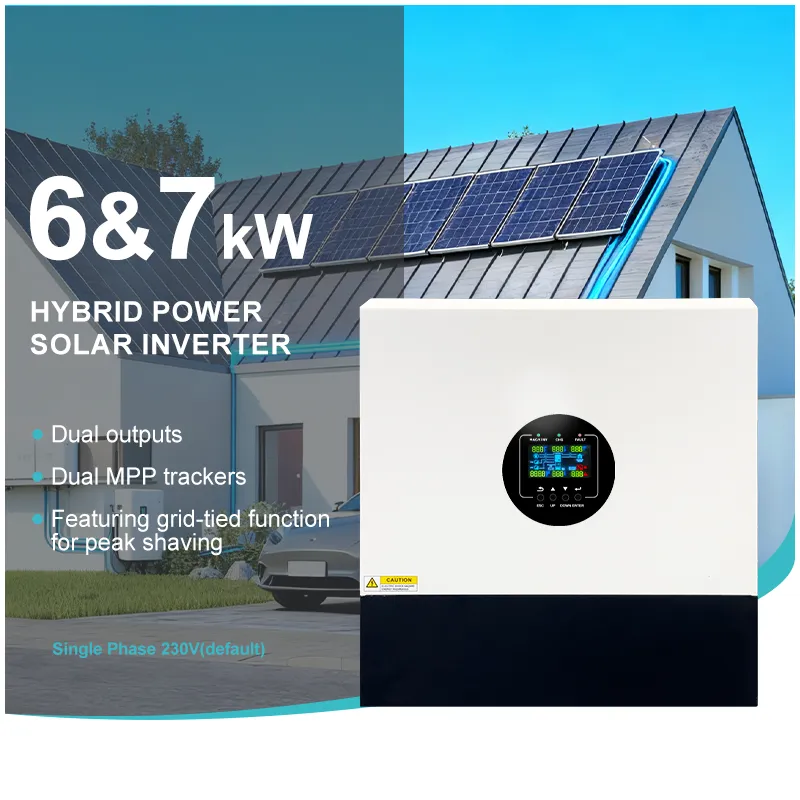

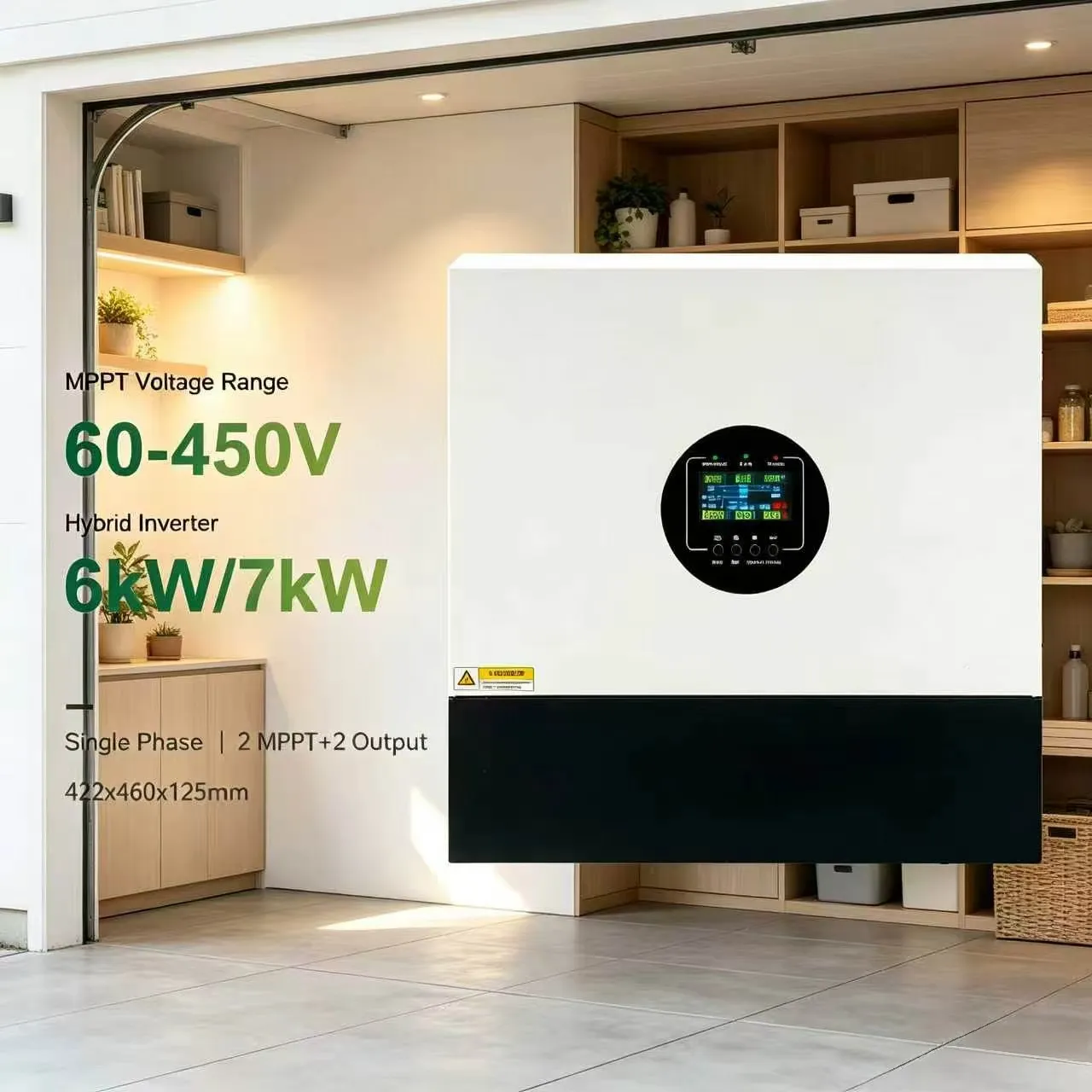

MINVON IA-D3 Series 6KW/7KW Single-Phase Hybrid Solar Inverter
Designed for home energy storage. Integrated dual MPPT, dual PV channels & pure sine wave output. Smooth on-grid/off-grid switching, your trusted core for residential solar storage systems.
| MODEL |
SOL IA6000-D3
|
SOL IA7000-D3
|
|
Max. Recommended PV Power(for module STC)
|
8000W
|
8000W
|
| Max. DC Voltage |
500V
|
500V |
| Start Voltage | 80V | 80V |
|
MPPT Voltage Range
|
60V-450V | 60V-450V |
| No. of MPP Trackers | 2 | 2 |
| No. of PV Strings per MPP Tracker | 2 | 2 |
| Max. Input Current per MPP Tracker | 22A | 22A |
|
Output Data (AC)
|
||
|
AC Nominal Power
|
6000W
|
7000W |
|
Max. AC Apparent Power
|
6000VA | 7000VA |
| Nominal AC Voltage |
230V
|
230V |
| AC Grid Frequency | 50/60Hz | 50/60Hz |
| Efficiency(Line Mode) | 95.5% | 95.5% |
| Output Current | 26.1A | 30.4A |
|
Battery Data (DC)
|
||
| Nominal DC Voltage |
48V
|
48V |
| Max Charging And Discharging Current | 80A | 80A |
| Efficiency (Peak) | 96.5% | 96.5% |
| Type of Battery | Lithium/Lead-acid | Lithium/Lead-acid |
| Backup Power (AC) | ||
|
AC nominal Output Power
|
6000W | 7000W |
| Nominal AC Output Voltage |
230V
|
230V |
| Nominal AC Output Frequency | 50/60Hz | 50/60Hz |
| Switch Time | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel |
| General Data | ||
|
Dimensions (W/H/D)
|
422*460*125mm
|
422*460*125mm |
| Weight |
13.5kg
|
13.8kg |
| Humidity | 5%~95% non-considering | 5%~95% non-considering |
| Altitude | <2000m | <2000m |
| Protection degree | IP20 | IP20 |
| Communication | 4G/WIFI(optional) | 4G/WIFI(optional) |
1. Two power options: 6KW & 7KW single-phase hybrid solar inverter, MINVON SOL IA-D3 Series
2. Dual independent MPPT + dual PV inputs, ultra-high solar charging efficiency reaching 99.9%
3. Pure sine wave output shields sensitive home electronics; stably powers ACs, water pumps, fridges and laundry machines
4. Auto switch between grid-tied & off-grid modes, covering daily power use and blackout emergency backup
5. Broad PV voltage compatibility, fits mainstream 720W mono & poly solar panels on the market
6. Supports 48V lead-acid and stackable 51.2V LiFePO4 batteries, auto-matches intelligent charging curves
7. Large multifunctional LCD display, one tap to check real-time PV, battery, load and grid data
8. Full multi-layer safety protection: auto cut-off for overvoltage, undervoltage, overload, short circuit and overheat
9. Solar priority design boosts self-consumption of solar power and greatly reduces monthly electricity bills
10. Upgraded integrated cooling ducts deliver consistent stable performance under long-duration full-load running
1. Solar energy storage systems for villas & single-family residences
2.Emergency backup power where grids are unstable and blackouts often occur
3. PV system matching inverter for rural houses, perfect for off-grid markets
4. Off-grid power for convenience stores, retail shops & small commercial offices
5. Steady power for agricultural irrigation and livestock farming equipment
6. Independent solar stations for mountain homestays, glamping & outdoor camps
7. Self-sufficient power for remote villages and off-grid island communities
8. Main control unit for home solar kits, compatible with stackable LiFePO4 batteries for EPC partners
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
