Dual Independent MPPT Trackers, Max PV Input Voltage 500VDC, 9 Units Parallel For Total 63KW, Grid-Tied Peak Shaving Function, Dual AC Output For Smart Load Management, Built-In Power Saving Mode
| MODEL |
SOL IA6000-D3
|
SOL IA7000-D3
|
|
Max. Recommended PV Power(for module STC)
|
8000W
|
8000W
|
| Max. DC Voltage |
500V
|
500V |
| Start Voltage | 80V | 80V |
|
MPPT Voltage Range
|
60V-450V | 60V-450V |
| No. of MPP Trackers | 2 | 2 |
| No. of PV Strings per MPP Tracker | 2 | 2 |
| Max. Input Current per MPP Tracker | 22A | 22A |
|
Output Data (AC)
|
||
|
AC Nominal Power
|
6000W
|
7000W |
|
Max. AC Apparent Power
|
6000VA | 7000VA |
| Nominal AC Voltage |
230V
|
230V |
| AC Grid Frequency | 50/60Hz | 50/60Hz |
| Efficiency(Line Mode) | 95.5% | 95.5% |
| Output Current | 26.1A | 30.4A |
|
Battery Data (DC)
|
||
| Nominal DC Voltage |
48V
|
48V |
| Max Charging And Discharging Current | 80A | 80A |
| Efficiency (Peak) | 96.5% | 96.5% |
| Type of Battery | Lithium/Lead-acid | Lithium/Lead-acid |
| Backup Power (AC) | ||
|
AC nominal Output Power
|
6000W | 7000W |
| Nominal AC Output Voltage |
230V
|
230V |
| Nominal AC Output Frequency | 50/60Hz | 50/60Hz |
| Switch Time | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel |
| General Data | ||
|
Dimensions (W/H/D)
|
422*460*125mm
|
422*460*125mm |
| Weight |
13.5kg
|
13.8kg |
| Humidity | 5%~95% non-considering | 5%~95% non-considering |
| Altitude | <2000m | <2000m |
| Protection degree | IP20 | IP20 |
| Communication | 4G/WIFI(optional) | 4G/WIFI(optional) |
1. Dual Independent MPPT Trackers
Two separate PV input channels, balanced charging efficiency, flexible solar panel layout.
2. Max PV Open Circuit Voltage 500VDC
Less solar panel strings required, lower installation cost and higher layout flexibility.
3. Up To 9 Units Parallel, Total 63KW
Flexible capacity expansion for large household and commercial energy storage projects.
4. Grid-Tied Peak Shaving Function
Store surplus solar power to reduce electricity expenditure during grid peak hours.
5. Built-In Standby Power-Saving Mode
Lower idle power loss, improve overall energy utilization rate.
6. Dual AC Output For Smart Load Management
Classified power supply for vital loads to guarantee core equipment operation.
7. Universal For 48V Lithium & Lead-Acid Batteries
Compatible with lithium iron phosphate, gel and lead-acid storage batteries.
8. Optional 4G/WIFI Remote Monitoring
Check real-time power generation and load data via mobile phone anytime.
1. Large villa high-load household solar energy storage system
2. Urban home emergency backup power for power outage standby
3. Farm independent power supply for irrigation pumps and breeding equipment
4. Off-grid ranches, holiday resorts and mountain vacation houses
5. Small workshops, supermarkets and retail shops peak shaving & standby power
6. Remote construction site temporary solar power supply
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

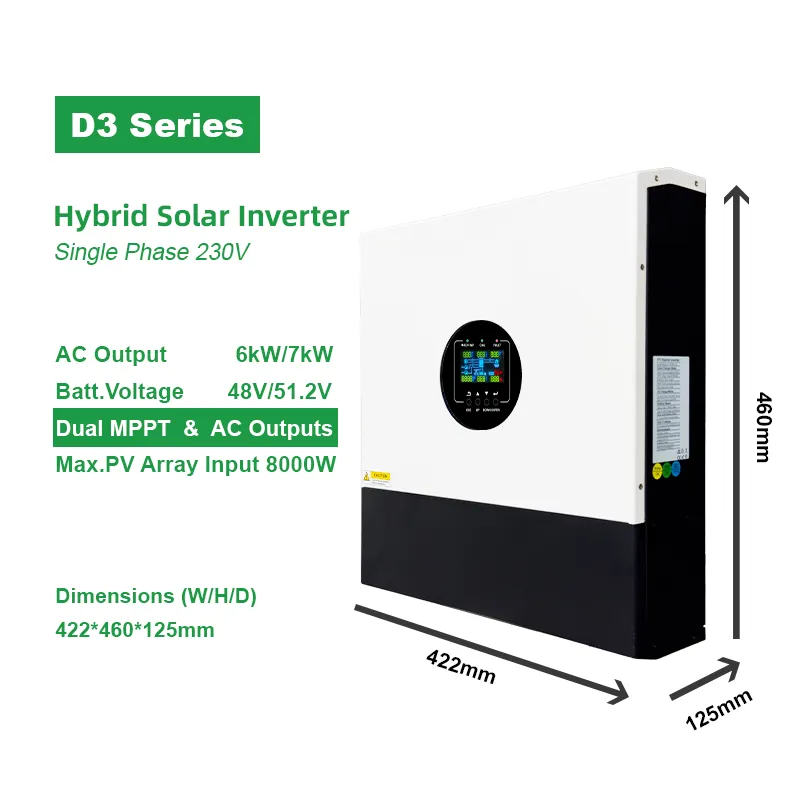

SOL IA-D3 series high-power hybrid solar inverter integrates inverter, dual MPPT solar controller and AC charger, covering 6KW and 7KW power specifications with 48V battery system.
It adopts dual independent MPPT trackers, each supporting 22A max input current, PV working voltage range 60–450VDC, maximum PV open circuit voltage up to 500VDC, bearing up to 8000W solar panel input, compatible with most mainstream high-power solar panels.
This model adds grid-tied peak shaving function, which stores excess solar energy into batteries and discharges during grid peak electricity price to cut household power costs effectively. Built-in standby power-saving mode reduces idle power consumption when no loads are running. Dual AC independent output terminals separate intelligent critical loads and ordinary loads to realize power rationing when battery power is low.
It supports parallel expansion of maximum 9 units, total combined output power up to 63kW, fully meeting power demand of large villas, agricultural irrigation equipment and small workshops. The machine reserves 4G/WIFI communication interface for mobile APP remote monitoring. Pure sine wave stable AC output, transfer time only 10ms under single unit mode, multiple overload, over-temperature, short-circuit, over/under voltage safety protection, IP20 indoor protection grade, stable long-term operation.
