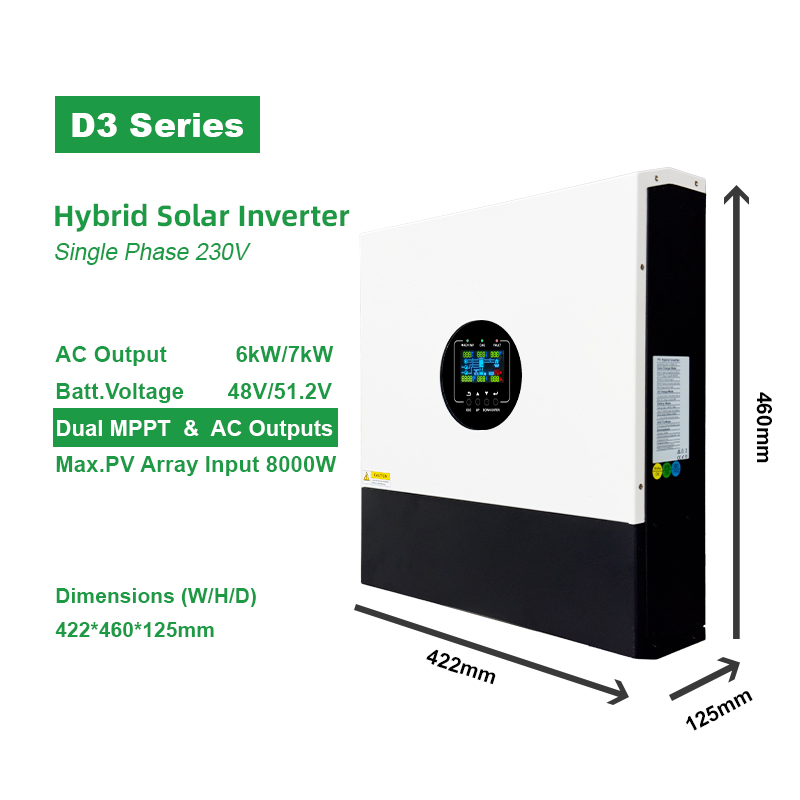

SOL IA6000-D3 / SOL IA7000-D3 48V Hybrid Energy Storage Inverter, Dual MPPT Solar Trackers, Parallel Connection of Up to 9 Units for Max 63KW Capacity Expansion, 3 Working Modes: Grid-Tied / Off-Grid / Peak Shaving, All-in-One Residential Solar Storage Inverter
| MODEL |
SOL IA6000-D3
|
SOL IA7000-D3
|
|
Max. Recommended PV Power(for module STC)
|
8000W
|
8000W
|
| Max. DC Voltage |
500V
|
500V |
| Start Voltage | 80V | 80V |
|
MPPT Voltage Range
|
60V-450V | 60V-450V |
| No. of MPP Trackers | 2 | 2 |
| No. of PV Strings per MPP Tracker | 2 | 2 |
| Max. Input Current per MPP Tracker | 22A | 22A |
|
Output Data (AC)
|
||
|
AC Nominal Power
|
6000W
|
7000W |
|
Max. AC Apparent Power
|
6000VA | 7000VA |
| Nominal AC Voltage |
230V
|
230V |
| AC Grid Frequency | 50/60Hz | 50/60Hz |
| Efficiency(Line Mode) | 95.5% | 95.5% |
| Output Current | 26.1A | 30.4A |
|
Battery Data (DC)
|
||
| Nominal DC Voltage |
48V
|
48V |
| Max Charging And Discharging Current | 80A | 80A |
| Efficiency (Peak) | 96.5% | 96.5% |
| Type of Battery | Lithium/Lead-acid | Lithium/Lead-acid |
| Backup Power (AC) | ||
|
AC nominal Output Power
|
6000W | 7000W |
| Nominal AC Output Voltage |
230V
|
230V |
| Nominal AC Output Frequency | 50/60Hz | 50/60Hz |
| Switch Time | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel | 10ms typical, RCD 20ms Max@ Single<30ms@ Parallel |
| General Data | ||
|
Dimensions (W/H/D)
|
422*460*125mm
|
422*460*125mm |
| Weight |
13.5kg
|
13.8kg |
| Humidity | 5%~95% non-considering | 5%~95% non-considering |
| Altitude | <2000m | <2000m |
| Protection degree | IP20 | IP20 |
| Communication | 4G/WIFI(optional) | 4G/WIFI(optional) |
1. Dual Independent MPPT Trackers for Higher Solar Utilization
Dual separate MPPT trackers, 60V-450V wide voltage window, adapt to uneven shading rooftop solar panels, maximize solar power generation efficiency.
2. Powerful Parallel Expansion for Flexible System Scaling
Support up to 9 units parallel connection, maximum total system power up to 63KW, satisfy single-family villa & small commercial energy storage demand.
3. 3 Operating Modes: Grid-Tied / Off-Grid / Peak Shaving
Built-in grid-tied function for peak shaving to cut electricity bills; off-grid backup mode ensures power supply during grid blackout, switch time less than 30ms for uninterrupted power.
4. Dual Battery Compatibility for Multiple Energy Storage Solutions
48V standard battery port, support lithium iron phosphate battery & lead-acid battery, max 80A charge-discharge current, match different budget storage collocation.
5. High Power PV Input, Compatible with 8kW Solar Modules
Max PV input power 8000W, DC voltage up to 500V, flexible to match high-power solar modules, reserve sufficient power generation margin.
6. Smart Remote Monitoring & Visualized Operation Management
Optional WIFI/4G communication module, mobile APP real-time check PV generation, battery status, household load consumption data, one-click remote parameter adjustment.
7. Dual AC Load Outputs with Intelligent Load Classification Management
Dual AC output ports, separate power supply for critical loads and ordinary loads, automatically cut non-essential loads when battery power is low to extend backup time.
8. High Conversion Efficiency, Low Power Loss & Energy Saving
On-grid mode efficiency 95.5%, peak efficiency reach 96.5%, built-in standby power-saving mode, effectively reduce no-load power consumption.
1. Grid-Tied Energy Storage for Urban Villas
Urban villa rooftop grid-tied solar storage, realize peak shaving, reduce monthly electricity cost, store excess solar power for night use.
2. Off-Grid Home Power for Rural Areas
Off-grid solar power system for rural houses without stable utility grid, independent power supply for lighting, air conditioner, water pump and daily home appliances.
3. Emergency Backup Power for Grid Outages
Emergency backup power supply during grid failure, ultra-fast switch time ≤30ms, no power interruption for refrigerator, medical equipment and essential loads.
4. Energy Storage System for Small Shops & Convenience Stores
Small store, convenience shop solar energy storage, support multiple electrical equipment simultaneous operation, stable power output.
5. Mobile Power Station for Caravans, Camping & Outdoor Cabins
Mobile energy storage system for caravan, camping site, outdoor working cabin, match small power solar panel and storage battery.
6. Renovation & Capacity Expansion of Small Solar Projects
Old solar system reconstruction & capacity expansion, 9 units parallel design supports large-scale residential solar energy storage projects.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
Looking for a reliable all-in-one hybrid solar inverter for residential energy storage? CKMINE SOL IA-D3 Series 6KW & 7KW hybrid MPPT solar inverter perfectly matches home rooftop solar systems, compatible with lithium and lead-acid batteries, supports grid-tied, off-grid and peak shaving functions, meets daily power supply and emergency backup demand for villas, rural houses and remote areas without stable grid.
Flexible expandable design allows up to 9 inverters parallel operation to reach total 63KW system capacity, ideal for large villa and commercial small solar storage projects. Optional WIFI/4G communication module enables remote monitoring via mobile APP, intelligent dual load output realizes classified power management, IP20 protection with compact size easy for indoor installation. We provide pre-configured complete solar bundles including solar panels, lithium batteries and inverters for one-stop solar system solution.
