Fire-Safe Wall Mount LiFePO4 Storage Battery | 4000+ Deep Cycles, Built-In Intelligent BMS, Stable Power for Off-Grid Solar Systems, Power Outage Backup and Daily Household Energy Consumption
| Model |
51.2V
-200AH
|
|
Nominal Voltage
|
51.2V
|
| Nominal Capacity | 200AH |
| Nominal Energy | 10.24KWH |
| Operating Voltage Range | 42.4V~57.6V |
| MAX. Charge Current | 100A |
| MAX. Discharge Current | 150A |
| Cell Configuration | 16S1P |
| Pack Over-Voltage Protection (V) | 57.6 |
| Pack Over-Voltage Release (V) | 54.4 |
| Pack Under-Voltage Protection (V) | 42.2 |
| Pack Under-Voltage Release (V) | 48 |
| Cell Over-Voltage Protection (V) | 3.6 |
| Cell Over-Voltage Release (V) | 3.4 |
| Cell Under-Voltage Protection (V) | 2.65 |
| Cell Under-Voltage Release (V) | 2.8 |
|
Ingress Protection
|
IP20
|
| Parallel Connection | Up to 16 units |
| Communication Port | CAN,RS485 |
| Operating Temperature (Charge) | 0~50℃ |
| Operating Temperature (Discharge) | -10~55℃ |
| Storage Temperature | -20~+45℃（≤1month）0~+35℃(≤1year) |
| Humidity | 0~95%(no condensation) |
| Sea Level(m) | ≤1500 |
|
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
|
≥4000 times |
| Products Size(mm) |
690X520X248
|
| Package Size(mm) | 780X670X440 |
| NW (±3kg) | 89KG |
| GW (±3kg) | 104KG |
1. Large 10.24kWh Residential Energy Storage Capacity, Standard 51.2V 200Ah with Reliable Continuous Power Output
2. High-Quality Grade-A Lithium Iron Phosphate Cells, 6000+ Deep Cycle Times with Up to 10-Year Service Life
3. Space-Efficient Wall Mount Design, Simple and Fast Installation without Occupying Floor Area
4. Onboard Intelligent BMS System Offering All-Round Protection from Overcharging, Over-Discharging, Short Circuit, Overheating and Overload
5. Up to 95% Discharge Efficiency, Ultra-Low Self-Discharge Rate to Maintain Stored Energy Long Term
6. Extensive Compatibility with Most Popular Off-Grid and Hybrid Solar Inverters for Home PV Systems
7. Modular Expandable Structure, Allowing Series and Parallel Connection to Build Custom Large-Scale Energy Storage Systems
8. IP54 Rated Dust and Water Resistant Cabinet, Ensuring Stable Performance Indoors and Semi-Outdoors
9. Fully Maintenance-Free, No Water Top-Ups Required, Environmentally Safe Green Energy
10. Digital LED Display Provides Real-Time Battery Data for Visible, Convenient Energy Management
1. Residential Home Solar Energy Storage System
2. Reliable Emergency Backup Power During Grid Blackouts
3. Stable Power Supply for Off-Grid Villas, Mountain Cabins and Remote Farms
4. Daily Household Power Supply: Lighting, Refrigerators, Air Conditioners, Water Pumps and Other Domestic Loads
5. Energy Storage for RVs, Tiny Homes and Campers
6. Emergency Standby Power for Small Retail Shops & Commercial Premises
7. Backup Power for Solar Street Lights, Surveillance and Monitoring Equipment
8. Perfect Match for Wind-Solar Hybrid Off-Grid Power Stations
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

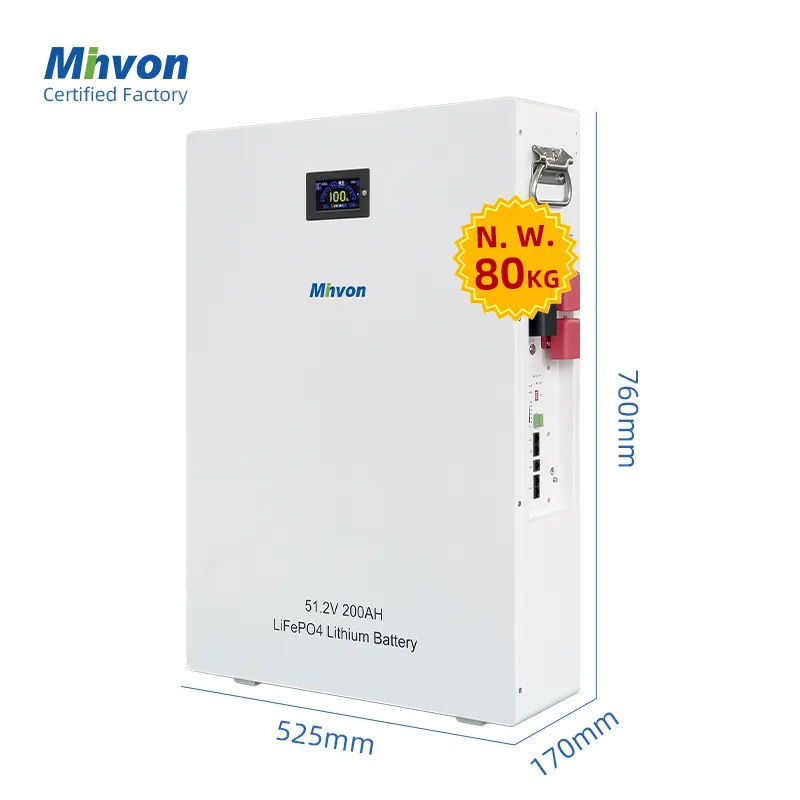

Our 10.24kWh 51.2V 200Ah wall-mounted lithium iron phosphate (LiFePO4) battery acts as a high-performance residential energy storage system, specially optimized for rooftop solar setups and emergency power backup for power outages.
Adopting high-stability LiFePO4 battery cells, this unit achieves an ultra-long service cycle, excellent safety characteristics and stable discharging efficiency for long-duration daily household power supply. Equipped with an integrated intelligent BMS, it realizes multi-dimensional safety protection to prevent overcharging, over-discharging, short circuits and overheating.
Thanks to its wall-mounted structure, it saves precious indoor floor space while allowing straightforward installation and effortless daily maintenance. Being compatible with nearly all mainstream hybrid solar inverters, it is a great power storage choice for off-grid residences, villas and remote cottages. Lower your power expenditure and build an independent, carbon-friendly home energy system.
