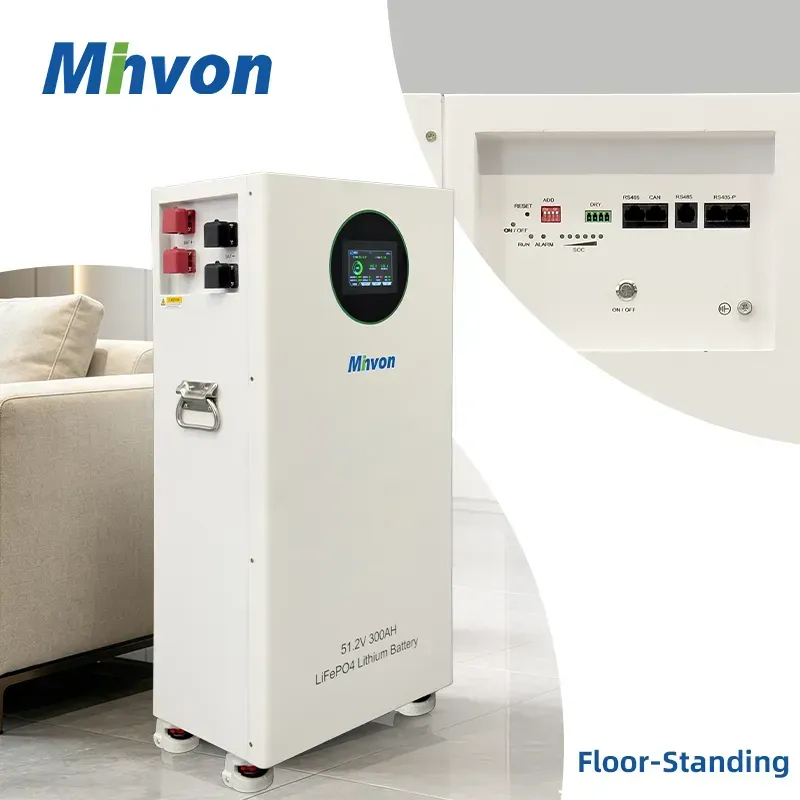

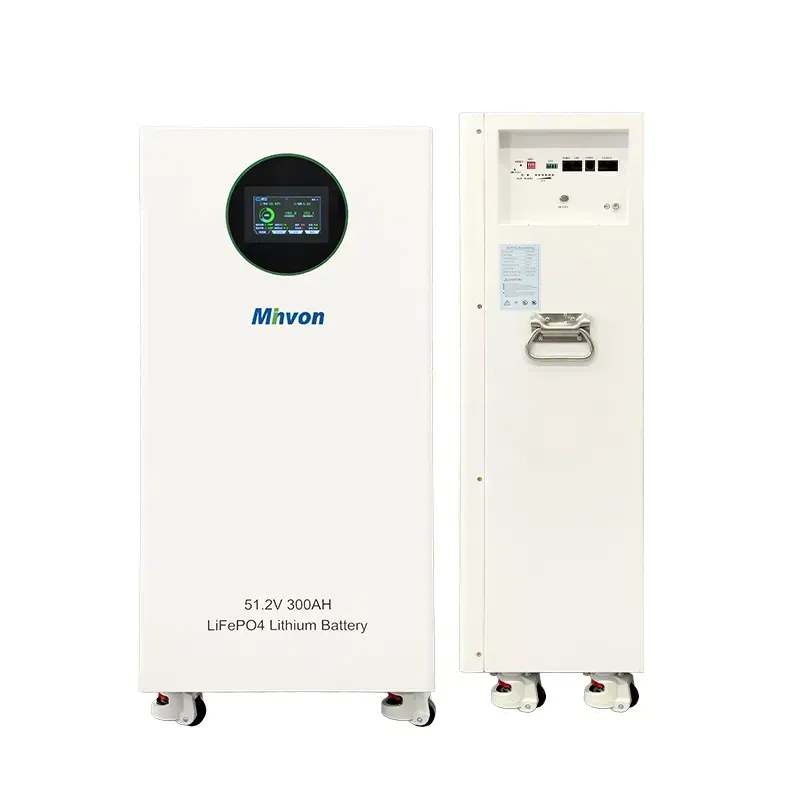

Wheeled LiFePO4 Solar Battery 48V 300Ah, 15.36kWh — Smart BMS, 6000+ Cycles, Works with Off-Grid & Hybrid Inverters

15.36kWh of silent, fuel-free backup on wheels — roll it beside your inverter, plug in, and keep your home powered through outages and off-grid nights. A smart full-protection BMS and 6000+ deep-cycle cells make it a safe, long-term partner for virtually any 48V off-grid or hybrid solar inverter.

Model Spec: 51.2V 300Ah | 15.36kWh All‑in‑one floor‑standing LiFePO4 battery for home & light‑commercial energy storage. It delivers reliable self‑consumption and stable off‑grid power backup.Premium Grade‑A Cells, Long Lifespan Grade‑A LiFePO4 c...
Model
51.2V
-300AH
Nominal Voltage
51.2V
Nominal Capacity 300AH
Nominal Energy 15.36KWH
Operating Voltage Range 42.4V~57.6V
MAX. Charge Current 100A
MAX. Discharge Current 200A
Cell Configuration 16S1P
Pack Over-Voltage Protection (V) 57.6
Pack Over-Voltage Release (V) 54.4
Pack Under-Voltage Protection (V) 42.2
Pack Under-Voltage Release (V) 48
Cell Over-Voltage Protection (V) 3.6
Cell Over-Voltage Release (V) 3.4
Cell Under-Voltage Protection (V) 2.65
Cell Under-Voltage Release (V) 2.8
Ingress Protection
IP20
Parallel Connection Up to 16 units
Communication Port CAN,RS485
Operating Temperature (Charge) 0~50℃
Operating Temperature (Discharge) -10~55℃
Storage Temperature -20~+45℃(≤1month)0~+35℃(≤1year)
Humidity 0~95%(no condensation)
Sea Level(m) ≤1500
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
≥8000 times
Products Size(mm)
860X520X248
Package Size(mm) 940X670X440
NW (±3kg) 121KG
GW (±3kg) 139KG

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-0






Core Product Highlights

  • 15.36kWh Large Storage Capacity | 51.2V 300Ah Stores ample power for full daily household use. Acts as instant emergency backup during grid outages to avoid power‑cut disruptions.
  • Wheeled Mobile Design, No Drilling Required Tool‑free setup finished within minutes. Built‑in casters allow easy relocation indoors between living room, study or equipment room.
  • Grade‑A LiFePO4 Cells | 6000+ Cycles, 15‑Year Warranty Ultra‑long service life greatly cuts later‑stage replacement & maintenance costs, offering cost‑effective long‑term energy storage.
  • HD Digital Display for Real‑time Readouts Directly view SOC, voltage and load status on‑screen. Check battery operating status simply with no complex operations.
  • Smart Full‑protection BMS for Complete Safety Protects against over‑charge, over‑discharge, short‑circuit, overheat and other faults. Ensures safe year‑round household power consumption.
  • Wide Compatibility for 48V Hybrid & Off‑grid Inverters Plug‑and‑play with most mainstream 48V solar inverters, seamlessly integrating into your existing home solar system.
  • IP20 Indoor Rating, Adaptable to Harsh Ambience Reliable performance in hot & humid tropical / subtropical conditions, stable all‑season operation without capacity decay.
  • CE & IEC Certified for Global Deployment Meets international safety standards. Suitable for home rooftop solar and overseas engineering projects, supporting smooth customs clearance & local compliance checks.






512v nominal capacity 100ah628ah nominal energy 256kwh3215kwh all around protection and unattended operation suitable for inverter or solar system-1

Applicable Scenarios

1. Household Residential Energy Storage

Perfect whole-house energy backup solution for villas and ordinary families.
Stably supply daily lighting, home appliances operation when frequent grid blackouts occur.
Also a dependable power storage option for remote off-grid countryside houses without stable mains electricity.

2. Commercial & Industrial Energy Storage

Collocate perfectly with factory rooftop photovoltaic power stations.
Realize peak shaving and valley filling electricity cost control for offices and shopping malls to cut electricity bills.
Sustain stable power supply for farm irrigation facilities and various agricultural operational equipment.

3. Solar EPC & General Engineering Projects

Exclusive supporting energy storage batteries for solar installers and EPC contractors.
Widely adopted in community power renovation projects; supply continuous temporary off-grid power for remote construction sites.

4. Special Off-Grid Power Supply Scenarios

Ideal power backup for mountain homestays and vacation villas far from the city grid.
Reliable uninterrupted power support for communication base stations; safeguard stable electricity operation of grassroots rural medical clinics.

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

large capacity 1536kwh floor standing lifepo4 battery 512v 300ah home solar backup power for frequent blackouts-0

mhvon 1536kwh 512v floor mount lithium battery 5000 cycles for hybrid inverter-0

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-2

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-3

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-4

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-5

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-6

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-7

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-8

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-9



Model Spec: 51.2V 300Ah | 15.36kWh All‑in‑one floor‑standing LiFePO4 battery for home & light‑commercial energy storage. It delivers reliable self‑consumption and stable off‑grid power backup.

  • Premium Grade‑A Cells, Long Lifespan Grade‑A LiFePO4 cells offer 6000+ deep cycles for long‑term stable performance, cutting your post‑sales replacement cost.
  • Smart BMS with Real‑time Monitoring Integrated smart BMS provides full‑scope fault protection. HD touchscreen shows SOC, voltage, power and running data at a glance for easy daily check.
  • Wide Compatibility & Mobile Flexible Setup Plug‑and‑play for most mainstream 48V hybrid / off‑grid solar inverters. Wheeled floor‑standing design, no wall‑mount required, easy to relocate. Perfect for villas, homes, farms & small workshops, ideal backup for frequent power‑cut areas.
  • Global Safety Certifications MSDS & UN38.3 certified, compliant with international safety standards for worldwide installation & sales.
