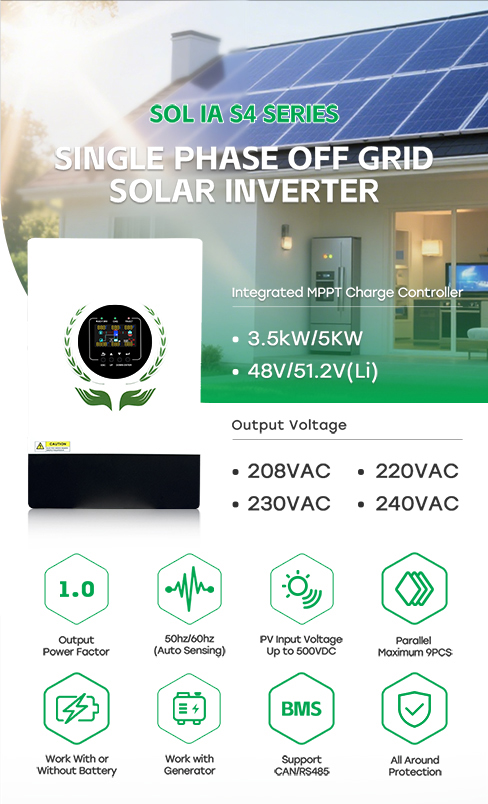

SOL IA-S4 Off-Grid Solar Inverter, 500VDC Max PV Input, Configurable Grid/PV Priority, Support Parallel Up To 45kW, Can Operate With Or Without Battery For Remote Off-Grid House & Cabin Backup Power
|
MODEL |
SOL IA4000-S2 |
SOL IA6000-S2 |
|
Battery Data |
||
|
Battery Voltage |
24 VDC |
48 VDC |
|
Battery Type |
Lithium/ Lead-acid |
|
|
Inverter Output |
||
|
Rated Power |
4000W |
6000W |
|
AC Voltage Regulation (Batt.Mode) |
||
|
Surge Power |
8000VAC |
12000VAC |
|
Efficiency(Line Mode) |
>93% |
|
|
Output Current |
17.4A |
26.1A |
|
Transfer Time |
10ms typical, 20ms Max |
|
|
Wave Form |
Pure Sine Wave |
|
|
Solar Charger |
||
|
Maximum PV Array Power |
5000W |
6000W |
|
MPPT Range & Operating Voltage |
60~450 VDC |
|
|
Maximum PV Array Open Circuit Voltage |
500 VDC |
|
|
Maximum PV Input Current |
27A |
|
|
Maximum Solar Charge Current |
120A |
|
|
AC Charger |
||
|
Maximum Charge Current |
100A |
|
|
AC Input Voltage |
230V AC |
|
|
Selectable Voltage Range |
170-280 VAC (For Personal Computers) ; |
|
|

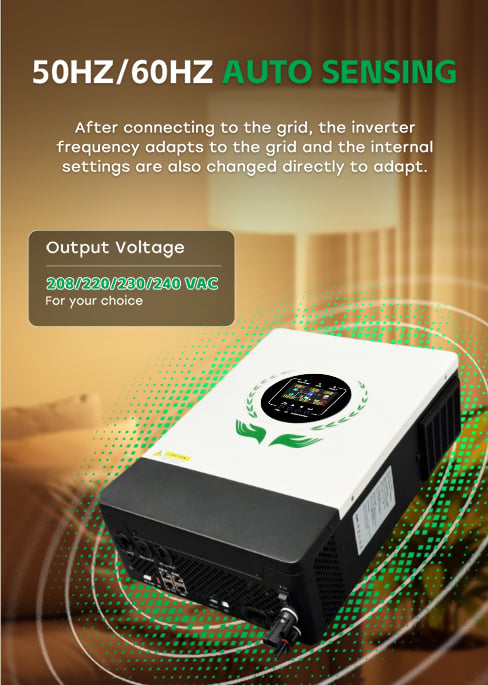

Frequency Range |
50Hz/60Hz (Auto Sensing) |
|
|
Physical |
||
|
Dimension (W*H*D) |
435*300*115MM |
|
|
Net Weight (kgs） |
10 |
11 |
|
Communication Interface |
USB / RS232 / RS485 / WIFI / Dry-contact |
|
|
Operating Environment |
||
|
Overload Capacity |
105%<load<130%(Alarm and Shutdown after 10s) |
|
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|
|
Altitude |
<2000m |
|
|
Operating Temperature |
-10℃ to 50℃ |
|
Key Features

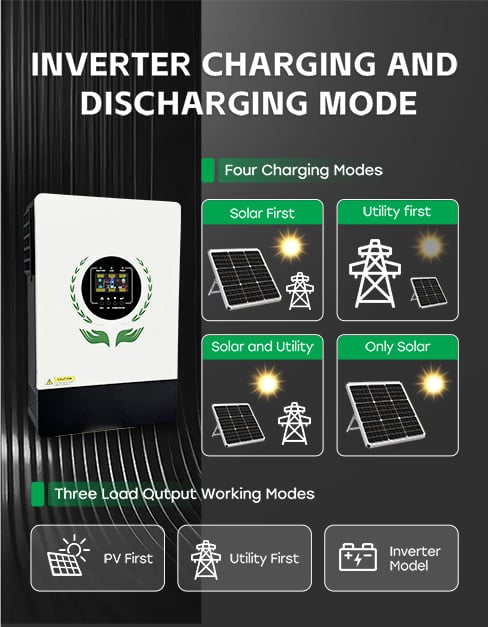

Dual Power Joint Supply & Adjustable Input Priority
PV and grid/generator can jointly power loads when solar energy is insufficient; users can configure PV first or grid first working mode freely.
Flexible Charge & Discharge Time Schedule
Customize charging and discharging time periods according to local electricity price or sunshine condition to optimize energy utilization.

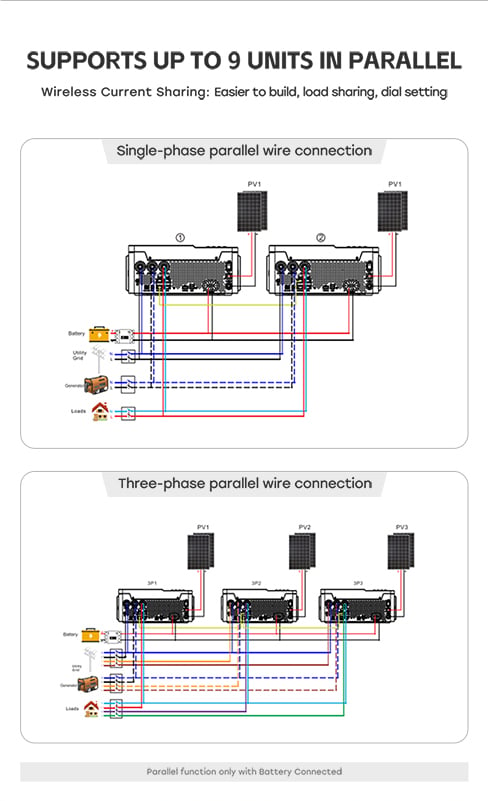

Expandable Parallel Connection
Support maximum 9 inverters connected in parallel, expand total system capacity up to 45kW to meet large off-grid load demands.
High Voltage MPPT Solar Charger
Max PV open circuit voltage up to 500VDC, max PV array power reaches 6000W for 5kW model, wide MPPT range 120-450VDC to improve solar charging efficiency.

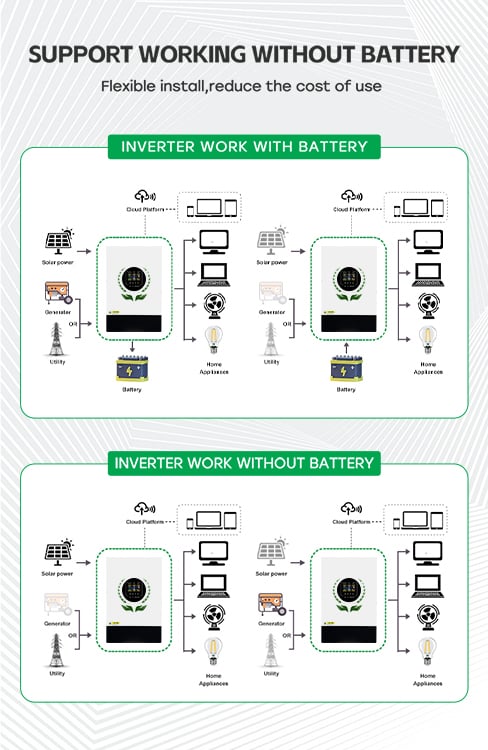

Unique Work With / Without Battery Function
Two operation modes available: work with 48V LiFePO4/lead-acid battery for energy storage, or run without battery for direct PV-to-load power supply to cut equipment cost.

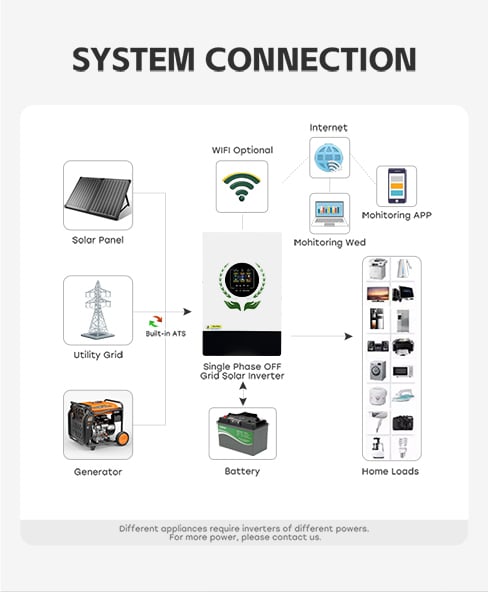

Multi-Source AC Input Compatibility
Reserved AC input port for municipal utility and backup generator, automatically supplement power when solar generation is inadequate.
Pure Sine Wave & Fast Switching
Clean pure sine wave AC output to protect sensitive household appliances; typical 10ms transfer time ensures smooth power switching.

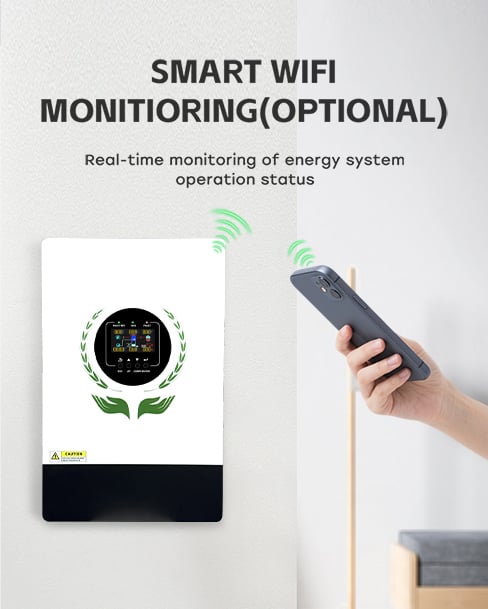

Smart Remote Monitoring
Optional WIFI communication module, real-time check PV charging power, battery status and load consumption via mobile APP anytime.
Remote Off-Grid Cabin & Mountain Villa
Rural houses, mountain cabins, pastoral areas without stable municipal grid, build fully independent solar power supply system.
Rural Household Standalone Solar System
Countryside families with unstable power grid, use solar as main power, grid/generator as backup supplement.
Emergency Backup Power Supply
City blackout emergency power reserve, support refrigerator, lighting, water pump and daily essential appliances.
RV, Camper & Mobile Energy System
Large caravan, mobile workshop off-grid power, small lightweight inverter easy to install and carry.
Agriculture & Outdoor Monitoring Equipment
Farm irrigation equipment, outdoor camera monitoring, remote agricultural facilities standalone power supply.
Small Off-Grid Commercial Projects
Remote homestays, small retail shops, parallel multiple inverters to expand power capacity for commercial loads.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
MINVON SOL IA-S4 series is a professional 48V off-grid pure sine wave solar inverter, covering 3500W and 5000W power models with built-in high-efficiency MPPT solar charger. It supports up to 9 units parallel expansion to 45kW total capacity, with flexible priority setting for PV or utility input. Unique design allows operation with or without storage battery, and supports dual AC input of grid and generator to jointly supply loads when solar power is insufficient. Optional WIFI module enables mobile APP remote monitoring, ideal for remote cabins, rural houses and standalone solar systems.
