SOL IA-S4 Off Grid Solar Inverter 3.5kW 5kW Parallel Up To 9 Units OEM Private Label Solar Power Inverter For Villa Farm Remote Area

48V Off Grid Solar Inverter with Built-in MPPT Solar Charger, Max 9 Units Parallel, Support PV & Grid Dual Power Input, Work With/Without Battery, WiFi APP Monitoring, OEM Brand Customization Available

MINVON SOL IA-S4 series is a cost-effective pure sine wave off-grid solar inverter, including two models: 3.5kW SOL IA3500-S4 and 5kW SOL IA5000-S4, designed for household, farm, remote cabin off-grid solar energy systems.This 48V off-grid inverter i...

MODEL	SOL IA4000-S2	SOL IA6000-S2
Battery Data
Battery Voltage	24 VDC	48 VDC
Battery Type	Lithium/ Lead-acid
Inverter Output
Rated Power	4000W	6000W
AC Voltage Regulation (Batt.Mode)
Surge Power	8000VAC	12000VAC
Efficiency(Line Mode)	>93%
Output Current	17.4A	26.1A
Transfer Time	10ms typical, 20ms Max
Wave Form	Pure Sine Wave
Solar Charger
Maximum PV Array Power	5000W	6000W
MPPT Range & Operating Voltage	60~450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum PV Input Current	27A
Maximum Solar Charge Current	120A
AC Charger
Maximum Charge Current	100A
AC Input Voltage	230V AC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto Sensing)
Physical
Dimension (WHD)	435300115MM
Net Weight (kgs）	10	11
Communication Interface	USB / RS232 / RS485 / WIFI / Dry-contact
Operating Environment
Overload Capacity	105%<load<130%(Alarm and Shutdown after 10s) load≥130%(Alarm and Shutdown after 5s)
Humidity	5% to 95% Relative Humidity (Non-condensing)
Altitude	<2000m
Operating Temperature	-10℃ to 50℃

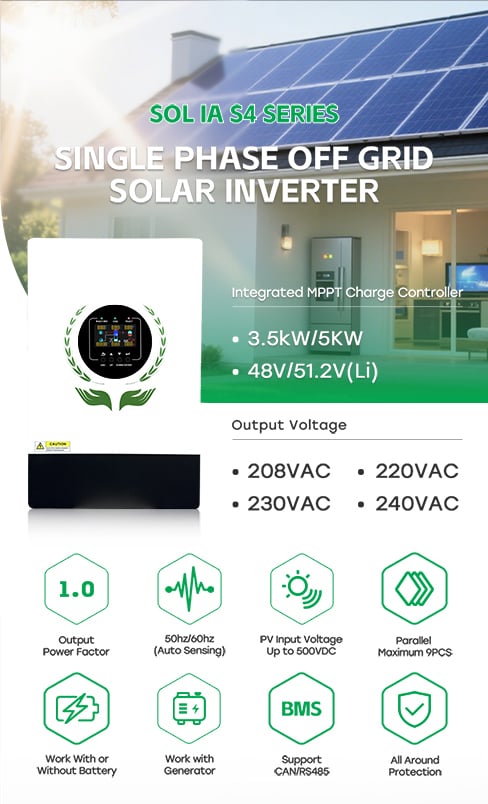

5kw hybrid solar inverter with mppt charge controller 48v-0

1. Dual Power Supply & Flexible Energy Control

✅ PV & grid joint power supply when solar energy is insufficient

✅ Configurable solar / grid input priority mode

✅ Custom schedule for battery charge & discharge time

✅ Work stably with or without battery, flexible system matching

2. Powerful Parallel Expansion & High PV Compatibility

✅ Max 9 units parallel connection, total output up to 45kW

✅ Built-in high-current MPPT solar charger, max PV open voltage 500VDC

✅ 3.5kW / 5kW two power options to fit different load demands

✅ Surge power up to 7000VA / 10000VA for heavy startup loads

3. Safe Pure Sine Wave Output & Intelligent Monitor

✅ Pure sine wave AC output, no damage to sensitive household appliances

✅ Ultra-fast transfer time within 20ms for seamless power switching

✅ Optional WiFi module, mobile APP remote real-time data monitoring

✅ Wide operating temperature range -10℃ ~ 50℃, stable for harsh outdoor environment

4. Export & Customization Support

✅ Complete CE/ISO/EMC/RoHS certificates for global import clearance

✅ Full OEM private label service for solar wholesalers & importers

✅ Lightweight compact body, easy installation and transportation

✅ Stable factory stock, flexible small trial order support


48v programmable supply priority dual load outputs-0

Remote Farm & Mountain Cabin Off-Grid Power Supply

Perfect for villages, farms, tourist lodges without stable municipal grid, build independent solar power system with solar panels and lithium batteries.

Ordinary Family Home Backup Power System

Store solar power in daytime for night use, grid acts as backup to avoid power cut losses, greatly reduce electricity expenses.

Small Workshop & Mini Commercial Off-Grid Projects

Multiple inverters in parallel to expand power capacity, support lighting, machinery and air conditioner simultaneous operation.

Solar Distributor OEM Wholesale Business

Cost-effective entry-level off-grid inverter for global solar retailers, bundled discount when purchasing together with our LiFePO4 wall/floor storage batteries.

Emergency Independent Power Supply Area

Can run without battery, cooperate with solar panels and generators to provide emergency power in power outage areas.

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

5000w off grid solar inverter 48v 500vdc work with or without battery-0

5000w off grid solar inverter 48v 500vdc work with or without battery-1

5000w off grid solar inverter 48v 500vdc work with or without battery-2

5000w off grid solar inverter 48v 500vdc work with or without battery-3

5000w off grid solar inverter 48v 500vdc work with or without battery-4

5000w off grid solar inverter 48v 500vdc work with or without battery-5

5000w off grid solar inverter 48v 500vdc work with or without battery-6

5000w off grid solar inverter 48v 500vdc work with or without battery-7

5000w off grid solar inverter 48v 500vdc work with or without battery-8

5000w off grid solar inverter 48v 500vdc work with or without battery-9

5000w off grid solar inverter 48v 500vdc work with or without battery-10

This 48V off-grid inverter integrates high-efficiency MPPT solar charger and AC charger in one unit, supporting dual power supply of solar PV and municipal grid. When solar power is insufficient, PV and grid can jointly supply loads to guarantee uninterrupted power for home appliances. Users can freely configure power input priority between solar or grid according to local power conditions.

It supports flexible time schedule for battery charging and discharging, and works stably with or without battery. Up to 9 inverters can be connected in parallel to expand total power up to 45kW, meeting high power demand of large villas and small commercial projects. The maximum PV open circuit voltage reaches 500VDC, compatible with most mainstream solar panels on the market.

Adopting pure sine wave output waveform, the inverter effectively protects sensitive electrical equipment like air conditioners, refrigerators and computers. Optional WiFi communication module enables real-time power data monitoring via mobile APP. The whole machine meets CE, ISO, EMC, RoHS certification standards, smooth customs clearance for Pakistan, Turkey, Middle East and Southeast Asian markets. We provide full OEM private label service for global solar distributors.
