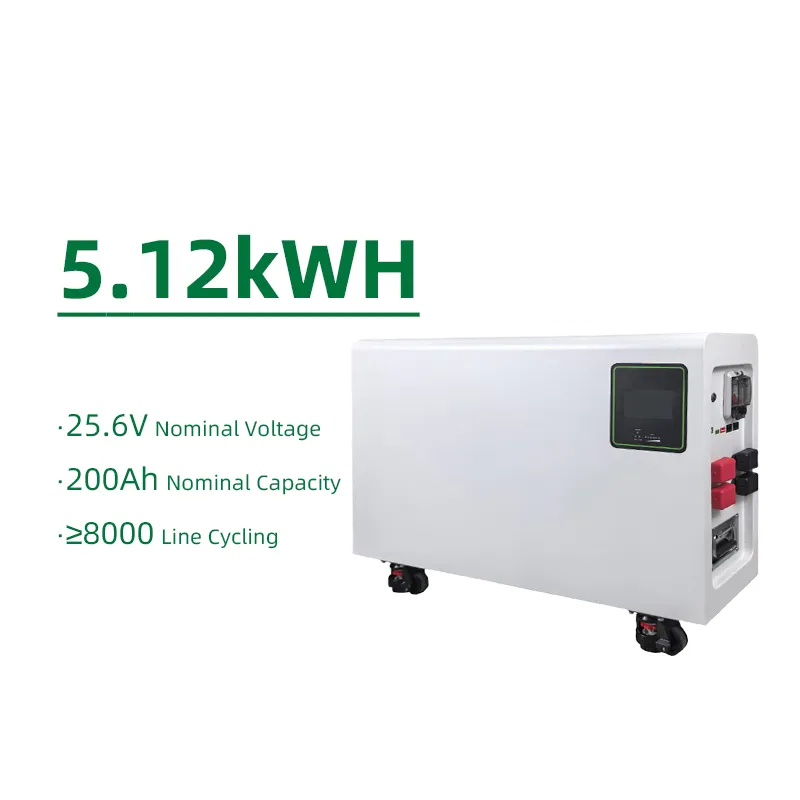

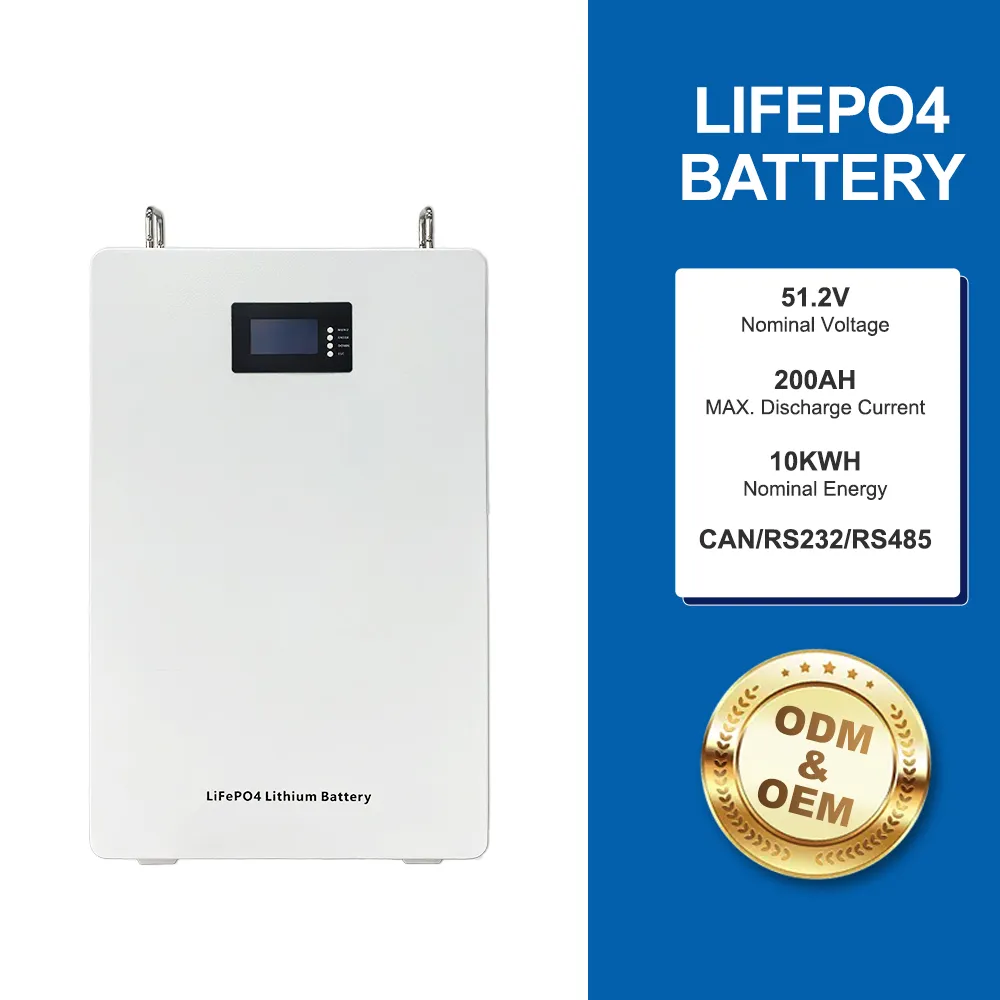

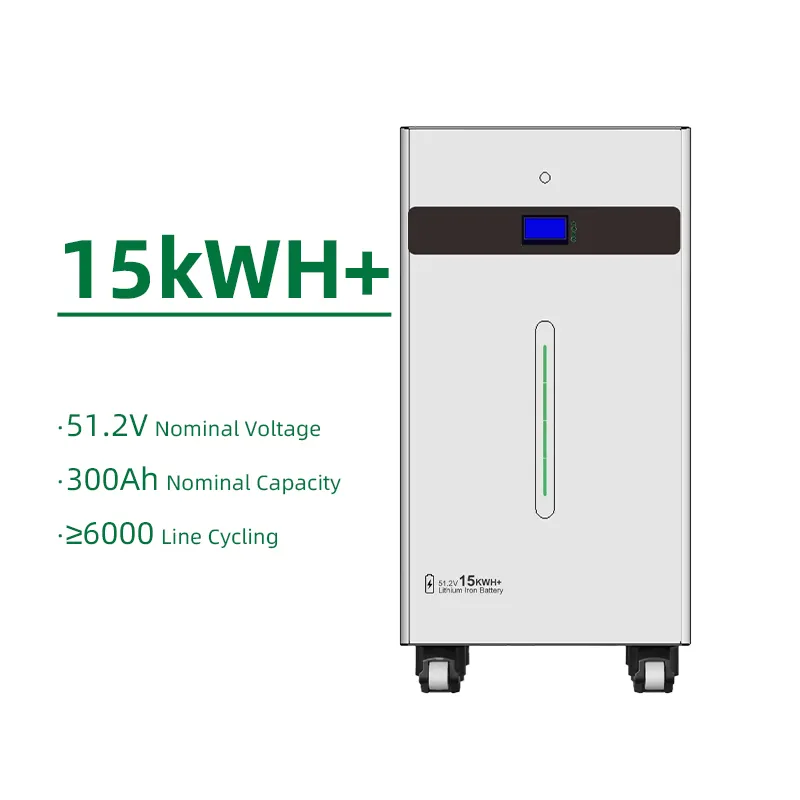

MINVON Wall & Floor Mounted LiFePO4 Lithium Battery, Up to 8000 Deep Cycles, Solar Home Energy Storage Lithium Iron Phosphate Battery Built-in Smart BMS

Integrated All-Round BMS Multi-Protection System | High-Safety LiFePO4 Battery Pack, 8000+ Long Deep Cycles. Perfectly Compatible with Hybrid & Off-Grid Solar Inverters, Ideal Energy Storage Solution for Homes, Villas and Farm Solar Power Systems

MINVON 25.6V & 51.2V LiFePO4 Energy Storage Battery SeriesAvailable in 25.6V (24V solar) and 51.2V (48V solar), capacities customizable 100Ah–400Ah. Perfectly matched with MINVON off-grid & hybrid solar inverters for residential solar p...
Model
25.6V
-100AH
25.6V
-200AH
25.6V
-300AH
51.2V
-100AH
51.2V
-200AH
51.2V
-300AH
51.2V
-400AH
51.2V
-460AH
51.2V
-560AH
51.2V
-628AH
Nominal Voltage
25.6V
25.6V
25.6V
51.2V
51.2V
51.2V
51.2V
51.2V
51.2V
51.2V
Nominal Capacity 100AH 200AH 300AH 100AH 200AH 300AH 400AH 460Ah 560AH 628AH
Nominal Energy 2.56KWH 5.12KWH 7.68KWH 5.12KWH 10.24KWH 15.36KWH 20.48KWH 23.56KWH 28.67KWH 32.15KWH
Operating Voltage Range 21.2V~28.8V 21.2V~28.8V 21.2V~28.8V 42.4V~57.6V 42.4V~57.6V 42.4V~57.6V 42.4V~57.6V 42.4V~57.6V 40.0V~58.4V 40.0V~58.4V
MAX. Charge Current 50A 100A 100A 50A 100A 100A 100A 100A 200A 200A
MAX. Discharge Current 100A 150A 200A 100A 150A 200A 200A 200A 300A 300A
Cell Configuration 8S1P 8S1P 8S1P 16S1P 16S1P 16S1P 16S2P 16S2P 16S2P 16S2P
Pack Over-Voltage Protection (V) 28.8 28.8 28.8 57.6 57.6 57.6 57.6 57.6 57.6 57.6
Pack Over-Voltage Release (V) 27.2 27.2 27.2 54.4 54.4 54.4 54.4 54.4 54.4 54.4
Pack Under-Voltage Protection (V) 21.2 21.2 21.2 42.2 42.2 42.2 42.2 42.2 42.2 42.2
Pack Under-Voltage Release (V) 24.0 24.0 24.0 48 48 48 48 48 48 48
Cell Over-Voltage Protection (V) 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6
Cell Over-Voltage Release (V) 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4 3.4
Cell Under-Voltage Protection (V) 2.65 2.65 2.65 2.65 2.65 2.65 2.65 2.65 2.65 2.65
Cell Under-Voltage Release (V) 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8 2.8
Ingress Protection
IP20
Parallel Connection Up to 16 units
Communication Port CAN,RS485
Operating Temperature (Charge) 0~50℃
Operating Temperature (Discharge) -10~55℃
Storage Temperature -20~+45℃(≤1month)0~+35℃(≤1year)
Humidity 0~95%(no condensation)
Sea Level(m) ≤1500
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
≥5000 times
≥4000 times ≥8000 times ≥5000 times ≥4000 times ≥8000 times ≥4000 times ≥6000 times
≥8000 times
≥8000 times
Products Size(mm)
460X360X160
640X420X160
550X420X248
640X420X160
690X520X248
860X520X248
900X600X298
960X600X298
989X634.5X326
989X634.5X326
Package Size(mm)
520X420X220
700X480X220 610X480X310 700X480X220 780X670X440 940X670X440 980X740X440 1040X740X440 1135x695x525 1135x695x525
NW (±3kg) 24KG 44KG 56KG 44KG 89KG 121KG 145KG 168KG 206KG 207KG
GW (±3kg) 32KG 54KG 65KG 54KG 104KG 139KG 167KG 190KG 226KG 227KG

grid tie systems-0

Key Product Highlights

1. Smart Built-In BMS with Comprehensive Safety Protection, Fully Automatic Operation
Integrated intelligent BMS safeguards against overvoltage, undervoltage, overcurrent, short circuit and overheating. The battery supports automatic charge & discharge, requiring no manual supervision.
2. Real-Time Active Cell Balancing
Continuously monitors voltage and current of every single cell, automatically balancing cell deviation to minimize imbalance and extend overall battery service life.
3. Automotive-Grade LiFePO4 Cells | 8000+ Deep Cycles for Ultra-Long Lifespan
Built with automotive-grade LiFePO4 cells supporting 8000+ deep cycles. Far more durable than traditional lead-acid batteries and effectively cut your long-term replacement expenses.
4. Inherently Safe, Non-Toxic & Eco-Friendly
LiFePO4 features outstanding thermal stability and fire resistance, free of toxic heavy metals. Safe for indoor residential use and compliant with international environmental requirements.
5. Wide Compatibility with 24V/48V Hybrid & Off-Grid Solar Inverters
Fully compatible with mainstream 24V & 48V hybrid and off-grid inverters. Supports charging from solar panels, mains power and diesel generators.
6. Expandable Capacity: Up to 16 Batteries in Parallel
Max 16 units parallel connection for flexible capacity expansion, perfectly meeting high-power energy demands of villas, rural homes and farms.
7. CAN & RS485 Communication for Intelligent Monitoring
Equipped with CAN & RS485 ports to transmit real-time data including SOC, voltage and temperature to inverters, realizing convenient remote status monitoring.
8. Dual Installation Options: Wall-Mounted & Wheeled Floor Stand
Wall-mounted design saves floor space for compact spaces; wheeled floor-standing version enables easy movement and layout adjustment for large-capacity systems.

grid tie systems-1

grid tie systems-2

Application Scenarios

1. Residential & Villa Solar Storage
Store surplus solar power for night use. Reliable backup supply during power cuts; help save electricity costs with peak-valley energy utilization.
2. Off-Grid Rural Homes & Remote Cabins
Perfect for locations without stable grid. Stable power for daily appliances, an economical and quiet replacement for diesel generators.
3. Farms & Livestock Sites
Round-the-clock power for water pumps, ventilation, lighting and farm equipment. Reduce generator fuel costs and realize agricultural off-grid power self-sufficiency.
4. Shops, Workshops & Light Commercial Backup
Uninterrupted emergency power prevents business losses from blackouts and ensures stable daily operation.
5. Islands, Pastures & Off-Grid Microgrids
Durable energy storage for remote areas without grid access, supporting independent solar microgrid construction.
6. Large Parallel Energy Storage Systems
Support up to 16 units in parallel. Work with high-power inverters for large-scale storage in villas, farms and commercial PV projects

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

LIFEPO4 LITHIUM BATTERY 25.6V/51.2V safety and long cycle life non-toxic and eco-friendly cells cycle time up to 8000 cycles Auto-manages charge/discharge manufacture

grid tie systems-3

grid tie systems-4

grid tie systems-5

grid tie systems-6

grid tie systems-7

MINVON 25.6V & 51.2V LiFePO4 Energy Storage Battery Series

Available in 25.6V (24V solar) and 51.2V (48V solar), capacities customizable 100Ah–400Ah. Perfectly matched with MINVON off-grid & hybrid solar inverters for residential solar projects.
Equipped with intelligent integrated BMS for full protection from overcharge, over-discharge, short circuit and extreme temperatures. Active cell balancing extends overall battery lifespan.
Adopting automotive-grade LiFePO4 cells with up to 8,000 charge-discharge cycles. Up to 16 batteries can be paralleled for capacity expansion. CAN & RS485 communication enables real-time linkage with inverters.
Supports wall & floor mounting. Compact shockproof structure, environmentally safe lithium iron phosphate material.
Suitable for household solar storage, off-grid cabins, farm power and emergency backup. Steady operation at -10℃ to 55℃, adapting to various harsh weather conditions.
