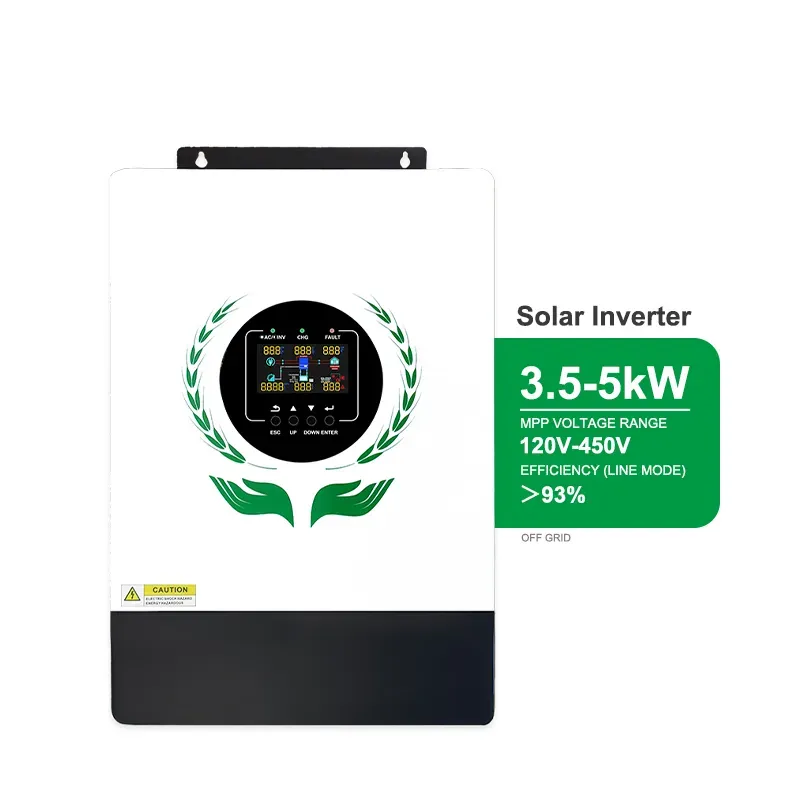

MINVON SOL IA‑S4 Series 3.5KW 5KW Residential Off‑Grid Pure Sine Wave Solar Inverter, Built‑in MPPT, 500VDC Max PV Input, Support 9 Units Parallel, Home Battery Energy Storage Inverter

Single‑Phase 3.5KW/5KW Off‑Grid Energy Storage Inverter, Max 500V High PV Input, Auto Grid‑Tie Complementary Switch, Stable Emergency Backup Power, Perfect for Household Power Backup & Remote Off‑Grid Solar Applications

MINVON SOL IA-S4 Single Phase Off-Grid Hybrid Solar Inverter | 3.5kW / 5kW OptionsCustomized for home off-grid power supply & power failure emergency backup.✅ 500VDC high PV input;Max 9 units parallel connection for scalable total power up to 45k...

MODEL

SOL IA4000-S2

SOL IA6000-S2

Battery Data

Battery Voltage

24 VDC

48 VDC

Battery Type

Lithium/ Lead-acid

Inverter Output

Rated Power

4000W

6000W

AC Voltage Regulation (Batt.Mode)

Surge Power

8000VAC

12000VAC

Efficiency(Line Mode)

>93%

Output Current

17.4A

26.1A

Transfer Time

10ms typical, 20ms Max

Wave Form

Pure Sine Wave

Solar Charger

Maximum PV Array Power

5000W

6000W

MPPT Range & Operating Voltage

60~450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum PV Input Current

27A

Maximum Solar Charge Current

120A

AC Charger

Maximum Charge Current

100A

AC Input Voltage

230V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)

Frequency Range

50Hz/60Hz (Auto Sensing)

Physical

Dimension (W*H*D)

435*300*115MM

Net Weight (kgs)

10

11

Communication Interface

USB / RS232 / RS485 / WIFI / Dry-contact

Operating Environment

Overload Capacity

105%<load<130%(Alarm and Shutdown after 10s)
load≥130%(Alarm and Shutdown after 5s)

Humidity

5% to 95% Relative Humidity (Non-condensing)

Altitude

<2000m

Operating Temperature

-10℃ to 50℃

without battery 500vdc pv input-0

MINVON SOL IA-S4 Core Advantages

PV & Grid Automatic Hybrid Power Supply
Auto switch to mains power when solar energy is inadequate, guarantee non-stop home electricity and eliminate blackouts.
Custom Charge & Discharge Timing
Schedule charging during off-peak electricity hours to slash your monthly power bills intelligently.
Parallel Expansion Up to 9 Units
Max 9 inverters in parallel for total 45kW output, ideal for large villas and multi-household high-power demand.
500VDC High PV Input & Wide MPPT Range
Compatible with most mainstream solar panels, flexible rooftop arrangement to boost solar power generation efficiency.
Solar/Grid Priority Switch Freely
Two optional working priorities to match your daily electricity usage and optimize energy distribution.
Work With & Without Batteries
Battery-free operation available to greatly reduce your initial system investment cost.
Built-in AC Charger for All 48V Batteries
Fast stable charging, perfectly compatible with 48V lithium iron phosphate batteries and lead-acid batteries.
Pure Sine Wave Output & Global Frequency Adaptation
Safe power output to safeguard sensitive home appliances; auto 50/60Hz recognition fits power grids globally.

Remote off-grid houses & cabins: Realize self-sufficient solar power; optional battery-free setup saves upfront costs.
Home emergency backup power: Instant switch during blackouts to secure daily household electric appliances.
Farms & small workshops: Expand to 45kW via parallel connection to support agricultural machinery and workshop equipment.
Budget solar entry projects: Run without batteries to reduce investment, friendly for new solar users.

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

minvon sol ia s4 series 35kw 5kw off grid solar inverter 500v mppt parallel energy storage inverter without battery for home solar system-0

minvon sol ia s4 series 35kw 5kw off grid solar inverter 500v mppt parallel energy storage inverter without battery for home solar system-1

5000w off grid solar inverter 48v 500vdc work with or without battery-2

5000w off grid solar inverter 48v 500vdc work with or without battery-3

5000w off grid solar inverter 48v 500vdc work with or without battery-4

5000w off grid solar inverter 48v 500vdc work with or without battery-5

5000w off grid solar inverter 48v 500vdc work with or without battery-6

5000w off grid solar inverter 48v 500vdc work with or without battery-7

5000w off grid solar inverter 48v 500vdc work with or without battery-8

5000w off grid solar inverter 48v 500vdc work with or without battery-9

5000w off grid solar inverter 48v 500vdc work with or without battery-10

MINVON SOL IA-S4 Single Phase Off-Grid Hybrid Solar Inverter | 3.5kW / 5kW Options

Customized for home off-grid power supply & power failure emergency backup.

500VDC high PV input;Max 9 units parallel connection for scalable total power up to 45kW

Two working modes (with/without batteries)

Support solar & mains complementary power supply; adjustable input priority & charge-discharge timing; compatible with 48V lithium & lead-acid batteries

✅ Stable pure sine wave 230V AC output to protect delicate home appliances; auto 50/60Hz frequency switch for global use

✅ Space-saving wall-mounted design; optional WiFi APP remote real-time monitoring

Perfect for rural off-grid houses, villa emergency backup and residential solar projects. CE/ISO/EMC/RoHS certified for global deployment.
