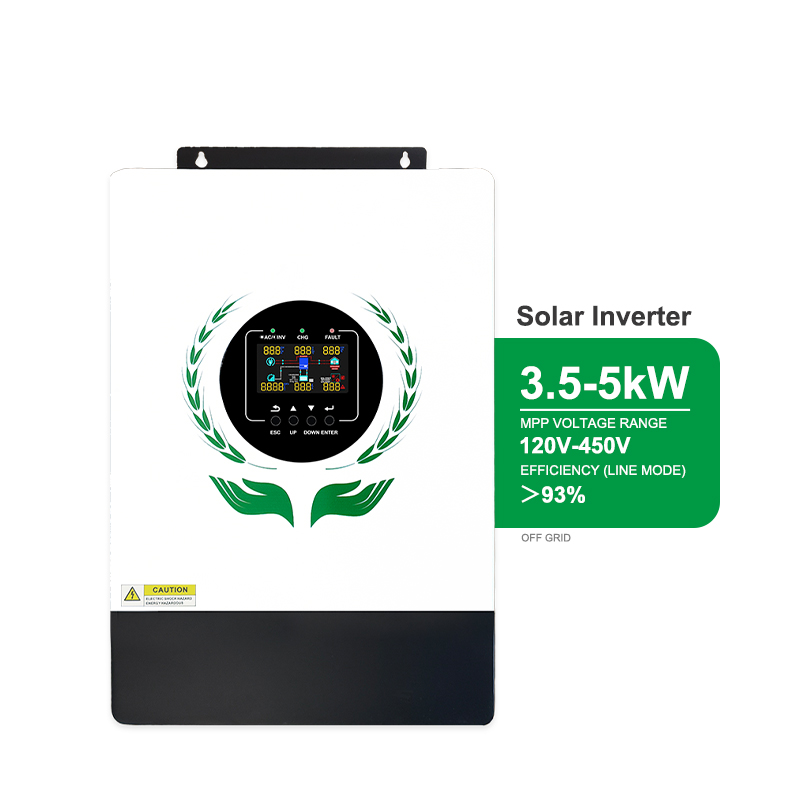

MINVON SOL IA-S4 Series 3.5KW / 5KW Off-Grid Solar Inverter | Single Phase Pure Sine Wave

500V High PV Input Off-Grid Energy Storage Inverter 3.5KW 5KW Single Phase, Grid Complementary Auto Switch Backup Power For Residential Off-Grid & Blackout Emergency Use

MINVON SOL IA-S4 Single Phase Off-Grid Hybrid Solar Inverter Available in two power ratings: 3500W & 5000W, tailored for residential off-grid and emergency backup power systems.Core PV & Expandable CapacityMax 500VDC PV open-circuit voltage, ...

MODEL	SOL IA4000-S2	SOL IA6000-S2
Battery Data
Battery Voltage	24 VDC	48 VDC
Battery Type	Lithium/ Lead-acid
Inverter Output
Rated Power	4000W	6000W
AC Voltage Regulation (Batt.Mode)
Surge Power	8000VAC	12000VAC
Efficiency(Line Mode)	>93%
Output Current	17.4A	26.1A
Transfer Time	10ms typical, 20ms Max
Wave Form	Pure Sine Wave
Solar Charger
Maximum PV Array Power	5000W	6000W
MPPT Range & Operating Voltage	60~450 VDC
Maximum PV Array Open Circuit Voltage	500 VDC
Maximum PV Input Current	27A
Maximum Solar Charge Current	120A
AC Charger
Maximum Charge Current	100A
AC Input Voltage	230V AC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto Sensing)
Physical
Dimension (WHD)	435300115MM
Net Weight (kgs）	10	11
Communication Interface	USB / RS232 / RS485 / WIFI / Dry-contact
Operating Environment
Overload Capacity	105%<load<130%(Alarm and Shutdown after 10s) load≥130%(Alarm and Shutdown after 5s)
Humidity	5% to 95% Relative Humidity (Non-condensing)
Altitude	<2000m
Operating Temperature	-10℃ to 50℃

without battery 500vdc pv input-0

1. PV & Grid Complementary Joint Power Supply

When solar output cannot meet load demand, solar power and municipal grid supply household appliances simultaneously, delivering consistent, uninterrupted electricity for daily use.

2. Customizable Battery Charge & Discharge Timers

Freely program charging and discharging periods to take advantage of off-peak utility rates, effectively cutting long-term household electricity expenses.

3. Expandable Parallel Design — Up to 9 Units, Max 45kW Total Output

Connect up to 9 inverters in parallel to scale the whole system to 45kW, fully catering to power needs of large villas and multi-family residential buildings.

4. 500VDC Max PV Open Circuit Voltage, Wide 120–450V MPPT Operating Range

Compatible with most mainstream high-wattage solar panels. Offers flexible rooftop array layout and maximizes overall solar harvesting efficiency.

5. Switchable Input Priority Modes

Two customizable operation logics: Solar First or Grid First, to fit diverse family energy consumption preferences.

6. Unique Dual Operation Mode: Run With or Without Batteries

Exclusive circuit architecture allows the inverter to operate stably even without battery storage, slashing upfront solar system investment costs significantly.

7. Built-In AC Charger, Universal for 48V Batteries

Works seamlessly with LiFePO4 lithium and lead-acid batteries. The integrated high-speed AC charger quickly refills batteries via grid power.

8. Pure Sine Wave Output + Auto 50/60Hz Frequency Detection

Clean pure sine wave power safeguards delicate household electronics against damage. Automatic frequency recognition supports deployment across global markets.

Application Scenarios

1. Off-Grid Rural Homes & Remote Cabins

Ideal for regions with unstable or no public utility grid. Achieve self-sufficient solar power supply. The optional battery-free operation greatly lowers your initial system budget.

2. Household Emergency Backup Power

Built-in grid complementary function enables seamless power switching. Protect daily home appliances from outages and eliminate blackout disruptions.

3. Independent Power for Small Farms & Workshops

Supports parallel connection of up to 9 inverters for a maximum 45kW total capacity. Fully meets power demands for farm irrigation systems and small workshop machinery.

4. Budget-Friendly Starter Solar PV Projects

Exclusive dual operation mode allows normal operation without batteries, slashing upfront costs. The best choice for new solar users with limited budgets.

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

minvon sol ia s4 series 35kw 5kw off grid solar inverter 500v mppt parallel energy storage inverter without battery for home solar system-0

minvon sol ia s4 series 35kw 5kw off grid solar inverter 500v mppt parallel energy storage inverter without battery for home solar system-1

5000w off grid solar inverter 48v 500vdc work with or without battery-2

5000w off grid solar inverter 48v 500vdc work with or without battery-3

5000w off grid solar inverter 48v 500vdc work with or without battery-4

5000w off grid solar inverter 48v 500vdc work with or without battery-5

5000w off grid solar inverter 48v 500vdc work with or without battery-6

5000w off grid solar inverter 48v 500vdc work with or without battery-7

5000w off grid solar inverter 48v 500vdc work with or without battery-8

5000w off grid solar inverter 48v 500vdc work with or without battery-9

5000w off grid solar inverter 48v 500vdc work with or without battery-10

MINVON SOL IA-S4 Single Phase Off-Grid Hybrid Solar Inverter

Available in two power ratings: 3500W & 5000W, tailored for residential off-grid and emergency backup power systems.

Core PV & Expandable Capacity

Max 500VDC PV open-circuit voltage, wide 120–450V MPPT operating range for flexible solar panel matching
Supports parallel connection of up to 9 units to build a maximum 45kW large-scale solar system, easy capacity expansion for growing power demands

Unique Dual Working Mode (With / Without Battery)

Breakthrough dual-operation design enables stable power supply whether you install battery storage or not. Customizable solar/grid priority modes and adjustable charge-discharge timing schedules fully fit personalized household energy habits.

When solar generation falls short, PV power and municipal grid jointly feed loads to avoid power cuts. Equipped with an integrated AC charger, perfectly compatible with all 48V LiFePO4 lithium and lead-acid batteries.

Stable & Safe Power Output

Delivers clean pure sine wave 230V AC to protect sensitive home appliances. Built-in automatic 50/60Hz frequency identification adapts to power standards worldwide.

Compact Smart Design

Lightweight wall-mounted structure saves installation space. Optional WiFi module supports real-time remote monitoring via mobile APP to track system status anytime, anywhere.
