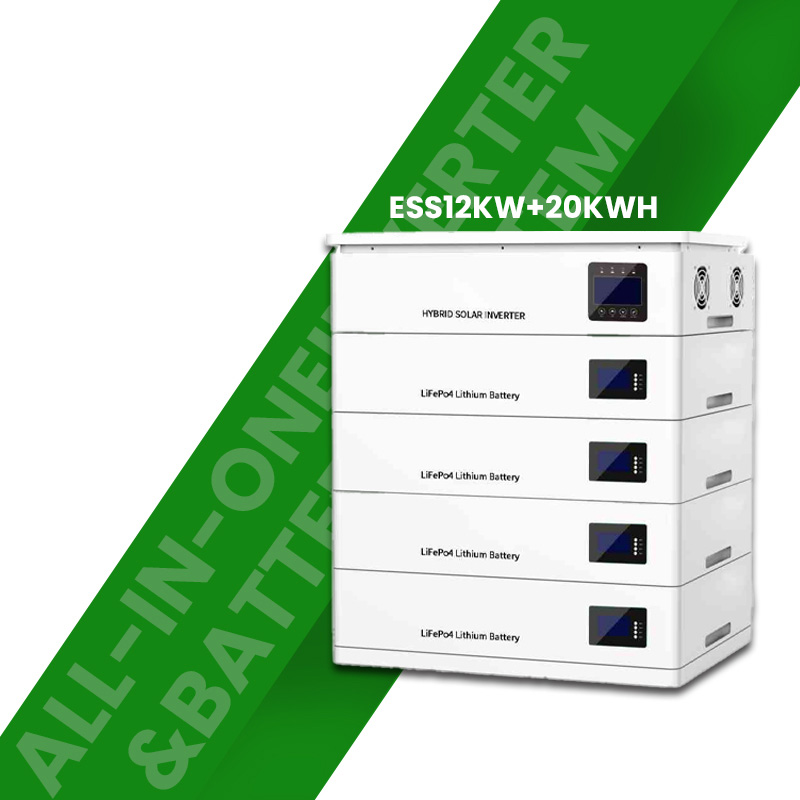

MINVON All-In-One ESS Energy Storage System 51.2V LiFePO4 Stackable Battery Hybrid Solar Inverter All In One For Home Off Grid Power Backup

Integrated All-In-One Solar Energy Storage System, Stackable Expandable LiFePO4 Battery, Built-In Hybrid Inverter, Smart BMS & LCD Touch Screen, Safe Whole House Solar Backup Power

MINVON All-In-One ESS Energy Storage System is an integrated all-in-one home solar energy storage solution that combines hybrid solar inverter and stackable LiFePO4 lithium battery in one complete unit. No complicated separate matching, plug-and-play...

Model

ESS 3.6kW+8kWH

ESS 6kW+15kWH

ESS 12kW+20kWH

AC Input

Rated Input Voltage

208/220/230/240VAC;L+N+PE

220/230/240VAC;L+N+PE

Voltage Range

90~280VAC+3(normal mode);
170~280VAC+3(UPS mode);

Frequency Range

50/60Hz (Auto Adaptive)

AC Output

Rated Capacity

3.6kW

6kW

12kW

Surge Power

5.7kVA

12kVA

20kVA

Switch Time

10ms

Wave Form

Pure Sine Wave

Overload Capacity (Battery Mode)

60s@102%~110%;10s@110%~130%;
3s@130%~150%;0.2s@>150%;

(105%<load <110%) +5%:
report error and turn off the output after 5min
(110%<load<125%)+5%:
report error and turn off the output after 10s
(Load >125%)+5%:
report error and turn off the output after 5s

Max. Efficiency(Battery Mode)

92.7%@24VDC

93%@48VDC

94%@48VDC

Charger

Solar Charger Type

MPPT

Dual MPPT

Max PV input current / power

18A/5kW

27A/9kW

1*MPPT:27A/9kW
2*MPPT:22.5A/15kW

Operating Voltage Range

40~450VDC

80~450VDC

90~485VDC

Max PV Open Circuit Voltage

500VDC

500VDC

500VDC

Max PV Charge Current

100A

120A

160A

Max AC Charge Current

100A

120A

160A

Max. Charge Current (PV + AC)

100A

120A

160A

Battery

Nominal Battery Voltage

25.6VDC

51.2VDC

Rated Energy

8KWh(0.2C,25℃)

15KWh(0.2C,25℃)

20KWh(0.2C,25℃)

Usable Energy(90%DOD)

7.2KWh

13.5KWh

18KWh

Max.Charge/Discharge Current

75A/150A

150A/300A

200A/400A

Operation Voltage Range

20VDC~29.2VDC

40VDC~58.4VDC

40.5VDC~54.5VDC

General Data

Ingress Protection

IP20

Operating Temperature

-10℃~50℃

Relative Humidity

5%~95%(Non-condensing)

Storage Temperature

-15℃~60℃

Max. Operating Altitude

4000m(Derating above 1000m)

Physical

Products Size(mm)

440*246*760mm

Battery:540x480x164mm*3
Inverter:540x480x180mm*1

Battery:680x520x175mm*4
Inverter:680x520x182mm

Package Size(mm)

520*436*890mm

Battery:616x556x220mm*3
Inverter:616x556X236mm*1

Battery:760X600X255mm*4
Inverter:736X576X336mm

NW (±3kg)

73kg

Battery:45kg*3pcs
Inverter:27kg*1

Battery:47kg*4pcs
Inverter:27kg*1

GW (±3kg)

86kg

Battery:48kg*3pcs
Inverter:30kg*1

Battery:50kg*4pcs
Inverter:30kg*1

20kwh battery-0

1. Whole House Residential Solar Energy Storage System

2. Home Emergency Backup Power During Grid Power Outage

3. Off-Grid Villa, Rural House, Remote Farm Daily Power Supply

4. Small Shop, Office, Mini Commercial Solar Power Reserve

5. Wind-Solar Hybrid Off-Grid Independent Power Station

6. Tiny House, Large RV & Mobile Living Space Energy Storage

7. Remote Monitoring Equipment, Water Pump Standby Power Supply

8. Africa Household Complete Solar Power Kit For Stable Daily Electricity Use

12kw integrated hybrid inverter  lithium battery dual mppt on grid off grid solar ess with wifi monitoring for home solar backup power-0

1. All-In-One Integrated Design: Hybrid Inverter + Stackable LiFePO4 Battery In One Complete ESS Unit

2. Modular Stackable Battery Structure, Freely Expand Storage Capacity As Needed

3. Premium LiFePO4 Battery Cells, 6000+ Deep Cycles, 10+ Years Long Service Life

4. Built-In Smart BMS Multi-Layer Safety Protection Against Overcharge, Over-Discharge, Short Circuit & Overheat

5. Plug & Play Installation, Simplified Wiring, No Extra Matching Work Required

6. HD LCD Touch Screen, Real-Time Monitor Voltage, Power, Remaining Capacity & Working Status

7. Wide Compatibility, Matches All Types Of Monocrystalline & Polycrystalline Solar Panels

Floor Standing Mobile Casters, Easy To Move & Place Indoors, No Wall Drilling Needed

High Energy Conversion Efficiency Up To 96%, Low Self-Discharge Rate

Off-Grid & Grid-Tie Dual Mode, Supports Daily Household Power & Emergency Blackout Backup

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

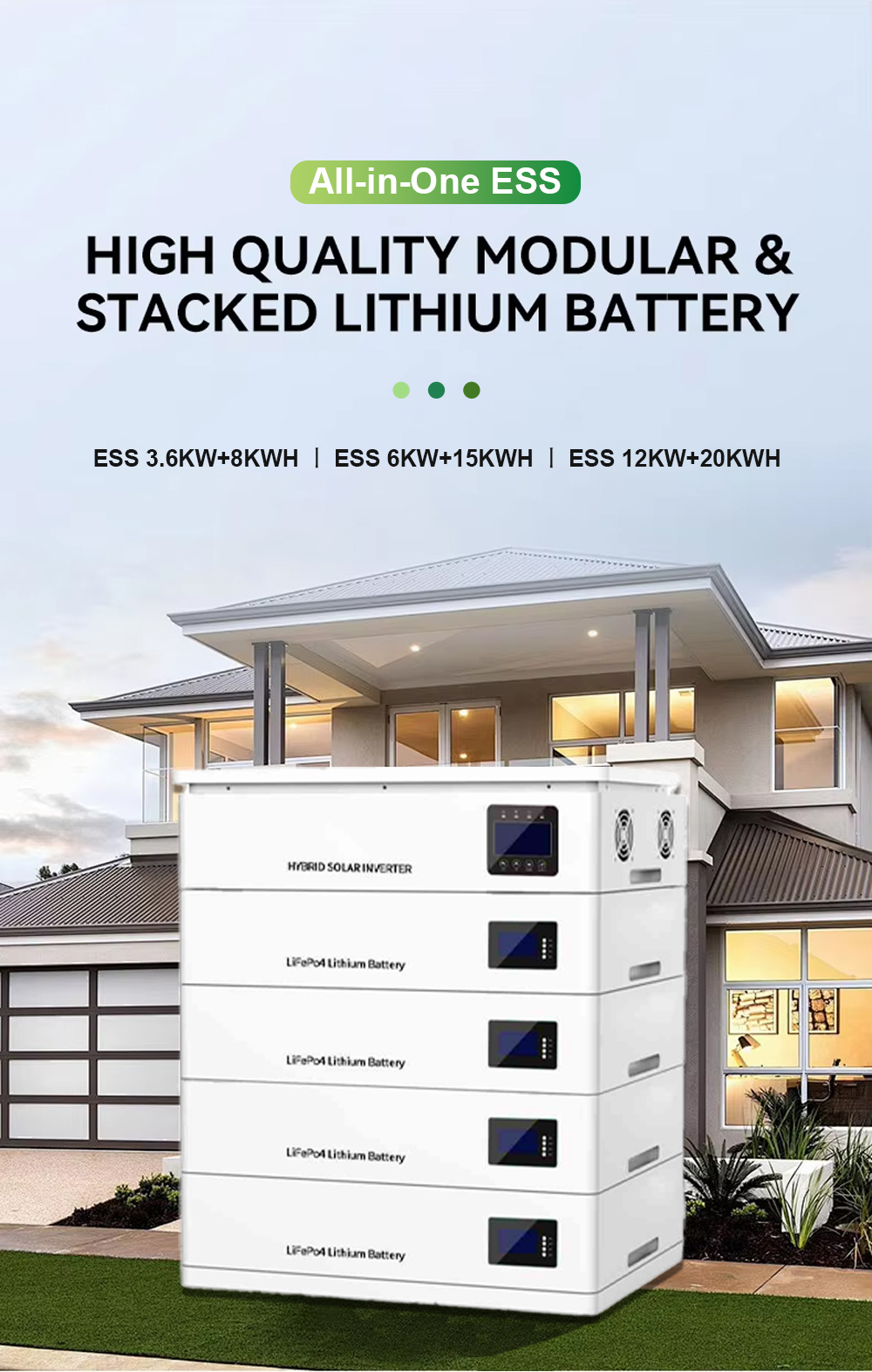

minvon all in one ess energy storage system 512v lifepo4 stackable battery hybrid solar inverter all in one for home off grid power backup-0

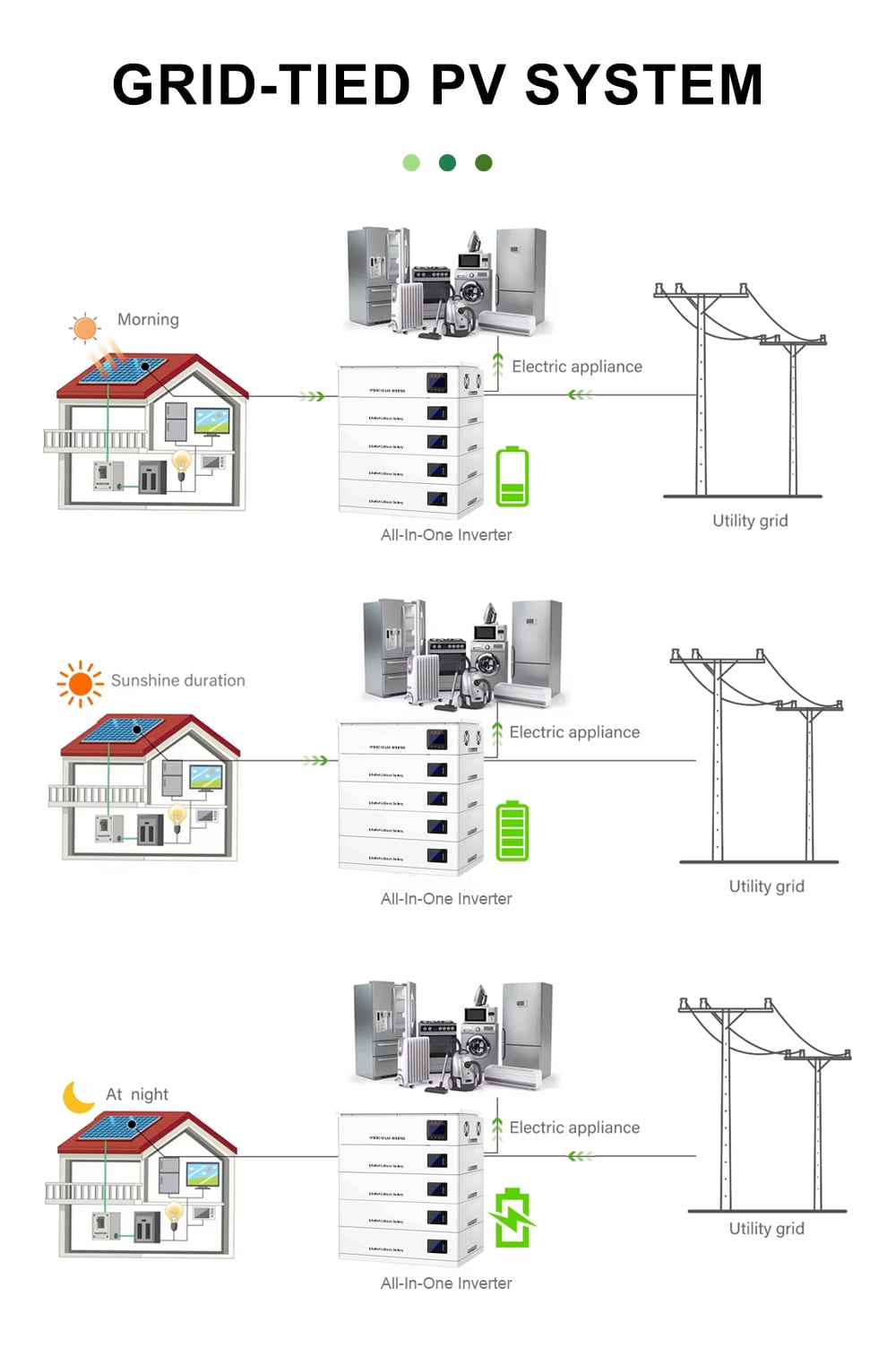

20kwh battery-2

20kwh battery-3

20kwh battery-4

20kwh battery-5

20kwh battery-6

20kwh battery-7

MINVON All-In-One ESS Energy Storage System is an integrated all-in-one home solar energy storage solution that combines hybrid solar inverter and stackable LiFePO4 lithium battery in one complete unit. No complicated separate matching, plug-and-play installation saves your time and labor cost. Adopted high-safety lithium iron phosphate cells with 6000+ deep cycle lifespan, built-in intelligent full-protection BMS avoids overcharge, over-discharge, short circuit and overheating. Modular stackable design supports capacity free expansion to meet different household power demands. Compatible with all standard solar panels, works perfectly for off-grid villas, rural houses and grid outage emergency backup, greatly cutting daily electricity bills and realizing self-sufficient green power.
