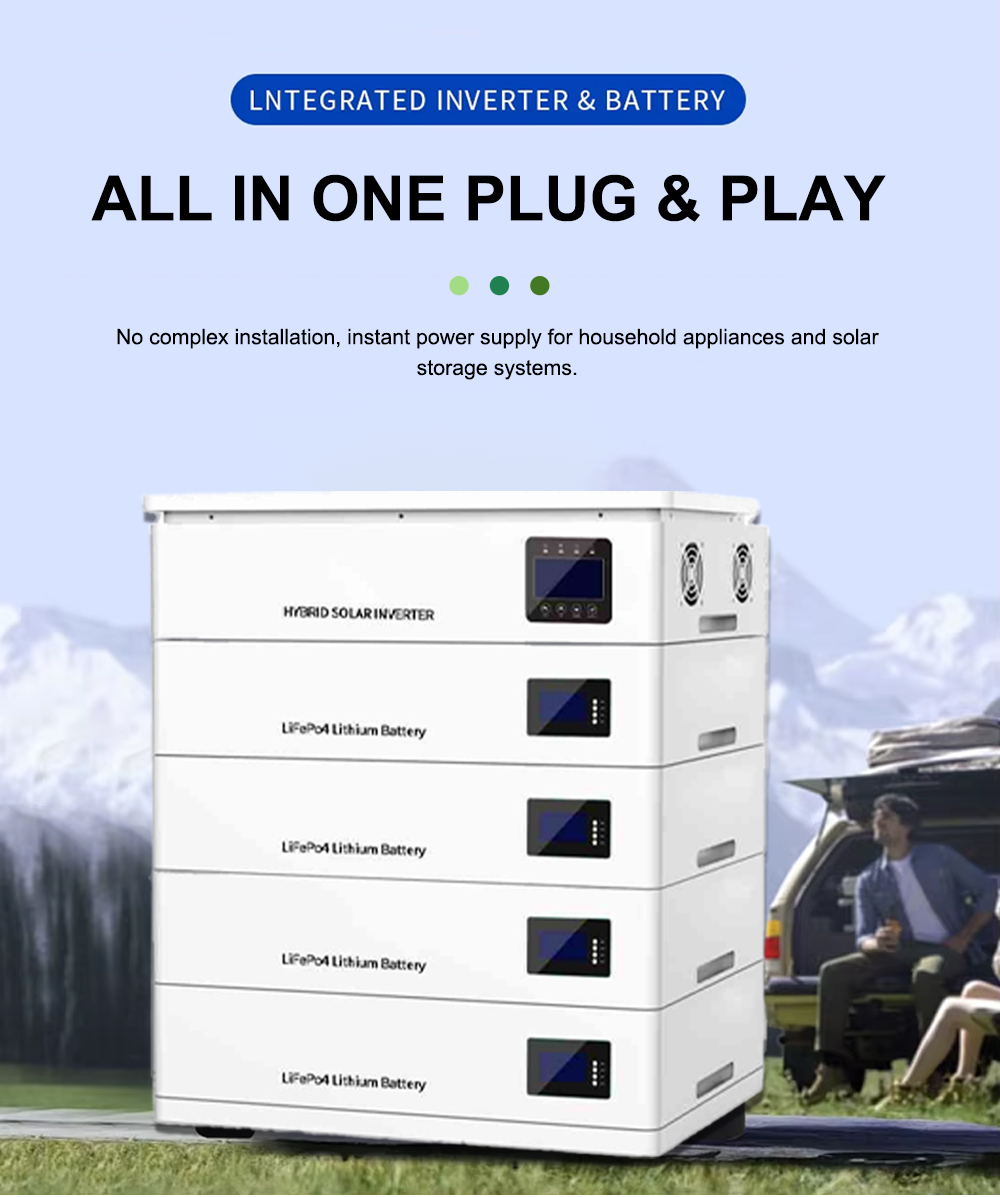

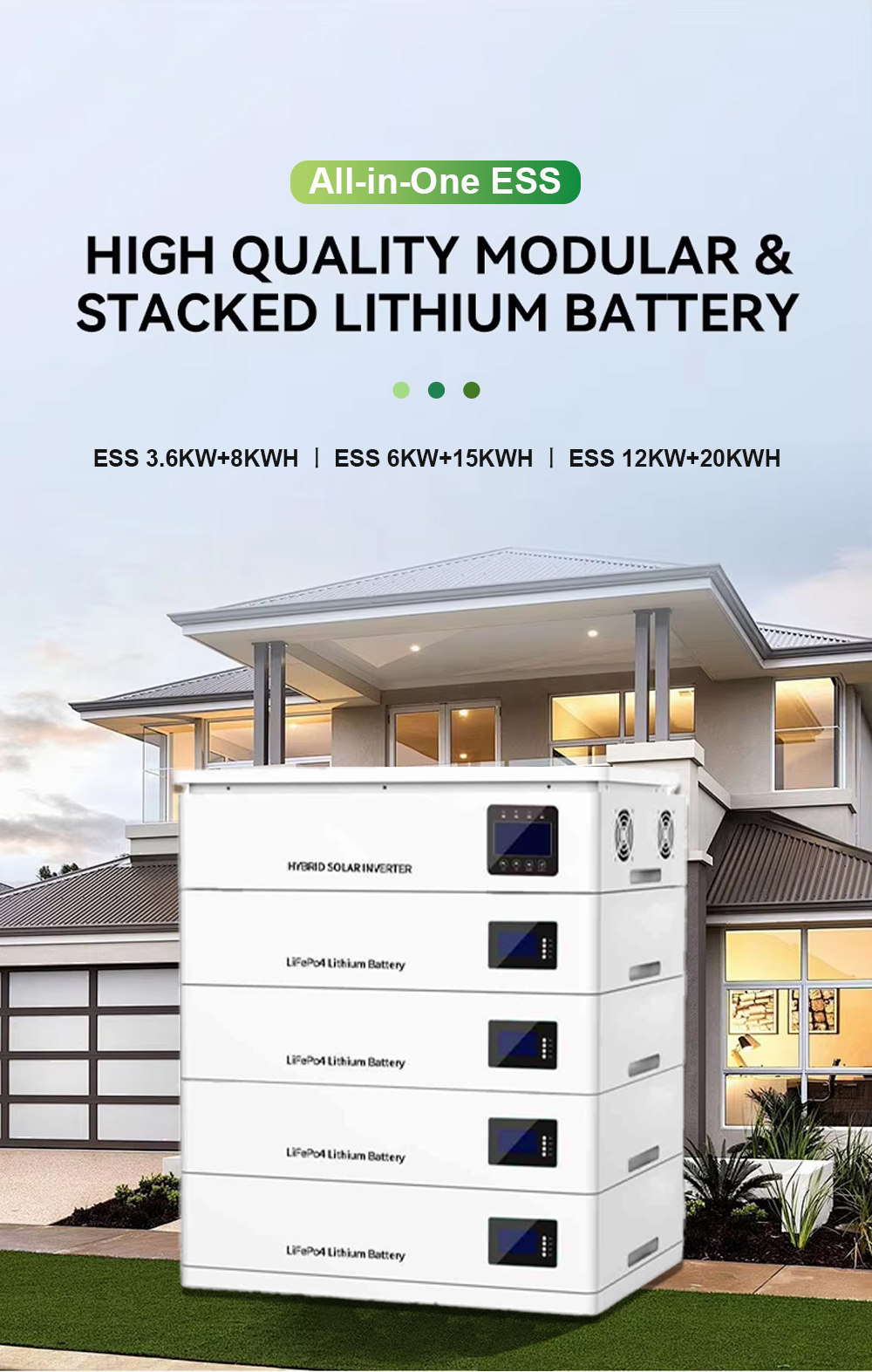

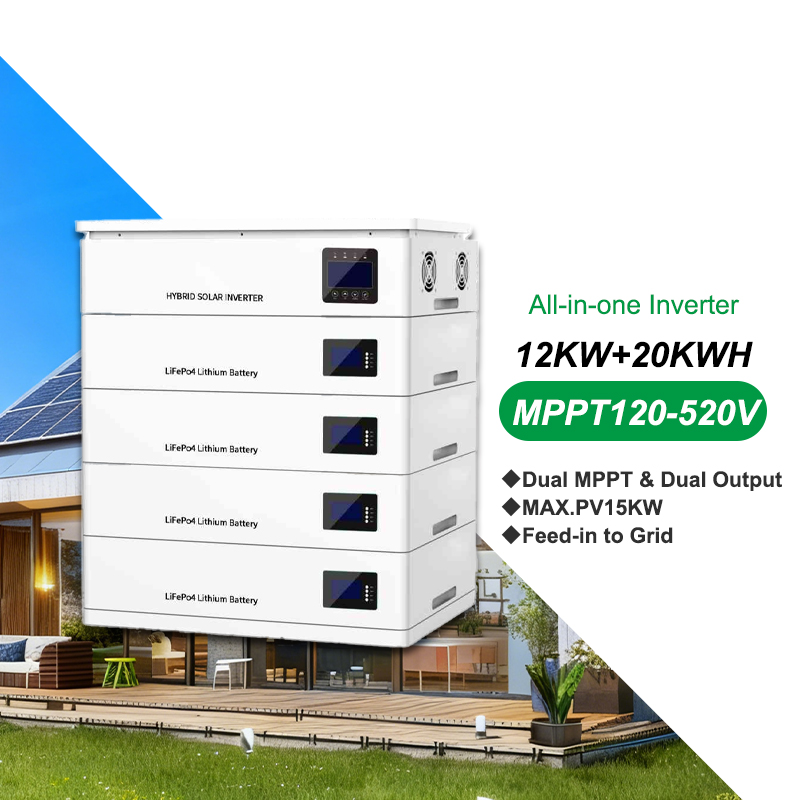

ALL-IN-ONE INVERTER & BATTERY SYSTEM is a high-performance inverter and battery system designed for households seeking energy independence and reduced electricity costs. With a rated output power of 3.6KW/6kW/12KW , it provides reliable power for all household appliances during daily use and grid outages.
|
Model |
ESS 3.6kW+8kWH |
ESS 6kW+15kWH |
ESS 12kW+20kWH |
|
AC Input |
|||
|
Rated Input Voltage |
208/220/230/240VAC;L+N+PE |
220/230/240VAC;L+N+PE |
|
|
Voltage Range |
90~280VAC+3(normal mode); |
||
|
Frequency Range |
50/60Hz (Auto Adaptive) |
||
|
AC Output |
|||
|
Rated Capacity |
3.6kW |
6kW |
12kW |
|
Surge Power |
5.7kVA |
12kVA |
20kVA |
|
Switch Time |
10ms |
||
|
Wave Form |
Pure Sine Wave |
||
|
Overload Capacity (Battery Mode) |
60s@102%~110%;10s@110%~130%; |
(105%<load <110%) +5%: |
|
|
Max. Efficiency(Battery Mode) |
92.7%@24VDC |
93%@48VDC |
94%@48VDC |
|
Charger |
|||
|
Solar Charger Type |
MPPT |
Dual MPPT |
|
|
Max PV input current / power |
18A/5kW |
27A/9kW |
1*MPPT:27A/9kW |
|
Operating Voltage Range |
40~450VDC |
80~450VDC |
90~485VDC |
|
Max PV Open Circuit Voltage |
500VDC |
500VDC |
500VDC |
|
Max PV Charge Current |
100A |
120A |
160A |
|
Max AC Charge Current |
100A |
120A |
160A |
|
Max. Charge Current (PV + AC) |
100A |
120A |
160A |
|
Battery |
|||
|
Nominal Battery Voltage |
25.6VDC |
51.2VDC |
|
|
Rated Energy |
8KWh(0.2C,25℃) |
15KWh(0.2C,25℃) |
20KWh(0.2C,25℃) |
|
Usable Energy(90%DOD) |
7.2KWh |
13.5KWh |
18KWh |
|
Max.Charge/Discharge Current |
75A/150A |
150A/300A |
200A/400A |
|
Operation Voltage Range |
20VDC~29.2VDC |
40VDC~58.4VDC |
40.5VDC~54.5VDC |
|
General Data |
|||
|
Ingress Protection |
IP20 |
||
|
Operating Temperature |
-10℃~50℃ |
||
|
Relative Humidity |
5%~95%(Non-condensing) |
||
|
Storage Temperature |
-15℃~60℃ |
||
|
Max. Operating Altitude |
4000m(Derating above 1000m) |
||
|
Physical |
|||
|
Products Size(mm) |
440*246*760mm |
Battery:540x480x164mm*3 |
Battery:680x520x175mm*4 |
|
Package Size(mm) |
520*436*890mm |
Battery:616x556x220mm*3 |
Battery:760X600X255mm*4 |
|
NW (±3kg) |
73kg |
Battery:45kg*3pcs |
Battery:47kg*4pcs |
|
GW (±3kg) |
86kg |
Battery:48kg*3pcs |
Battery:50kg*4pcs |
Ideal for:
Building long-term independent photovoltaic systems

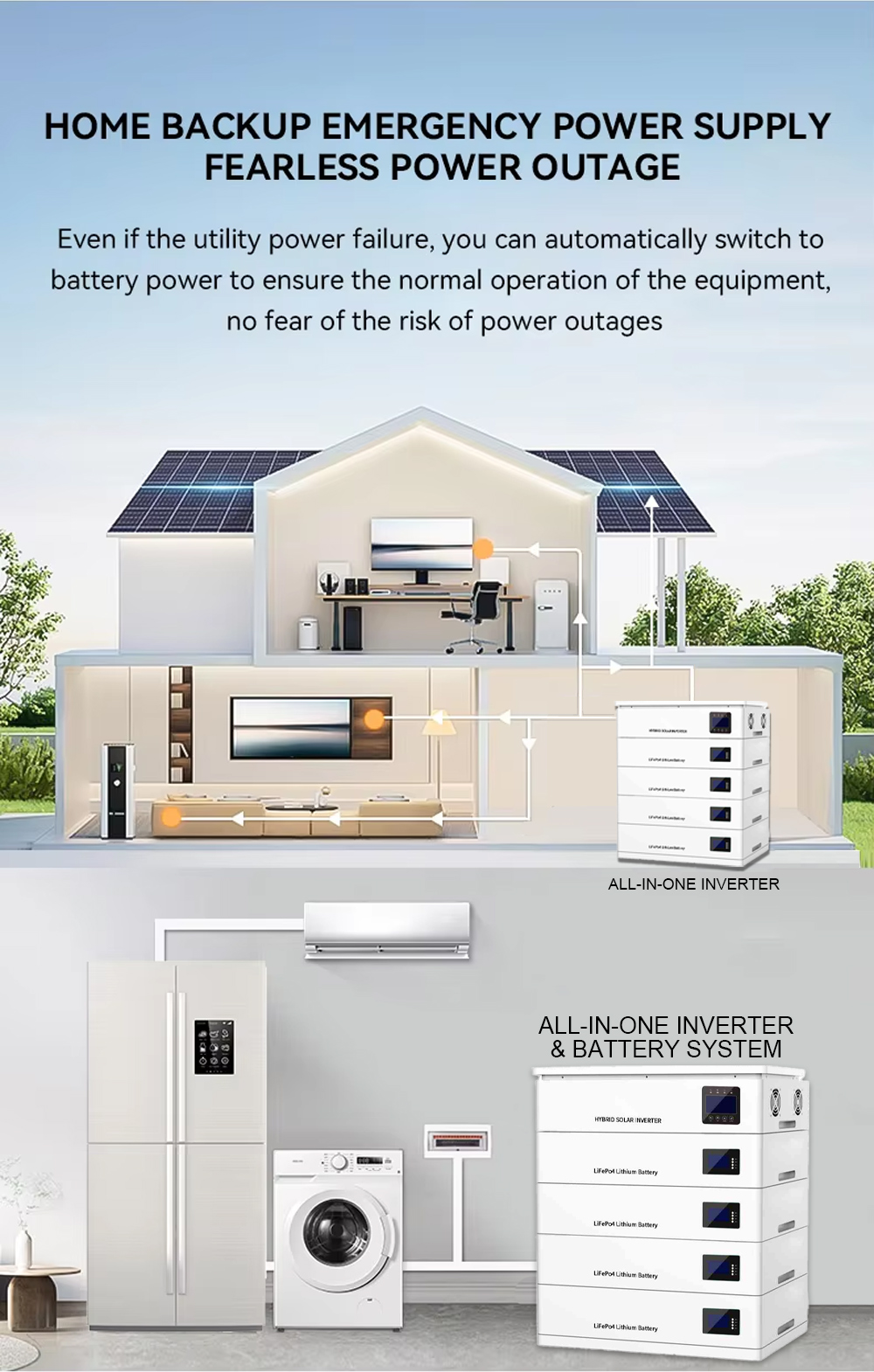

Emergency power backup during grid outages
Reducing reliance on grid electricity and lowering energy costs
Core Value Proposition

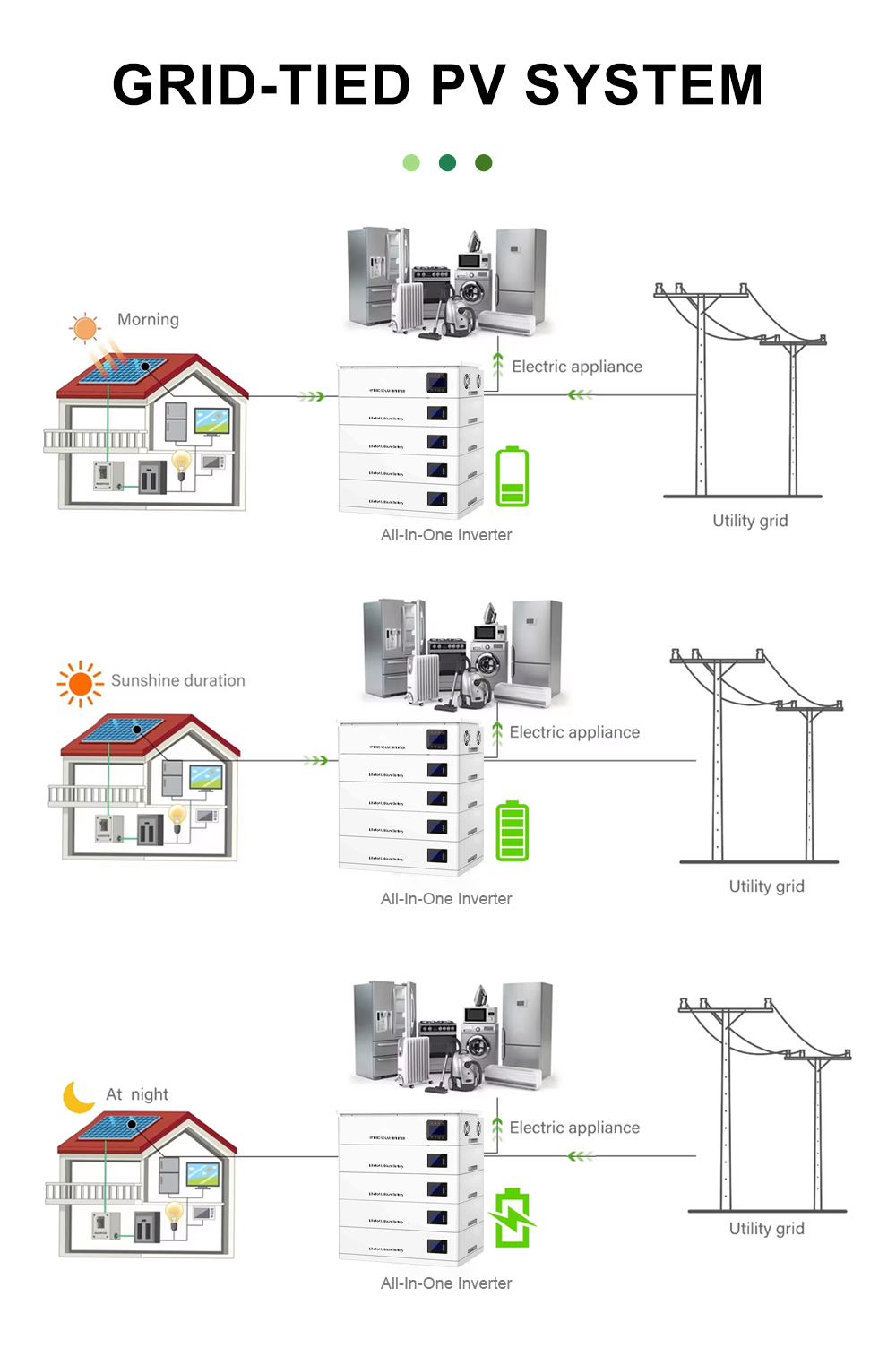

The ALL-IN-ONE INVERTER & BATTERY SYSTEM offers a balance of performance, flexibility, and affordability, making it an optional choice for transitioning off-grid or on-grid for household.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

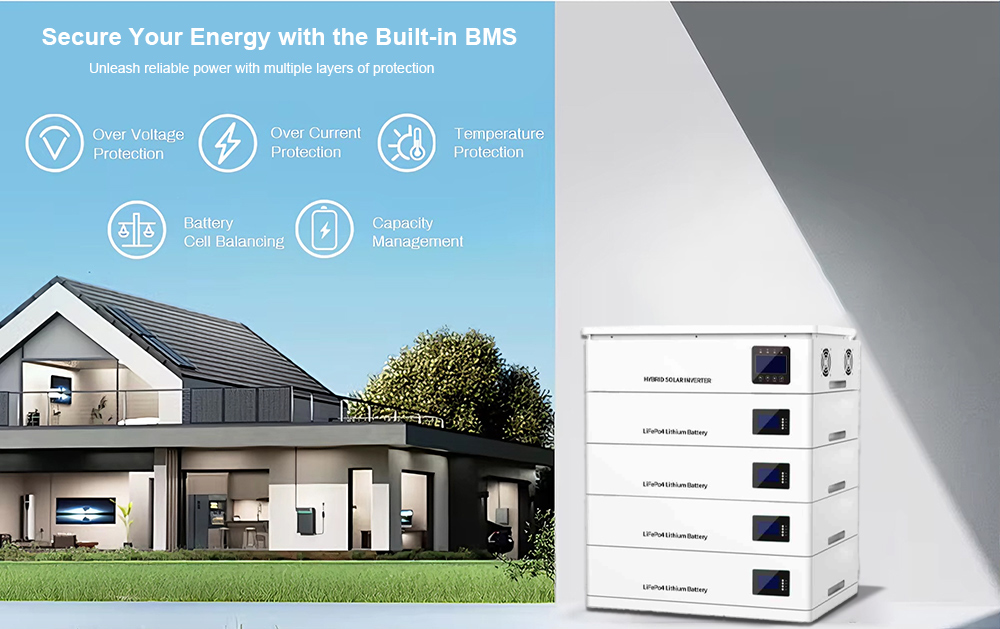

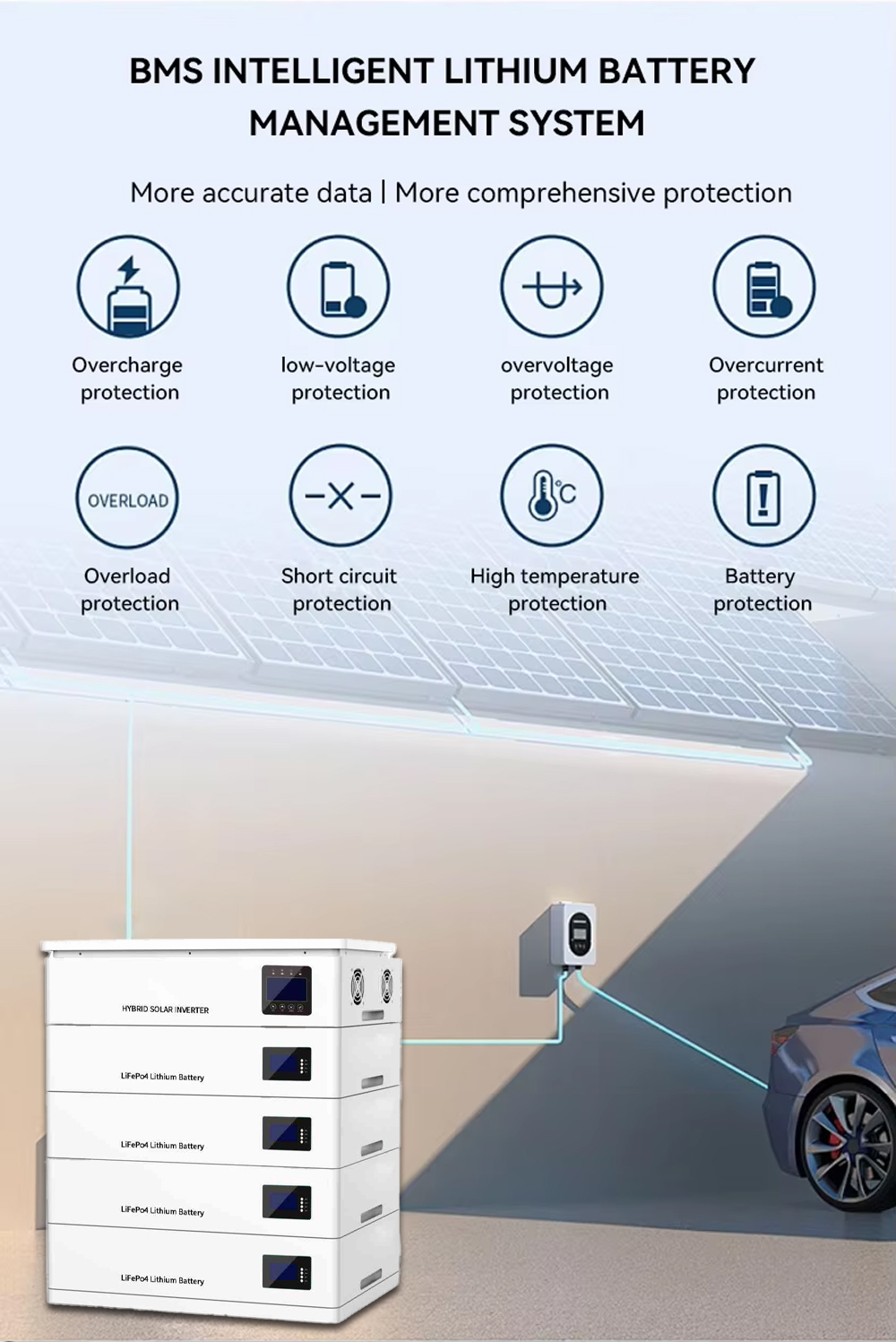

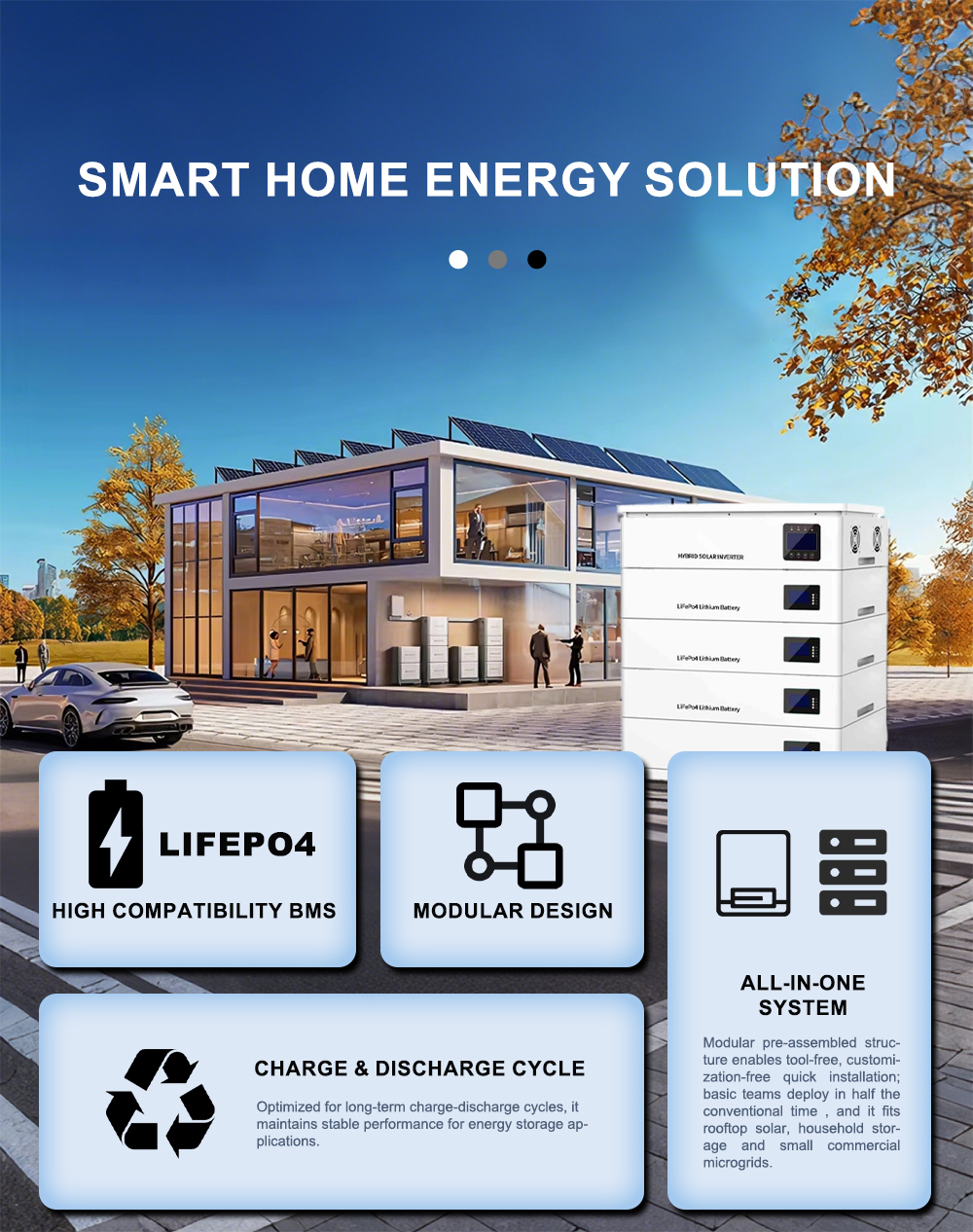

MINVON ESS Series – Plug-and-play all-in-one energy storage (inverter + battery) for homes and light commercial use. Available in 3.6kW+8kWh, 6kW+15kWh, 12kW+20kWh. Compact (440×247×600mm), no fixed installation, ideal for rentals and backup power. WiFi monitoring, BMS protection, pure sine wave, -10°C to 50°C operation.
