Space-Saving Vertical Energy Storage, Stable Charge Discharge, Optional WiFi Monitoring
| Model |
51.2V
-300AH
|
|
Nominal Voltage
|
51.2V
|
| Nominal Capacity | 300AH |
| Nominal Energy | 15.36KWH |
| Operating Voltage Range | 42.4V~57.6V |
| MAX. Charge Current | 100A |
| MAX. Discharge Current | 200A |
| Cell Configuration | 16S1P |
| Pack Over-Voltage Protection (V) | 57.6 |
| Pack Over-Voltage Release (V) | 54.4 |
| Pack Under-Voltage Protection (V) | 42.2 |
| Pack Under-Voltage Release (V) | 48 |
| Cell Over-Voltage Protection (V) | 3.6 |
| Cell Over-Voltage Release (V) | 3.4 |
| Cell Under-Voltage Protection (V) | 2.65 |
| Cell Under-Voltage Release (V) | 2.8 |
|
Ingress Protection
|
IP20
|
| Parallel Connection | Up to 16 units |
| Communication Port | CAN,RS485 |
| Operating Temperature (Charge) | 0~50℃ |
| Operating Temperature (Discharge) | -10~55℃ |
| Storage Temperature | -20~+45℃（≤1month）0~+35℃(≤1year) |
| Humidity | 0~95%(no condensation) |
| Sea Level(m) | ≤1500 |
|
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
|
≥8000 times |
| Products Size(mm) |
860X520X248
|
| Package Size(mm) | 940X670X440 |
| NW (±3kg) | 121KG |
| GW (±3kg) | 139KG |

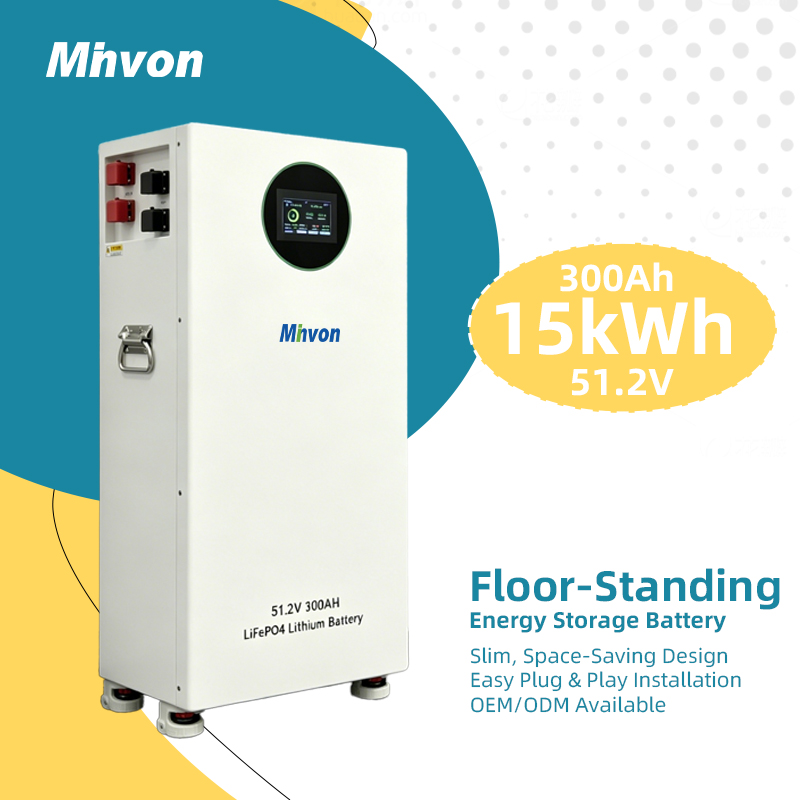

The MINVON 51.2V 300Ah 15.36kWh LiFePO4 battery is built for reliable, long-lasting home energy storage. Designed for both off-grid living and grid-tied backup, this 15kWh battery gives you the power independence you need:
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

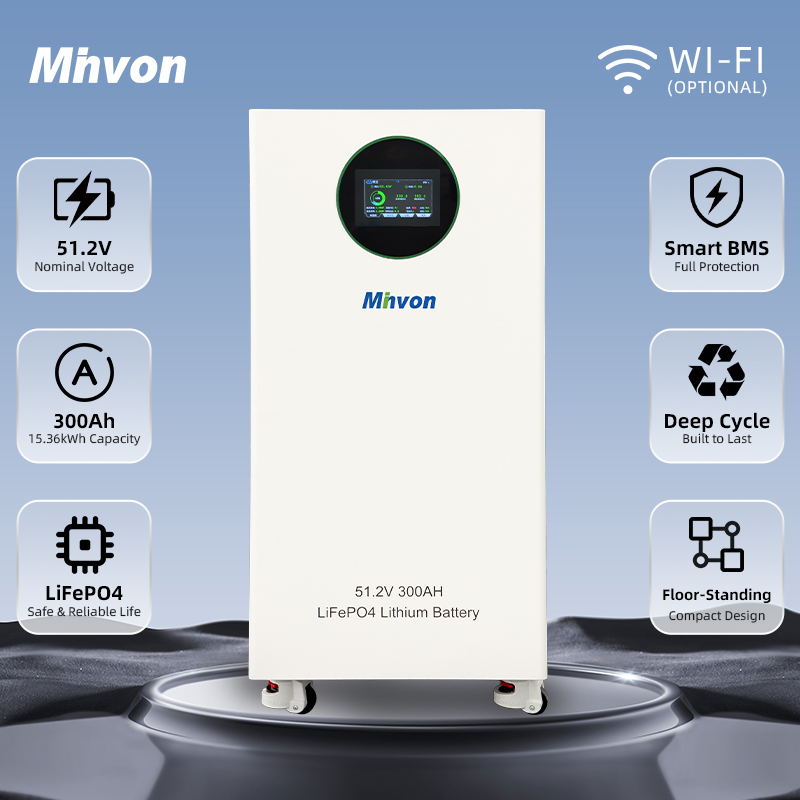

MINVON vertical 51.2V 300Ah LiFePO4 battery delivers 15.36kWh large storage capacity, adopting vertical floor-standing slim structure to save installation space. Equipped with intelligent full-protection BMS, it automatically balances cell voltage and current, supporting over 5000 deep charge-discharge cycles. Up to 16 units can be paralleled to expand total capacity freely, perfectly matched with all mainstream 48V hybrid/off-grid solar inverters. Optional WiFi module enables real-time mobile monitoring, ideal for high-power residential & commercial solar backup energy storage.
