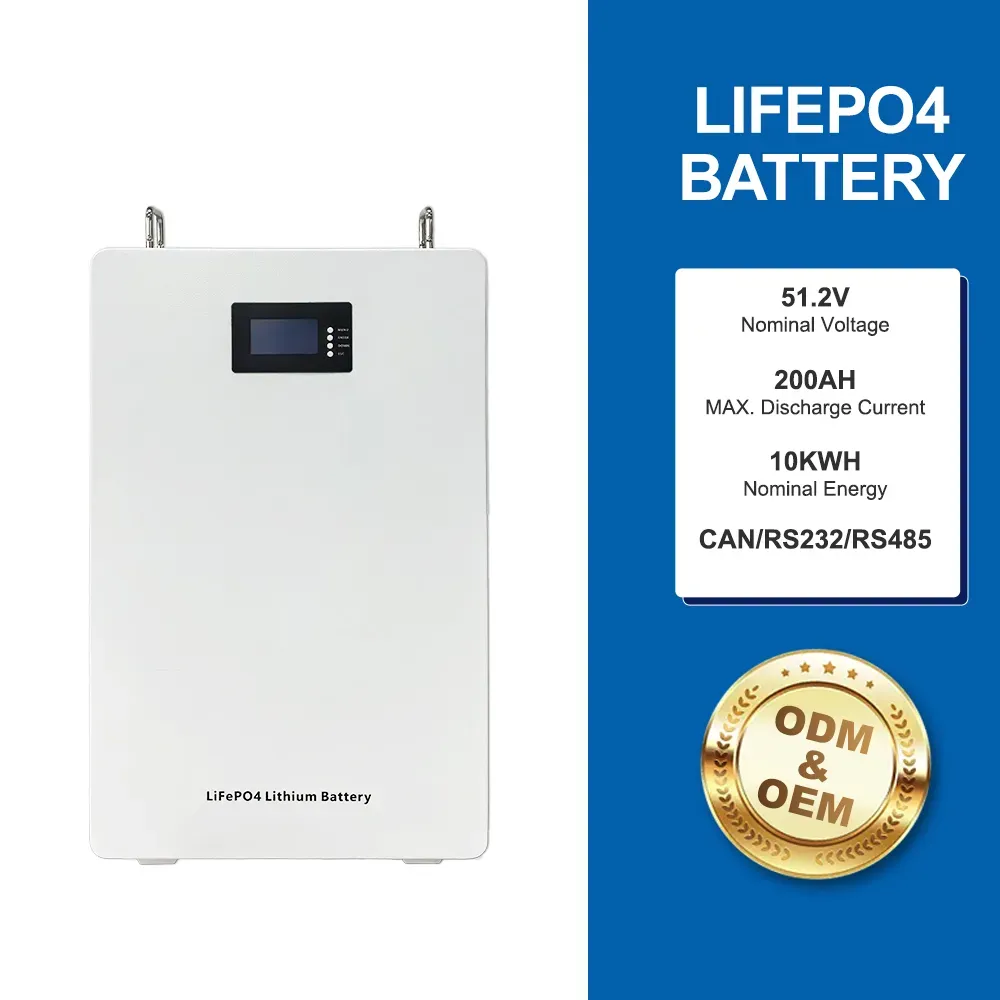

48V 51.2V LiFePO4 Lithium Battery Pack 100Ah 200Ah 300Ah Wall Mounted Solar Storage Battery Max 16 Parallel For Residential Off-Grid Solar System

51.2V LiFePO4 Wall-Mounted Lithium Battery, 100Ah/200Ah/300Ah Optional, Up To 8000 Deep Cycles, Max 16 Units Parallel, Full BMS Protection, Perfect Match Hybrid Solar Inverter For Home Off-Grid & Power Outage Backup

51.2V LiFePO4 Wall-Mounted Lithium Battery (100Ah/200Ah/300Ah)MINVON 51.2V wall-mounted LiFePO4 lithium battery offers three mainstream capacity options: 100Ah (5kWh), 200Ah (10kWh) and 300Ah (15kWh), perfectly matching all 48V hybrid & off-grid ...

Model	25.6V -100AH	25.6V -200AH	25.6V -300AH	51.2V -100AH	51.2V -200AH	51.2V -300AH	51.2V -400AH	51.2V -460AH	51.2V -560AH	51.2V -628AH
Nominal Voltage	25.6V	25.6V	25.6V	51.2V	51.2V	51.2V	51.2V	51.2V	51.2V	51.2V
Nominal Capacity	100AH	200AH	300AH	100AH	200AH	300AH	400AH	460Ah	560AH	628AH
Nominal Energy	2.56KWH	5.12KWH	7.68KWH	5.12KWH	10.24KWH	15.36KWH	20.48KWH	23.56KWH	28.67KWH	32.15KWH
Operating Voltage Range	21.2V~28.8V	21.2V~28.8V	21.2V~28.8V	42.4V~57.6V	42.4V~57.6V	42.4V~57.6V	42.4V~57.6V	42.4V~57.6V	40.0V~58.4V	40.0V~58.4V
MAX. Charge Current	50A	100A	100A	50A	100A	100A	100A	100A	200A	200A
MAX. Discharge Current	100A	150A	200A	100A	150A	200A	200A	200A	300A	300A
Cell Configuration	8S1P	8S1P	8S1P	16S1P	16S1P	16S1P	16S2P	16S2P	16S2P	16S2P
Pack Over-Voltage Protection (V)	28.8	28.8	28.8	57.6	57.6	57.6	57.6	57.6	57.6	57.6
Pack Over-Voltage Release (V)	27.2	27.2	27.2	54.4	54.4	54.4	54.4	54.4	54.4	54.4
Pack Under-Voltage Protection (V)	21.2	21.2	21.2	42.2	42.2	42.2	42.2	42.2	42.2	42.2
Pack Under-Voltage Release (V)	24.0	24.0	24.0	48	48	48	48	48	48	48
Cell Over-Voltage Protection (V)	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6
Cell Over-Voltage Release (V)	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Cell Under-Voltage Protection (V)	2.65	2.65	2.65	2.65	2.65	2.65	2.65	2.65	2.65	2.65
Cell Under-Voltage Release (V)	2.8	2.8	2.8	2.8	2.8	2.8	2.8	2.8	2.8	2.8
Ingress Protection	IP20
Parallel Connection	Up to 16 units
Communication Port	CAN,RS485
Operating Temperature (Charge)	0~50℃
Operating Temperature (Discharge)	-10~55℃
Storage Temperature	-20~+45℃（≤1month）0~+35℃(≤1year)
Humidity	0~95%(no condensation)
Sea Level(m)	≤1500
Battery cycle times (25℃ 0.2C/0.2C 80%DOD)	≥5000 times	≥4000 times	≥8000 times	≥5000 times	≥4000 times	≥8000 times	≥4000 times	≥6000 times	≥8000 times	≥8000 times
Products Size(mm)	460X360X160	640X420X160	550X420X248	640X420X160	690X520X248	860X520X248	900X600X298	960X600X298	989X634.5X326	989X634.5X326
Package Size(mm)	520X420X220	700X480X220	610X480X310	700X480X220	780X670X440	940X670X440	980X740X440	1040X740X440	1135x695x525	1135x695x525
NW (±3kg)	24KG	44KG	56KG	44KG	89KG	121KG	145KG	168KG	206KG	207KG
GW (±3kg)	32KG	54KG	65KG	54KG	104KG	139KG	167KG	190KG	226KG	227KG

grid tie systems-0

Multiple Capacity Options：51.2V 100Ah/200Ah/300Ah (5/10/15kWh) to fit different household energy demands
Ultra Long Cycle Life：Up to 8000 deep cycles, greatly reduce later replacement cost
Max 16 Units Parallel：Freely expand storage capacity for large energy consumption scenarios
Intelligent Built-In BMS：Auto cell balancing, full overcharge/over-discharge/short-circuit protection for unattended operation
Safe Eco LiFePO4 Material：Non-toxic, stable chemical property, much higher safety than lithium ternary
Remote APP Monitoring：CAN/RS485 communication for real-time battery data check via mobile phone
Perfect Compatibility：Matches all brands of 48V hybrid/off-grid solar inverters
Full Global Certifications：CE, ISO, EMC, RoHS for smooth import clearance worldwide

grid tie systems-1

grid tie systems-2

1. Residential Solar Energy Storage

On-grid & off-grid household solar power matching
Villa large-capacity energy storage system (multiple batteries parallel)
Home power outage emergency backup power supply

2. Off-Grid Remote Areas

Rural mountain, island families without stable grid power
Farm lighting, water pump daily power supply

3. Mobile & Special Scenarios

Large RV, motorhome long-distance travel energy storage
Yacht, boat marine off-grid power system

4. Commercial Backup Power

Small shops, offices load shedding backup energy
Construction field temporary energy storage matching solar panels

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

LIFEPO4 LITHIUM BATTERY 25.6V/51.2V safety and long cycle life non-toxic and eco-friendly cells cycle time up to 8000 cycles Auto-manages charge/discharge manufacture

grid tie systems-3

grid tie systems-4

grid tie systems-5

grid tie systems-6

grid tie systems-7

51.2V LiFePO4 Wall-Mounted Lithium Battery (100Ah/200Ah/300Ah)

MINVON 51.2V wall-mounted LiFePO4 lithium battery offers three mainstream capacity options: 100Ah (5kWh), 200Ah (10kWh) and 300Ah (15kWh), perfectly matching all 48V hybrid & off-grid solar inverters for residential energy storage.

Built-in intelligent BMS system achieves full automatic charge/discharge management and real-time cell voltage & current balance, effectively extending overall battery service life up to 8000 deep cycles under standard charging and discharging conditions.

Support up to 16 batteries parallel connection to expand energy capacity freely, meeting small household to large villa energy storage demands.

Equipped with complete all-round safety protection including overcharge, over-discharge, over-current, short-circuit, over-temperature protection, enabling unattended long-term stable operation. The LiFePO4 cell material is non-toxic, eco-friendly and far safer than ternary lithium batteries for home use.

Adopt CAN/RS485 communication port to connect inverters and WIFI monitoring module, users can check real-time battery data via mobile APP remotely. Wide operating temperature range adapts to tropical, temperate and cold climate areas globally.

With CE, ISO, EMS, RoHS full certifications, this battery supports global customs clearance. It works seamlessly with solar panels, mains utility and generators to build a complete household hybrid solar energy storage system, providing reliable backup power during blackouts.

Widely applied for off-grid rural families, villa solar storage, commercial backup power, RV and marine energy systems.
