Built-in Smart BMS Full Protection, Up To 8000 Deep Cycles, Support Max 16 Units Parallel, 25.6V & 51.2V Multiple Capacity Options, Eco-Friendly Safe LiFePO4 Cell, Compatible With All Off-Grid/Hybrid Solar Inverters
| Model |
25.6V
-100AH
|
25.6V
-200AH
|
25.6V
-300AH
|
51.2V
-100AH
|
51.2V
-200AH
|
51.2V
-300AH
|
51.2V
-400AH
|
51.2V
-460AH
|
51.2V
-560AH
|
51.2V
-628AH
|
|
Nominal Voltage
|
25.6V
|
25.6V
|
25.6V
|
51.2V
|
51.2V
|
51.2V
|
51.2V
|
51.2V
|
51.2V
|
51.2V
|
| Nominal Capacity | 100AH | 200AH | 300AH | 100AH | 200AH | 300AH | 400AH | 460Ah | 560AH | 628AH |
| Nominal Energy | 2.56KWH | 5.12KWH | 7.68KWH | 5.12KWH | 10.24KWH | 15.36KWH | 20.48KWH | 23.56KWH | 28.67KWH | 32.15KWH |
| Operating Voltage Range | 21.2V~28.8V | 21.2V~28.8V | 21.2V~28.8V | 42.4V~57.6V | 42.4V~57.6V | 42.4V~57.6V | 42.4V~57.6V | 42.4V~57.6V | 40.0V~58.4V | 40.0V~58.4V |
| MAX. Charge Current | 50A | 100A | 100A | 50A | 100A | 100A | 100A | 100A | 200A | 200A |
| MAX. Discharge Current | 100A | 150A | 200A | 100A | 150A | 200A | 200A | 200A | 300A | 300A |
| Cell Configuration | 8S1P | 8S1P | 8S1P | 16S1P | 16S1P | 16S1P | 16S2P | 16S2P | 16S2P | 16S2P |
| Pack Over-Voltage Protection (V) | 28.8 | 28.8 | 28.8 | 57.6 | 57.6 | 57.6 | 57.6 | 57.6 | 57.6 | 57.6 |
| Pack Over-Voltage Release (V) | 27.2 | 27.2 | 27.2 | 54.4 | 54.4 | 54.4 | 54.4 | 54.4 | 54.4 | 54.4 |
| Pack Under-Voltage Protection (V) | 21.2 | 21.2 | 21.2 | 42.2 | 42.2 | 42.2 | 42.2 | 42.2 | 42.2 | 42.2 |
| Pack Under-Voltage Release (V) | 24.0 | 24.0 | 24.0 | 48 | 48 | 48 | 48 | 48 | 48 | 48 |
| Cell Over-Voltage Protection (V) | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 | 3.6 |
| Cell Over-Voltage Release (V) | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 | 3.4 |
| Cell Under-Voltage Protection (V) | 2.65 | 2.65 | 2.65 | 2.65 | 2.65 | 2.65 | 2.65 | 2.65 | 2.65 | 2.65 |
| Cell Under-Voltage Release (V) | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 | 2.8 |
|
Ingress Protection
|
IP20
|
|||||||||
| Parallel Connection | Up to 16 units | |||||||||
| Communication Port | CAN,RS485 | |||||||||
| Operating Temperature (Charge) | 0~50℃ | |||||||||
| Operating Temperature (Discharge) | -10~55℃ | |||||||||
| Storage Temperature | -20~+45℃（≤1month）0~+35℃(≤1year) | |||||||||
| Humidity | 0~95%(no condensation) | |||||||||
| Sea Level(m) | ≤1500 | |||||||||
|
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
|
≥5000 times
|
≥4000 times | ≥8000 times | ≥5000 times | ≥4000 times | ≥8000 times | ≥4000 times | ≥6000 times |
≥8000 times
|
≥8000 times
|
| Products Size(mm) |
460X360X160
|
640X420X160
|
550X420X248
|
640X420X160
|
690X520X248
|
860X520X248
|
900X600X298
|
960X600X298
|
989X634.5X326
|
989X634.5X326
|
| Package Size(mm) |
520X420X220
|
700X480X220 | 610X480X310 | 700X480X220 | 780X670X440 | 940X670X440 | 980X740X440 | 1040X740X440 | 1135x695x525 | 1135x695x525 |
| NW (±3kg) | 24KG | 44KG | 56KG | 44KG | 89KG | 121KG | 145KG | 168KG | 206KG | 207KG |
| GW (±3kg) | 32KG | 54KG | 65KG | 54KG | 104KG | 139KG | 167KG | 190KG | 226KG | 227KG |
Full-Range All-Around Safety Protection
Built-in smart BMS with overcharge, over-discharge, overcurrent, short-circuit & overheat protection for unattended safe operation.
Automatic Cell Balancing Function
Auto-adjust each cell’s voltage and current to avoid imbalance, greatly prolong battery service life.
Ultra-Long Cycle Life Up To 8000 Cycles
Automotive-grade LiFePO4 cells, 5-10 times longer lifespan than lead-acid batteries.
Support Max 16 Units Parallel Connection
Flexible capacity expansion to meet high-energy storage demands of large villas.
Dual Voltage Platform: 25.6V & 51.2V
Perfect match for 24V / 48V series off-grid & hybrid solar inverters.
Safe & Eco-Friendly LiFePO4 Material
Non-toxic, stable thermal performance, no fire or explosion risk, recyclable module.
CAN/RS485 Communication Interface
Real-time data communication with solar inverter, realize intelligent linkage of energy storage system.
Optional WIFI Remote APP Monitoring
Check battery SOC, voltage, cycle data anytime via mobile phone.
1. Residential home solar energy storage system, self-consumption to cut grid electricity bills
2. Rural off-grid houses, mountain villas independent power supply
3. Urban household emergency backup power for power outage standby
4. Farm irrigation, breeding monitoring equipment energy storage power supply
5. Holiday cabins, remote ranches and camps off-grid power system
6. Small shops, offices peak shaving energy storage to reduce peak electricity cost
7. RV, yacht and mobile cabin portable energy storage power station
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

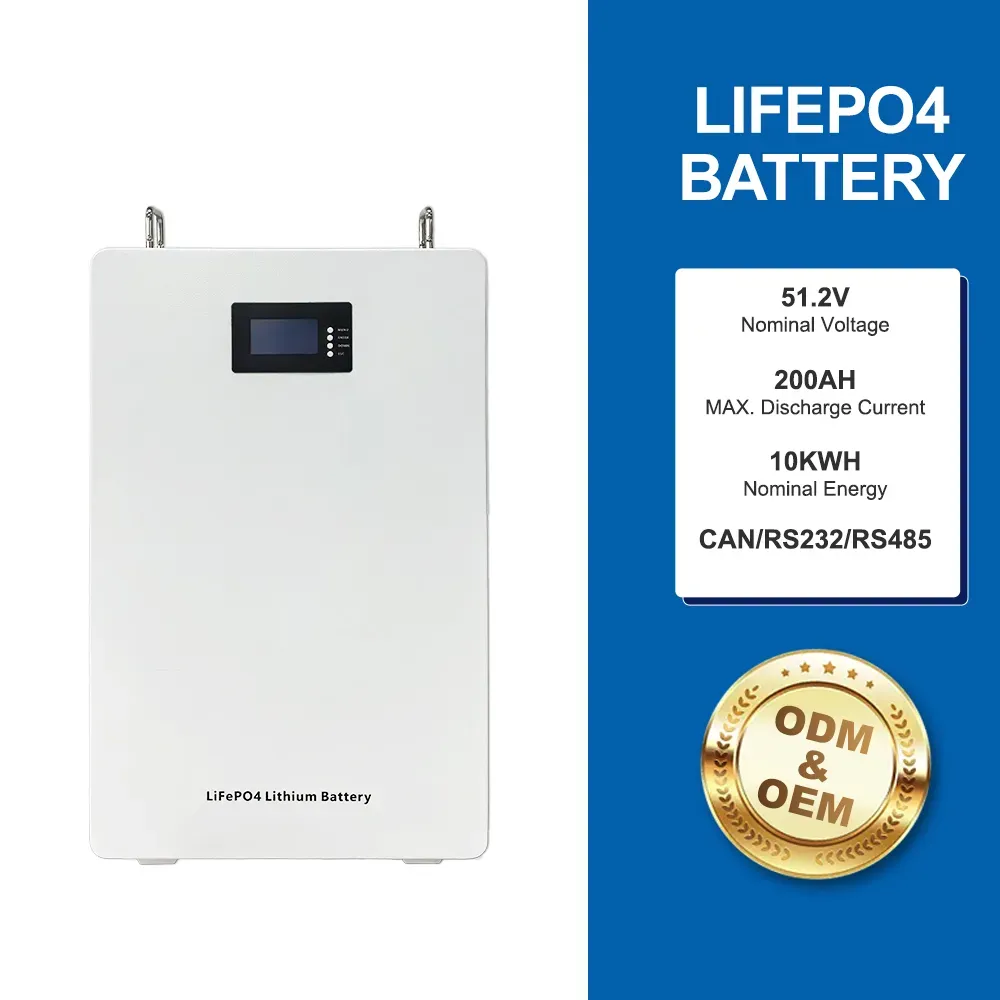

This residential wall-mounted LiFePO4 energy storage battery series covers 25.6V (8S) and 51.2V (16S) two voltage platforms, with diversified capacity specifications from 100AH to 628AH, meeting different household power consumption demands.
It adopts automotive-grade lithium iron phosphate cells, featuring ultra-long cycle life up to 8000 cycles under 25℃ 0.2C charge & 0.2C discharge 80% DOD, far exceeding traditional lead-acid batteries in service lifespan. The built-in advanced BMS intelligently manages the whole charge and discharge process, automatically balancing voltage and current of each single cell to extend overall battery life, and realizes full-range safety protection against overvoltage, undervoltage, overcurrent, short circuit and overheating, enabling stable unattended long-term operation.
Non-toxic and pollution-free LiFePO4 material delivers superior thermal stability with zero risk of explosion or combustion, much safer than ternary lithium batteries. Max 16 units can be connected in parallel to expand energy storage capacity freely, equipped with CAN/RS485 communication ports for data linkage with solar inverters. Optional WIFI module supports mobile APP remote real-time monitoring of battery voltage, current, SOC and cycle data.
Wide operating temperature range from -10℃ to 55℃ for discharging and 0℃ to 50℃ for charging, adaptable to tropical, temperate and subtropical household environments. Compact wall-mounted design with movable casters for large-capacity models saves installation space, widely compatible with all mainstream hybrid and off-grid solar inverters on the market.
