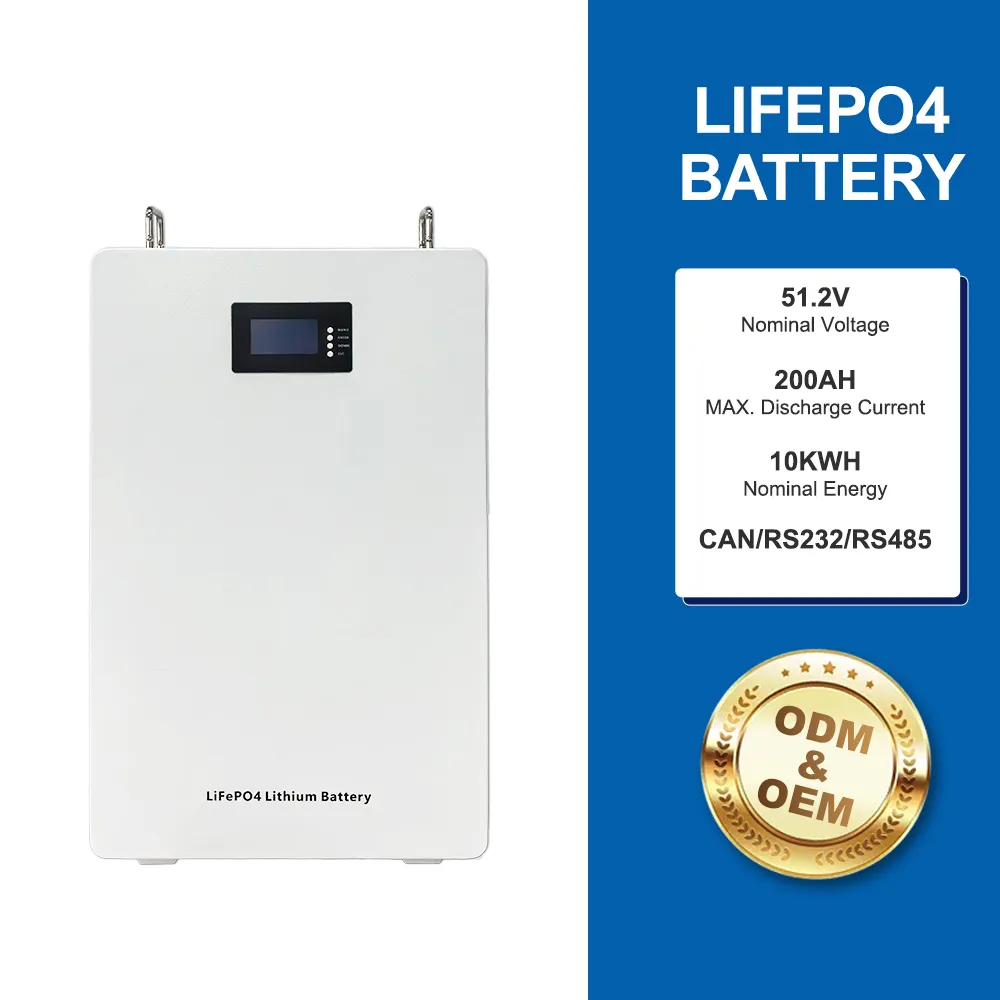

2.56kWh~32.15kWh Vertical Lithium Battery 8000 Cycles, Up To 16 Units Parallel For Hybrid Inverter

25.6V/51.2V Floor Lithium Storage Battery, CAN/RS485 Communication, Unattended Automatic Operation

Model	25.6V -100AH	25.6V -200AH	25.6V -300AH	51.2V -100AH	51.2V -200AH	51.2V -300AH	51.2V -400AH	51.2V -460AH	51.2V -560AH	51.2V -628AH
Nominal Voltage	25.6V	25.6V	25.6V	51.2V	51.2V	51.2V	51.2V	51.2V	51.2V	51.2V
Nominal Capacity	100AH	200AH	300AH	100AH	200AH	300AH	400AH	460Ah	560AH	628AH
Nominal Energy	2.56KWH	5.12KWH	7.68KWH	5.12KWH	10.24KWH	15.36KWH	20.48KWH	23.56KWH	28.67KWH	32.15KWH
Operating Voltage Range	21.2V~28.8V	21.2V~28.8V	21.2V~28.8V	42.4V~57.6V	42.4V~57.6V	42.4V~57.6V	42.4V~57.6V	42.4V~57.6V	40.0V~58.4V	40.0V~58.4V
MAX. Charge Current	50A	100A	100A	50A	100A	100A	100A	100A	200A	200A
MAX. Discharge Current	100A	150A	200A	100A	150A	200A	200A	200A	300A	300A
Cell Configuration	8S1P	8S1P	8S1P	16S1P	16S1P	16S1P	16S2P	16S2P	16S2P	16S2P
Pack Over-Voltage Protection (V)	28.8	28.8	28.8	57.6	57.6	57.6	57.6	57.6	57.6	57.6
Pack Over-Voltage Release (V)	27.2	27.2	27.2	54.4	54.4	54.4	54.4	54.4	54.4	54.4
Pack Under-Voltage Protection (V)	21.2	21.2	21.2	42.2	42.2	42.2	42.2	42.2	42.2	42.2
Pack Under-Voltage Release (V)	24.0	24.0	24.0	48	48	48	48	48	48	48
Cell Over-Voltage Protection (V)	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6	3.6
Cell Over-Voltage Release (V)	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4	3.4
Cell Under-Voltage Protection (V)	2.65	2.65	2.65	2.65	2.65	2.65	2.65	2.65	2.65	2.65
Cell Under-Voltage Release (V)	2.8	2.8	2.8	2.8	2.8	2.8	2.8	2.8	2.8	2.8
Ingress Protection	IP20
Parallel Connection	Up to 16 units
Communication Port	CAN,RS485
Operating Temperature (Charge)	0~50℃
Operating Temperature (Discharge)	-10~55℃
Storage Temperature	-20~+45℃（≤1month）0~+35℃(≤1year)
Humidity	0~95%(no condensation)
Sea Level(m)	≤1500
Battery cycle times (25℃ 0.2C/0.2C 80%DOD)	≥5000 times	≥4000 times	≥8000 times	≥5000 times	≥4000 times	≥8000 times	≥4000 times	≥6000 times	≥8000 times	≥8000 times
Products Size(mm)	460X360X160	640X420X160	550X420X248	640X420X160	690X520X248	860X520X248	900X600X298	960X600X298	989X634.5X326	989X634.5X326
Package Size(mm)	520X420X220	700X480X220	610X480X310	700X480X220	780X670X440	940X670X440	980X740X440	1040X740X440	1135x695x525	1135x695x525
NW (±3kg)	24KG	44KG	56KG	44KG	89KG	121KG	145KG	168KG	206KG	207KG
GW (±3kg)	32KG	54KG	65KG	54KG	104KG	139KG	167KG	190KG	226KG	227KG

grid tie systems-0

Ultra Long Service Life
Grade A LiFePO4 cells, up to 8000 deep charge-discharge cycles, far longer than lead-acid batteries.
Full Intelligent BMS Protection
Built-in multi-function BMS, complete protection against overcharge, over-discharge, over-current, short-circuit and high temperature. Auto cell balancing to prolong battery lifespan.
Expandable Parallel Design
Support maximum 16 units parallel connection, flexible capacity expansion for large energy storage demand.
Vertical Mobile Wheeled Structure
Floor standing design with movable wheels, no wall drilling required, easy movement and space saving.
Wide Compatibility With Inverters
25.6V & 51.2V two voltage versions, compatible with all mainstream 24V/48V hybrid/off-grid solar inverters.
Safe & Eco-Friendly Material
LiFePO4 core, non-toxic, no heavy metal pollution, stable chemical performance with low risk of thermal runaway.
Unattended Automatic Operation
Intelligent automatic charge & discharge management, no manual intervention required for daily use.
Diversified Communication Interface
Reserved CAN/RS485 port, optional WIFI module for real-time mobile APP monitoring of battery data.

grid tie systems-1

grid tie systems-2

1. Large Villa Residential Solar Storage

Rooftop grid-tied solar peak shaving, cut daily electricity bills
Long-term emergency backup power during municipal power outage
All-day self-sufficient power supply for high-power household appliances

2. Off-Grid Independent Power System

Remote mountain villas, countryside farms, rural areas without stable grid
Holiday cabins, mobile tiny houses, caravans large capacity energy reserve
Pastoral areas, mountain monitoring off-grid solar power supply

3. Small & Medium Commercial Projects

Shops, offices, homestays, small factories blackout emergency power backup
Commercial photovoltaic energy storage to reduce peak electricity cost
Small hotel, agritainment solar self-power supply system

4. Supporting Matching Scenarios

Matched with 24V/48V hybrid, grid-tied and off-grid solar inverters
Auxiliary energy storage for diesel generator sets
Outdoor monitoring equipment, communication base station standby power

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

LIFEPO4 LITHIUM BATTERY 25.6V/51.2V safety and long cycle life non-toxic and eco-friendly cells cycle time up to 8000 cycles Auto-manages charge/discharge manufacture

grid tie systems-3

grid tie systems-4

grid tie systems-5

grid tie systems-6

grid tie systems-7

MINVON vertical wheeled LiFePO4 lithium battery covers 25.6V and 51.2V voltage series, capacity range from 100Ah to 500Ah, energy from 2.56kWh to 25.6kWh. Built-in intelligent BMS with full safety protection, auto cell current & voltage balancing, grade A cells support up to 8000 long deep cycles. Max 16 units parallel for unlimited capacity expansion, perfectly match all 24V/48V hybrid, off-grid solar inverters. Vertical floor design with movable wheels, easy installation & movement, ideal for residential and small commercial solar energy storage.
