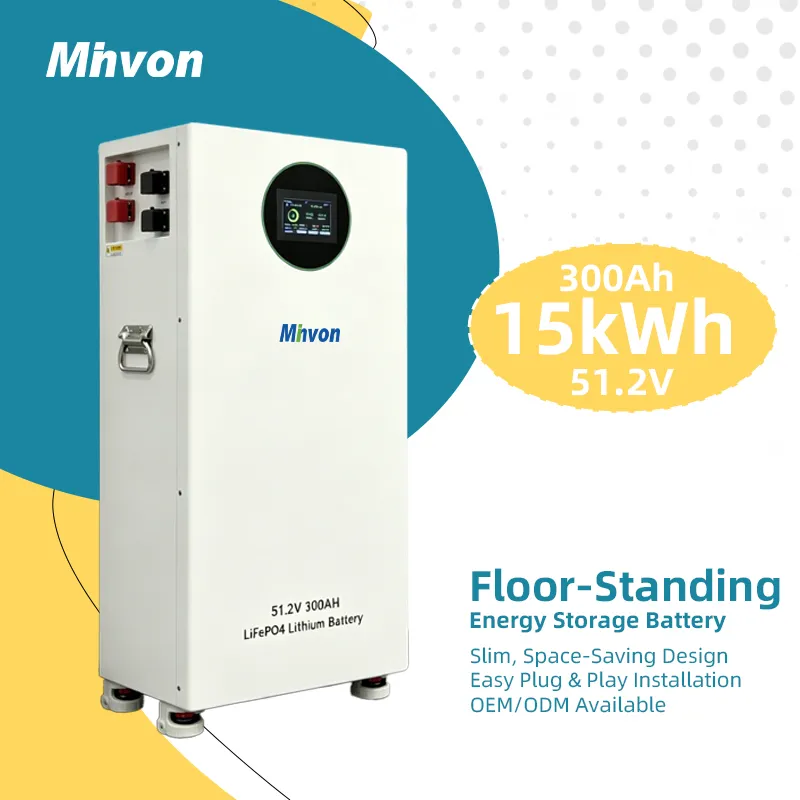

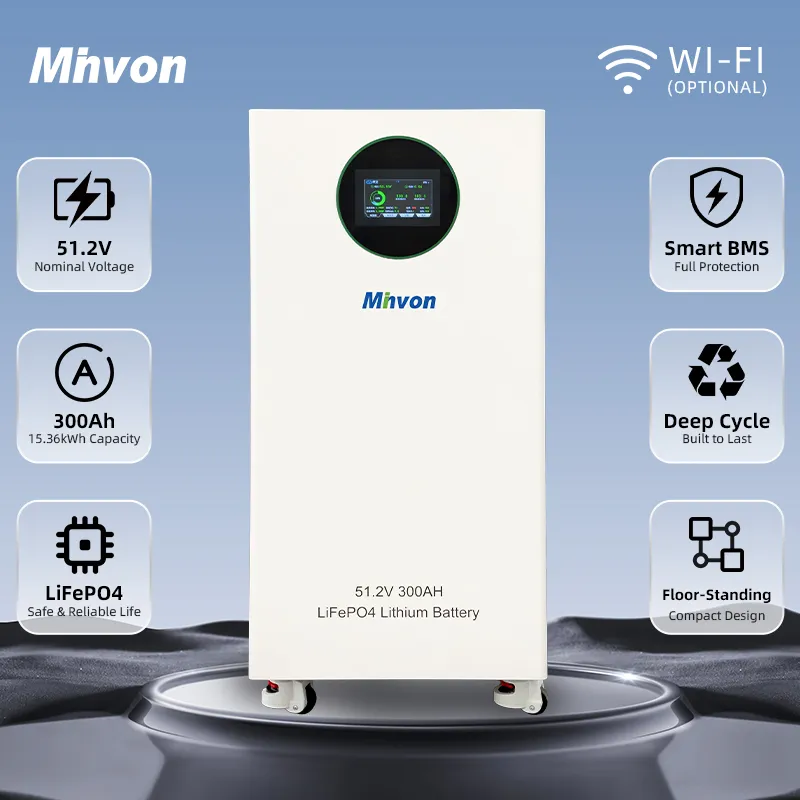

15.36kWh 51.2V 300Ah Floor LiFePO4 Battery Built-In Full Protection BMS 8000 Cycles Parallel 16 Units For Large Villa 48V Solar Storage System

Full-Range BMS Safety Protection, 8000 Long Deep Cycles, Support 16 Batteries Parallel, Intelligent Communication Interface for 48V Hybrid Inverter Energy Storage

This floor-standing 51.2V 300Ah LiFePO4 battery delivers a massive 15.36kWh usable energy capacity, perfectly designed for large villas, off-grid estates and commercial energy storage projects. Equipped with an integrated intelligent BMS system, it o...
Model
51.2V
-300AH
Nominal Voltage
51.2V
Nominal Capacity 300AH
Nominal Energy 15.36KWH
Operating Voltage Range 42.4V~57.6V
MAX. Charge Current 100A
MAX. Discharge Current 200A
Cell Configuration 16S1P
Pack Over-Voltage Protection (V) 57.6
Pack Over-Voltage Release (V) 54.4
Pack Under-Voltage Protection (V) 42.2
Pack Under-Voltage Release (V) 48
Cell Over-Voltage Protection (V) 3.6
Cell Over-Voltage Release (V) 3.4
Cell Under-Voltage Protection (V) 2.65
Cell Under-Voltage Release (V) 2.8
Ingress Protection
IP20
Parallel Connection Up to 16 units
Communication Port CAN,RS485
Operating Temperature (Charge) 0~50℃
Operating Temperature (Discharge) -10~55℃
Storage Temperature -20~+45℃(≤1month)0~+35℃(≤1year)
Humidity 0~95%(no condensation)
Sea Level(m) ≤1500
Battery cycle times
(25℃ 0.2C/0.2C 80%DOD)
≥8000 times
Products Size(mm)
860X520X248
Package Size(mm) 940X670X440
NW (±3kg) 121KG
GW (±3kg) 139KG

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-0

1. Massive 15.36kWh Storage Capacity to Meet High Power Consumption of Large Villas

2. Floor-standing Integrated Design with Built-in Smart BMS Full Safety Protection

3. Intelligent Automatic Cell Balancing to Effectively Extend Overall Battery Lifespan

4. Up to 8,000 Deep Cycles, Service Life 10 Times Longer Than Lead-acid Batteries

5. Support Up To 16 Units Parallel Connection for Unlimited Capacity Expansion

6. Standard 51.2V Voltage, Widely Compatible With All Types of 48V Solar Hybrid Inverters

7. CAN & RS485 Communication Ports Enable Seamless Linkage With Solar Energy Systems

8. High-safety LiFePO4 Cells, Eco-friendly, Stable Thermal Performance Without Fire Risks

512v nominal capacity 100ah628ah nominal energy 256kwh3215kwh all around protection and unattended operation suitable for inverter or solar system-1

512v nominal capacity 100ah628ah nominal energy 256kwh3215kwh all around protection and unattended operation suitable for inverter or solar system-2

  1. Large villa rooftop solar storage to maximize self-consumption and reduce utility bills
  2. High-capacity emergency backup power for luxury residential houses during blackouts
  3. Standalone off-grid solar power system for rural estates and countryside villas
  4. Energy storage power supply for farm irrigation and livestock breeding equipment
  5. Off-grid power solution for holiday resorts, large ranches and remote camps
  6. Peak-shaving energy storage for medium-sized shops, workshops and offices
  7. High-power energy storage base for large yachts and mobile living cabins

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-1

mhvon 1536kwh 512v floor mount lithium battery 5000 cycles for hybrid inverter-0

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-2

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-3

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-4

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-5

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-6

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-7

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-8

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-9

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-1

mhvon 1536kwh 512v floor mount lithium battery 5000 cycles for hybrid inverter-0

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-2

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-3

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-4

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-5

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-6

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-7

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-8

1536kwh 512v lifepo4 battery pack with smart bms floor standing for off grid  hybrid solar systems-9

This floor-standing 51.2V 300Ah LiFePO4 battery delivers a massive 15.36kWh usable energy capacity, perfectly designed for large villas, off-grid estates and commercial energy storage projects. Equipped with an integrated intelligent BMS system, it offers full multi-layer safety protection and automatic cell balancing technology. Supporting parallel connection of up to 16 units and equipped with CAN/RS485 communication ports, this battery seamlessly links with all mainstream 48V hybrid & off-grid solar inverters to build a stable long-term household energy storage system.
