SOL IA8000/10000/12000-D2: High Efficiency 96.5% Hybrid Inverter with Smart Load Management

150-280A Ultra-Fast Charge/Discharge | Dual Smart Load Outputs | WiFi/4G Remote Monitoring Optional

Got high power demands for your home or business? Want a solar system that can grow with you? The CKMINE SOL IA-D2 Series 8-12kW Hybrid Solar Inverter is built for your growing energy needs. ⚡ Scale Up Without Replacing Your Inverter - Start with one...

MODEL	SOL IA8000-D2	SOL IA10000-D2	SOL IA12000-D2
Input Data (DC)
Max. Recommended PV Power (for module STC)	10000W	12500W	15000W
Max. DC Voltage	550V
Start Voltage	120V
MPPT Voltage Range	60V-480V
No. of MPP Trackers	2
No. of PV Strings per MPP Tracker	1
Max. Input Current per MPP Tracker	27A
Output Data (AC)
AC Nominal Power	8000W	12000W	10000W
Max. AC Apparent Power	8000VA	12000VA	10000VA
Nominal AC Voltage	230V
AC Grid Frequency	50/60Hz
Efficiency(Line Mode)	96.50%
Output Current	34.8A	43.5A	52.2A
Battery Data (DC)
Nominal DC Voltage		48V
Max Charging And Discharging Current	190A/200A	220A/240A	250A/280A
Efficiency (Peak)	95%
Type of Battery	Lithium/Lead-acid
Backup Power (AC)
AC nominal Output Power	8000W	10000W	12000W
Nominal AC Output Voltage	230V
Nominal AC Output Frequency	50/60Hz
Switch Time	<20ms@Single <30ms@Parallel
General Data
Dimensions (W/H/D)	550465150mm
Weight	21.5kg
Noise Emission(typical)	<75dB
Self-consumption	<75W
Protection Degree	IP20
Communication	WiFi/4G

12000 d2 high efficiency 965 hybrid inverter with smart load management-0

1.Wider MPP voltage range (60V-480V vs. market 90V-450V) enables flexible PV module configurations

2.Higher maximum PV input voltage (550VDC vs. ≤500VDC) reduces series losses with high-voltage modules

3.Dual independent MPPT trackers

4.Higher AC apparent power (12000VA vs. 11000-12000VA) delivers full rated power under high loads

5.Industry-leading peak efficiency of 96.5% maximizes energy conversion

6.Dual output + intelligent load management prioritizes critical loads for optimized energy usage

7.Scalable parallel operation up to 108kW supports residential to commercial applications

8.Built-in ATS generator interface eliminates need for external transfer switches

9.Dual battery compatibility (Li-ion/lead-acid) reduces future upgrade costs

12000 d2 high efficiency 965 hybrid inverter with smart load management-1

1. Large Residential & Villa Energy Storage

Peak Shaving for High Consumption Homes: Power air conditioners, water heaters, and large appliances with solar energy during the day, store excess power in batteries, and use it during evening peak hours to significantly cut tiered electricity bills.
Whole-Home Backup Power: With 8-12kW continuous power and up to 108kW expandable capacity, it keeps all essential devices running during grid outages, including HVAC systems, refrigerators, and home offices.
Future-Proof System: Start with one unit and add more as your family grows or you add electric vehicles, pools, or other high-power loads, without replacing your inverter.

2. Small Commercial & Retail Applications

Business Continuity Backup: Keeps POS systems, refrigeration units, and lighting running during power cuts, preventing costly downtime and lost sales for shops, cafes, and convenience stores.
Peak Shaving for Small Businesses: Reduce expensive grid power usage during peak business hours with stored solar energy, lowering monthly electricity costs for offices, salons, and small workshops.

3. Off-Grid & Remote Area Power Solutions

Independent Power for Farms & Rural Properties: Combine with solar panels and batteries to build a standalone power system for agricultural irrigation, livestock farming, and remote homes without reliable grid access.
Power for Workshops & Remote Facilities: Provide stable, scalable power for construction sites, remote cabins, and off-grid workshops, eliminating the need for expensive and polluting generators.

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

12000 d2 high efficiency 965 hybrid inverter with smart load management-2

12000 d2 high efficiency 965 hybrid inverter with smart load management-3

12000 d2 high efficiency 965 hybrid inverter with smart load management-4

12000 d2 high efficiency 965 hybrid inverter with smart load management-5

12000 d2 high efficiency 965 hybrid inverter with smart load management-6

12000 d2 high efficiency 965 hybrid inverter with smart load management-7

Got high power demands for your home or business? Want a solar system that can grow with you? The CKMINE SOL IA-D2 Series 8-12kW Hybrid Solar Inverter is built for your growing energy needs.

⚡ Scale Up Without Replacing Your Inverter - Start with one 8kW/10kW/12kW unit for your current needs. When you expand your home or business, simply add up to 8 more units to reach a massive 108kW total capacity. No need to tear out and replace your existing system.

🌞 Harvest More Solar, Even With Shading - Dual independent MPPT trackers handle your solar panels in two separate groups, so partial shading on one string won't drag down the performance of the whole system. - With a high 550VDC PV input, you can string more panels together, reducing installation costs and line losses.

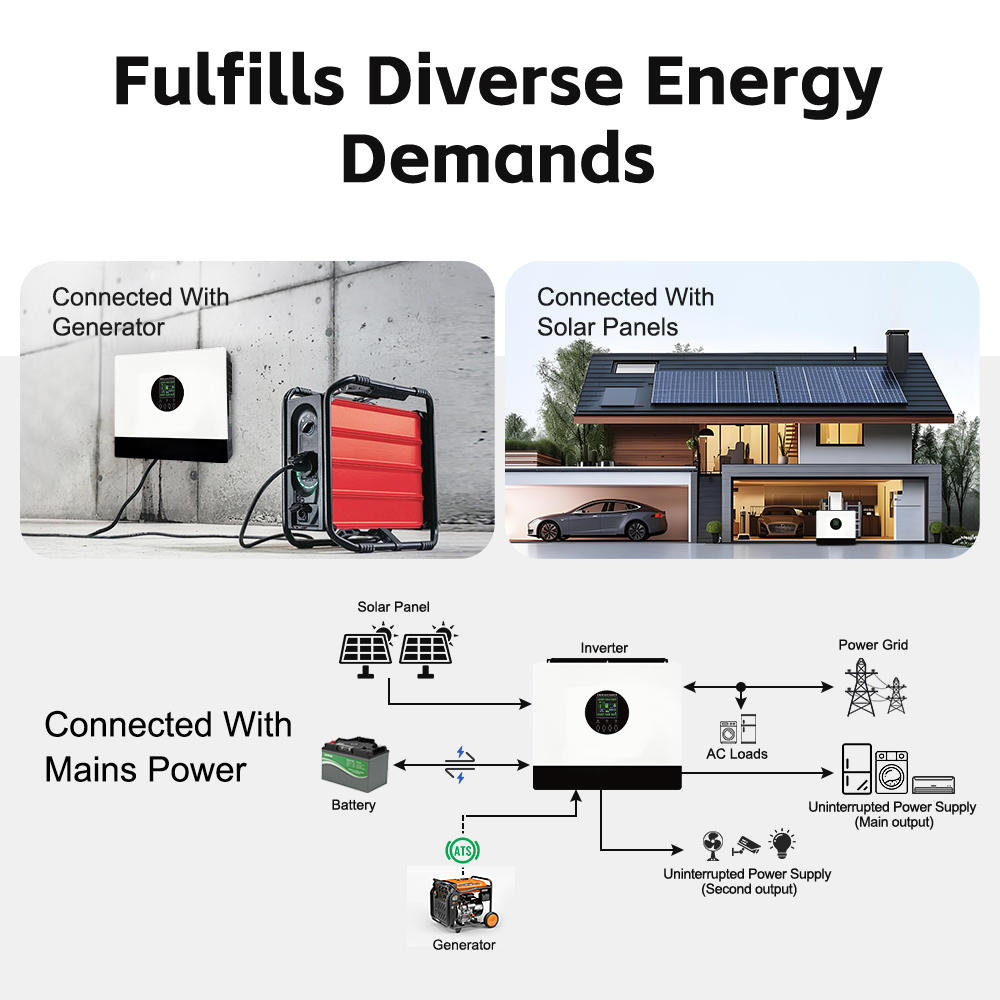

🔋 Power Your Life Day and Night - Ultra-fast charging current fills your 48V batteries quickly during the day, so you have plenty of stored power for evening use or blackouts. - The integrated transfer switch automatically switches between solar, battery, grid, and generator power, keeping your essential loads running without interruption.

💸 Cut Your Bills, Even More - Use solar power during the day, store the excess, and use it during expensive peak hours to drastically reduce your utility costs. - The smart load management feature lets you prioritize power to critical devices, so you never have to worry about the lights going out when you need them most. From large villas to small shops and workshops, the SOL IA-D2 series delivers the power, scalability, and reliability you need to take control of your energy future.
