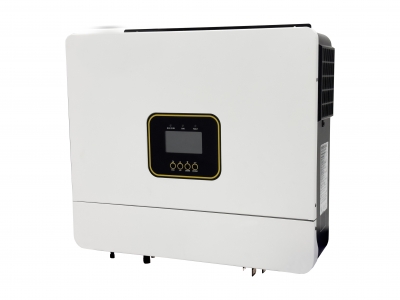

Wholesale Hybrid Solar Inverter 6KW With MPPT Good Quality Support Custom
- Product Name:SOL HAD1-6K
- Product type:Solar Inverter
- Certificate:CE, ISO9001
- Inverter Efficiency:93%
- Battery Voltage:48VDC
- Rated Power:6000VAC/6000W
- Weight:13.5kg
- MPPT Voltage Range:120VDC~450VDC
- Battery Type:Lithium Battery / Lead-Acid Battery
- OEM&ODM:Support
| MODEL | SOL HAD1-6K |
| BATTERY | |
| Battery Voltage | 48VDC |
| Floating Charge Voltage | 54VDC |
| Battery Type | Lithium/ Lead-acid |
| Inverter Output | |
| Rated Power | 6000VAC/6000W |
| Parallel Capability | Yes, 6 units maximum |
| AC Voltage Regulation (Battery Mode) | 230VAC ± 5% @ 50/60Hz |
| Surge Power | 12000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms typical，20ms Max |
| SOLAR CHARGER | |
| Maximum PV Array Power | 8000w |
| MPPT Range & Operating Voltage | 120VDC ~ 450VDC |
| Number of Independent MPP Trackers/Strings Per MPP Tracker | 1/2 |
| Max. input current per MPPT tracker | 16A |
| Maximum PV Array Open Circuit Voltage | 500VDC |
| Maximum Solar Charge Current | 100A |
| AC CHARGER | |
| Charge Current | 80A |
| AC Input Voltage | 230VDC |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances) |
| Frequency Range | 50Hz/60Hz (Auto sensing) |
| PHYSICAL | |
| Protection Degree | IP20 |
| Dimension (W*H*D) | 460*395*132mm |
| Net Weight (kgs) | 13.5 |
| Communication Interface | USB / RS232 / RS485 / WFi / Dry-contact (optional) |
| OPERATEING ENVIRONMENT | |
| Overload Capacity | 110%<load<150%(Alam and Shutdown after 10s)load≥150%(Alarm and Shutdown after 5s) |
| Humidity | 5% to 95% Relative Humidity (Non-condensing) |
| Altitude | <2000m |
| Operating Temperature | 0°C - 55°C |
| Storage Temperature | -15°C - 60°C |
