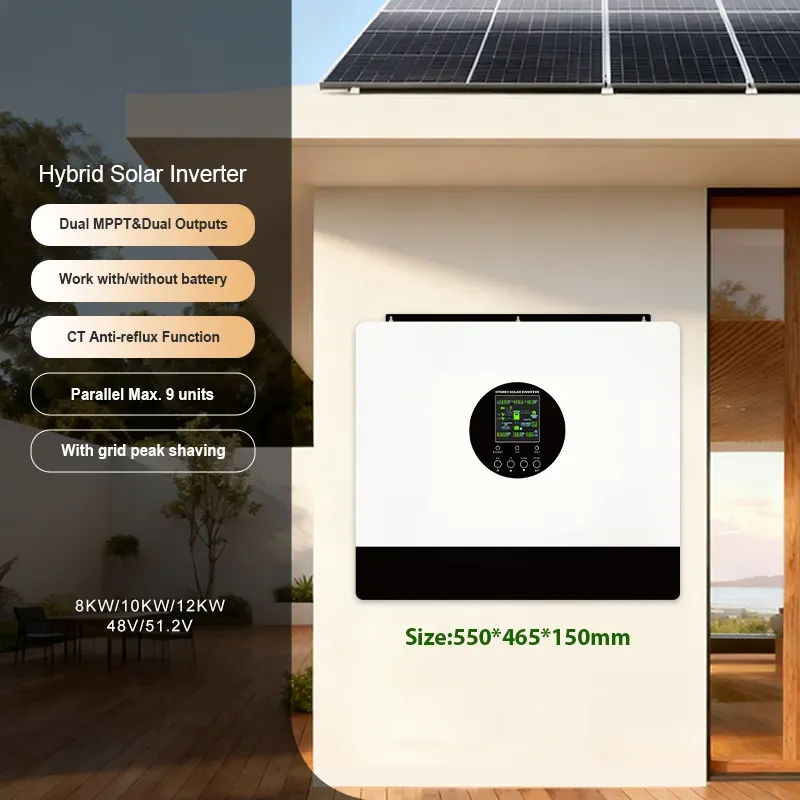

MINVON SOL IA-D2 Series Hybrid Solar Inverter Reliable Residential Use Pure Sine Wave Dual MPPT Off-Grid On-Grid Hybrid Inverter for Home Solar Energy Storage System

99.9% Ultra-High Efficiency MPPT Hybrid Solar Inverter

Intelligent automatic on-grid & off-grid switching ensures uninterrupted household power supply during grid failure

Parallel expandable layout enables flexible system expansion for large-scale residential whole-house solar energy storage projects

MINVON SOL IA-D2 Series Hybrid Solar InverterThis hybrid inverter supplies stable grid-tied power for regular household use and instant UPS-level off-grid backup upon grid failure.Configured with dual MPPT controllers and 550V max PV input voltage fo...

MODEL

SOL IA8000-D2

SOL IA10000-D2

SOL IA12000-D2

Input Data (DC)

Max. Recommended PV Power
(for module STC)

10000W

12500W

15000W

Max. DC Voltage

550V

Start Voltage

120V

MPPT Voltage Range

60V-480V

No. of MPP Trackers

2

No. of PV Strings per MPP Tracker

1

Max. Input Current per MPP Tracker

27A

Output Data (AC)

AC Nominal Power

8000W

12000W

10000W

Max. AC Apparent Power

8000VA

12000VA

10000VA

Nominal AC Voltage

230V

AC Grid Frequency

50/60Hz

Efficiency(Line Mode)

96.50%

Output Current

34.8A

43.5A

52.2A

Battery Data (DC)

Nominal DC Voltage

48V

Max Charging And Discharging Current

190A/200A

220A/240A

250A/280A

Efficiency (Peak)

95%

Type of Battery

Lithium/Lead-acid

Backup Power (AC)

AC nominal Output Power

8000W

10000W

12000W

Nominal AC Output Voltage

230V

Nominal AC Output Frequency

50/60Hz

Switch Time

<20ms@Single <30ms@Parallel

General Data

Dimensions (W/H/D)

550*465*150mm

Weight

21.5kg

Noise Emission(typical)

<75dB

Self-consumption

<75W

Protection Degree

IP20

Communication

WiFi/4G

sol ia d2 series 48v hybrid solar inverter 8000w 10000w 12000w dual mppt grid tied off grid inverter 9 units parallel up to 108kw home energy storage inverter-0

Core Selling Advantages

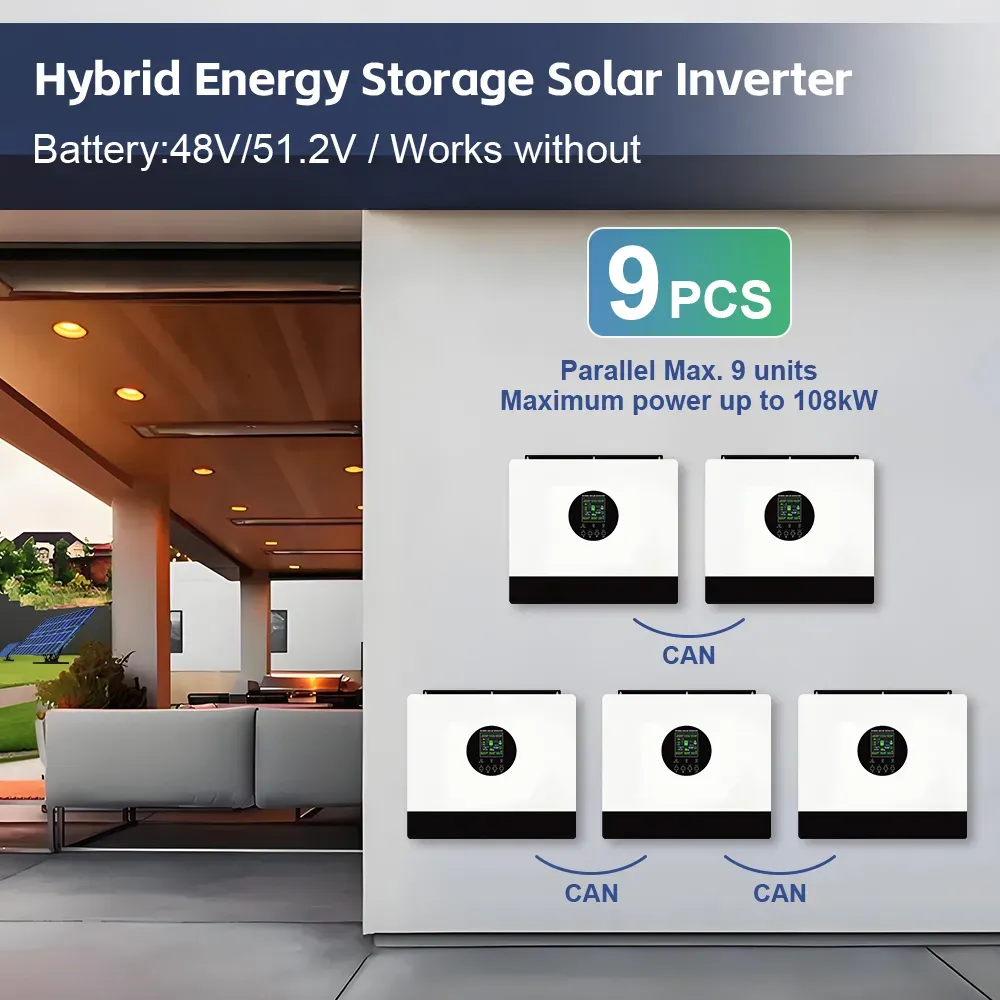

1. Expandable Parallel Operation, Meet High-Power Demand Freely
Support parallel connection of up to 9 inverters to deliver a peak total output of 108kW. Ideal for high-power power supply scenarios including large villas, shared residential buildings and light commercial solar energy storage projects, capacity can be upgraded on demand without replacing the whole system.
2. Dual Independent MPPT Controllers, Maximize Solar Power Yield
Wide PV working voltage range: 60–480V, maximum PV open-circuit voltage up to 550V. Solar panels can be arranged flexibly according to roof layout; dual MPPT tracks sunlight independently to boost overall solar capture efficiency and generate more electricity every day.
3. Dual AC Input + Integrated ATS, Cut Extra Procurement & Installation Expense
Compatible with mains grid and diesel generator dual access. Built-in automatic transfer switch realizes seamless power switching between grid and generator automatically. No need to purchase an extra external ATS device, greatly lowering your overall installation and material costs.
4. Grid-Tied & Off-Grid All-in-One Dual Mode, Reliable Uninterrupted Power Supply

Grid-tied mode: Realize peak load shifting; export excess solar power back to the grid to slash your monthly electricity expenditure;

Off-grid emergency backup: Power switches to battery backup within merely 20~30ms once grid failure occurs, essential household loads keep running without perceptible power outage.

5. 96% Ultra-High Working Efficiency, Perfectly Matched with 48V LiFePO4 Batteries
Specially optimized for mainstream 48V lithium iron phosphate batteries. Stable two-way charging and discharging performance, low energy loss during energy storage and release, greatly extend battery service life and elevate household energy utilization rate.
6. Dual AC Separate Output, Smart Load Partition to Prevent Overload
Two independent AC output ports to separate critical loads (refrigerator, lighting, monitoring) and ordinary non-essential loads. Effectively avoid system overload shutdown, prioritize power supply for vital equipment and improve the self-consumption rate of self-generated solar electricity.
7. Intelligent Remote Monitoring via Mobile APP (WiFi/4G Optional)
Check real-time operating data anytime anywhere, remotely adjust operating parameters, and receive instant automatic push notifications for equipment faults via mobile phone. One-click intelligent management, no frequent on-site inspection required.
8. Compact Lightweight Structure, Easy Installation & Stable Indoor Operation
IP20 indoor protection grade, running noise lower than 75dB without disturbing daily life. Only 21.5kg lightweight body, convenient wall-mounted installation; wide working temperature range ensures stable long-term operation in different indoor environments.

12000 d2 high efficiency 965 hybrid inverter with smart load management-1

  • Whole-house Solar Energy Storage for Luxury Villas
    Pair with solar panels and 48V lithium batteries to realize household energy self-sufficiency. Stock excess daytime solar electricity for nighttime consumption and drastically cut your regular electricity expenses.
  • Off-Grid Stable Power Supply for Rural Residences & Remote Cabins
    Operate independently without reliance on utility grid power. Matched with backup generators to deliver reliable round-the-clock electricity for remote living spaces.
  • Instant Emergency Backup Power for Grid Outages
    Seamless automatic switchover to battery power the moment a blackout strikes. Keep fridges, lighting, water pumps, surveillance cameras and vital household equipment running nonstop.
  • Scalable Parallel System for Shops & Multi-unit Dwellings
    Support parallel connection of up to 9 units with a maximum total power of 108kW. Ideal energy storage setup for retail shops, apartment buildings and agricultural farms.
  • Cost-Effective Peak Shaving Solution for Commercial Premises
    Charge batteries with solar power during daytime low-price periods and discharge electricity during high-tariff peak hours, effectively slashing commercial electricity expenditure.

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

12kw 48v off grid on grid parallel solar energy storage inverter-0

12000 d2 high efficiency 965 hybrid inverter with smart load management-3

12000 d2 high efficiency 965 hybrid inverter with smart load management-4

12000 d2 high efficiency 965 hybrid inverter with smart load management-5

12000 d2 high efficiency 965 hybrid inverter with smart load management-6

12000 d2 high efficiency 965 hybrid inverter with smart load management-7

MINVON SOL IA-D2 Series Hybrid Solar Inverter

This hybrid inverter supplies stable grid-tied power for regular household use and instant UPS-level off-grid backup upon grid failure.
Configured with dual MPPT controllers and 550V max PV input voltage for high solar energy utilization. Parallel connection of maximum 9 inverters achieves a total 108kW large-scale power system for flexible project capacity expansion.
Dual AC inputs support grid supply and auxiliary backup generators simultaneously, ideal for villa residential solar energy storage projects.
It passes CE & ISO international quality certifications for safe global deployment. Integrated WiFi realizes mobile APP remote real-time data monitoring, simplifying on-site debugging and long-term system operation maintenance for installers.
