MINVON SOL IA-D2 Series Hybrid Solar Inverter 8kW 10kW 12kW 48V Dual MPPT 550VDC PV Input, Parallel Up To 9 Units Max 108kW Grid-Tied Peak Shaving Dual AC Output For Home Commercial Energy Storage

48V High Power All-In-One Hybrid Solar Inverter | Dual MPPT 550VDC PV, Grid-Tied Peak Shaving, Dual AC Load Output, Max 9 Parallel Units Up To 108kW For Large Residential & Commercial Solar Power System

MINVON SOL IA-D2 hybrid solar inverter comes in 8kW/10kW/12kW models, integrating dual MPPT charger, grid-tied & off-grid inverter, and auto AC transfer switch for villas, farms and small businesses.It supports 9 units parallel expansion up to 10...

MODEL	SOL IA8000-D2	SOL IA10000-D2	SOL IA12000-D2
Input Data (DC)
Max. Recommended PV Power (for module STC)	10000W	12500W	15000W
Max. DC Voltage	550V
Start Voltage	120V
MPPT Voltage Range	60V-480V
No. of MPP Trackers	2
No. of PV Strings per MPP Tracker	1
Max. Input Current per MPP Tracker	27A
Output Data (AC)
AC Nominal Power	8000W	12000W	10000W
Max. AC Apparent Power	8000VA	12000VA	10000VA
Nominal AC Voltage	230V
AC Grid Frequency	50/60Hz
Efficiency(Line Mode)	96.50%
Output Current	34.8A	43.5A	52.2A
Battery Data (DC)
Nominal DC Voltage		48V
Max Charging And Discharging Current	190A/200A	220A/240A	250A/280A
Efficiency (Peak)	95%
Type of Battery	Lithium/Lead-acid
Backup Power (AC)
AC nominal Output Power	8000W	10000W	12000W
Nominal AC Output Voltage	230V
Nominal AC Output Frequency	50/60Hz
Switch Time	<20ms@Single <30ms@Parallel
General Data
Dimensions (W/H/D)	550465150mm
Weight	21.5kg
Noise Emission(typical)	<75dB
Self-consumption	<75W
Protection Degree	IP20
Communication	WiFi/4G

sol ia d2 series 48v hybrid solar inverter 8000w 10000w 12000w dual mppt grid tied off grid inverter 9 units parallel up to 108kw home energy storage inverter-0

1. Large Power Range & Mass Parallel Expansion

Three power models available: 8kW/8kVA, 10kW/10kVA, 12kW/12kVA, compatible with 48V Lithium & Lead-acid batteries
Support parallel connection of up to 9 identical inverters, maximum total capacity expandable to 108kW for large commercial & villa energy storage
Ultra high charge/discharge current: Max 100A/200A ~ 250A/280A, peak efficiency up to 96% to maximize solar energy utilization

2. Dual MPPT High-Voltage Solar Charging System

Dual independent MPPT trackers, max PV input voltage up to 550VDC, wide MPPT operating range 60V~480V
Max recommended PV power ranges from 10000W to 15000W, 1 PV string per tracker, max input current 27A per MPPT
Low noise ≤75dB, built-in intelligent power management to reduce idle energy loss

3. Full Hybrid Grid-Tied & Off-Grid Functionality

Professional grid-tied peak shaving function, maximize self-consumption solar power to cut monthly electricity bills
Dual AC input terminals (Utility Grid + Generator) with integrated automatic transfer switch, seamless power switching
Unique dual AC output design: Separate intelligent critical load & general load management, prioritize power to essential equipment

4. Multi-Source Uninterrupted Backup Power

Stable 230V pure sine wave AC output, standard 50/60Hz grid frequency compatible with all household & commercial appliances
Fast transfer time: ≤20ms for single unit, ≤30ms for parallel units, no blackout during power source switching
Complete multi-layer safety protection: Overload, overvoltage, short circuit, overheat, auto alarm & shutdown mechanism, IP20 indoor protection grade

5. Smart Remote Monitoring & Easy Installation

Dual communication options: WIFI / 4G module optional, mobile APP real-time monitor PV generation, battery SOC, load power & equipment status

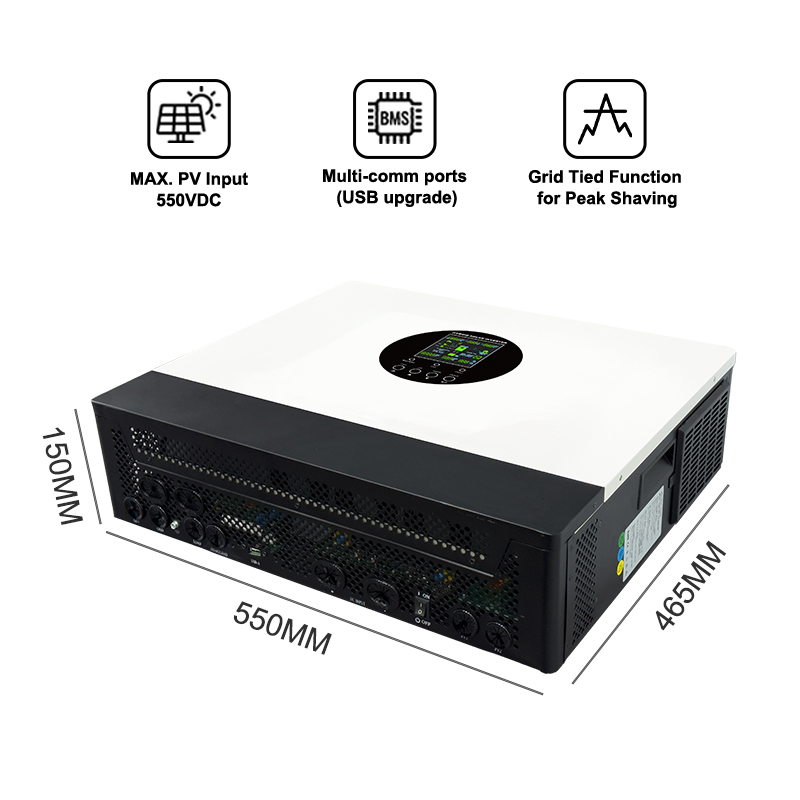

Standard size 550460150mm, lightweight 21.5kg, wall-mounted design for simple installation
Perfect match full hybrid solar system: Solar Panels + 48V Battery Bank + Grid Mains + Backup Generator + Household & Commercial Loads

12000 d2 high efficiency 965 hybrid inverter with smart load management-1

Large Villa & Luxury Residential Hybrid Solar System

Grid-tied peak shaving + power failure backup for big villas, cut long-term electricity costs and eliminate blackout risks

Off-Grid Remote Farm & Ranch Energy Storage

High-power independent solar supply for agricultural water pumps, breeding equipment, farm workshop and daily living loads

Small Commercial Shops, Workshops & Factories

Reduce commercial peak electricity expense via self-consumption solar power, backup power to avoid production interruption during grid outage

Island & Remote Mountain Independent Energy Station

Self-sufficient solar storage solution for islands, mountain settlements without stable public grid, matched with generator emergency backup

Commercial Emergency Backup Power System

Uninterrupted power supply for office equipment, monitoring system, cold storage and critical production devices

Large Scale Parallel Energy Storage Projects

9 units parallel expandable to 108kW, suitable for medium-sized commercial solar storage power stations

Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.

Introduction

12000 d2 high efficiency 965 hybrid inverter with smart load management-3

12000 d2 high efficiency 965 hybrid inverter with smart load management-4

12000 d2 high efficiency 965 hybrid inverter with smart load management-5

12000 d2 high efficiency 965 hybrid inverter with smart load management-6

12000 d2 high efficiency 965 hybrid inverter with smart load management-7

MINVON SOL IA-D2 hybrid solar inverter comes in 8kW/10kW/12kW models, integrating dual MPPT charger, grid-tied & off-grid inverter, and auto AC transfer switch for villas, farms and small businesses.

It supports 9 units parallel expansion up to 108kW, with dual MPPT trackers for 550VDC max PV voltage and 96% peak efficiency to maximize solar utilization.

Featuring dual AC inputs (grid + generator) and dual classified AC load outputs, it switches power within 30ms for non-stop supply. Built-in peak shaving cuts electricity bills by full solar self-consumption.

Compatible with 48V lithium & lead-acid batteries, it delivers fast charge/discharge. Optional WIFI/4G enables mobile remote monitoring. Full safety protections, low noise and wall-mounted compact design make it ideal for grid-tied peak shaving and off-grid energy storage systems.
