99.9% High Efficiency MPPT Hybrid Solar Inverter | Seamless On-Grid & Off-Grid Emergency Backup | Parallel Expandable for Household Solar Storage Projects
|
MODEL |
SOL IA8000-D2 |
SOL IA10000-D2 |
SOL IA12000-D2 |
|
Input Data (DC) |
|||
|
Max. Recommended PV Power |
10000W |
12500W |
15000W |
|
Max. DC Voltage |
550V |
||
|
Start Voltage |
120V |
||
|
MPPT Voltage Range |
60V-480V |
||
|
No. of MPP Trackers |
2 |
||
|
No. of PV Strings per MPP Tracker |
1 |
||
|
Max. Input Current per MPP Tracker |
27A |
||
|
Output Data (AC) |
|||
|
AC Nominal Power |
8000W |
12000W |
10000W |
|
Max. AC Apparent Power |
8000VA |
12000VA |
10000VA |
|
Nominal AC Voltage |
230V |
||
|
AC Grid Frequency |
50/60Hz |
||
|
Efficiency(Line Mode) |
96.50% |
||
|
Output Current |
34.8A |
43.5A |
52.2A |
|
Battery Data (DC) |
|||
|
Nominal DC Voltage |
48V |
||
|
Max Charging And Discharging Current |
190A/200A |
220A/240A |
250A/280A |
|
Efficiency (Peak) |
95% |
||
|
Type of Battery |
Lithium/Lead-acid |
||
|
Backup Power (AC) |
|||
|
AC nominal Output Power |
8000W |
10000W |
12000W |
|
Nominal AC Output Voltage |
230V |
||
|
Nominal AC Output Frequency |
50/60Hz |
||
|
Switch Time |
<20ms@Single <30ms@Parallel |
||
|
General Data |
|||
|

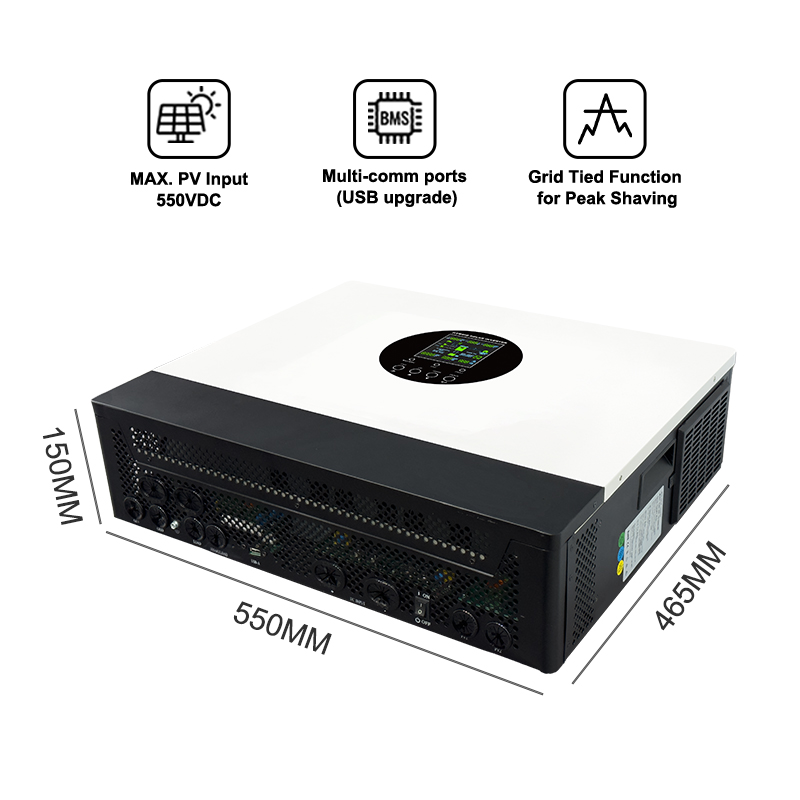

Dimensions (W/H/D) |
550*465*150mm |
||
|
Weight |
21.5kg |
||
|
Noise Emission(typical) |
<75dB |
||
|
Self-consumption |
<75W |
||
|
Protection Degree |
IP20 |
||
|
Communication |
WiFi/4G |
||
1. Large Parallel Expansion Capacity
Support up to 9 inverters parallel operation, max expand total system power to 108kW, ideal for large villas, multi-family houses & small commercial solar projects.
2. Dual MPPT Trackers, Wide PV Voltage Range 60–480V DC
Max PV open circuit voltage up to 550V, compatible with mainstream high-power solar panels; two independent MPPT channels for flexible rooftop panel layout, higher solar energy harvesting efficiency.

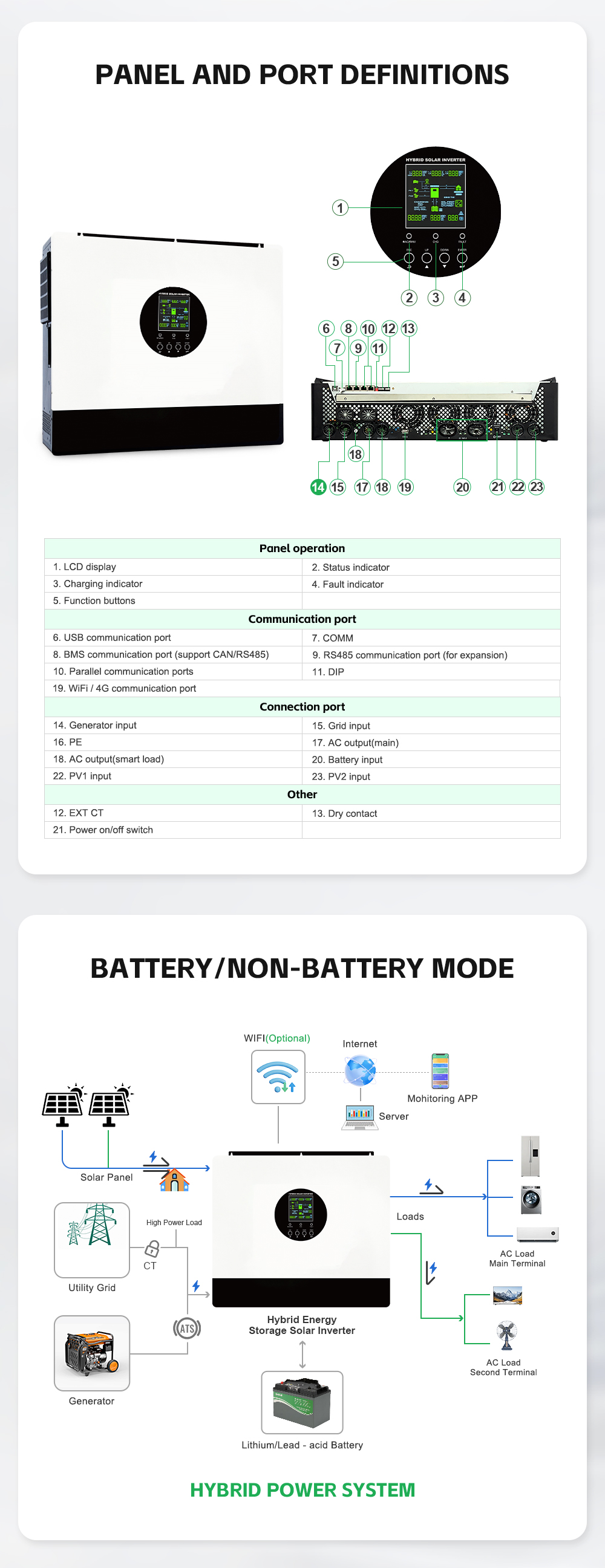

3. Dual AC Input Terminals with Built-in Transfer Switch
Dual AC access for utility grid + diesel generator automatically switch; stable power supply even during grid blackout, no extra ATS box needed, save installation cost.
4. Grid-Tied Peak Shaving + Off-Grid Emergency Backup Dual Mode
Grid-tied mode: Sell excess solar power to grid, reduce electricity bills via peak load shifting
Backup off-grid mode: Instant power supply for household critical loads within <20ms single unit / <30ms parallel units when grid fails
5. 48V Lithium Battery Compatible, High Charge/Discharge Efficiency 96%
Optimized for 48V lithium iron phosphate battery pack, stable bidirectional charging & discharging, perfect match with household energy storage battery system.
6. Dual AC Output for Smart Load Management
Separate output circuits for essential loads & non-critical loads, intelligent power distribution to avoid overload, maximize self-consumption of solar energy.
7. Smart WiFi/W4G Remote Monitoring
Built-in WiFi module, support mobile APP real-time data viewing: PV generation, battery SOC, grid power, household load consumption; remote parameter adjustment & fault alert.
8. Compact & Durable Industrial Design
IP20 protection grade, low noise <75dB, light weight 21.5kg only, wall-mounted installation; wide working temperature, stable operation all year round.
1. Whole-House Energy Storage for Villas
Match with solar panels & 48V lithium batteries to achieve self-sufficient power, store extra solar energy for night use and slash monthly power bills.
2. Standalone Power for Off-Grid Rural Houses & Remote Cabins
Operate fully off-grid without municipal electricity; add a backup generator for round-the-clock stable power.
3. Instant Emergency Backup Against Blackouts
Auto-switch to battery power the moment grid fails, keeping fridges, lights, water pumps and security cameras running without cut-off.
4. Parallel Expandable System for Shops & Multi-Family Buildings
Connect up to 9 units in parallel for a total 108kW output, ideal for small retail shops, apartments and farm solar storage solutions.
5. Peak Shaving to Save Commercial Electricity Costs
Charge batteries with daytime solar power and discharge at high-price peak hours to reduce expensive peak demand charges.
Q1: Can I get some samples for test?
A: Yes, sample order is available for quality check and market test .
Q2: Do you accept OEM/ODM ?
A:Yes, we accept OEM/ODM with your authorization.
Q3: What is your typical delivery timeline?
A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.
Q4: What is the standard of package?
A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.
Q5: What’s your payment terms?
A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.
Q6: What’s your warranty time?
A: We offer 12 months warranty service, life time technique support.
Q7: How does your factory implement quality control?
A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.
Q8: How can I trust your company?
A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.
The MINVON SOL IA-D2 Hybrid Solar Inverter combines reliable on-grid operation and off-grid emergency backup. Featuring dual MPPT trackers and a wide 550V maximum DC PV input voltage, it enables parallel expansion of up to 9 units to reach a total system capacity of 108kW. Dual AC input terminals accommodate both municipal grid power and backup generators, making it the ideal energy core for villa residential solar battery storage setups. Certified with CE and ISO, it comes with built-in WiFi for convenient real-time monitoring through mobile APP.
