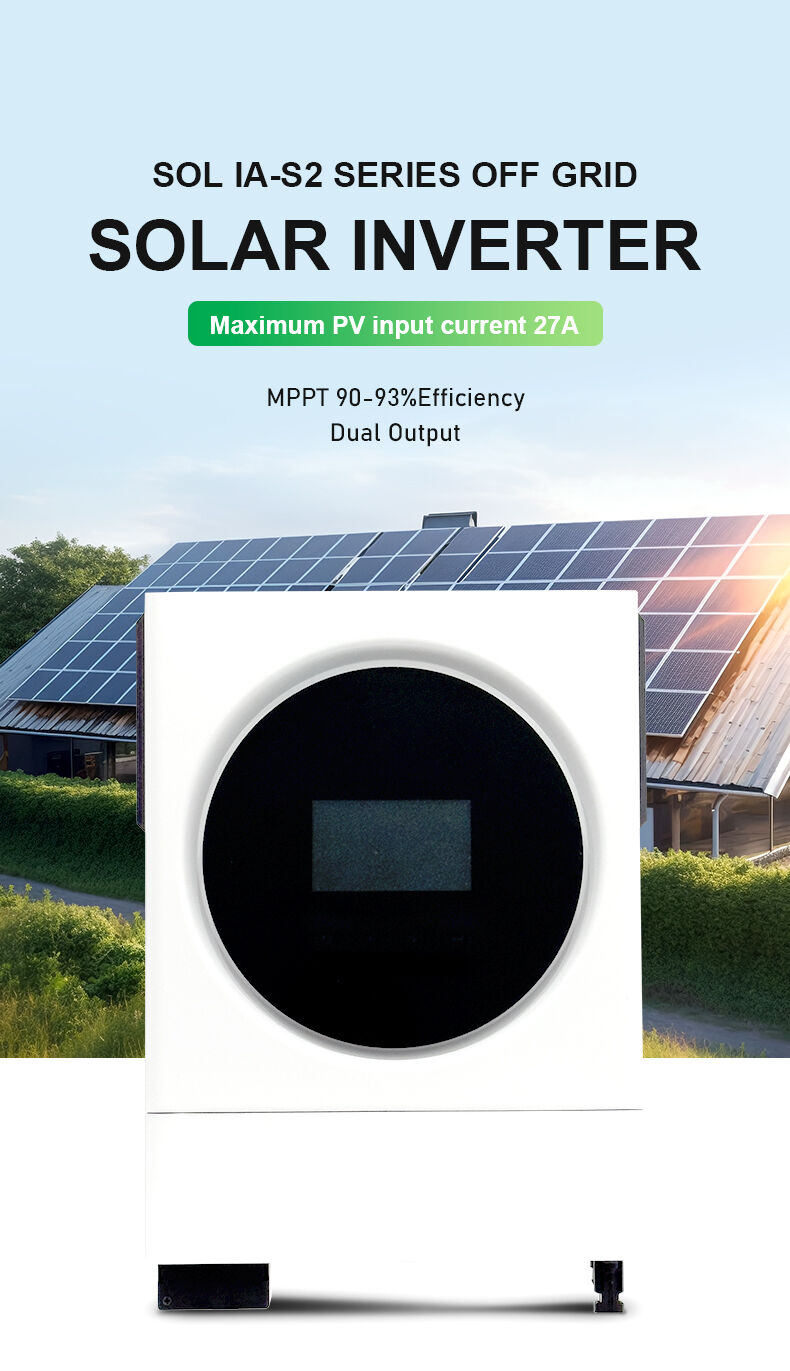

MINVON Smart Load Management 6kW Off-Grid Solar Inverter with 4.3” Color Touch Screen 48V 120A Charger

The SOL IA-S2 is a high-performance off-grid solar inverter designed for households seeking energy independence and reduced electricity costs. Available in 4kW and 6kW models, it provides reliable power for all household appliances during daily use a...

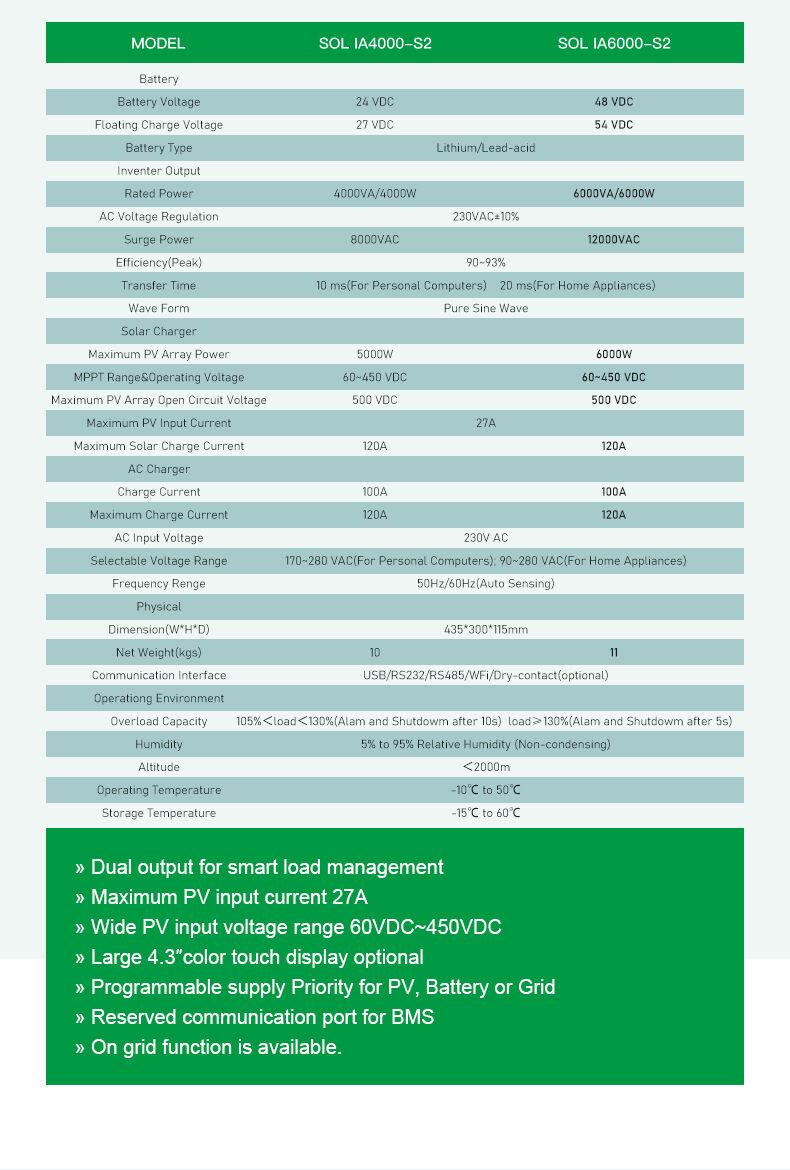

MODEL

SOL IA4000-S2

SOL IA6000-S2

Battery Data

Battery Voltage

24 VDC

48 VDC

Battery Type

Lithium/ Lead-acid

Inverter Output

Rated Power

4000W

6000W

AC Voltage Regulation (Batt.Mode)

Surge Power

8000VAC

12000VAC

Efficiency(Line Mode)

>93%

Output Current

17.4A

26.1A

Transfer Time

10ms typical, 20ms Max

Wave Form

Pure Sine Wave

Solar Charger

Maximum PV Array Power

5000W

6000W

MPPT Range & Operating Voltage

60~450 VDC

Maximum PV Array Open Circuit Voltage

500 VDC

Maximum PV Input Current

27A

Maximum Solar Charge Current

120A

AC Charger

Maximum Charge Current

100A

AC Input Voltage

230V AC

Selectable Voltage Range

170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)

Frequency Range

50Hz/60Hz (Auto Sensing)

Physical

Dimension (W*H*D)

435*300*115MM

Net Weight (kgs)

10

11

Communication Interface

USB / RS232 / RS485 / WIFI / Dry-contact

Operating Environment

Overload Capacity

105%<load<130%(Alarm and Shutdown after 10s)
load≥130%(Alarm and Shutdown after 5s)

Humidity

5% to 95% Relative Humidity (Non-condensing)

Altitude

<2000m

Operating Temperature

-10℃ to 50℃


Ideal for:

Building long-term independent photovoltaic systems

Emergency power backup during grid outages

Reducing reliance on grid electricity and lowering energy costs


The SOL IA-S2 offers a balance of performance, flexibility, and affordability, making it an optimal choice for households transitioning to off-grid or hybrid energy solutions.


Dual output for smart load management

Maximum PV input current 27A

Wide PV input voltage range 60VDC-450VDC

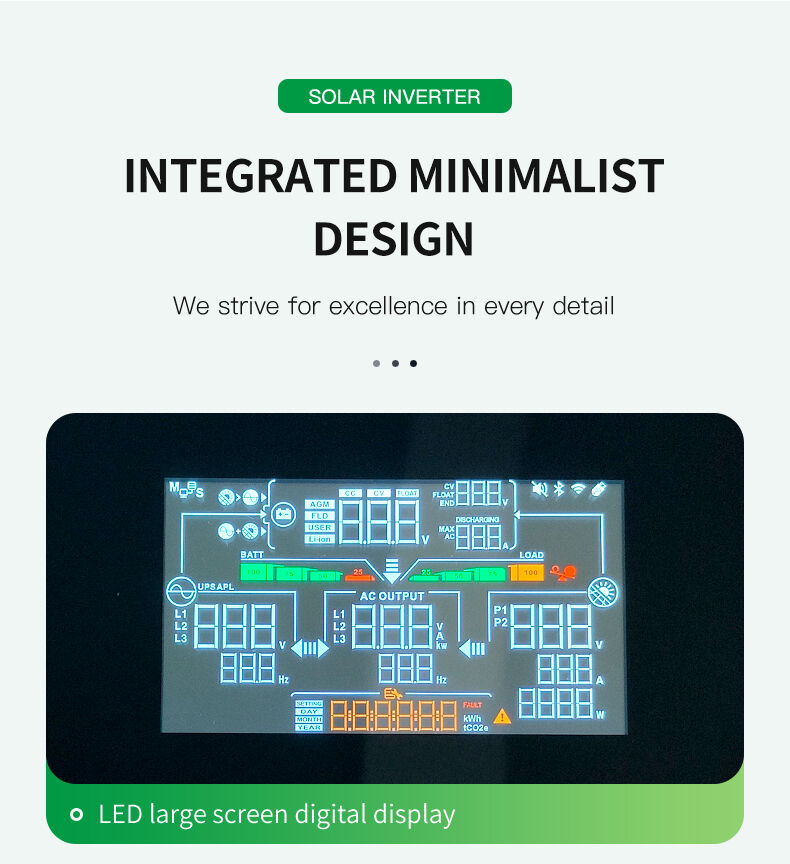

Large 4.3” color touch display

Programmable supply priority for PV, battery or Grid

Reserved communication port for BMS

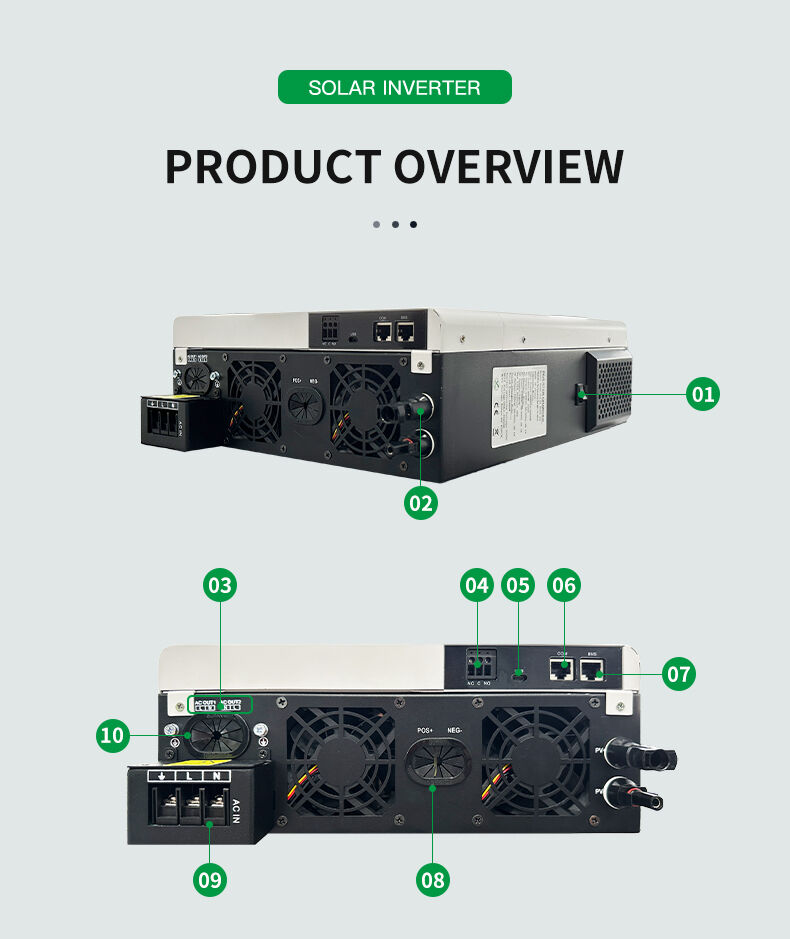

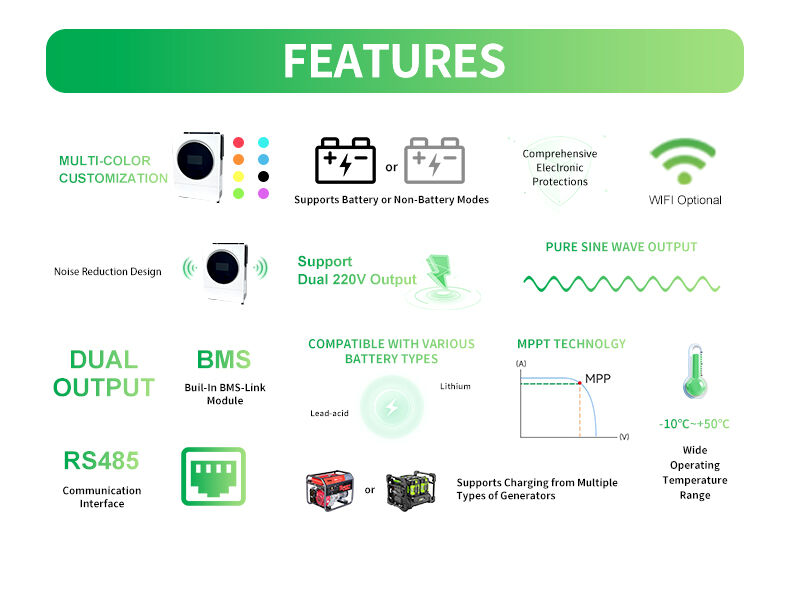

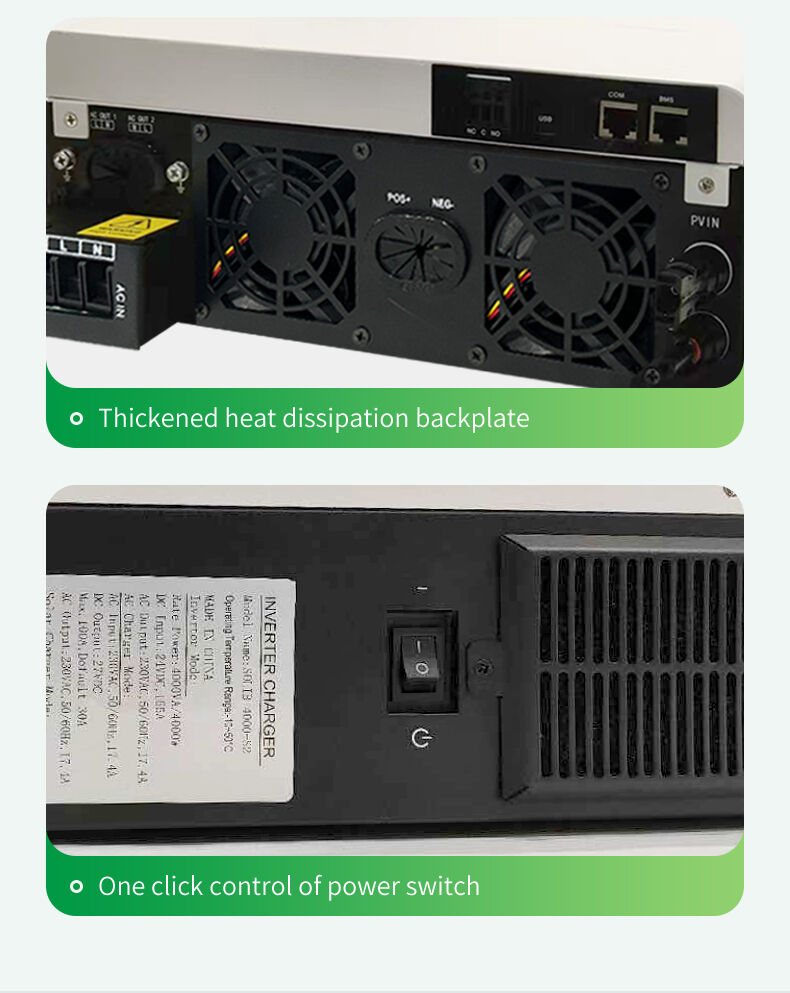

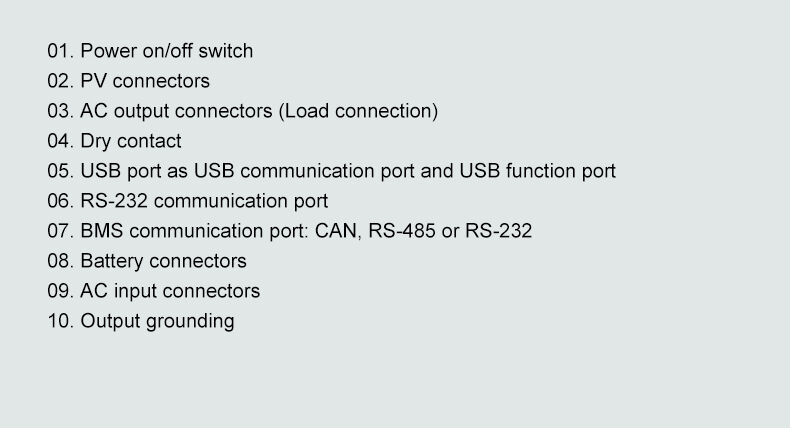

Customized status LED ring with RGB lightS2详情---修改用_02.jpgS2详情---修改用_08.jpgS2详情---修改用_09.jpg


Q1: Can I get some samples for test?

A: Yes, sample order is available for quality check and market test .

Q2: Do you accept OEM/ODM ?

A:Yes, we accept OEM/ODM with your authorization.

Q3: What is your typical delivery timeline?

A: For standard off-the-shelf products, we offer a delivery window of 5-10 business days from order confirmation. For bulk orders or customized OEM/ODM projects, delivery schedules are determined based on production capacity and customization requirements. Our sales team will provide a detailed timeline after evaluating your specific needs.

Q4: What is the standard of package?

A: We have our own design carton with five layers corrugated material; if you have any other special requirement of package, we also support customized service.

Q5: What’s your payment terms?

A: We accept T/T, L/C, WEST UNION, ALI TRADE ASSURANCE, cash.

Q6: What’s your warranty time?

A: We offer 12 months warranty service, life time technique support.

Q7: How does your factory implement quality control?

A: Quality is the cornerstone of our brand. We operate a dedicated quality assurance department that oversees every stage of production, from component sourcing to final delivery. Each product undergoes a minimum of seven rigorous quality inspection protocols before shipment, ensuring compliance with international standards and customer specifications.

Q8: How can I trust your company?

A: With over 20 years of specialized experience in inverter manufacturing, Minvon has established a robust quality management system certified to ISO 9001, ISO 14001, and ISO 45001 standards. Our products also hold CE, CCC, and RoHS certifications, ensuring compliance with international regulatory requirements. We can provide third-party assessment reports and factory audit documentation upon request to demonstrate our commitment to transparency and reliability.


Introduction

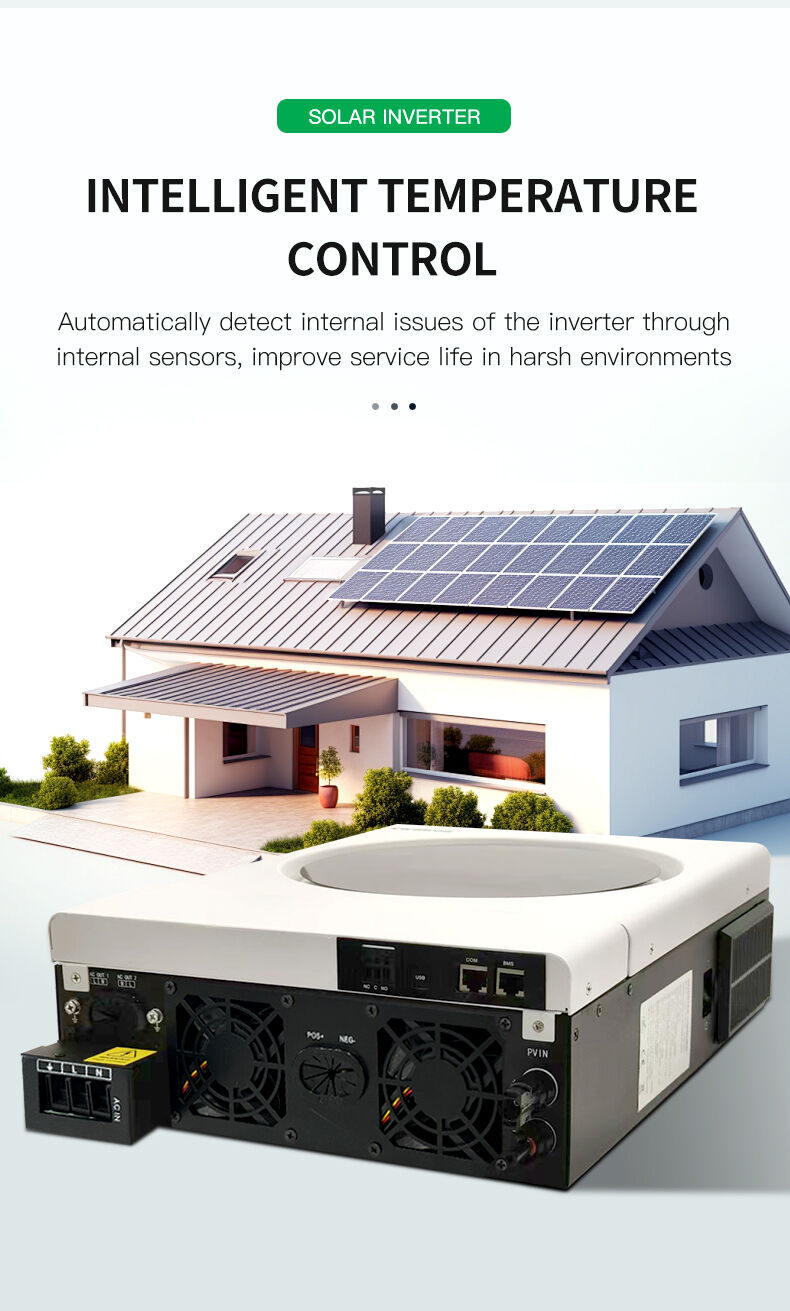

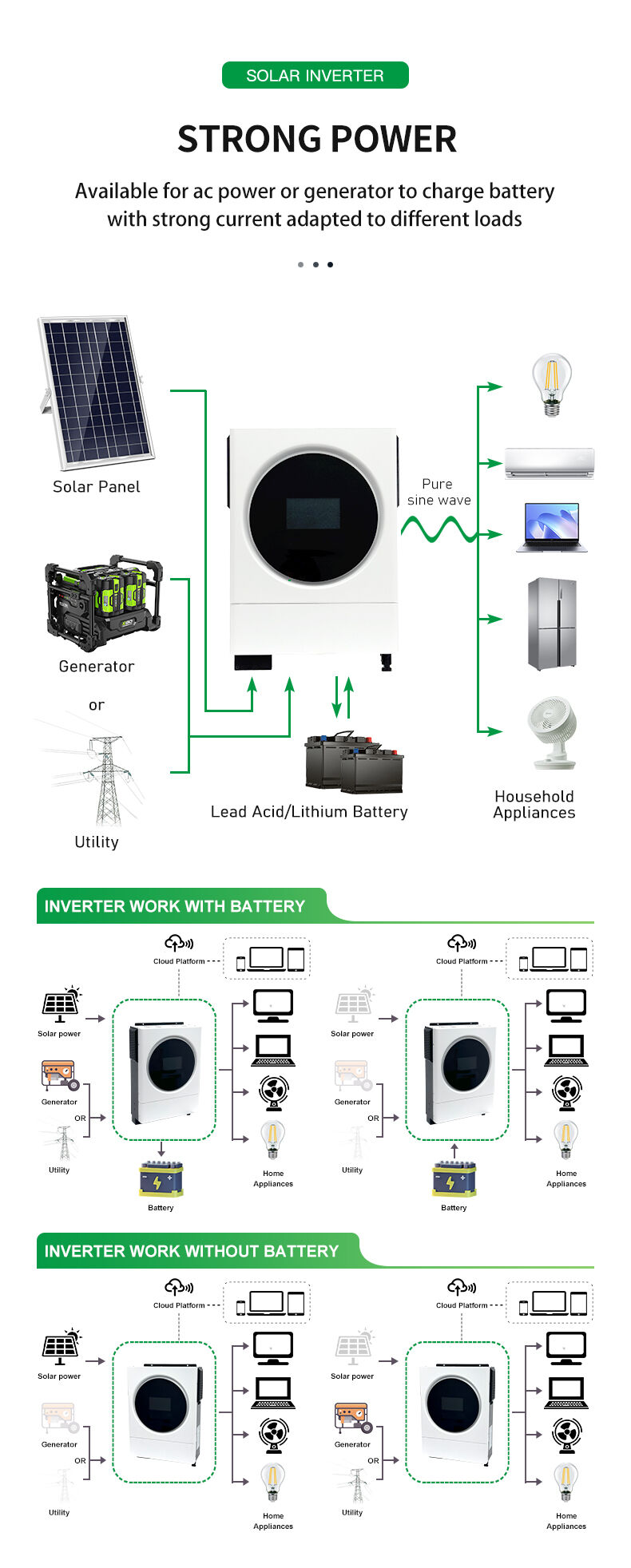

The SOL IA-S2 is a high-performance off-grid solar inverter designed for households seeking energy independence and reduced electricity costs. Available in 4kW and 6kW models, it provides reliable power for all household appliances during daily use and grid outages. S2详情---修改用_04.jpgS2详情---修改用_10.jpgS2详情---修改用_06.jpgS2详情---修改用_07.jpgS2详情---修改用_12.jpg
