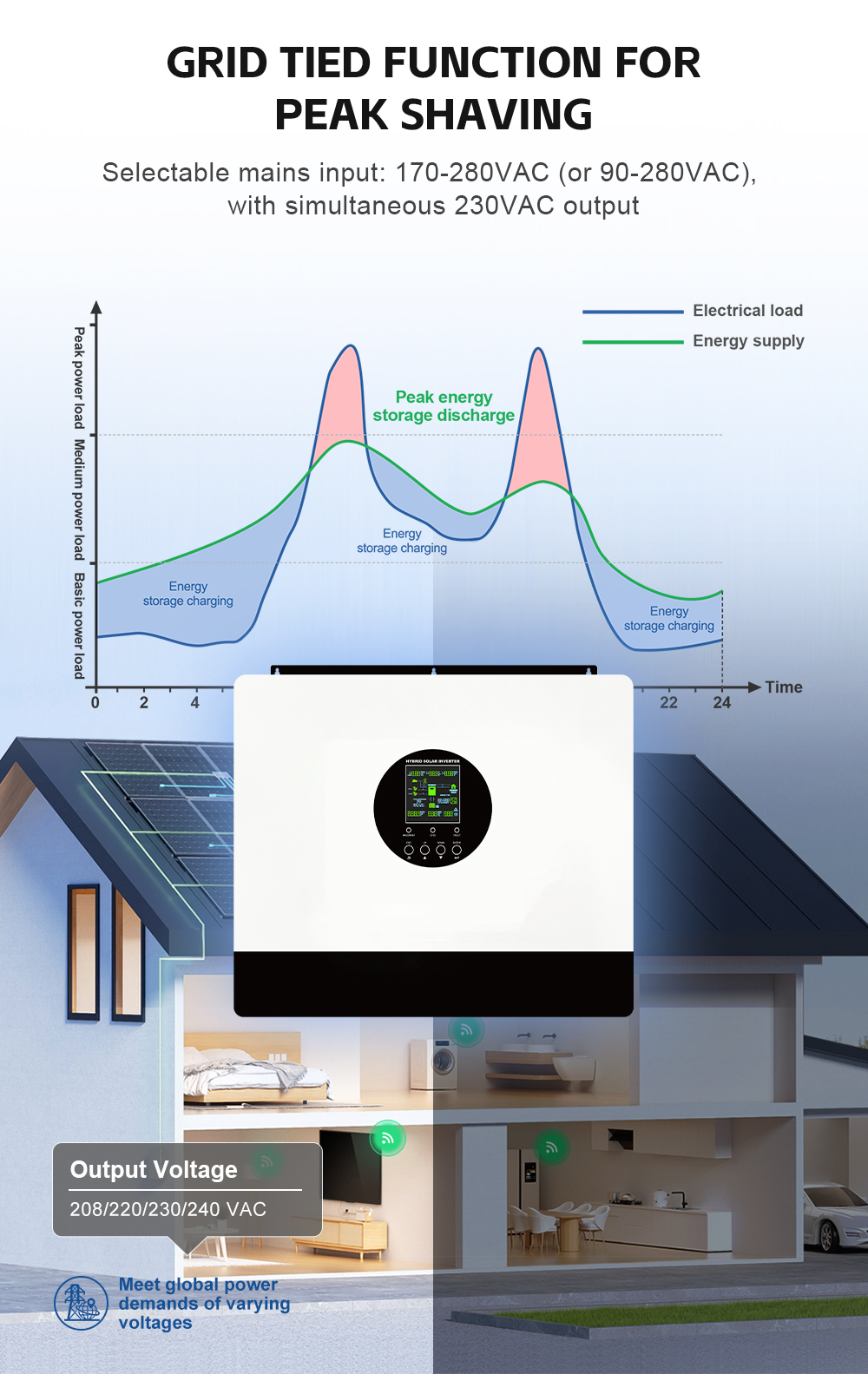

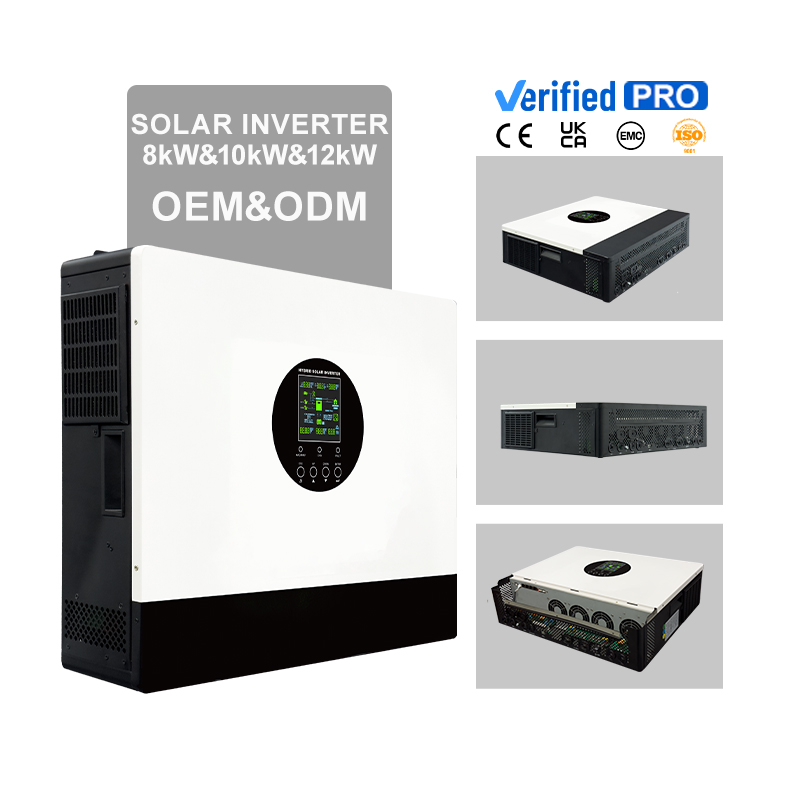

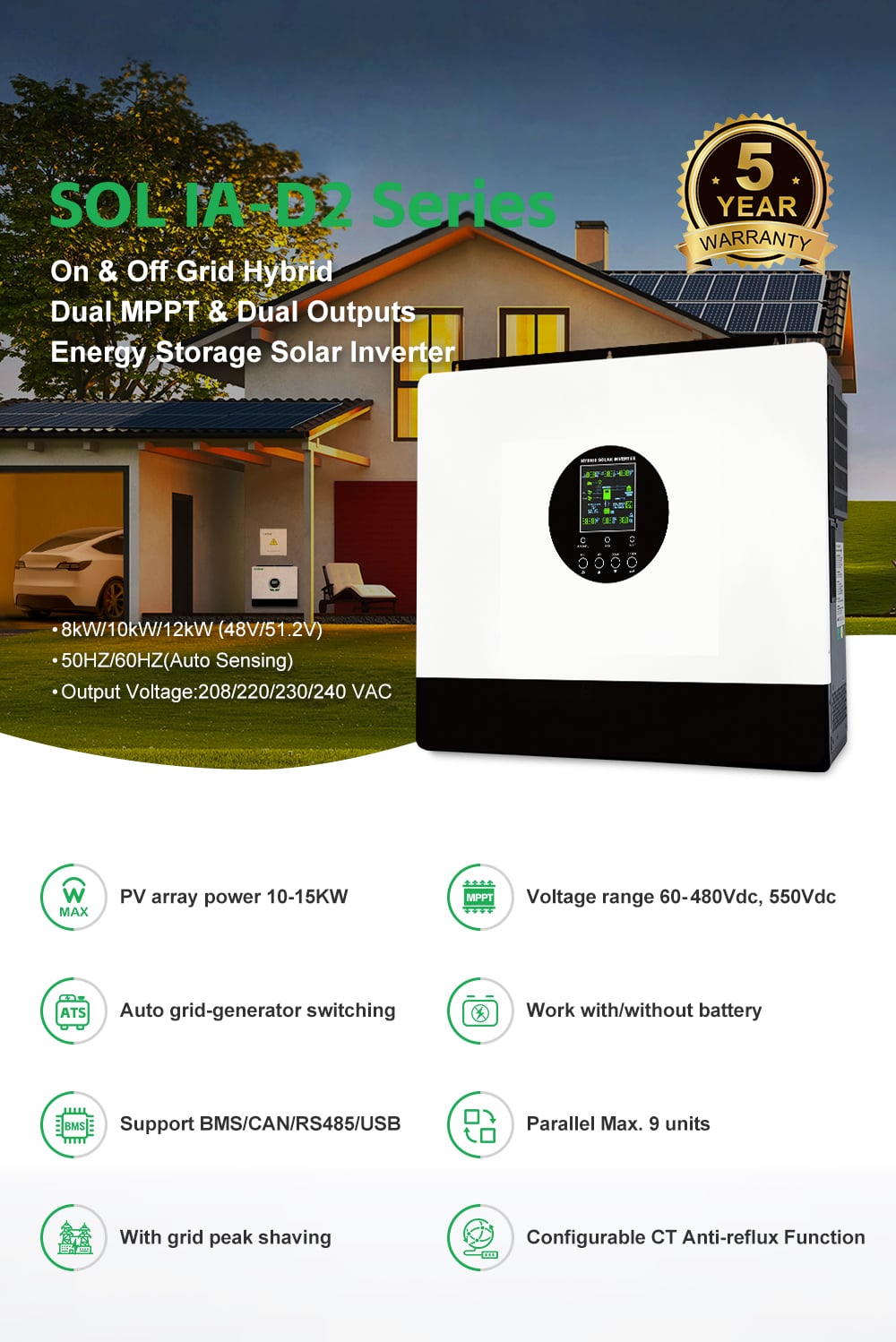

8000W-12000W Hybrid Solar Inverter 48V Dual MPPT, Grid-Tie/Off-Grid with Peak Shaving Function

Top Choice for High-Power Home Solar Storage: 8/10/12kW Hybrid Inverter, Peak Shaving & Off-Grid Backup Dual Mode

1. Off-Grid Homes & ResidencesBuild a full off-grid power system for your remote house or cabin.Auto grid backup ensures stable power when sunlight is insufficient.Parallel up to 9 units to expand capacity easily.2. Home Backup & Emergency Us...

MODEL	SOL IA8000-D2	SOL IA10000-D2	SOL IA12000-D2
Input Data (DC)
Max. Recommended PV Power (for module STC)	10000W	12500W	15000W
Max. DC Voltage	550V
Start Voltage	120V
MPPT Voltage Range	60V-480V
No. of MPP Trackers	2
No. of PV Strings per MPP Tracker	1
Max. Input Current per MPP Tracker	27A
Output Data (AC)
AC Nominal Power	8000W	12000W	10000W
Max. AC Apparent Power	8000VA	12000VA	10000VA
Nominal AC Voltage	230V
AC Grid Frequency	50/60Hz
Efficiency(Line Mode)	96.50%
Output Current	34.8A	43.5A	52.2A
Battery Data (DC)
Nominal DC Voltage		48V
Max Charging And Discharging Current	190A/200A	220A/240A	250A/280A
Efficiency (Peak)	95%
Type of Battery	Lithium/Lead-acid
Backup Power (AC)
AC nominal Output Power	8000W	10000W	12000W
Nominal AC Output Voltage	230V
Nominal AC Output Frequency	50/60Hz
Switch Time	<20ms@Single <30ms@Parallel
General Data
Dimensions (W/H/D)	550465150mm
Weight	21.5kg
Noise Emission(typical)	<75dB
Self-consumption	<75W
Protection Degree	IP20
Communication	WiFi/4G

12000 d2 high efficiency 965 hybrid inverter with smart load management-0

The MINVON SOL IA-S4 series is a high-performance off-grid solar inverter designed for residential and small commercial solar systems, with 3500W and 5000W rated power options.

✅ Core Technical Advantages:

Pure sine wave 230VAC output with surge power up to 10000W, compatible with all household appliances and sensitive electronics
Built-in high-efficiency MPPT solar charger (4500W/6000W) with a wide PV input range (120-450VDC) and max open circuit voltage up to 500VDC, maximizing solar energy harvesting
Supports PV and grid joint power supply: when solar energy is insufficient, the grid automatically supplements the load power to ensure stable operation
Flexible charge and discharge time scheduling, allowing you to customize operation modes based on your usage habits and electricity prices
Supports up to 9 units in parallel for a total system capacity of 45kW, ideal for expanding large-scale off-grid or backup power systems
Work with or without battery, providing flexible solutions for different application scenarios
Configurable grid or solar input priority, meeting diverse system operation requirements

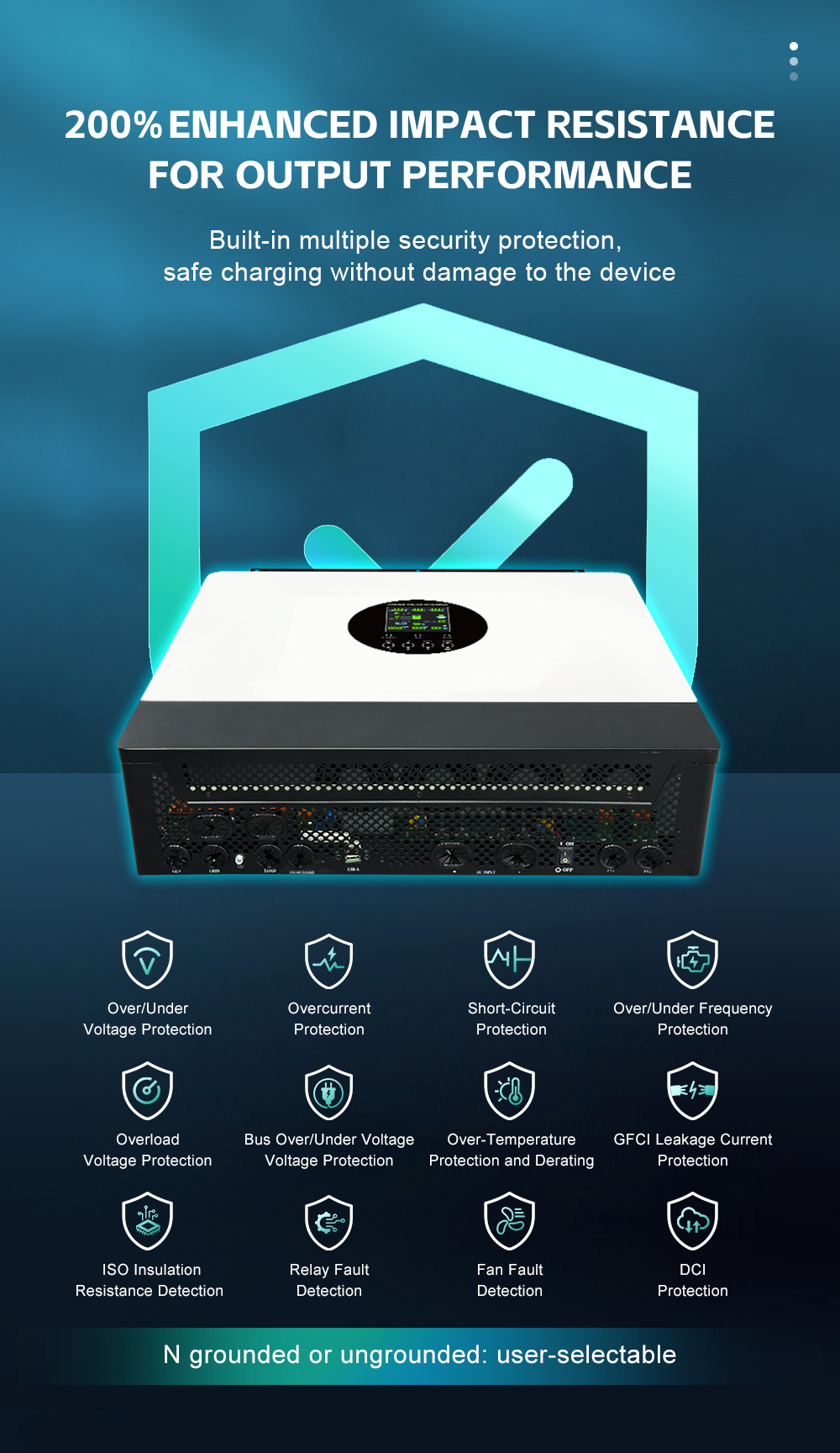

Compatible with both lead-acid and lithium batteries, with comprehensive safety protection features Perfect for off-grid homes, remote cabins, backup power systems and small commercial applications, the SOL IA-S4 series provides stable, efficient and intelligent power conversion for your solar energy needs.

12000 d2 high efficiency 965 hybrid inverter with smart load management-1

1. Off-Grid Living

Build a fully independent power system for your remote home, cottage and rural properties.
Auto grid complement ensures continuous power supply when solar generation is low.
Connect up to 9 units in parallel to expand total capacity as your power demands grow.

2. Home Emergency & Backup

Provides stable power for lights, home appliances and daily devices during grid outages.
Flexible operation mode available, you can run the system with or without batteries.
Set custom charge and discharge schedules to make full use of solar energy and cut electricity bills.

3. Small Commercial Use

Reliable backup power prevents downtime and revenue loss for shops, cafes and offices.
Utilize stored solar power during peak hours to reduce high commercial electricity fees.
Scalable layout adapts to different business scales, ideal for workshops and small stores.

4. Smart Energy Management

Freely set priority between solar power and utility grid to maximize solar self-consumption.
Adjust working modes flexibly to optimize your overall energy utilization efficiency.
Perfectly compatible with both lead-acid and lithium batteries for diversified matching choices.
