KEY FEATURES

Support single-phase 220V, three-phase 220V and three-phase 380V water pumps.
Good usability and simple operation. Automatic startup of the photovoltaic water pump can be realized only by connecting the photovoltaic cell panel to the inverter without setting any parameters.
Multiple protection measures, such as overvoltage protection, output module failure, over-temperature, over-voltage, over-current, overload and other protection functions.
Water level control logic, avoid dry run and have full water level protection function

TECHNICAL SPECIFICATION

Specification Description	3AC 220V	3AC 380V

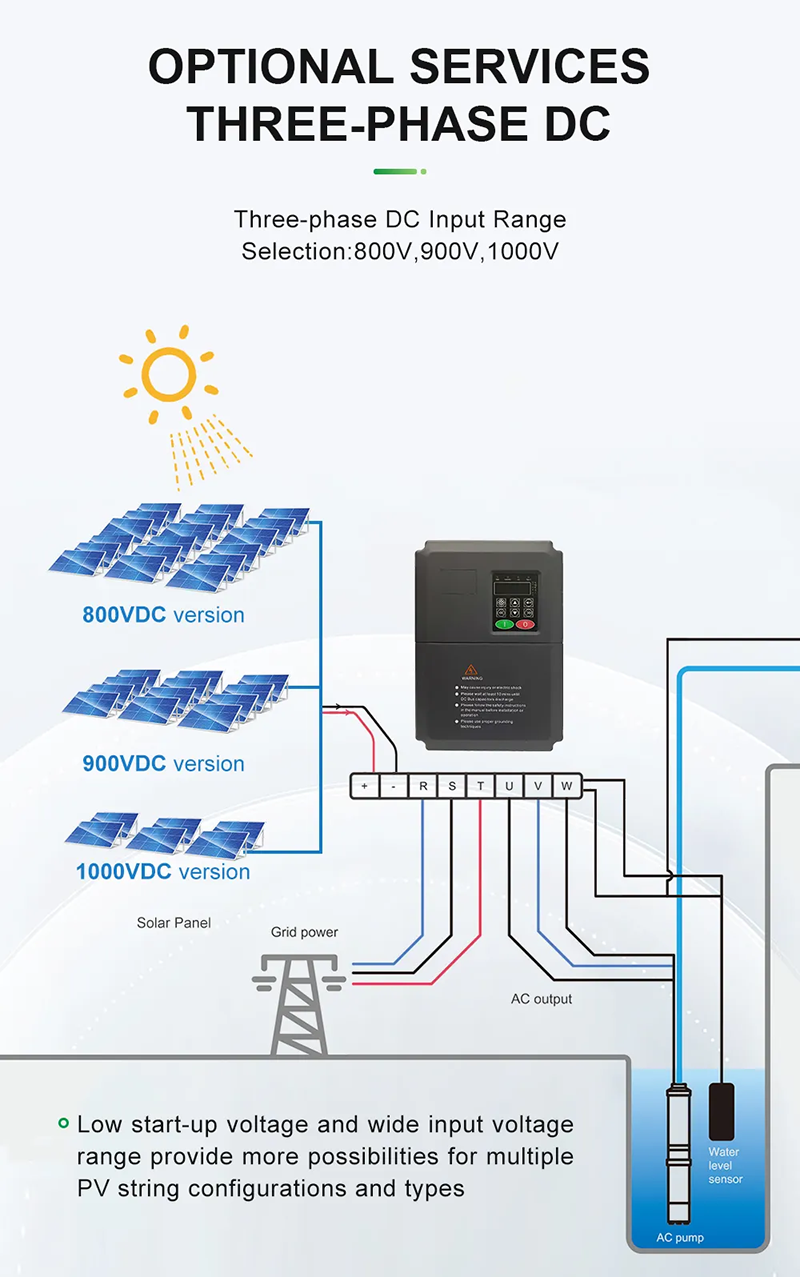

Maximum input DC voltage	410V DC	900V DC
Recommended DC input yoltage range	220-370V DC	420-720V DC
Recommended input working voltage	305V DC	540V DC
The number of Input port	1	1
Output frequency range	0-600Hz	0-600Hz

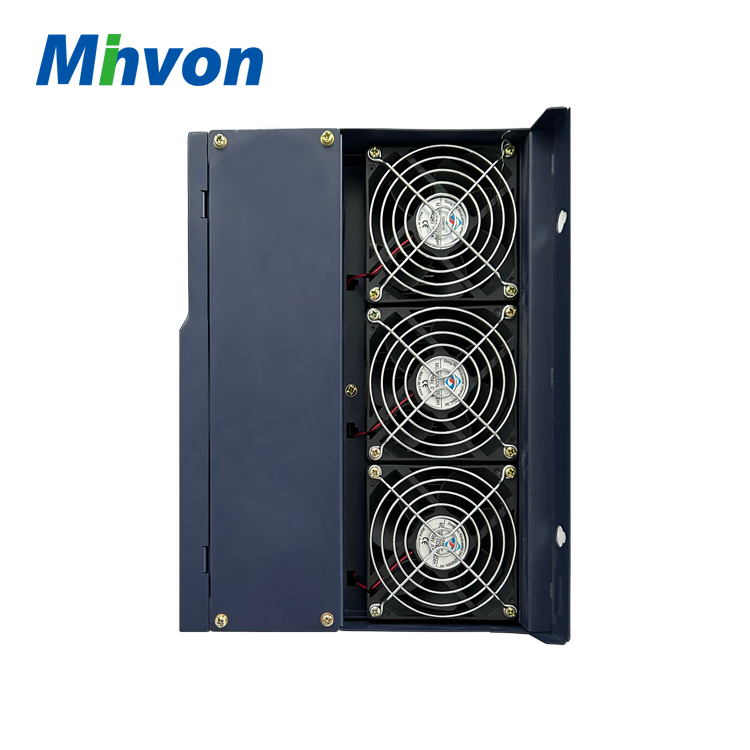

Cooling method	Air cooling	Air cooling
Standard	CE	CE

1.1 0utput 3AC 380V

Maximum input DC voltage	800VDC
Recommended DC input yoltage range	420~720VDC
Recommended input working voltage	540VDC
The number of Input port	1
Rated output voltage	3AC 380V
Output frequency range	0~600Hz
Cooling method	Air cooling
Altitude	This controller should be installed with altitude oflower than 1000m. It will be degraded when the altitude higher than 1000m. For details, rated output current should be degraded 1% for every 100m
Standard	CE

1.2 Output 3AC 220V

Maximum input DC voltage	410VDC
Recommended DC input voltage range	220-370VDC
Recommended input working voltage	305VDC
The number of Input port	1
Rated output voltage	3AC 220V
Output frequency range	0~600Hz
Cooling method	Air cooling
Altitude	This controller should be installed with altitude oflower than 1000m. It will be degraded when the altitude higher than 1000m. For details, rated output current should be degraded 1% for every 100m
Standard	CE

Model No.	Output Voltage(V)	Rated Power(kW)	Rated Input Current(A)	Rated Output Current(A)
MF200-0R7G-SS2	1PH 220	0.75	14.2	7
MF200-1R5G-SS2	1PH 220	1.5	23	10
MF200-2R2G-SS2	1PH 220	2.2	35	16
MF200-0R7G-S2	3PH 220	0.75	9.3	4.2
MF200-1R5G-S2	3PH 220	1.5	14.2	7
MF200-2R2G-S2	3PH 220	2.2	23	10
MF200-0R7G-2	3PH 220	0.75	5	4.5
MF200-1R5G-2	3PH 220	1.5	7.7	7
MF200-2R2G-2	3PH 220	2.2	11	10
MF200-004G-2	3PH 220	4	17	16
MF200-5R5G-2	3PH 220	5.5	21	20
MF200-7R5G-2	3PH 220	7.5	31	30
MF200-011G-2	3PH 380	11	43	42
MF200-015G-2	3PH 380	15	56	55
MF200-018G-2	3PH 380	18	71	70
MF200-0R7G-4	3PH 380	0.75	3.4	2.5
MF200-1R5G-4	3PH 380	1.5	5	3.7
MF200-2R2G-4	3PH 380	2.2	5.8	5
MF200-004G-4	3PH 380	4	10	9
MF200-5R5G-4	3PH 380	5.5	15	13
MF200-7R5G-4	3PH 380	7.5	20	17
MF200-011G-4	3PH 380	11	26	25
MF200-015G-4	3PH 380	15	35	32
MF200-018G-4	3PH 380	18	38	37
MF200-022G-4	3PH 380	22	46	45
MF200-030G-4	3PH 380	30	62	60
MF200-037G-4	3PH 380	37	76	75
MF200-045G-4	3PH 380	45	90	90
MF200-055G-4	3PH 380	55	105	110
MF200-075G-4	3PH 380	75	140	150
MF200-090G-4	3PH 380	90	160	176
MF200-110G-4	3PH 380	110	210	212
MF200-132G-4	3PH 380	132	240	250
Remark: For more model, please contact MINVON for more details, accept customized service
